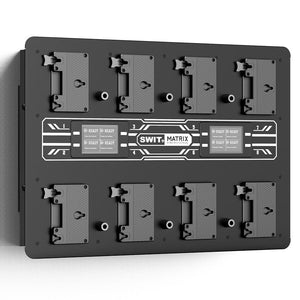

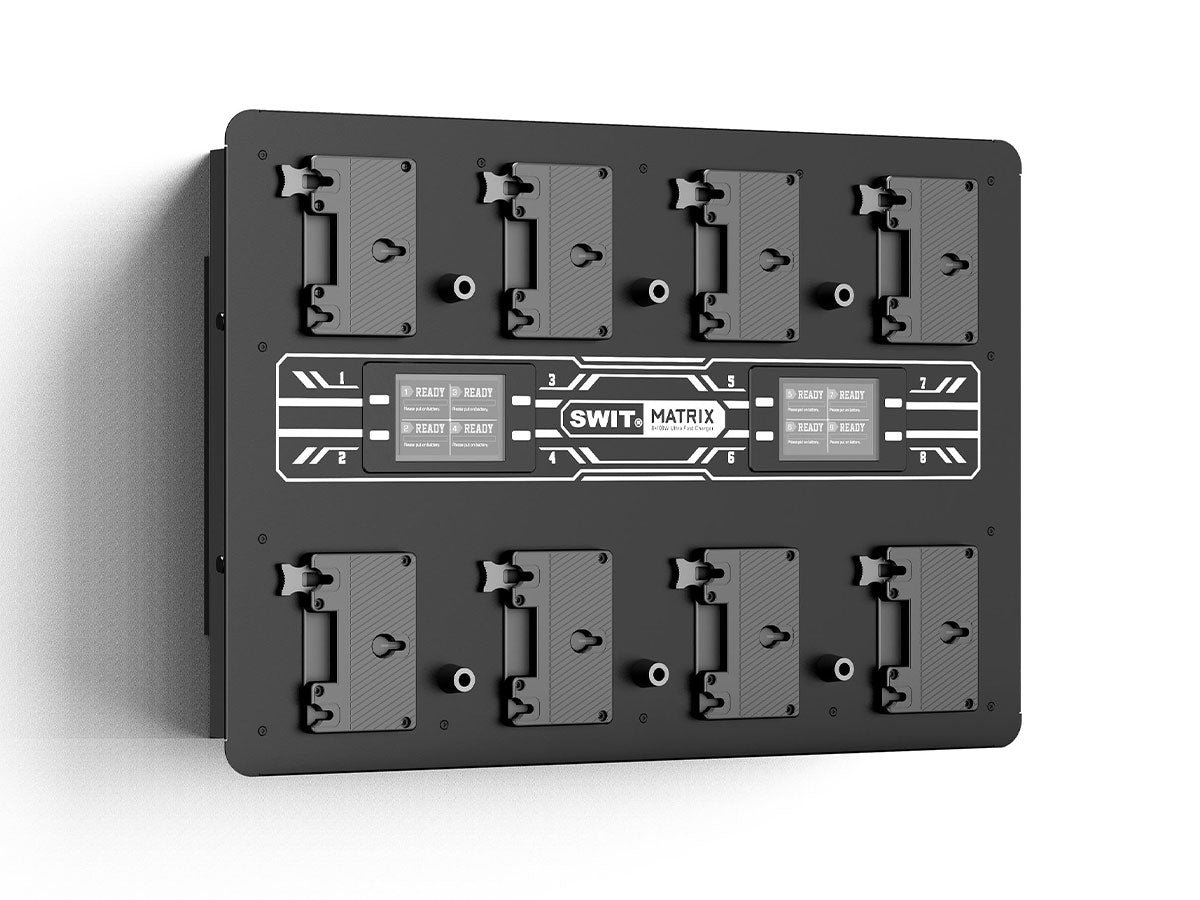

Swit MATRIX-A8 8x100W Wall Charger - Gold Mount

Swit MATRIX-A8 8x100W Wall Charger - Gold Mount

SKU: SWI-MATRIX-A8
£1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
ex VAT £1,922.00 GBP ex VAT
£2,306.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
8x100W Ultra Fast Wall Charger
MATRIX-A8 is an 8-ch simultaneous Gold Mount wall charger with 16.8V 6A 100W ultra fast charging speed each channel, which save up to 60% charging time for broadcast TV stations and cine rental house installation.
Charging Time Comparison
Battery Capacity:
160Wh
220Wh
270Wh
290Wh
420Wh
33W Normal Charger:
6h
8h 15m
10h
10h 30m
15h
50W Fast Charger:
4h
5h 45m
6h 45m
7h 15m
10h 10m
MATRIX 100W Ultra Fast Charger
2h 15m
3h 20m
3h 40m
3h 50m
5h 20m

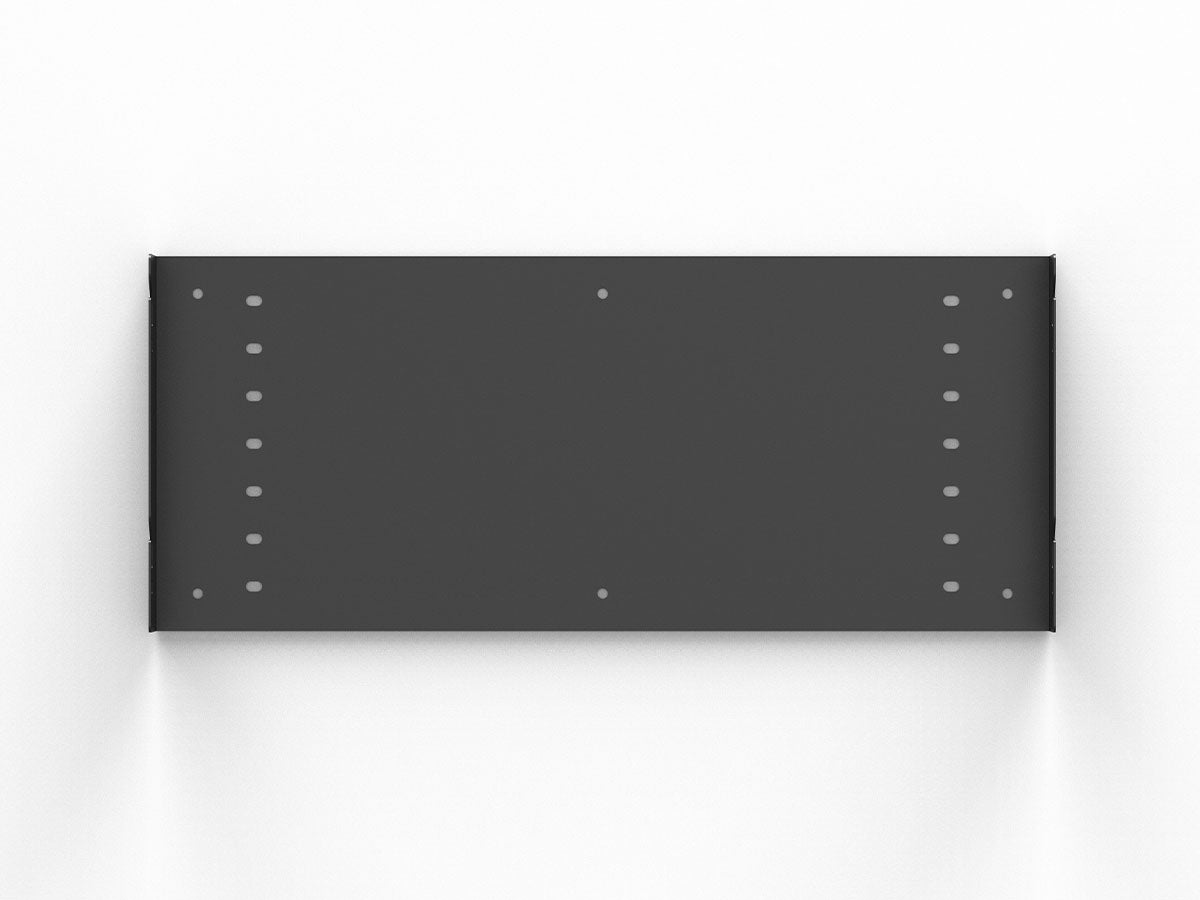

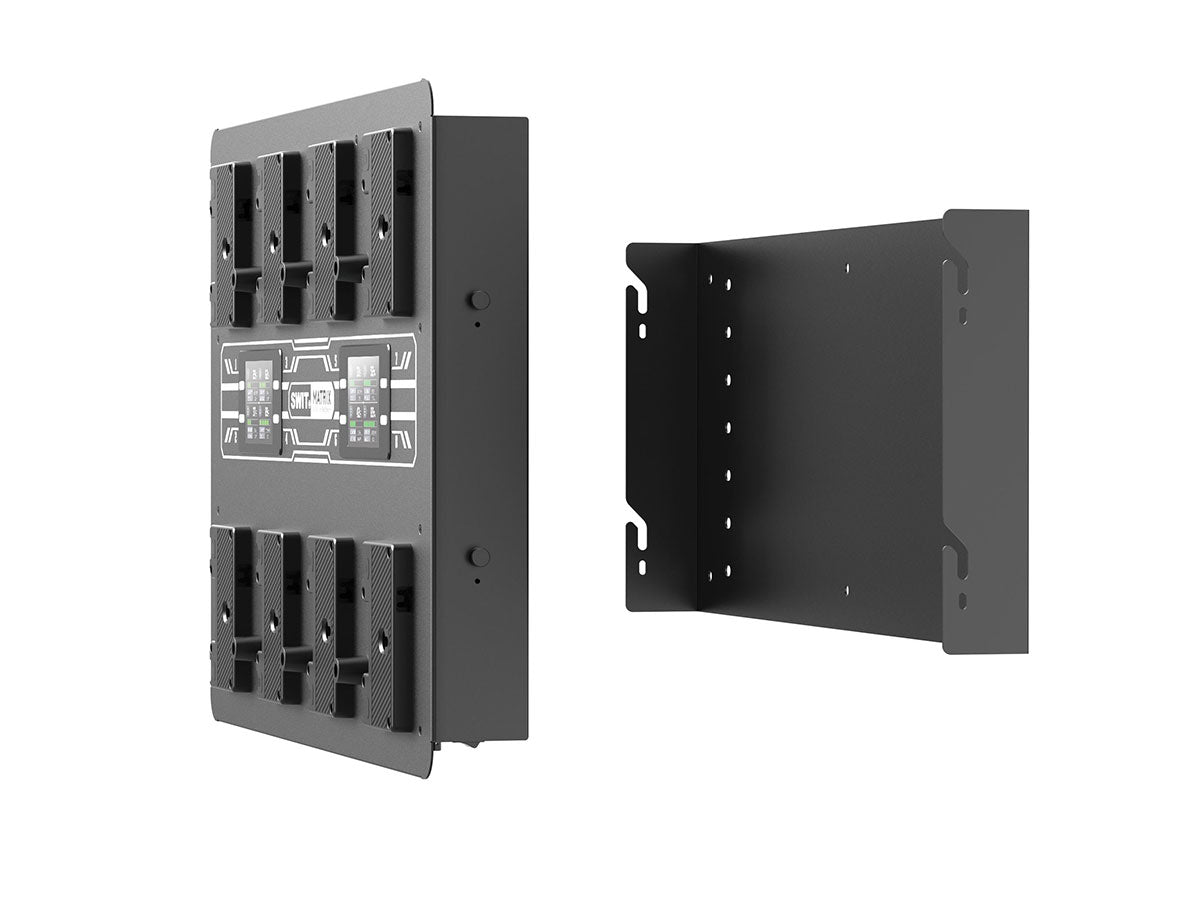

Flexible Wall Mounting Plate
MATRIX-A8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.

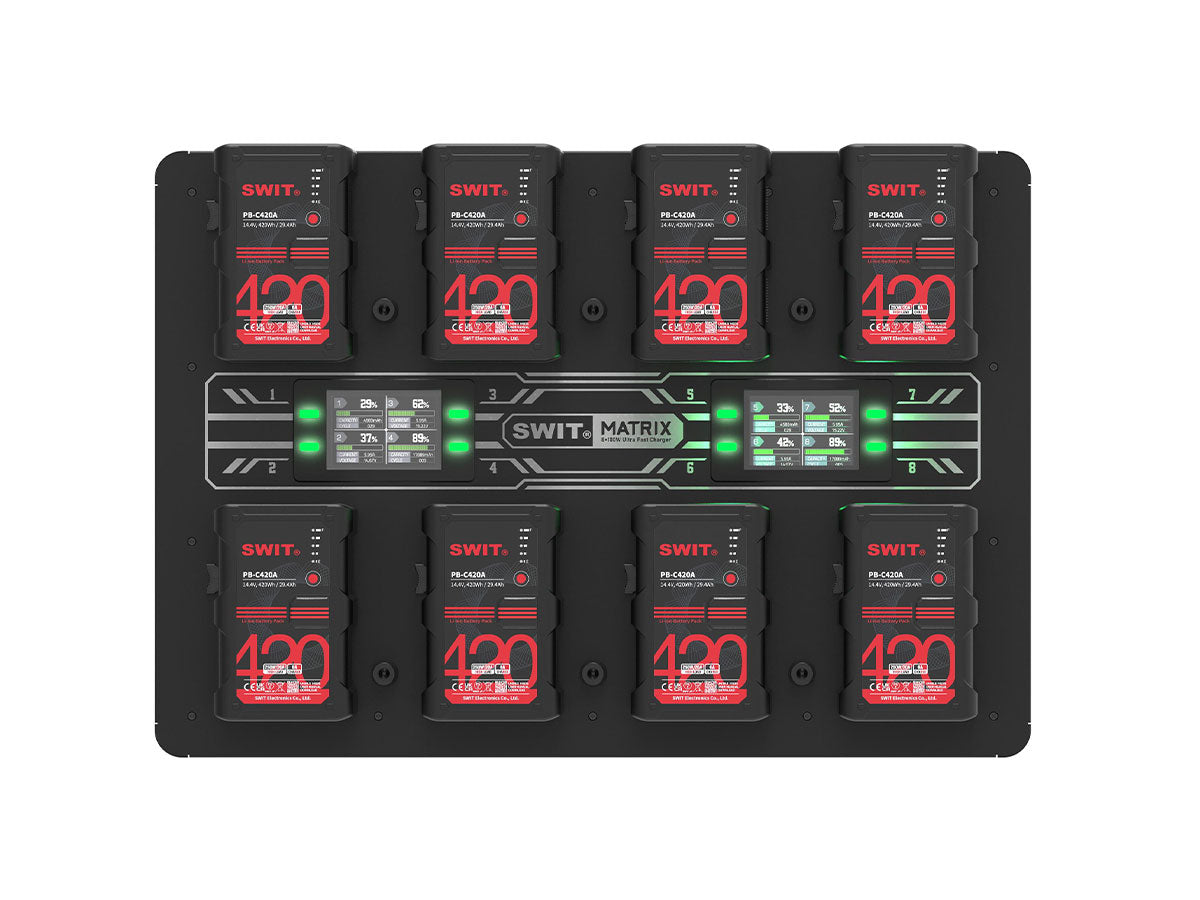

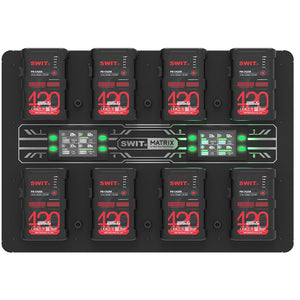

3.5-inch Color LCD and Indicators
MATRIX-A8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.
You can also check the charging status by large charging indicators from a distance.
  • 8-ch simultaneous Gold mount fast charging
  • DC16.8V, 6A, 100W for ≥160Wh batteries
  • DC16.8V, 3A, 50W for <160Wh batteries
  • 2× 3.5-inch color LCD info display
  • Battery cycle times display
  • Large LED charging indicators
  • Wall mounting or 19-inch rack install
Power:
Max 900W
Input:
AC100V-240V 50/60Hz
Output:
DC 16.8V, 6A 100Wx8 (SWIT ≥160Wh batteries)
DC 16.8V, 3A 50W×8 (Other batteries)
Applicable Battery:
Gold Mount battery
Dimensions:
630 x 436 x 89mm
Net Weight:
Net 10.6kg
