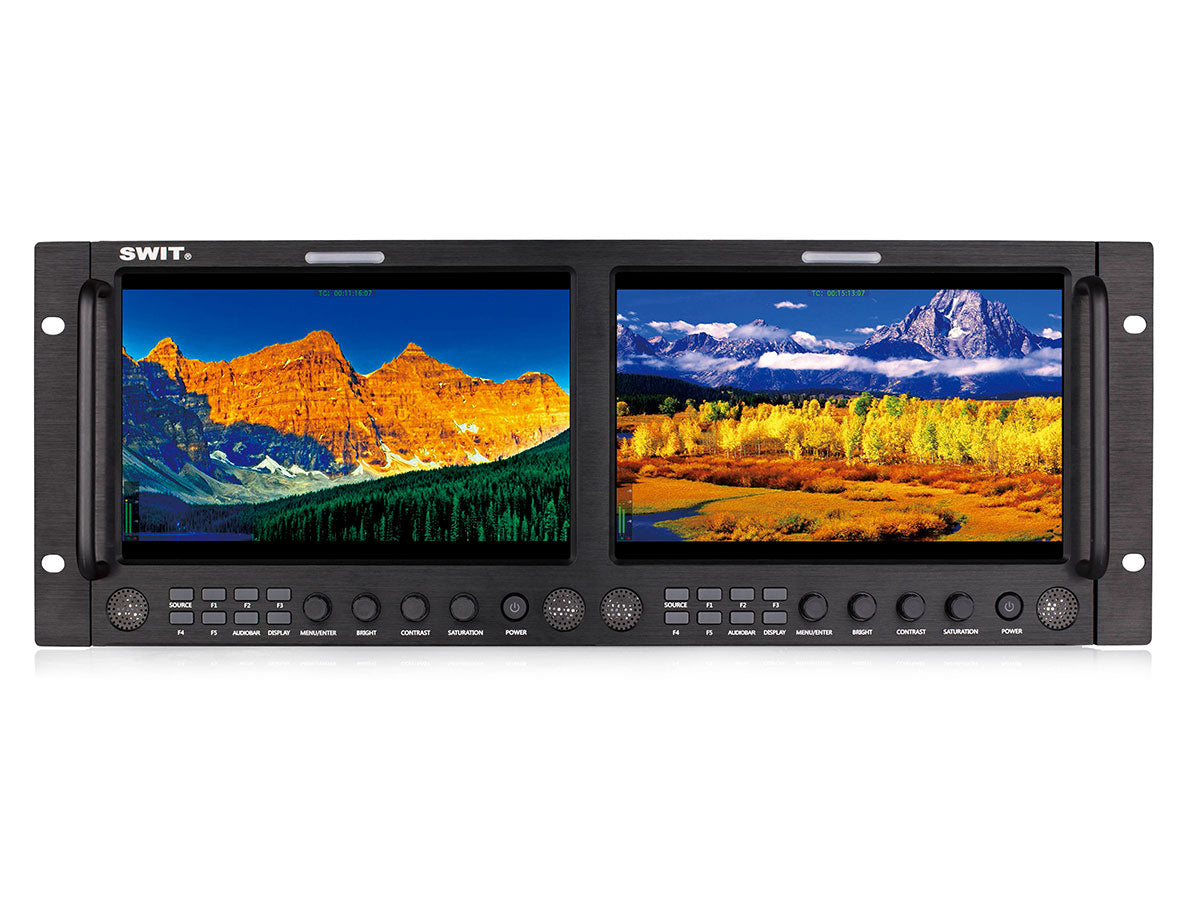

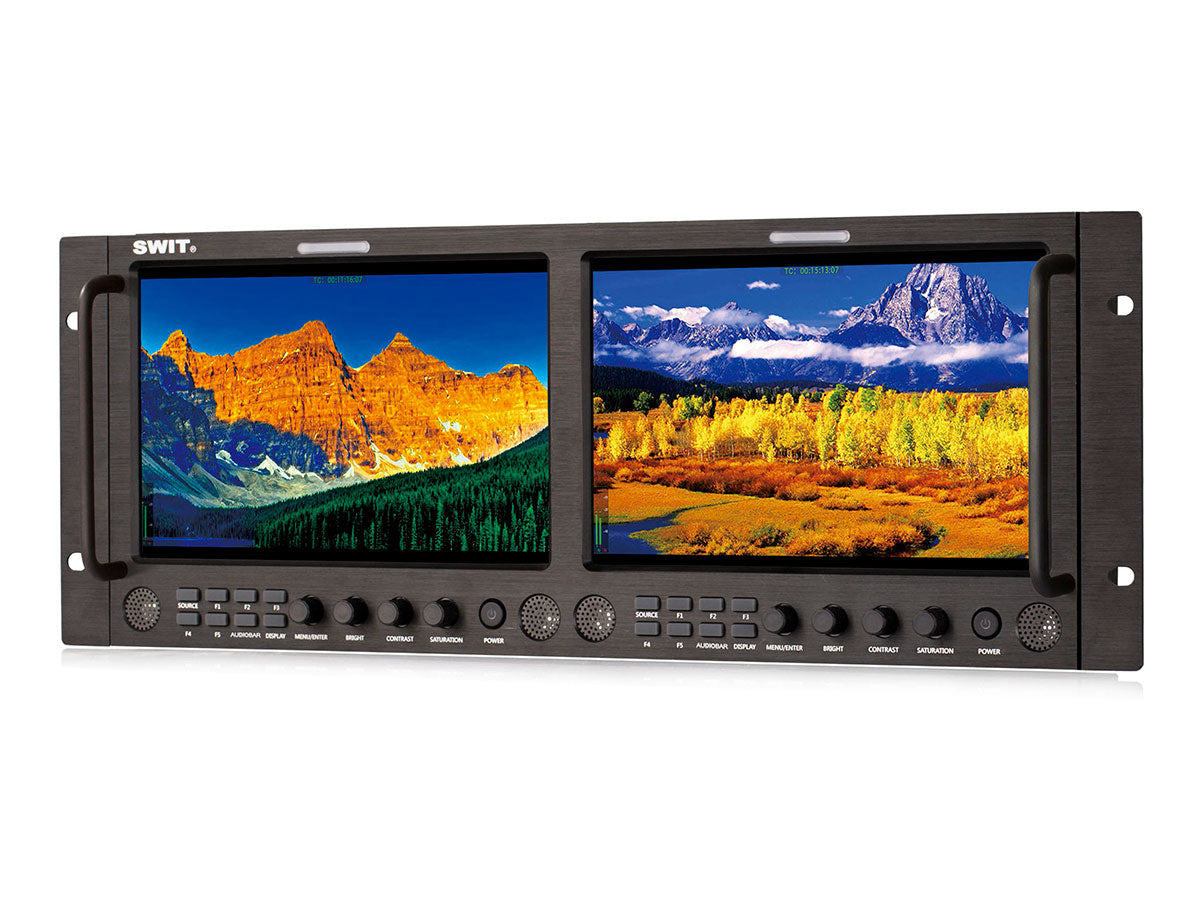

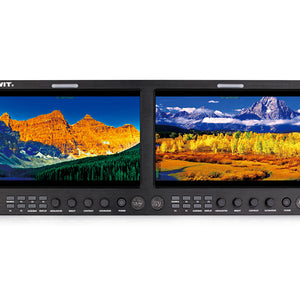

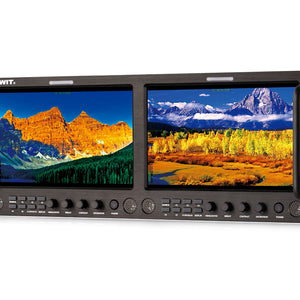

Swit M-1093H Dual 9-inch FHD Rack LCD Monitor

Swit M-1093H Dual 9-inch FHD Rack LCD Monitor

SKU: SWI-M-1093H
£1,376.00 GBP ex VAT
£1,651.20 GBP inc VAT
ex VAT £1,376.00 GBP ex VAT
£1,651.20 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
9-inch IPS LCD - IPS panel with LED backlight
The M-1093H adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

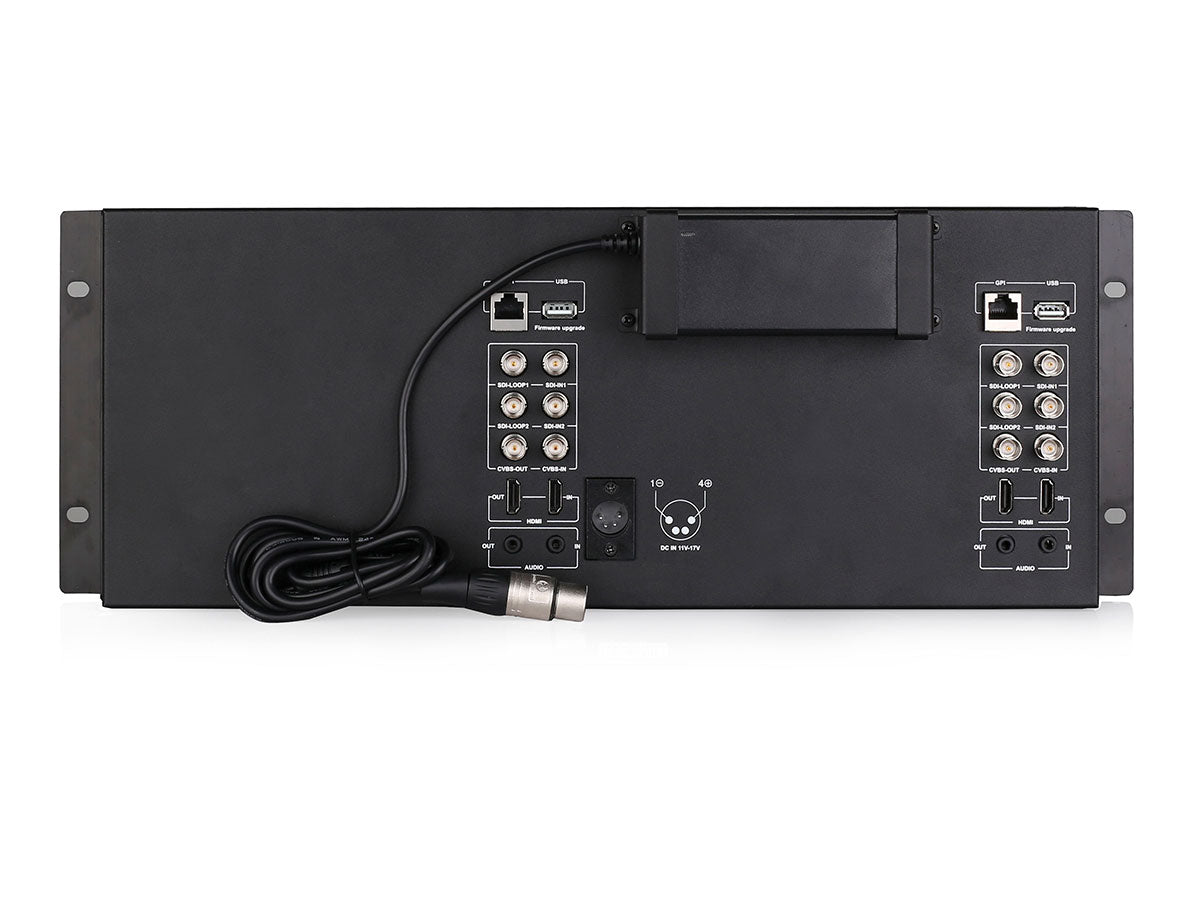

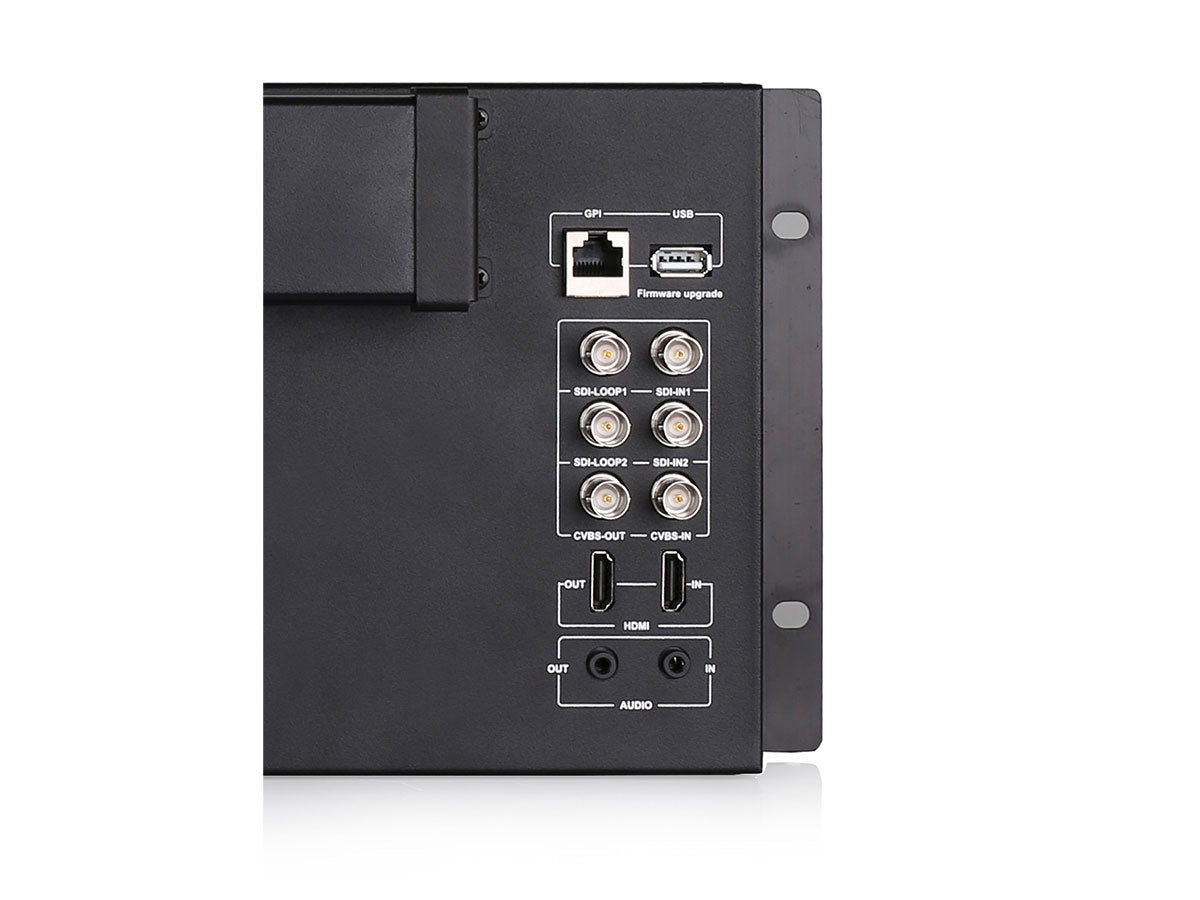

Input/Output Interfaces - SDI / HDMI / CVBS / Analog Audio
Each LCD of M-1093F supports:
  • 2K/3G/HD/SD-SDI input × 2
  • 2K/3G/HD/SD-SDI loop output × 2
  • HDMI 1.3 input × 1
  • HDMI 1.3 loop output × 1
  • CVBS input × 1
  • CVBS loop output × 1
  • 3.5mm analog audio input × 1
  • 3.5mm analog audio output × 1
UMD and Text-Tally Display - TSL 3.1 / 4.0 Protocol
M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
Embedded Audio Monitoring - 2-ch meters with alert
M-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.
3-color TALLY Light - RJ45(RS485) input signal
There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.
Power Supply
M-1093H provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.
Installation
M-1093H is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.
  • 9-inch IPS LCD Panel ×2
  • 1920×1200 resolution, 1000:1 contrast
  • 19-inch 4U rack mounting, ±30° rotatable
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 2-ch Embedded audio meters with alert
  • AFD, H/V delay, R/G/B/Mono, False color
  • TSL UMD and text TALLY display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • TALLY light and GPI control
  • USB firmware upgrade
LCD PERFORMANCE
Size: 9 inches ×2
Display Area: 191.52×119.70mm
Resolution: 1920×1200
Aspect Ratio: 16:9 (4:3 adjustable)
Brightness: 450cd/m2
Contrast: 1000:1
Colour: 16.77 million colors
Viewing Angle: Horizontal: 170°; Vertical: 170°
INPUT (EACH LCD)
BNC x 2: 2K/3G/HD/SD-SDI input×2
BNC x 1: Composite input
HDMI x 1: HDMI input
3.5mm x 1: Analog audio input
OUTPUT (EACH LCD)
BNC x 2: 2K/3G/HD/SD-SDI loop output
BNC x 1: Composite loop output
HDMI x 1: HDMI loop output
3.5mm x 1: SDI, HDMI, Analog audio output
VIDEO FORMAT
SDI: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)
HDMI: 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
CVBS: NTSC / PAL
GENERAL
Input Voltage: DC 6.5V-24V
Power Consumption: ≤36W
Working Temperature: 0°C～+40°C
Working Humidity: 10%～90%
Storage Temperature: -15°C～+60°C
Storage Humidity: 10%～90%
Dimensions: 484×177×112.8mm
Net Weight (Main Body): Net 2.8kg; With package 3.6kg
