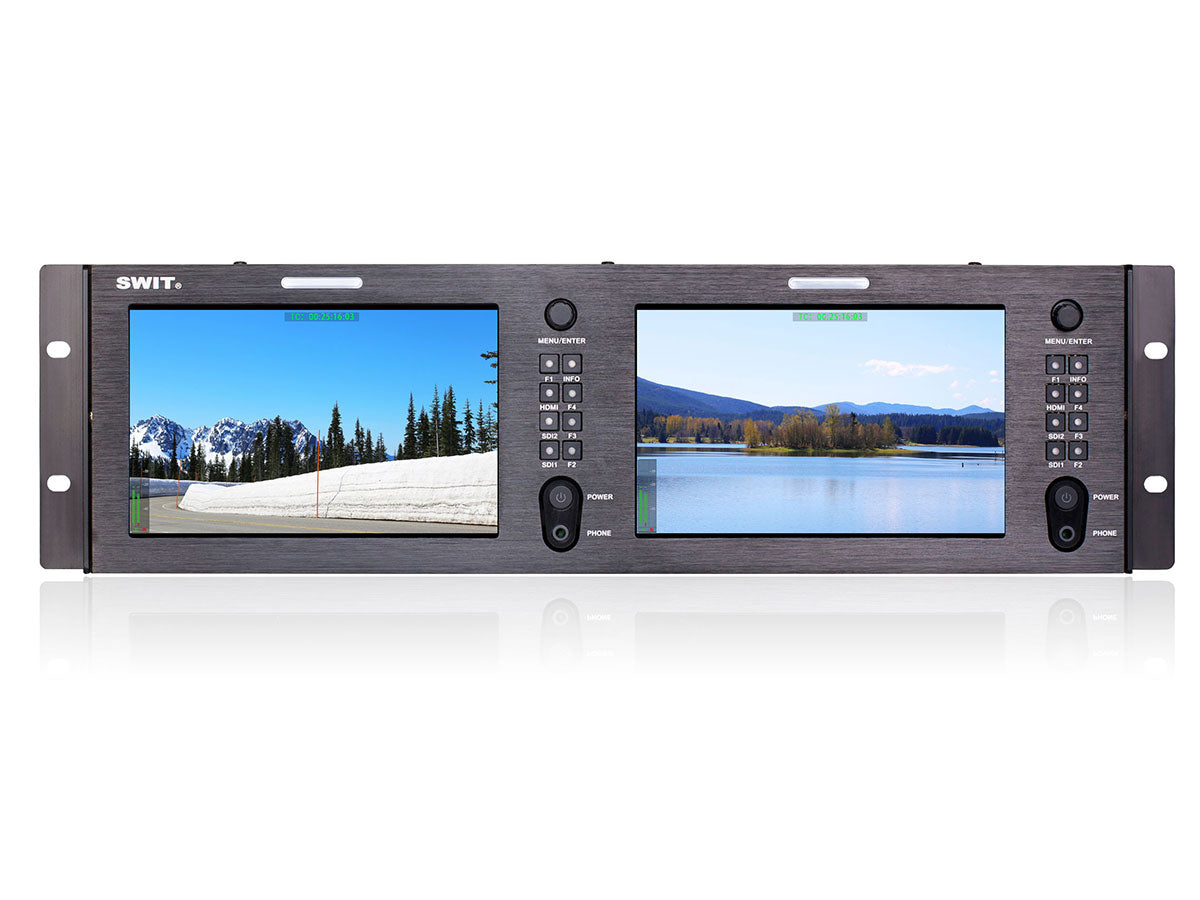

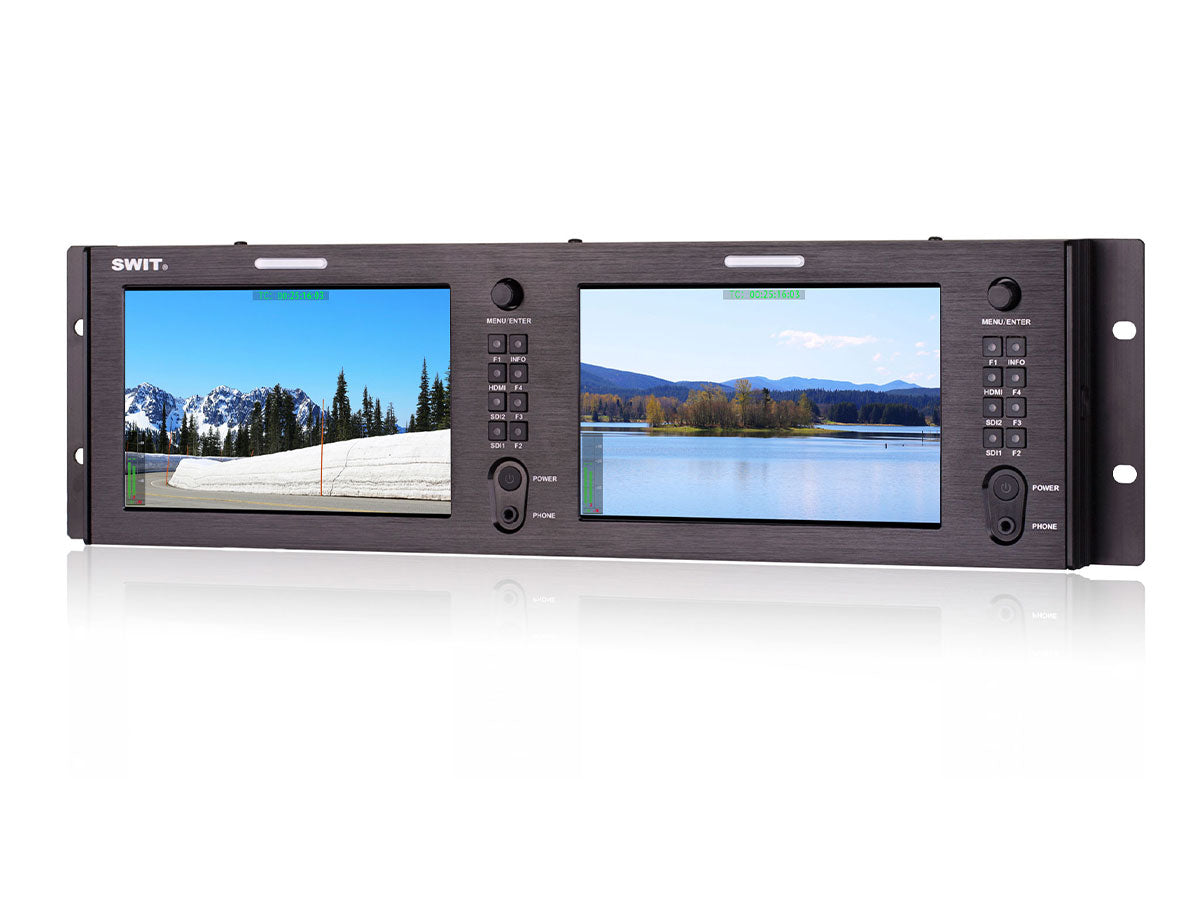

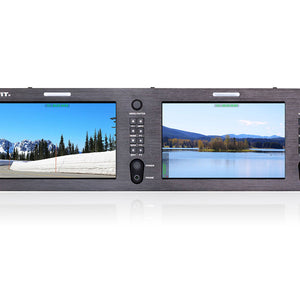

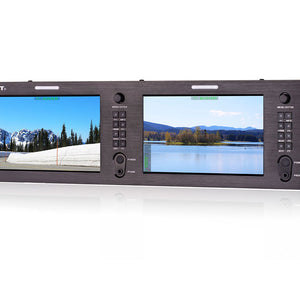

Swit M-1073H Dual 7-inch FHD Rack LCD Monitor

Swit M-1073H Dual 7-inch FHD Rack LCD Monitor

SKU: SWI-M-1073H
£1,053.00 GBP ex VAT
£1,263.60 GBP inc VAT
ex VAT £1,053.00 GBP ex VAT
£1,263.60 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
7-inch Full HD LCD - TFT panel with LED backlight
The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°
Input/Output Interfaces - 3G-SDI, 4K-HDMI
Each LCD of M-1073H supports:
  • 2K/3G/HD/SD-SDI input × 2
  • 2K/3G/HD/SD-SDI loop output × 1
  • HDMI 2.0 (4K60p) input × 1
  • HDMI 2.0 (4K60p) loop output × 1
  • 3.5mm SDI/HDMI embedded audio output × 1
3DLUT Log to Rec709 - User LUT cube import
M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.
Embedded Audio Monitoring - Up to 16-ch meters with alert and select output
M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
On-screen Tally
M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade

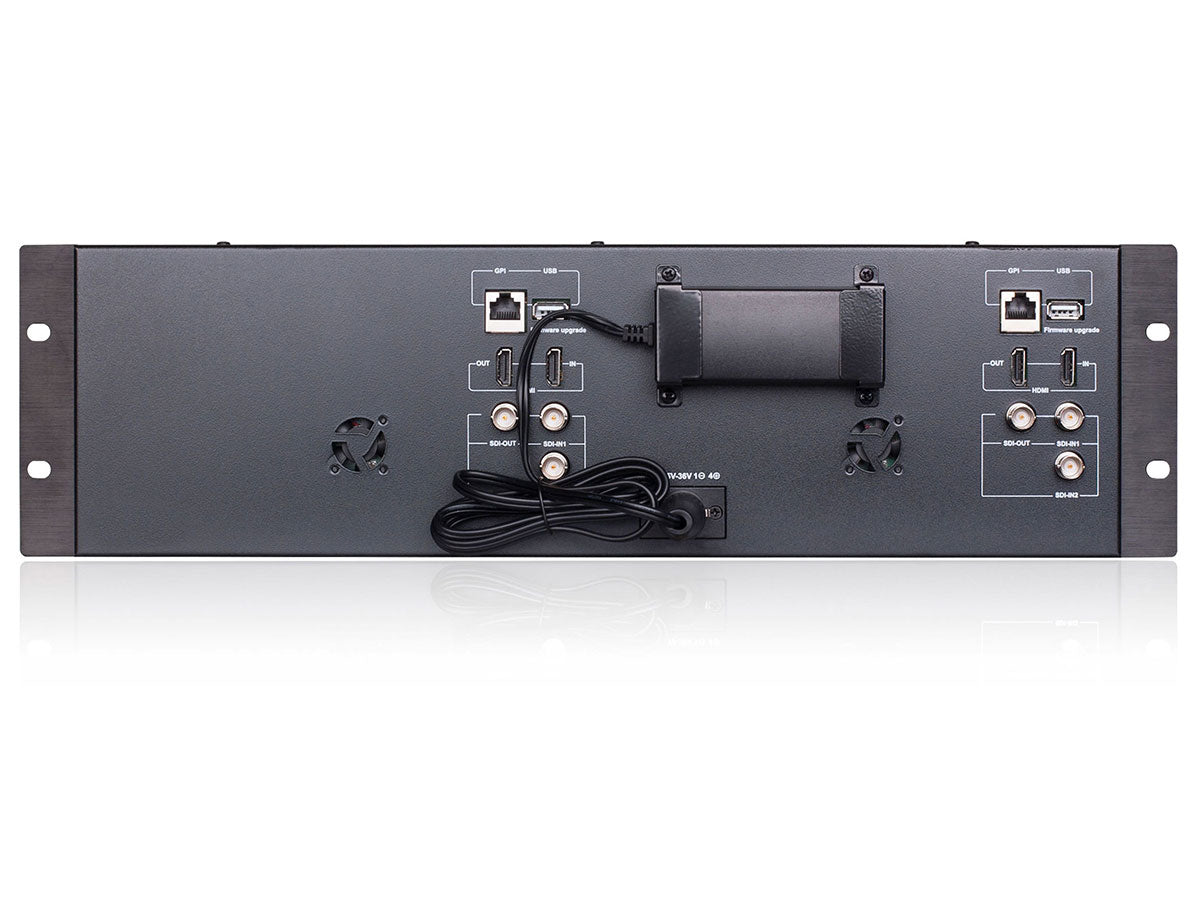

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.
Power Supply
M-1073H provides DC 6.5-36V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.
Installation

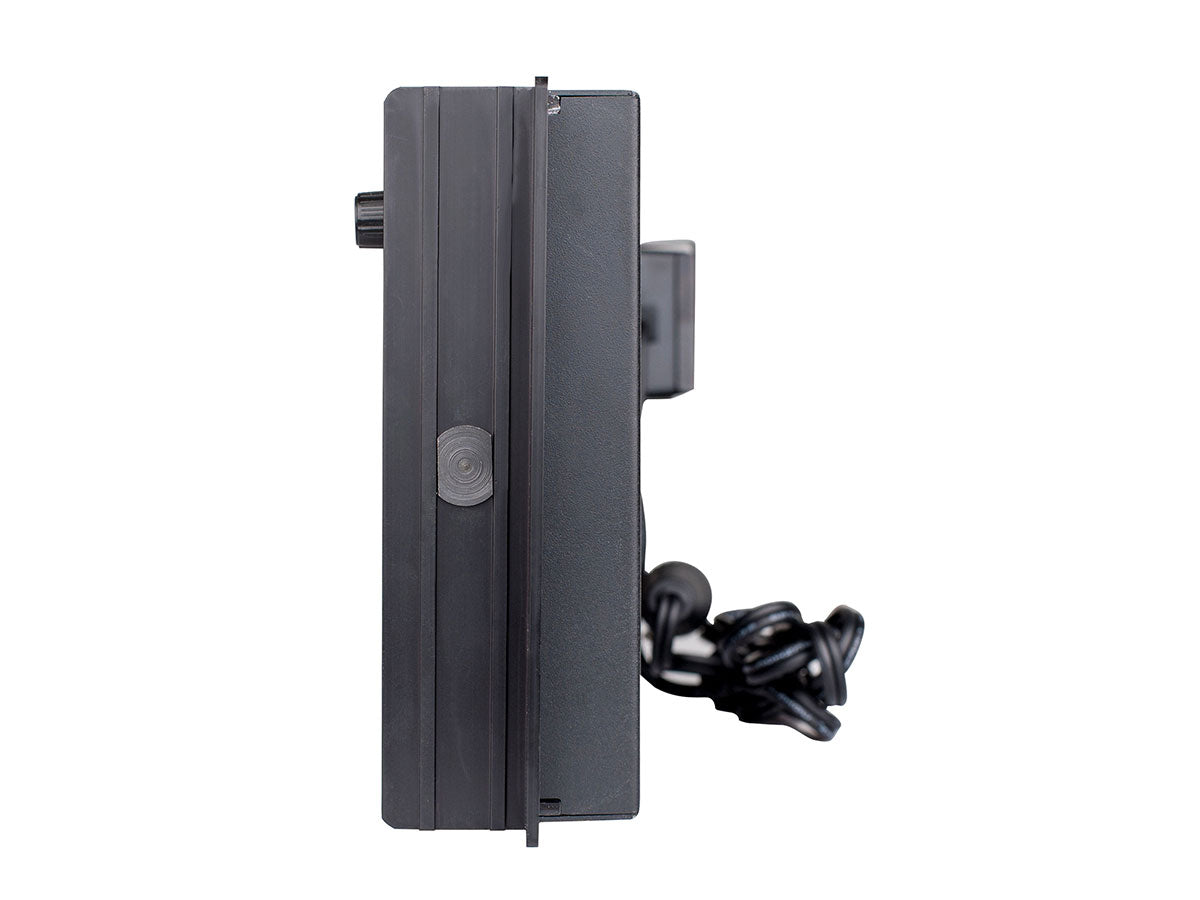

M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.
  • Dual 7” non-glaring LCD, 1920×1200
  • 19-inch 3U rack mount, ±30° rotatable
  • 2K/3G/HD/SD-SDI input & loop output
  • HDMI 2.0 (4K60p) input & loop output
  • 16-ch embedded audio meters with alert
  • Select any 2 audio channels to output
  • 9 steps quick zoom-in and mapping
  • Focus assist with precision adjustment
  • Build-in multi-camera logs to Rec.709
  • User 3DLUT cube file import by USB
  • On-screen TALLY display and GPI
  • Zebra stripes, False color, R/G/B/Mono
  • H/V delay, AFD, Timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • USB firmware upgrade
LCD PERFORMANCE
Size: 7 inches x2
Display Area: 151.2×94.5mm
Resolution: 1920×1200
Aspect Ratio: 16:9 (4:3 adjustable)
Brightness: 400cd/m2
Contrast: 1000:1
Colour: 16.77 million colors
Viewing Angle: Horizontal: 160°; Vertical: 160°
INPUT (EACH LCD)
BNC x 2: 2K/3G/HD/SD-SDI input
BNC x 1: HDMI 2.0 input
USB x 1: LUT upload and Firmware upgrade
RS485 x 1: GPI (Tally) input
OUTPUT (EACH LCD)
BNC x 1: 2K/3G/HD/SD-SDI loop output
HDMI x 1: HDMI 2.0 loop output
3.5mm x 1: SDI, HDMI embedded audio output
VIDEO FORMAT
SDI: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)
HDMI: 4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
GENERAL
Input Voltage: DC 6.5V-36V
Power Consumption: 18-26W
Working Temperature: 0°C～+50°C
Working Humidity: 10%～90%
Storage Temperature: -15°C～+60°C
Storage Humidity: 10%～90%
Dimensions: 484×130×82mm
Net Weight (Main Body): Net 2.4kg; With package 2.7kg
