SWIT KA-R30S | V-mount Hotswap Plate for MINI / MINI LF

Hot-Swap Plate for
ALEXA MINI / MINI LF

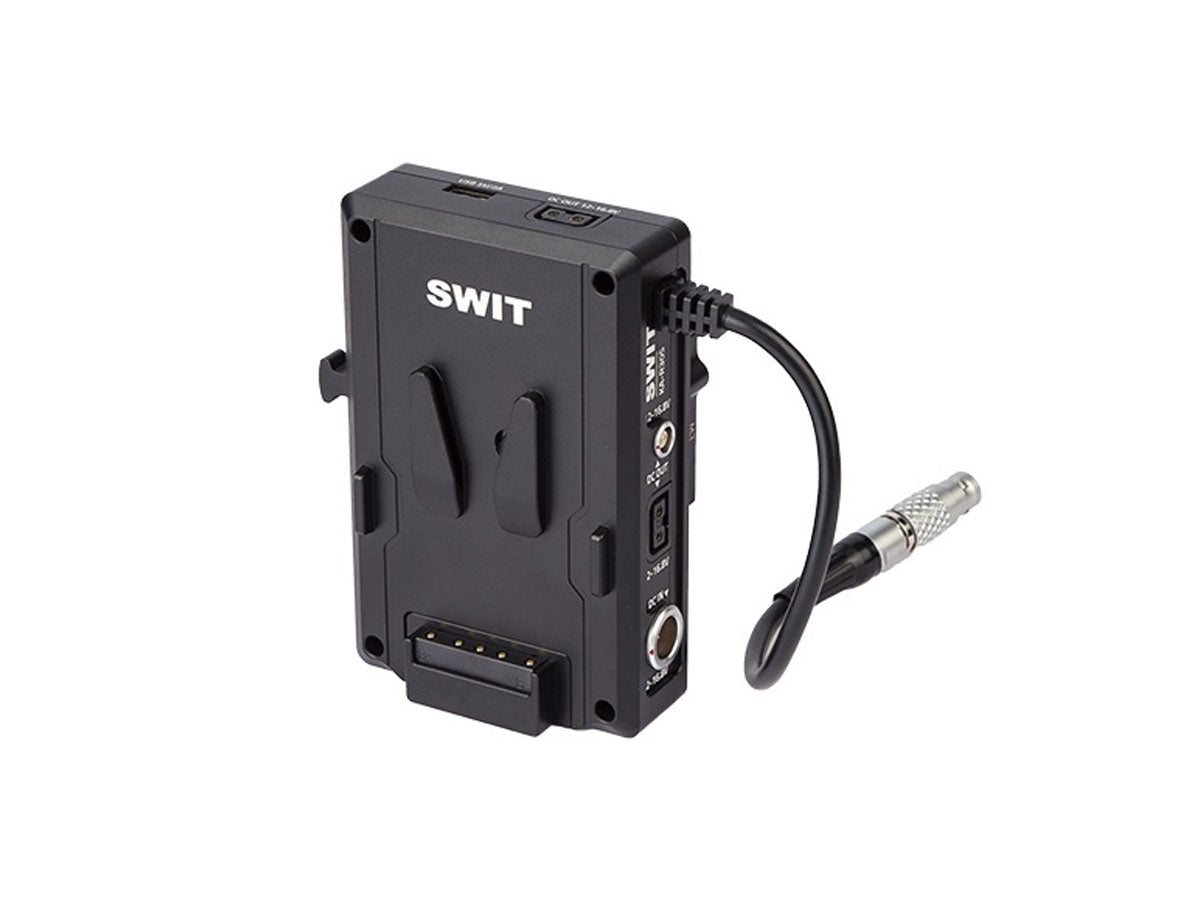

KA-R30S is a V-mount extended plate dedicated for ARRI ALEXA MINI and MINI LF install. The plate has battery cells inside, and when you changing battery, the plate will take over the power supply for at least 2 minutes, till a new battery is mounted on. So you don' t need to switch off the cameras with this hot-swap plate.

ALEXA MINI / MINI LF Install
KA-R30S matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406).

At least 2mins at 200W load
KA-R30S has CNC alluminum housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load.
The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

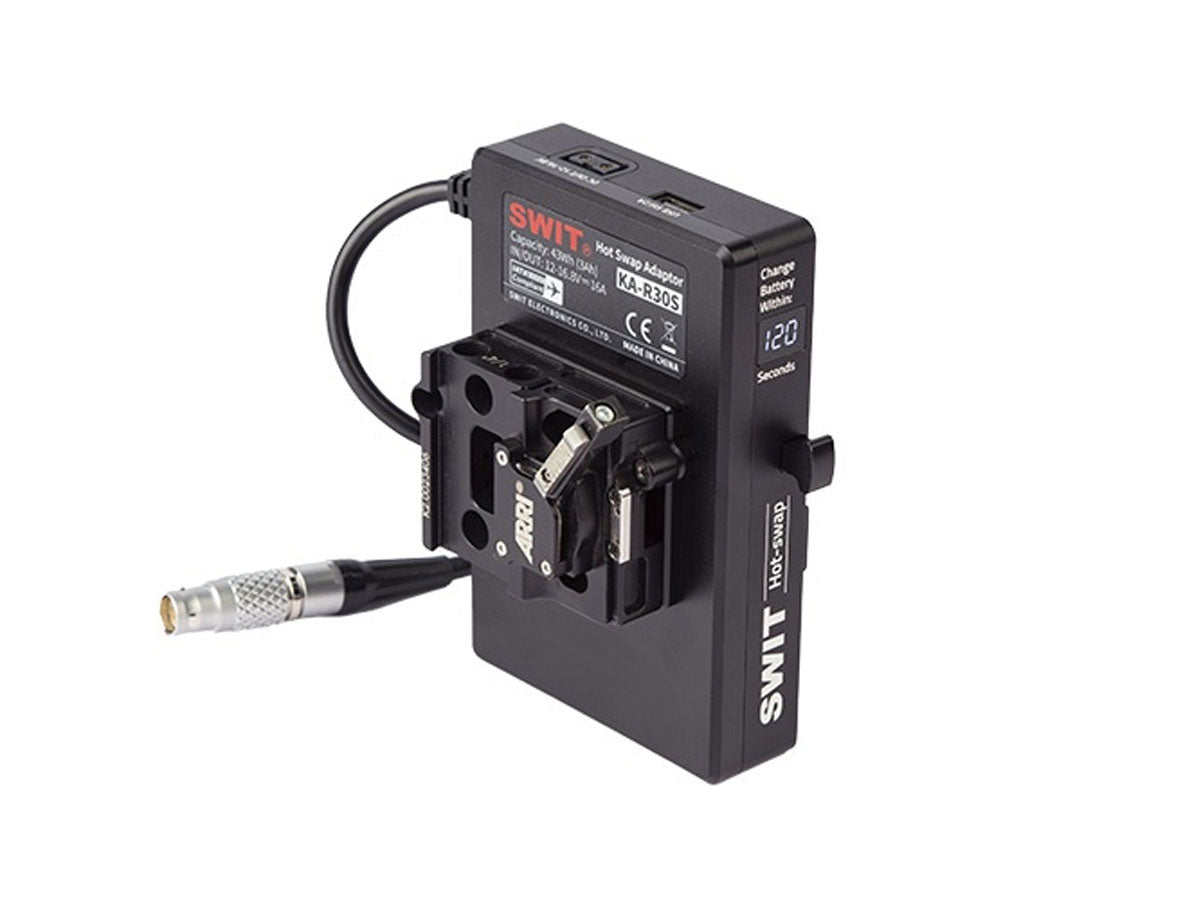

120 Seconds Countdown Display
The hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0.
The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

Power Distribution
KA-R30S provides:
1x 8-pin 12-16.8V 200W/16A to ALEXA MINI/MINILF
1x 2-pin LEMO 12-16.8V 38W/3A out
2x D-tap 12-16.8V 125W/10A out
1x USB-A 5V/2A output
1x 8-pin 12-16.8V DC input (For power station hotswap)

15mm Rod Adaptor
KA-R30S provides with a free 15mm Rod Adaptor in the package, to install on the old style ALEXA MINI 15mm rig system.
