SWIT FLOW500 | SDI&HDMI 500ft/150m Wireless System

SWIT FLOW500 | SDI&HDMI 500ft/150m Wireless System

SKU: SWI-FLOW500
£884.00 GBP ex VAT
£1,060.80 GBP inc VAT
ex VAT £884.00 GBP ex VAT
£1,060.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • What's Included

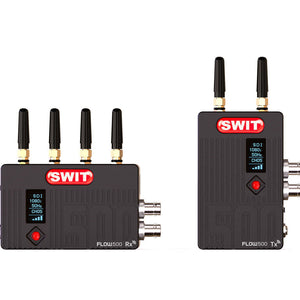

View your video capture up to 500' away from your camera using the FLOW500 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.

Up to 500' Transmission

  • Transmits uncompressed video and embedded audio at distances up to 500' (line-of-sight)
  • Robust wall-penetrating transmission with RF and image quality optimization

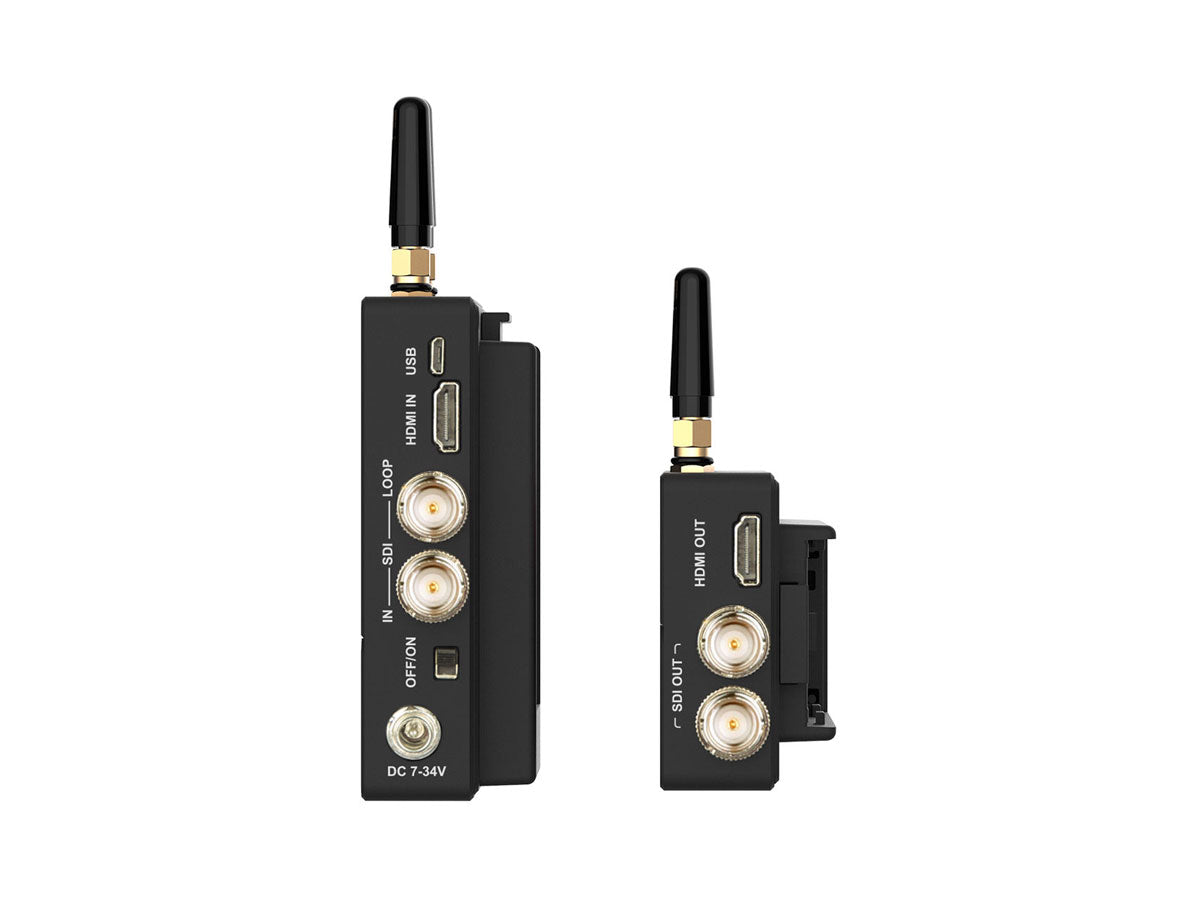

SDI & HDMI Inputs/Outputs

  • Transmitter has single HDMI Type-A input
  • Transmitter has single SDI (BNC) input and loop output
  • Receiver has single HDMI and dual SDI (BNC) outputs

1080p60 HD Video
Supports multiple video resolutions up to 1080p60

5.1 to 5.9 GHz Transmission

  • License-free operation at 5.1 to 5.9 GHz
  • Automatic DFS-compliant and manual non-DFS channel selection

Embedded Audio
2-channel embedded SDI/HDMI audio transmission

Timecode Transmission
Transmits timecode from original video source

Multicast Compatible
Use with separately available receivers to multicast one transmitter to up to four receivers

AES Encryption
AES128 encryption secures your footage transmission

Reclocking
Reclocking for optimal signal transmission

USB Updating
Firmware updating via micro-USB port on both transmitter and receiver

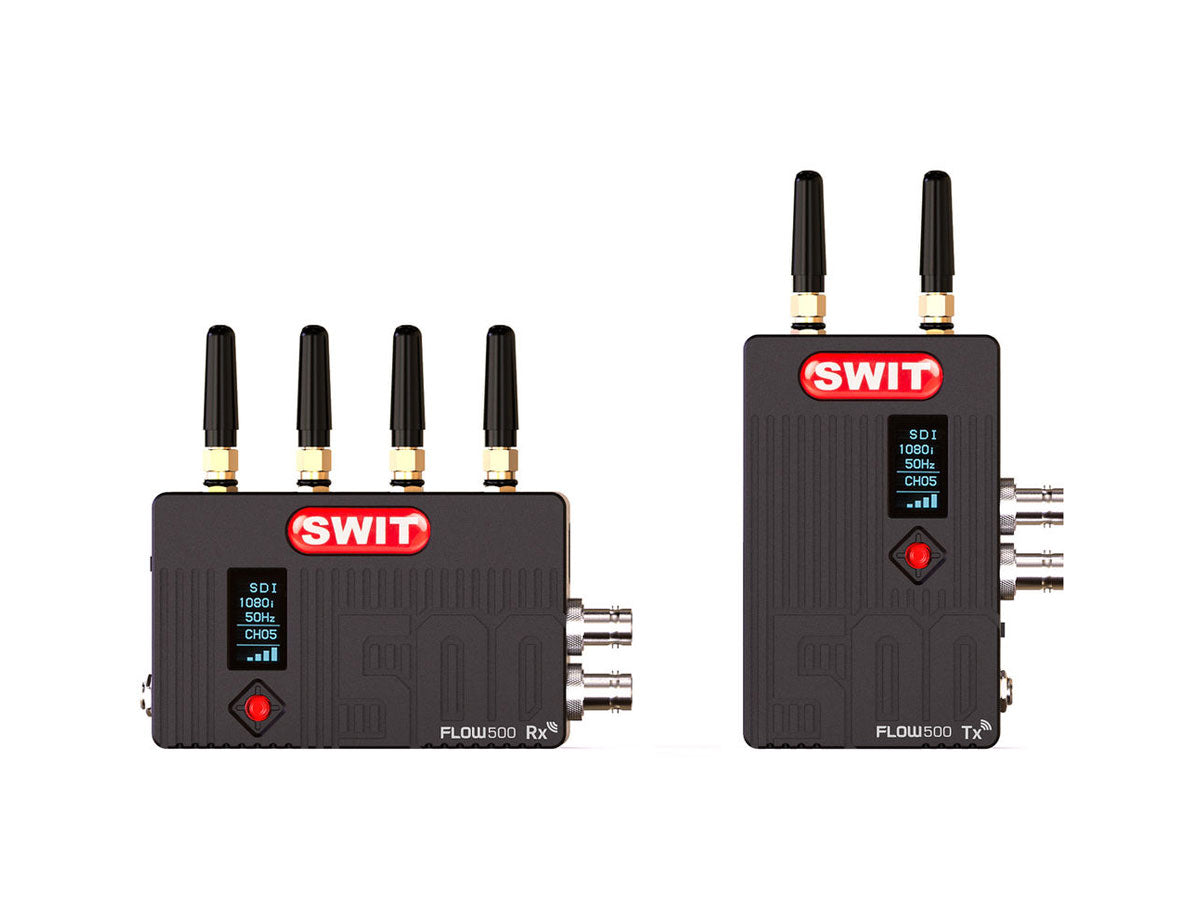

OLED Display
1" OLED display on both transmitter and receiver

Power Options
Transmitter and receiver both have:

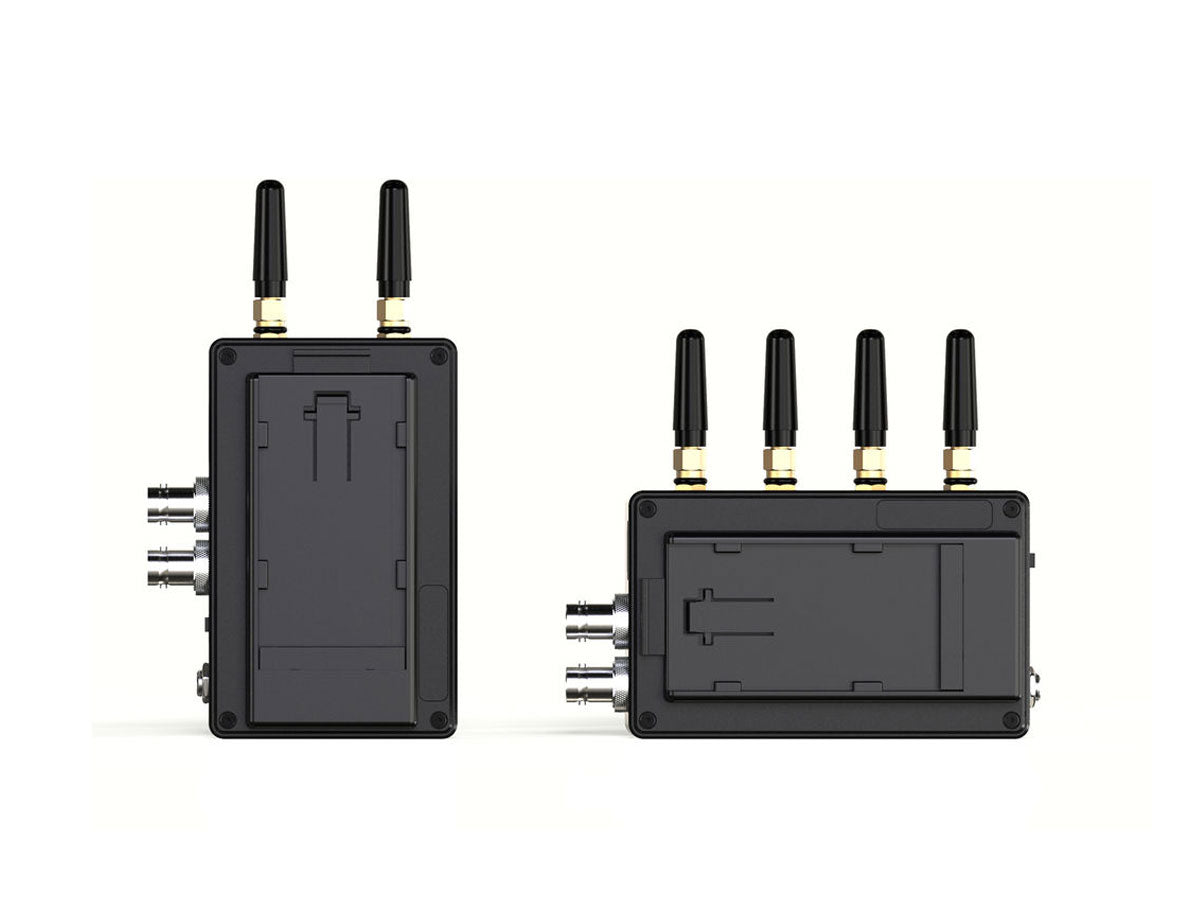

  • One Sony L-Series type battery plate
  • One 5.5mm DC barrel input

Mounting Options

  • Transmitter and receiver both have 1/4"-20 mounting threads
  • Includes one articulated arm with 1/4"-20 and shoe mounts
  • Up to 500' Line-of-Sight Range
  • 1 x Transmitter & 1 x Receiver
  • Transmits up to 1080p60, L-Series Plate
  • Uncompressed HDMI & 3G/HD/SD-SDI
  • SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
  • Transmitter
  • Receiver
  • 6 x Antenna
  • Locking D-Tap to Barrel Cable (2')
  • Power Adapter
  • Articulating Arm
  • Carrying Case
