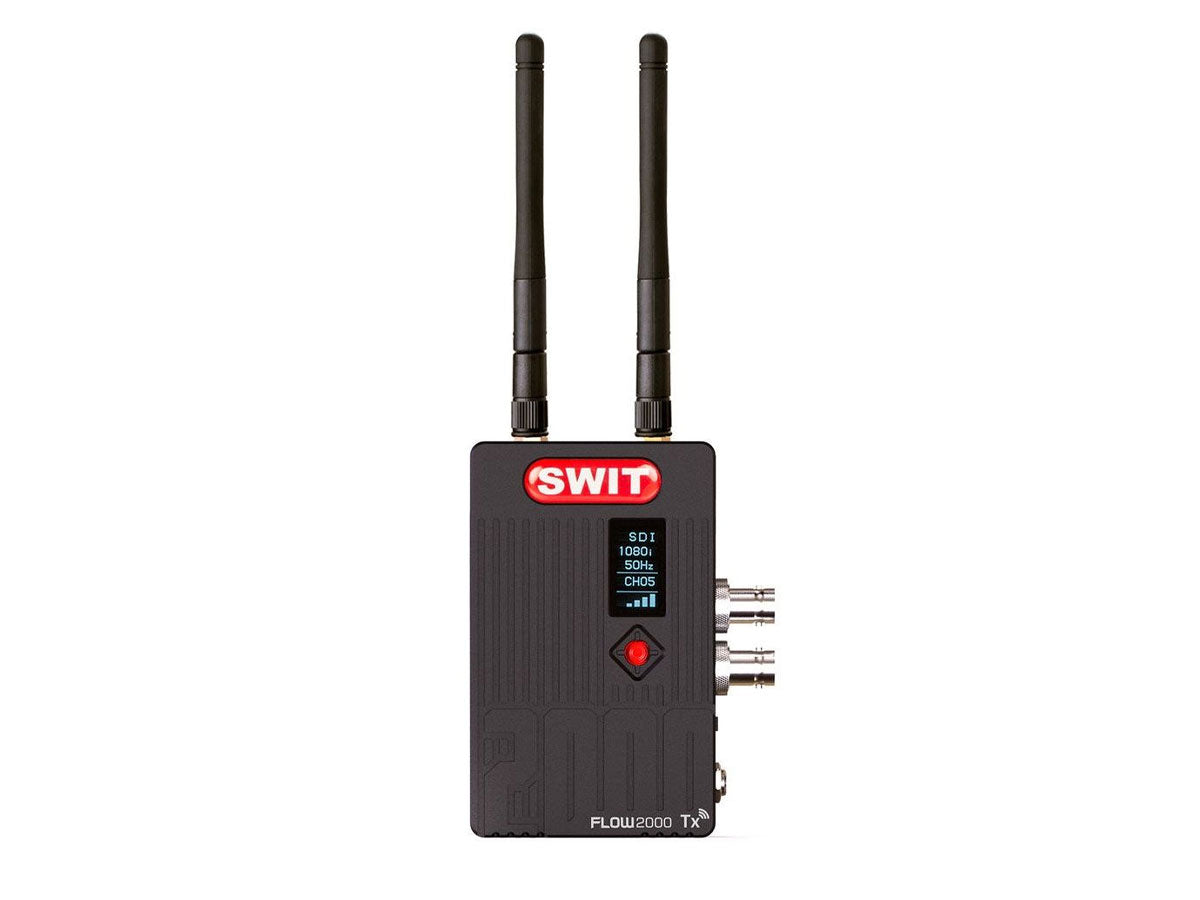

Swit FLOW2000 Tx Wireless Transmitter
Swit FLOW2000 Tx Wireless Transmitter
£1,383.60 GBP inc VAT
£1,383.60 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications
KUWI Wireless Technology
SDI&HDMI 2000ft (LOS)
FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 2000 feet Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.
--------------------------------------------------------------------------
Input & Output
Receiver (Rx) has 4 omni antennas, supports
2x 3G/HD-SDI output
1x HDMI 1.3 output
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
--------------------------------------------------------------------------
2000 Feet Transmission
Strong Wall-cross Performance
FLOW2000 wireless supports 2000ft (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI embedded audio (CH1&2) transmission.
--------------------------------------------------------------------------
OLED Display & Channel Switch
DFS comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.
--------------------------------------------------------------------------
Multicast and Double Encryption
Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
--------------------------------------------------------------------------
Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.
--------------------------------------------------------------------------
USB Firmware Update
The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.
--------------------------------------------------------------------------
Power Supply
The power consumtion of Rx is less than 8W.
Rx is equipped with NP-F DV battery plate, 7-34V lockable DC input.
| Input | 3G/HD-SDI x1 HDMI x1 |
|---|---|
| Output | 3G/HD-SDI loop x1 |
| Format | 1080P (60 / 59.94 / 50) 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) |
| Wireless Frequency | 5.17GHz-5.23GHz and 5.75GHz-5.83GHz |
| Radio Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
| Transmission Distance | 2000 feet / 600 meters (Line of sight) |
| Power Consumption | ≤8W |
| Radio Power | 125mW |
| Input Voltage | DC 7～34V |
| Working Environment | Temperature: 0°C -+40°C |
| Dimension (w/o antenna) | 66×106.5×24.7 (mm) |
| Net Weight | 236g |
