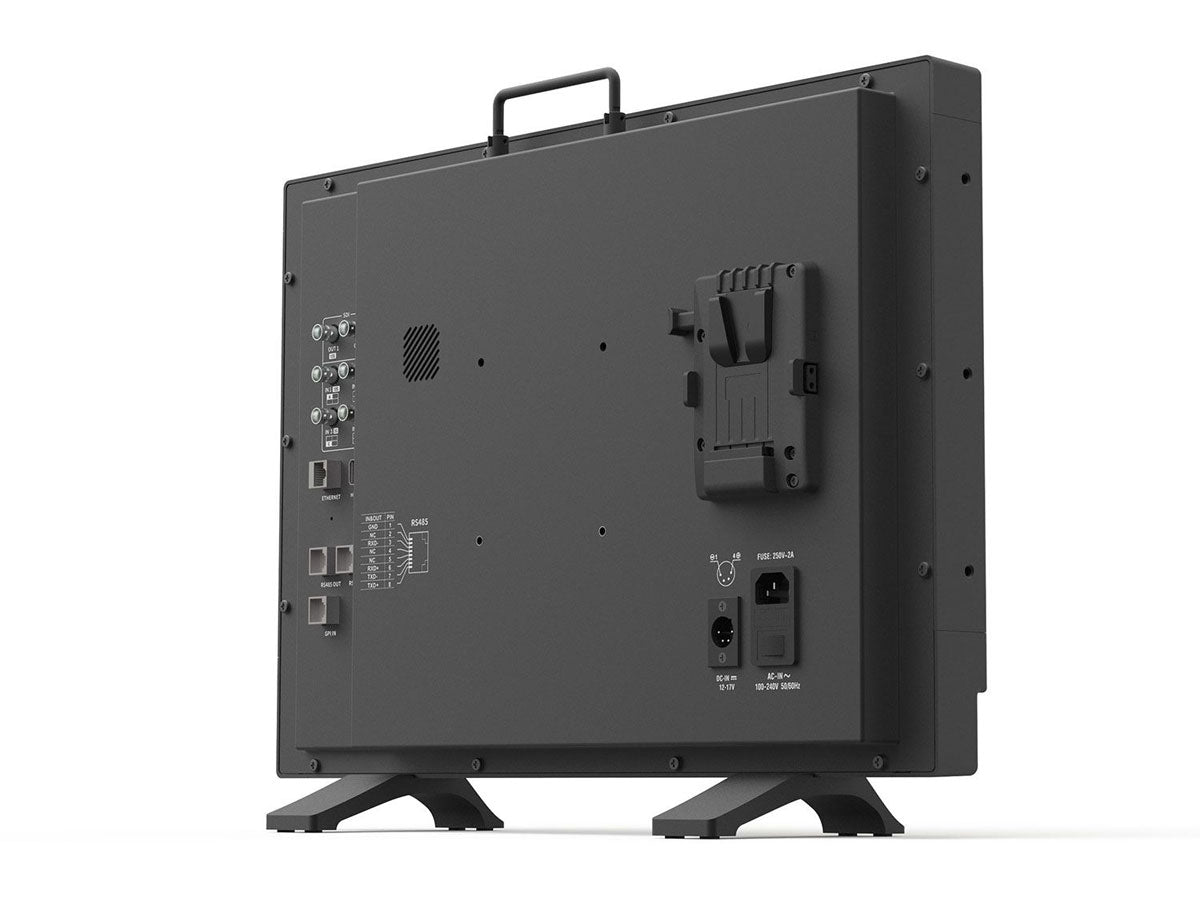

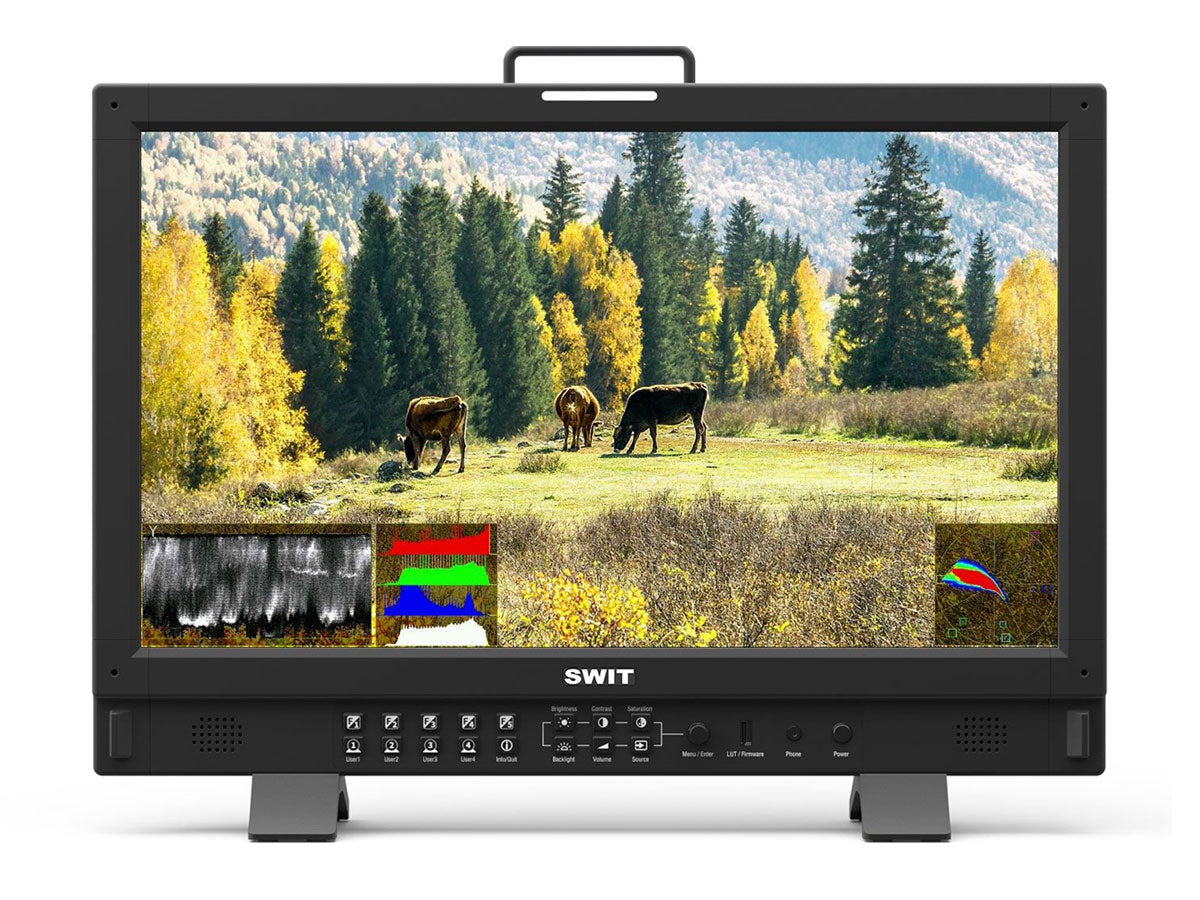

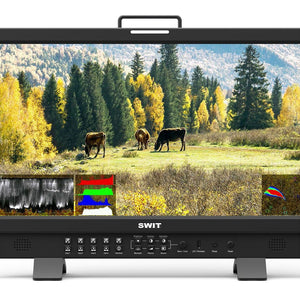

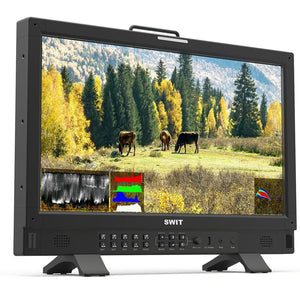

Swit BM-H215 21.5-inch 4K input FHD Broadcast Monitor
Swit BM-H215 21.5-inch 4K input FHD Broadcast Monitor
£2,154.00 GBP inc VAT
£2,154.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
SWIT BM-H215 21.5-inch 4K input FHD Broadcast Monitor
BM-H215 adopts a 21.5-inch FHD 1920x1080 LCD panel, 8-bit 16.77M colors, 400 nits, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions.
Multi 4K Interfaces
BM-H215 provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:
- 12GSDI Single link 4K;
- 4x3GSDI Quadlink 4K, (SQD and 2SI)
- HDMI 2.0 (4K60P)
Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.
Supports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
- 12GSDI, 4x3GSDI, HDMI2.0 4K input
- 4-ch SDI/HDMI mixed multiview
- 2-ch SDI/HDMI PBP or PIP view
- Multi Color Gamut & HDR/SDR Viewing
- 18-bit internal color processing
- Audio/Video Zero latency for lip-sync
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram / Eye pattern
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous pattern
- 5.1 & 7.1 surround sound phase pattern
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
| LCD Performance | |
|---|---|
| Size | 21.5 inches |
| Display area | 476×268mm |
| Resolution | 1920×1080 |
| Aspect ratio | 16:9 |
| Brightness | 400 nits |
| Contrast | 1000:1 |
| Color | 16.77M colors, 8-bit |
| Viewing Angle | 178°(H) /178°(V) |
| Input | |
| BNC ×1 | 12G/6G/3G/HD/SD-SDI input |
| HDMI ×1 | HDMI 2.0 input |
| Output | |
| BNC ×1 | 12G/6G/3G/HD/SD-SDI loop output |
| Video Format | |
| SDI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) |
| HDMI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) |
| General | |
| Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption | 60W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 530.6×364.3×74.2mm |
| Net weight (main body) | 6.05kg |
