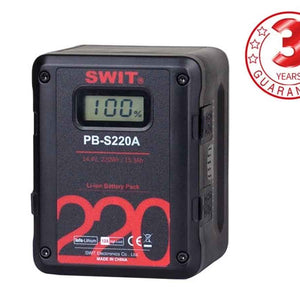

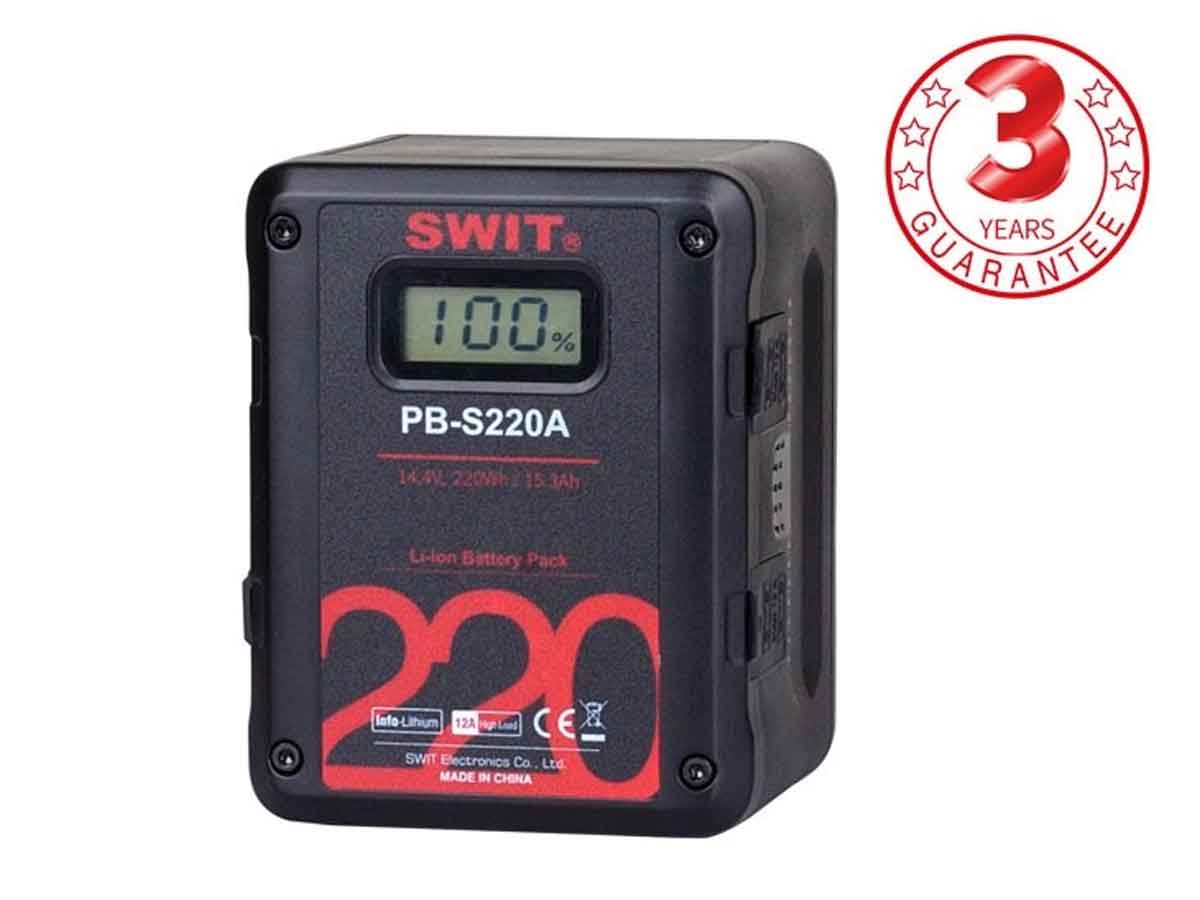

Swit 220Wh PB-S220A Square Digital Battery - Gold Mount
Swit 220Wh PB-S220A Square Digital Battery - Gold Mount
£414.00 GBP inc VAT
£414.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal batteries, and match perfectly with most of the Cine-cameras.
220Wh / 15.3Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.
High Load for Cine Cameras
Max 150W / 12A constant output Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, wireless system work together, and total power will be above 110W, and the normal batteries cannot draw completely.
Using PB-S220A high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, LCD Monitor and other equipments easily, and won’t reduce battery life during long time high power output.

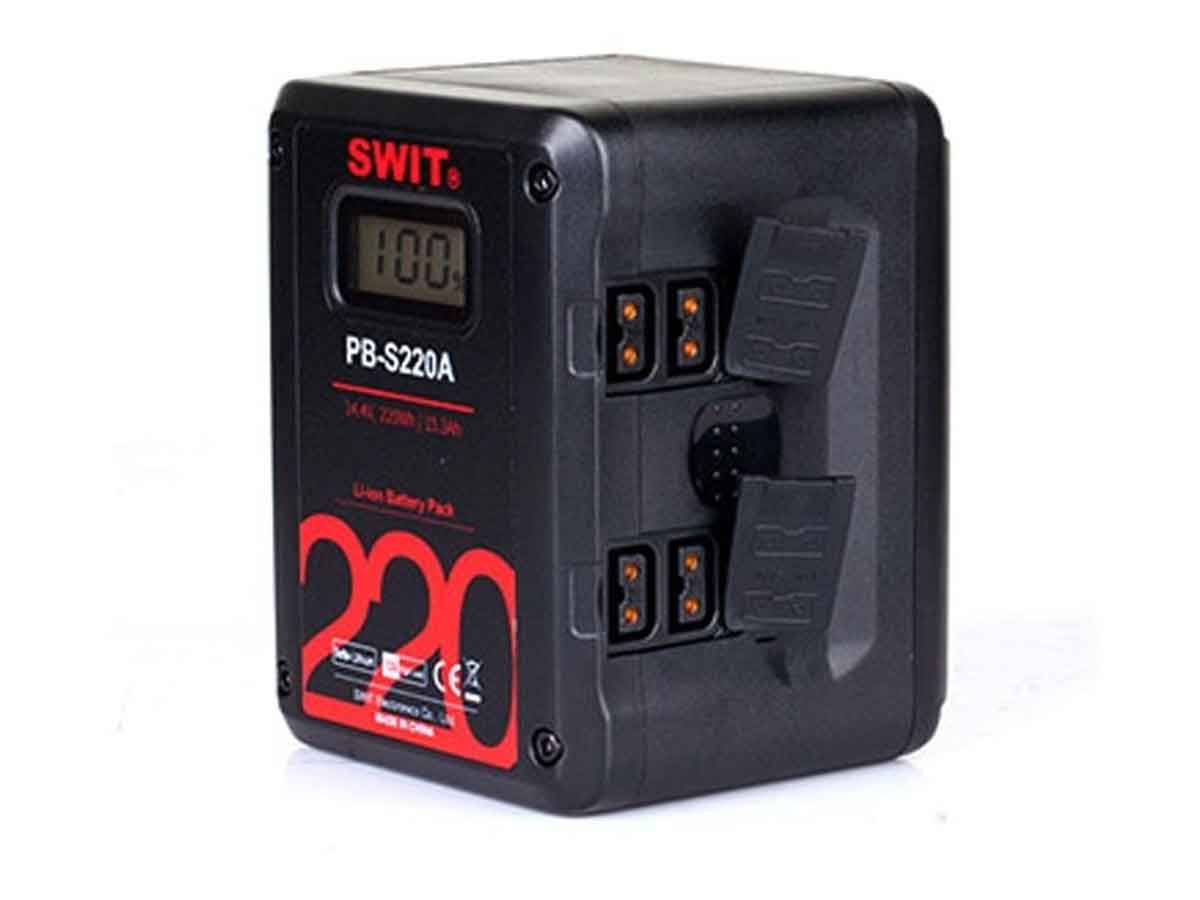

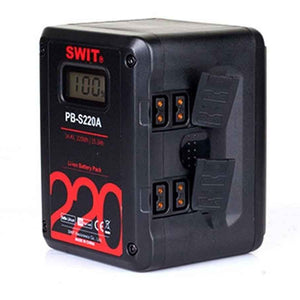

Multiple output sockets design

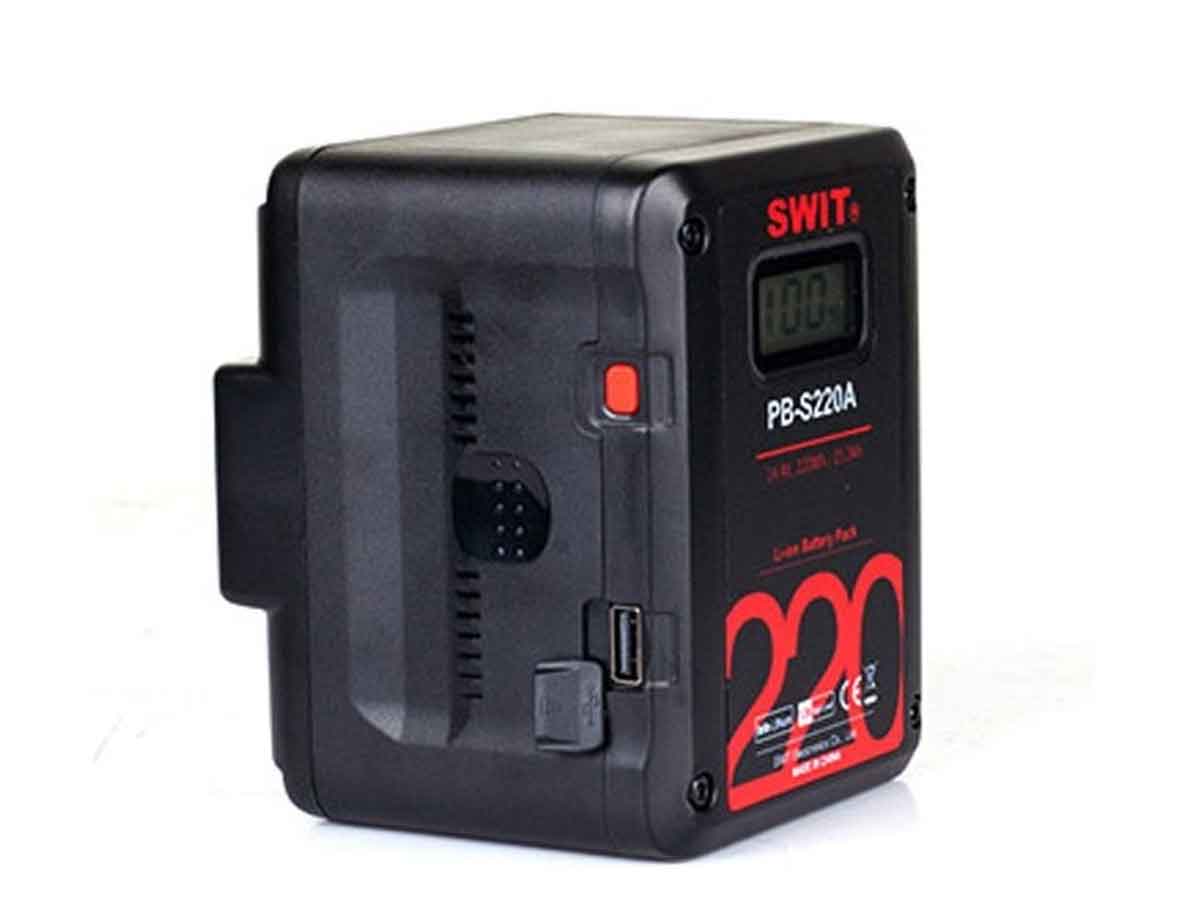

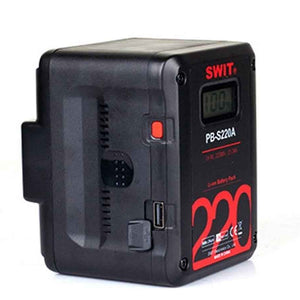

4× D-tap output sockets, 1× USB 5V/2A power output socket PB-S220A is equipped with 4 D-tap DC output sockets, Max total load is 120W/10A, which can power other on-camera equipments together. PB-S220A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.
6A Fast Charging
Using Swit S-3812A fast charger PB-S220A supports 6A fast charging by Swit S-3812 fast charger, to save more than 50% charging time. The 220Wh PB-S220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.
Digital Power Info
LCD display accurate remaining run time The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
LCD alarm code description
①P01～P13: The battery trigger protection function and it can be recovered; ② When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display. ③ E01～E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery. Common battery protection code:
| P01 | Run out of power, please charge the battery asap. | P02 | Over-voltage when charging, please remove the battery, discharge the battery to decrease the battery voltage to restore. |
|---|---|---|---|
| P03 | Over-current when charging, please remove the battery, and it will restore after 30 seconds’ standing. | P05～P07 | The load is too heavy, please remove the battery, and it will restore after 30 seconds’ standing. |
| P08～P09 | Battery short circuit, please make sure that there is no foreign body between the electrodes or remove the battery, and it will restore after 30 seconds’ standing. | P10～P13 | Temperature protection, please remove the battery and place at room temperature to recover |
- Max 150W, 12A high load
- 4× D-tap output sockets
- 1× USB 5V/2A power output sockets
| Model | PB-S220A |
|---|---|

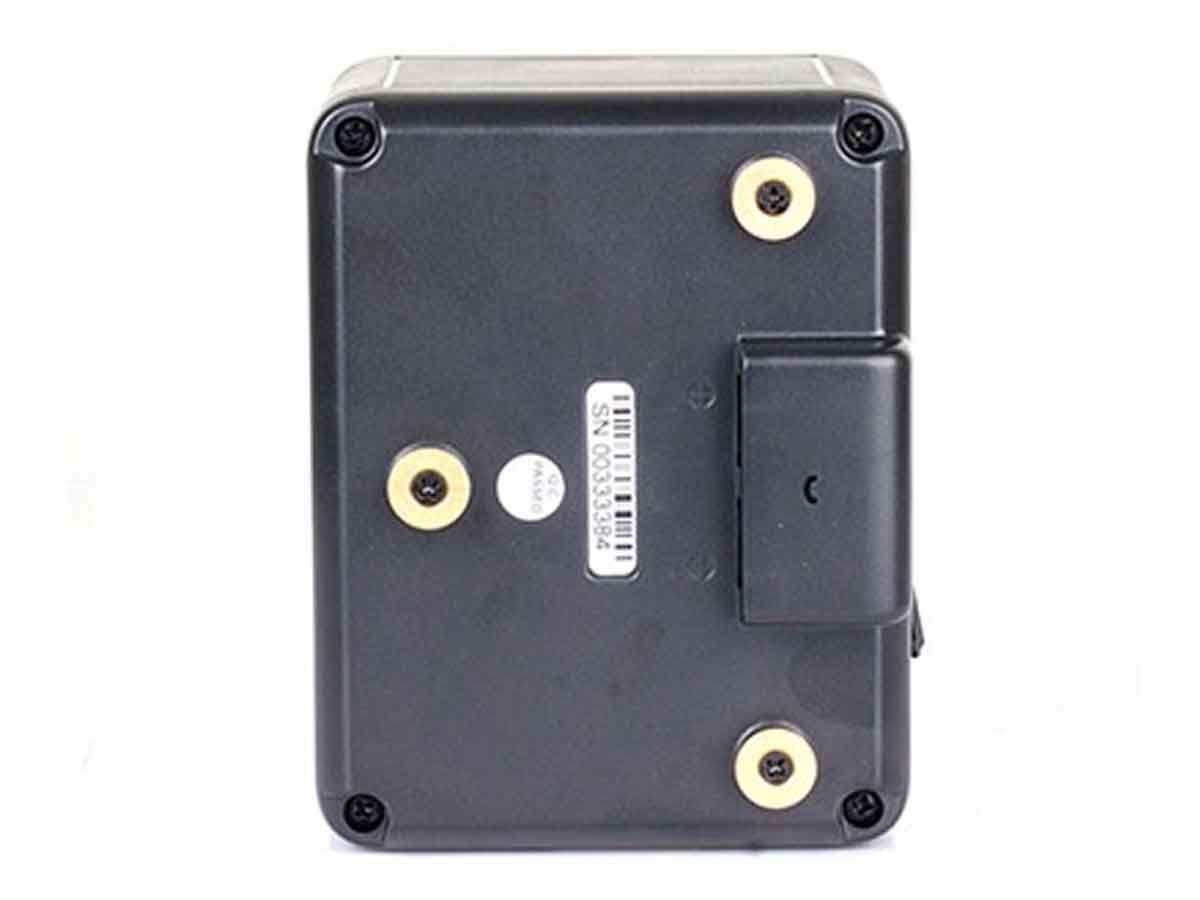

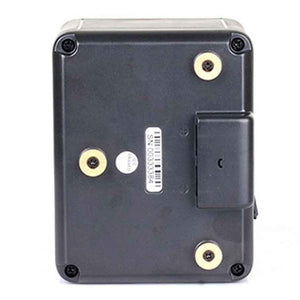

| Battery plate | Gold-mount |
| Nominal voltage | 14.4V |
| Capacity | 220Wh,15.3Ah |
| Max output | Electrodes: 150W,12A |
| Dimension | 121×95×99mm |
| Net weight | 1.435kg |
| Max charging current | 6A |
| D-TAP socket number | 4 |
| USB socket number | 1 |
High quality Lithium cells
For 20 years, Swit has been leading brand of broadcast camera batteries.
The first reason is the high quality Lithium cells we adopted.
The high quality cells featured long life, durable, safety, and most of all, the cells has very little difference to each other, which ensures the high performance of the whole battery pack.
Moreover, the cells we’re using, have a smooth discharging curve by voltage, so that you can judge the remaining running time accordingly. Also when in storage, the self-discharging rates are very little, that extends the battery life effectively.
Multiple Safety Protection Circuit
The battery has an MCU to measure and record the real time data, and will cut off power when over-voltage, under-voltage, over-current, high-temperature of low-temperature is detected.
Cell balance adjustment
After the batteries are used for a period of time, the cells voltage might get difference, and our specially designed circuit can optimize the imbalanced cells, to prolong the battery life.
