Swit 21.5inch Full HD Waveform Studio LCD Monitor

Swit 21.5inch Full HD Waveform Studio LCD Monitor

SKU: SWI-S-1223FS
£1,230.00 GBP ex VAT
£1,476.00 GBP inc VAT
ex VAT £1,230.00 GBP ex VAT
£1,476.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

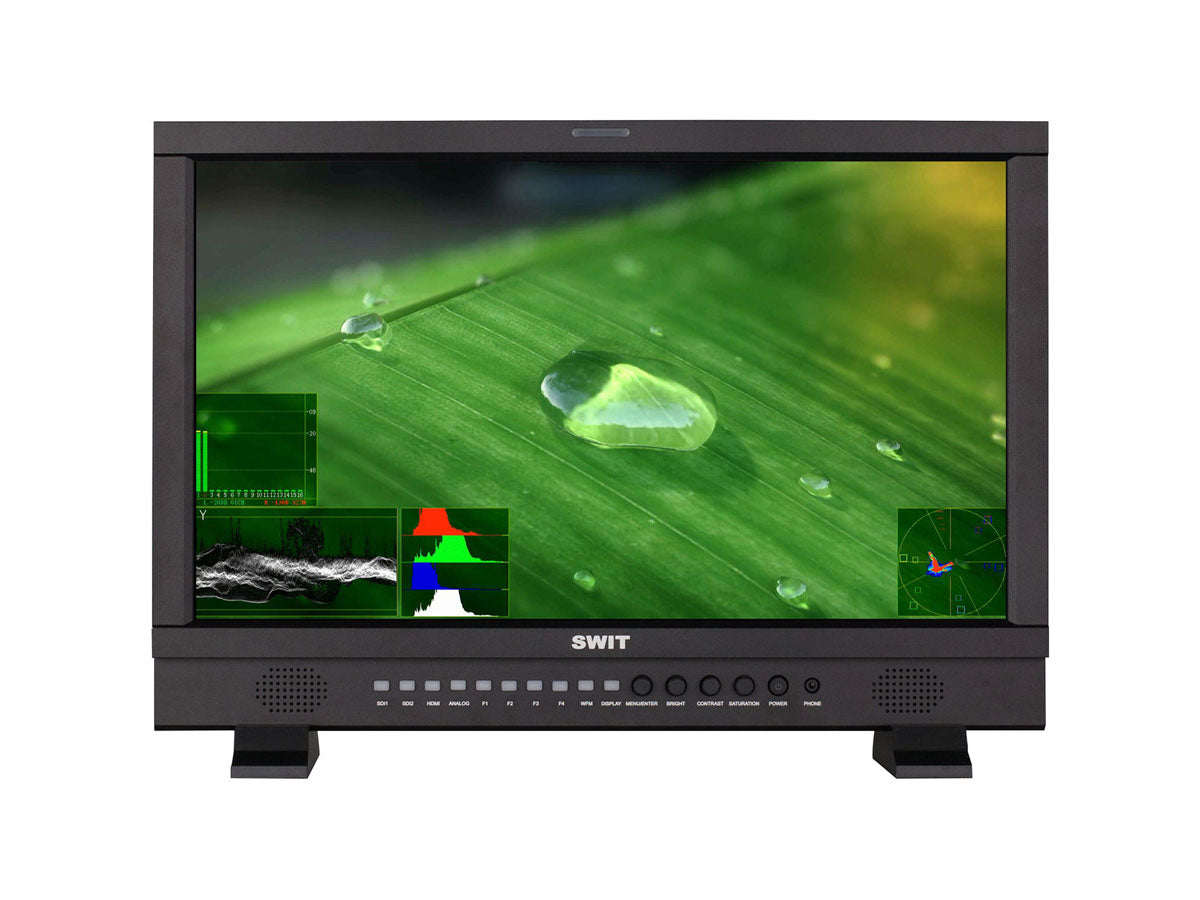

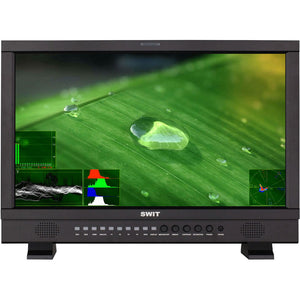

The 21.5" Full HD Waveform Studio LCD Monitor from SWIT adopts an IPS (In-Plane Switching) LCD panel with full HD resolution. It also features an LED backlight, 1000:1 contrast for accurate color reproduction, and a viewing angle of 178°. The supported video analysis assistant patterns include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope and Histogram (R/G/B/Y). For convenience, the patterns can be switched on/off individually.

The monitor can display SDI 16-channel and HDMI 8-channel embedded audio meters with marks and audio abnormal alert info. Users can also select any 2 channels audio to output to the internal speakers or via the 3.5 mm audio output jack. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display 2 channels, 8 channels or 16 channels. It supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection; up to 8 letters can be displayed.

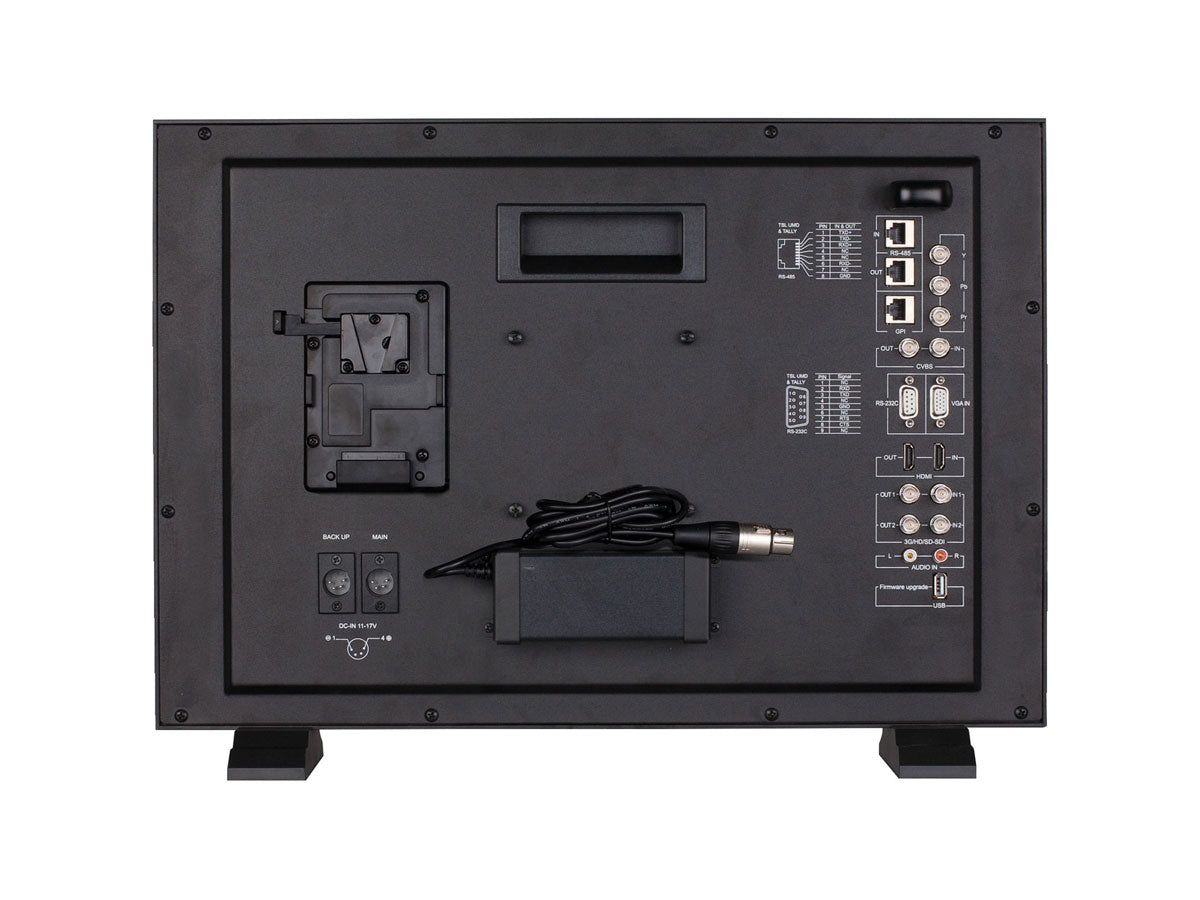

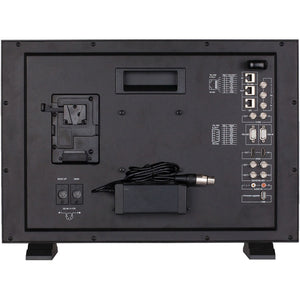

The monitor provides a standard USB port for firmware upgrade. You can download the latest firmware file to a USB stick, and directly insert it into the monitor to upgrade; no computer needed. For power, it provides a 4-pin XLR jack for 11-17 VDC, and a V-Mount battery plate enables outdoor using. There are three colors for the Tally light: Red, Green and Yellow.

  • 21.5" LCD panel, 1920 x 1080 resolution
  • 2K/3G/HD/SD-SDI (x2), HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • 16-channel embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vectorscope, Histogram R/G/B/Y
  • Peaking focus assist (red/blue switch)
  • AFD, timecode, H/V delay
  • TSL UMD and text TALLY display
  • Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
  • False color, R/G/B/Mono, zebra stripes, internal color bar
  • USB firmware upgrade
Size 21.5" (546.1 mm)
Display Area 18.78 x 10.55" (47.7 x 26.8 cm)
Resolution 1920 x 1080
Aspect Ratio 16:9 (4:3 selectable)
Brightness 250 cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing Angle Horizontal: 178°
Vertical: 178°
Input 2 x BNC: 2K/3G/HD/SD-SDI
1 x BNC: CVBS
1 x BNC: Y/Pb/Pr
1 x HDMI
2 x RS485: 1 x GPI, 1 x UMD
1 x RS232C: UMD
1 x VGA: VGA input
1 x RCA: L/R audio input
1 x USB:
USB input (firmware upgrade)
Output 2 x BNC: 2K/3G/HD/SD-SDI (loop output)
1 x BNC: CVBS (loop output)
1 x HDMI: HDMI (loop output)
1 x RS485: 1 x UMD
1 x 3.5 mm: SDI, HDMI, embedded audio output, analog audio output
CVBS NTSC/PAL
SDI SMPTE 2048-1: 2011
2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98)

SMPTE-425M:
1080p (60/59.94/50)

SMPTE-274M:
1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)

SMPTE-RP211:
1080psf (30/29.97/25/24/23.98)

SMPTE-296M:
720p (60/59.94/50)

SMPTE-125M:
480i (59.94)

ITU-R BT.656:
576i (50)
HDMI 480i / 576i / 480p / 576p
1080i (60/59.94/50)
720p (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
Component (Y/Pb/Pr) 480i / 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
VGA 640 x 480 / 800 x 600 / 1024 x 768 / 1152 x 864 / 1280 x 768
1280 x 960 / 1280 x 1024 / 1600 x 1200
Working Voltage 100 to 240 VAC
11 to 17 VDC
Power Consumption ≤32 W
Working Temperature 32 to 104°F (0 to 40°C)
Humidity 10 to 90%
Storage Temperature 5 to 150°F (-15 to 60°C)
Storage Humidity 10 to 90%
Dimensions 20.6 x 14.0 x 3.4" (525 x 358 x 87 mm)
Weight 13.6 lb (6.2 kg)
