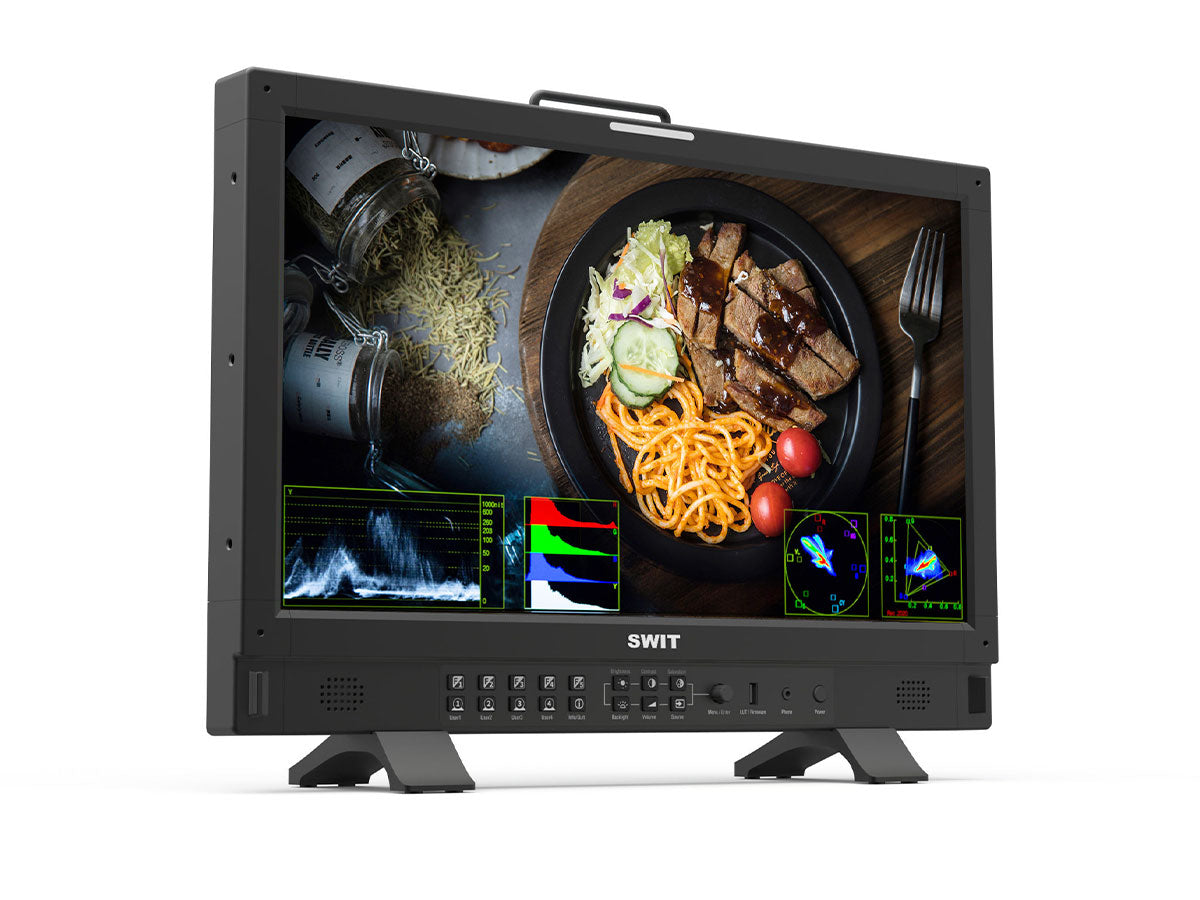

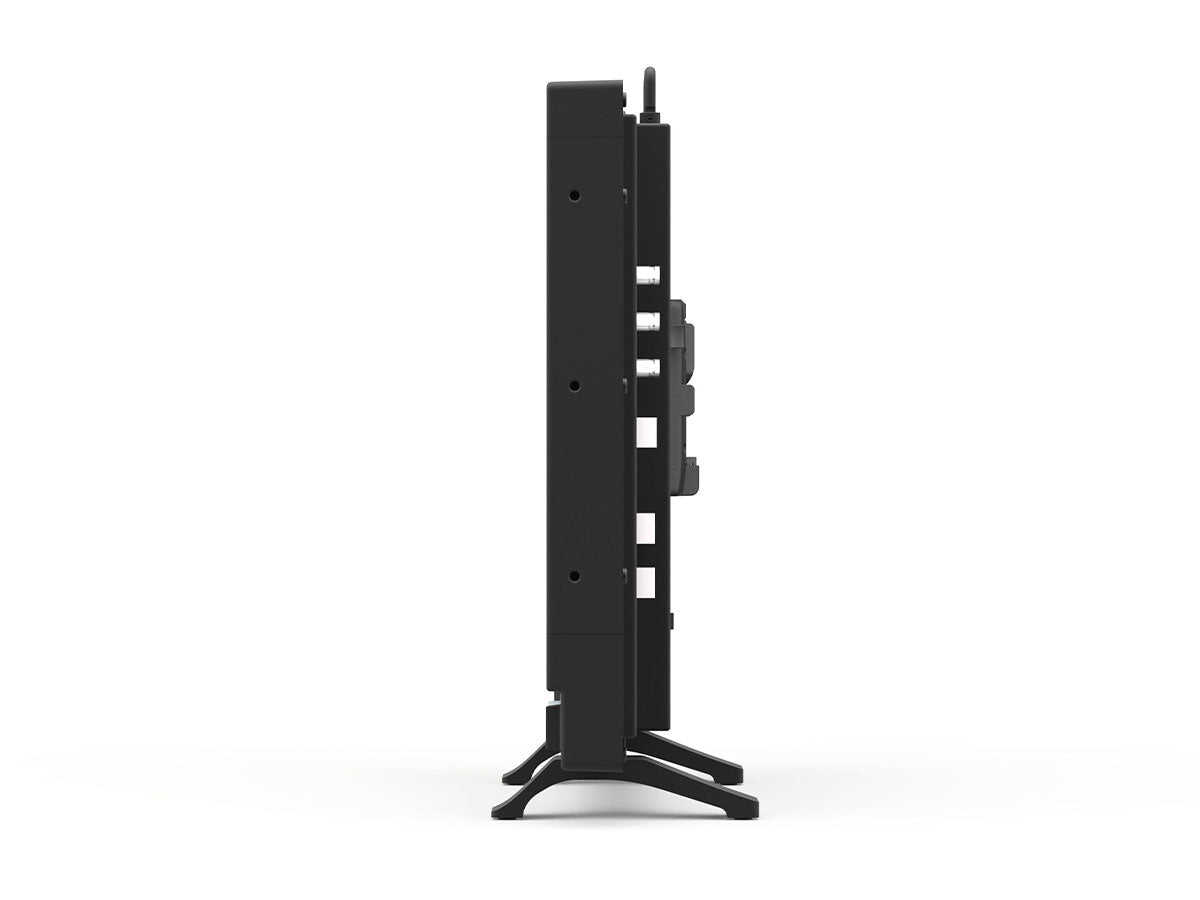

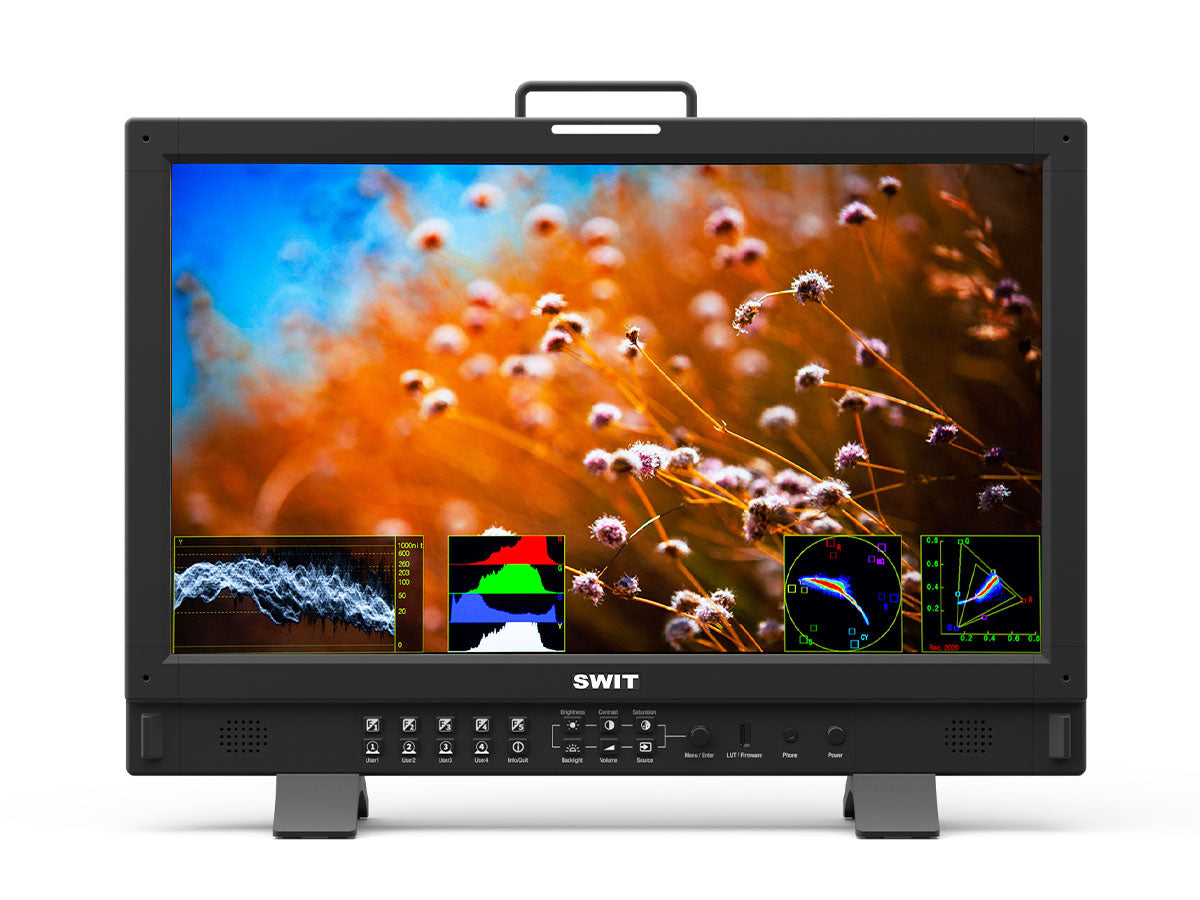

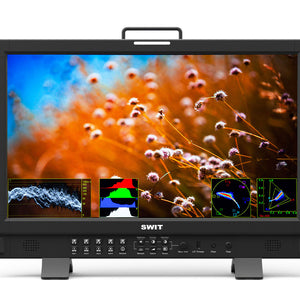

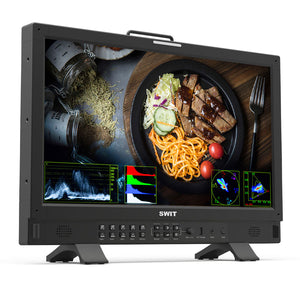

Swit 21.5-inch 1000nits 4K Input Ready Monitor

Swit 21.5-inch 1000nits 4K Input Ready Monitor

SKU: SWI-BM-H215HDR
£1,995.00 GBP ex VAT
£2,394.00 GBP inc VAT
ex VAT £1,995.00 GBP ex VAT
£2,394.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
21.5-inch 1000nits HDR - FHD, 100% DCI-P3 QLED Panel
BM-H215HDR adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 1000nits high bright backlight for HDR productions, 1000:1 contrast, H/V 178° viewing angle.
Multi 4K Interfaces
BM-H215HDR provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:
  • 12GSDI Single link 4K;
  • 4x3GSDI Quadlink 4K, (SQD and 2SI)
  • HDMI 2.0 (4K60P)
Supports pixel-to-pixel zoom-in the 4K signal to FHD panel.
Display Modes
Supports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
VICO 1.97 Eye Protect
BM-H215HDR QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
HLG/PQ/S-Log3 HDR
BM-H215HDR has native 1000nits high bright backlight, provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
3DLUT Auto Self-Calibration - By X-rite i1 or JETI Specbos 1211
With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Support Zero latency mode (less than 1/100 frame) for lip-sync monitoring.
HDR/SDR De-log LUTs
The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc.
You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.
Audio Patterns
Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Moreover, BM-H monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns.
Eye Pattern
Built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.
Webserver IP Remote Control
BM-H215HDR supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.
Power Supply
BM-H215HDR consumes 60W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)
  • 21.5-inch 1920×1080 QLED Panel
  • 1000nits high bright HDR
  • 100% DCI-P3 wide color gamut coverage
  • VICO 1.97 A-class Eye Protecting LCD
  • 12G-SDI, 4x3G-SDI, HDMI2.0 4K input
  • 4-ch SDI/HDMI mixed multiview
  • 2-ch SDI/HDMI PBP or PIP view
  • Multi Color Gamut & HDR/SDR Viewing
  • Payload ID auto setting
  • 18-bit internal color processing
  • Audio/Video Zero latency
  • 3DLUT Auto Self-calibration without PC
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram / Eye pattern
  • Focus assist / False color / Zebra
  • 16-ch audio meters / Lissajous pattern
  • 5.1 & 7.1 surround sound phase pattern
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade
LCD PERFORMANCE
Size: 21.5 inches
Display Area: 476×268mm
Resolution: 1920×1080
Aspect Ratio: 16:9
Brightness: 1000nits
Contrast: 1000:1
Colour Depth: 10bit (8+2FRC)
Signal Process: 18-bit
Viewing Angle: 178°(H) /178°(V)

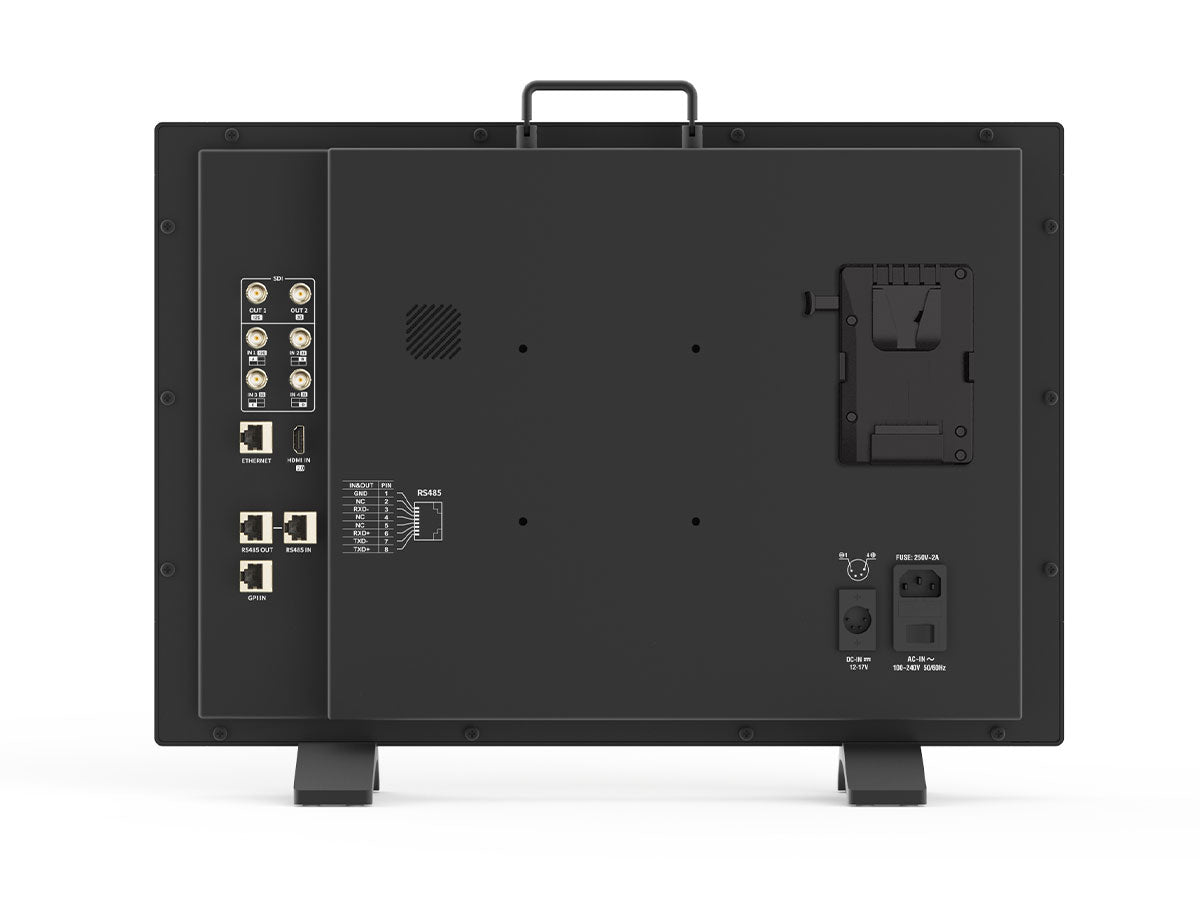

INPUT
BNC x 1:

12G/6G/3G/HD/SD-SDI input
BNC x 3: 3G/HD/SD-SDI input
HDMI x 1: HDMI 2.0 input
RS485 x 1: TSL 3.1/4.0 UMD input
RS 485 x 1: GPI (Tally) input
RJ45 x 1: 1000M Ethernet input for Webserver IP control
OUTPUT
BNC x 1:

12G/6G/3G/HD/SD-SDI loop output
BNC x 1: 3G/HD/SD-SDI loop output
RS485 x 1: TSL 3.1/4.0 UMD output
Analog Audio: 3.5mm headphone and speaker
VIDEO FORMAT
SDI 1: 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
SDI 2/3/4: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each Channel): 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI: 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
GENERAL
Input Voltage: DC 12V-17V, AC 100-240V, 50/60Hz
Power Consumption: 60W
Working Temperature: 0°C～+50°C
Working Humidity: 10%～90%
Storage Temperature: -15°C～+60°C
Storage Humidity: 10%～90%
Dimensions: 530.6×364.3×74.2mm
Net Weight: Net 6.05kg; With package 10kg
