Swit 17.3-inch Full HD Waveform Studio LCD Monitor

Swit 17.3-inch Full HD Waveform Studio LCD Monitor

SKU: SWI-S-1173FS
£1,153.00 GBP ex VAT
£1,383.60 GBP inc VAT
ex VAT £1,153.00 GBP ex VAT
£1,383.60 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

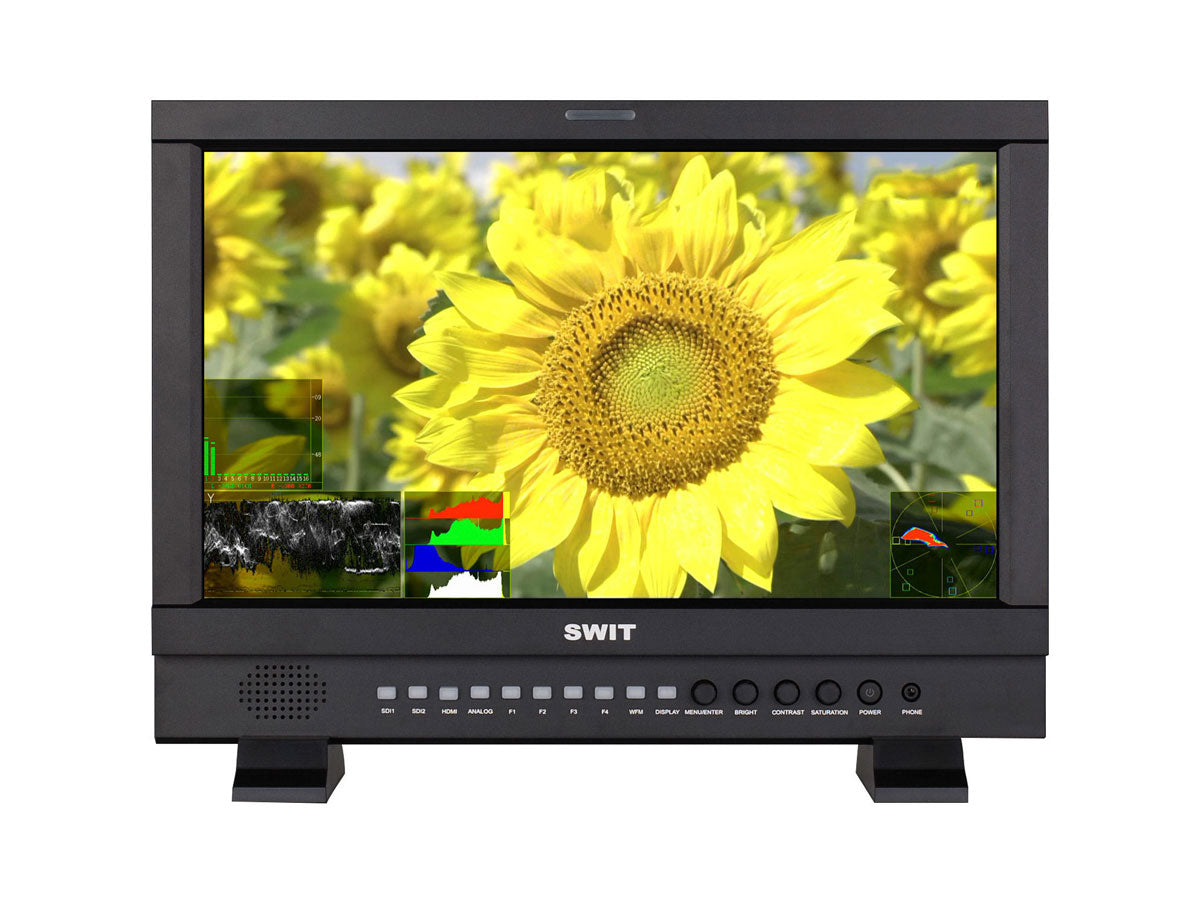

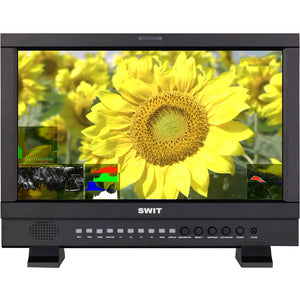

The S-1173F Broadcast Studio LCD Monitor from SWIT adopts a 17.3” LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 700:1 contrast for accurate color reproduction and comes with a Gold Mount battery plate. With four corners and a large center display position, the monitor allows for adjusted translucence for waveform and vectorscope/histogram.

  • 17.3” LCD panel
  • 1920 x 1080 resolution
  • 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS monitoring
  • 2-channel embedded audio meters with alert
  • 2 selectable audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vectorscope, histogram R/G/B/Y
  • Peaking focus assist (red/blue switch)
  • Active Format Description (AFD)
  • Timecode, H/V delay
  • TSL UMD and text TALLY display
  • Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
  • False color with color chart
  • R/G/B/mono color modes
  • Over exposure zebra stripes
  • Internal color bar
  • Gold Mount battery plate
  • 19” rack installation, 7U height
  • USB firmware upgrade
Signal System NTSC/PAL
Monitor Type LCD
Screen Size 17.3" (43.9 cm)
Resolution 1920 x 1080
Display Area 15 x 8.6" (38 x 22 cm)
Display Colors 16.7 million colors
Viewing Angle H/V: 160°/ 160°
Brightness 300 cd/m2
Contrast Ratio 700:1
Aspect Ratio 16:9 / 4:3

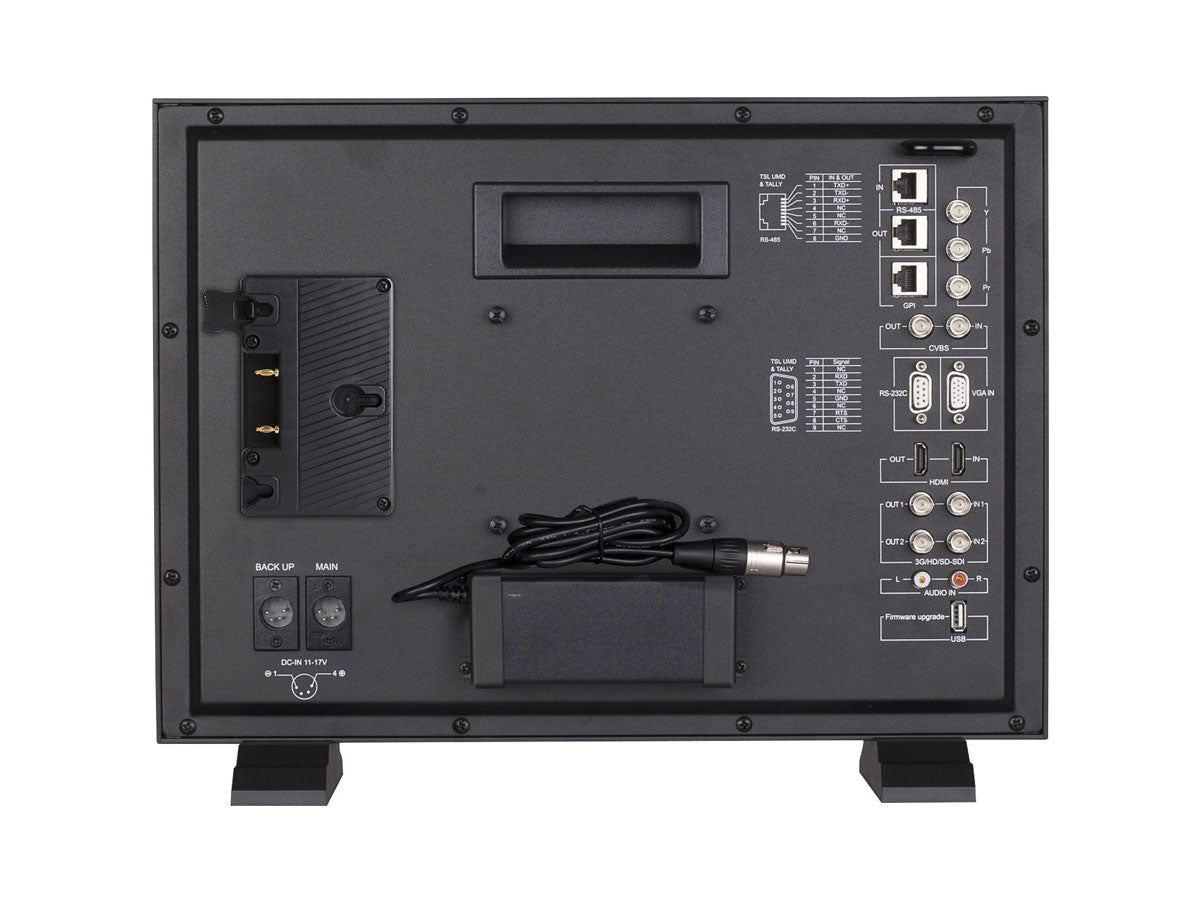

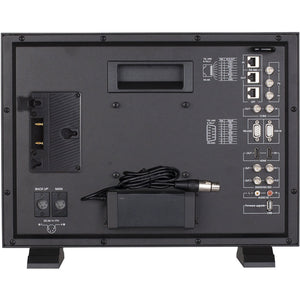

Inputs BNC: 2 x 2K/3G/HD/SD-SDI input, 1 x CVBS input, 1 x Y/Pb/Pr input
1 x HDMI
RS-485: 1 x GPI, 1 x UMD
1 x USB
1 x VGA
1 x RS-232C (UMD)
RCA: 2 x L/R audio input
Outputs Output
BNC: 2K/3G/HD/SD-SDI Loop output, 1 x CVBS loop output
1 x HDMI loop output
1 x RS-485 (UMD)
1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output
Video Formats SDI:
SMPTE ST 2048-1: 2048 x 1080p (60/59.94/50/30/29.97/25/24/23.98), 2048 x 1080i (60/59.94/50)
SMPTE-425M: 1080p (60/59.94/50)
SMPTE-274M: 1080p (30/29.97/25/24/23.98), 1080i (60/59.94/50)
SMPTE-RP211: 1080psf (30/29.97/25/24/23.98)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)

HDMI:
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
720p (60/59.94/50)
480i/576i/480p/576p

Y/Pb/Pr: 1080p (50/60)/1080i (50/60)/720p (50/60)/576p/576i/480p/480i

VGA: 1600 x 1200/1280 x 1024/1280 x 960/1280 x 768/1152 x 864/1024 x 768/800 x 600/640 x 480
Temperature Working: 32 to 104°F (0 to +40°C)
Storage: 5 to 140°F (-15 to +60°C)
Humidity 10 to 90%
Power Requirements 100 to 240 VAC, 11 to 17 VDC
Power Consumption ≤32 W
Dimensions 1.7 x 1.2 x 0.3" (43 x 31 x 7.3 cm)
Weight 10.2 lb (4.65 kg)
