100W Studio Panel LED Light - Brighter, softer, wider beam angle
CL-100 is a 100W 2:1 SMD LED panel light of daylight color temperature, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio install applications.
3300 Lux @ 1 meter
CL-100 has 720pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc.
The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc.
Wider Beam Angle
The CL-100 SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio.
5600K Daylight Color Temp
CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs, outputs accruate 5600K color temperature for daylight studio application.
Accurate Color Render - CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors.
The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors.

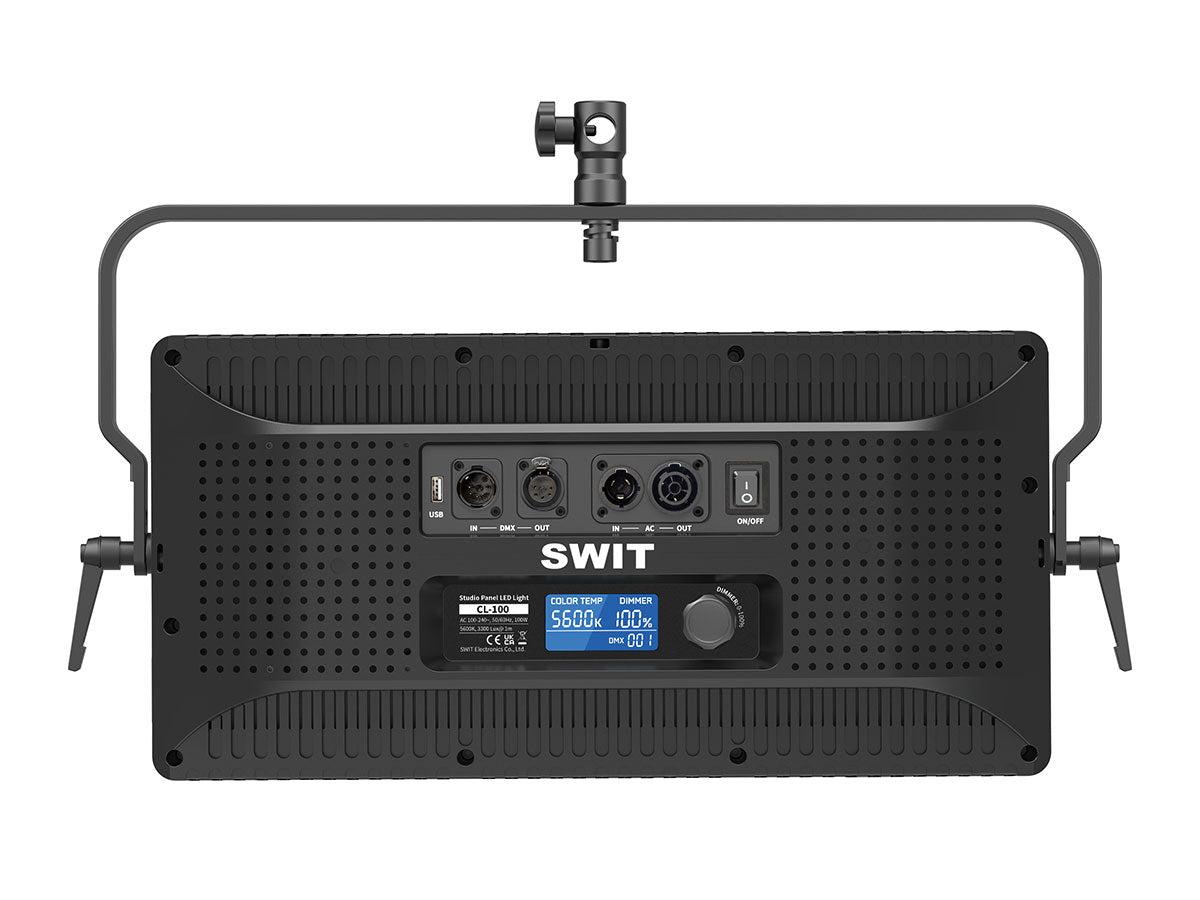

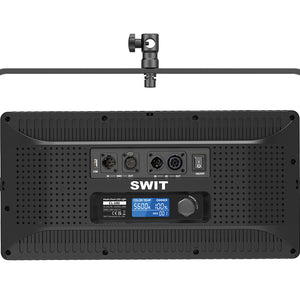

DMX, AC IN & LOOP
CL-100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100 lights under 220V AC voltage, and 13x CL-100 lights under 110V voltage.
Optional Honeycomb
CL-100 provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors.
Honeycomb Part number: LA-G100
Honeycomb Part number: LA-G100
- 720pcs Surface mounted LEDs
- 2:1 size, 100W, 3300Lux @ 1meter
- Half-peak 65° wide beam angle
- 5600K daylight color temperature
- 0-100% flick-free dimming
- CRI Ra 97, TLCI 99, SSI (D55) 75
- DMX512 controlled dimmer
- USB power out for wireless DMX receiver
- LCD display color, dimmer and DMX addr
- PowerCON TRUE1 AC in and loop out

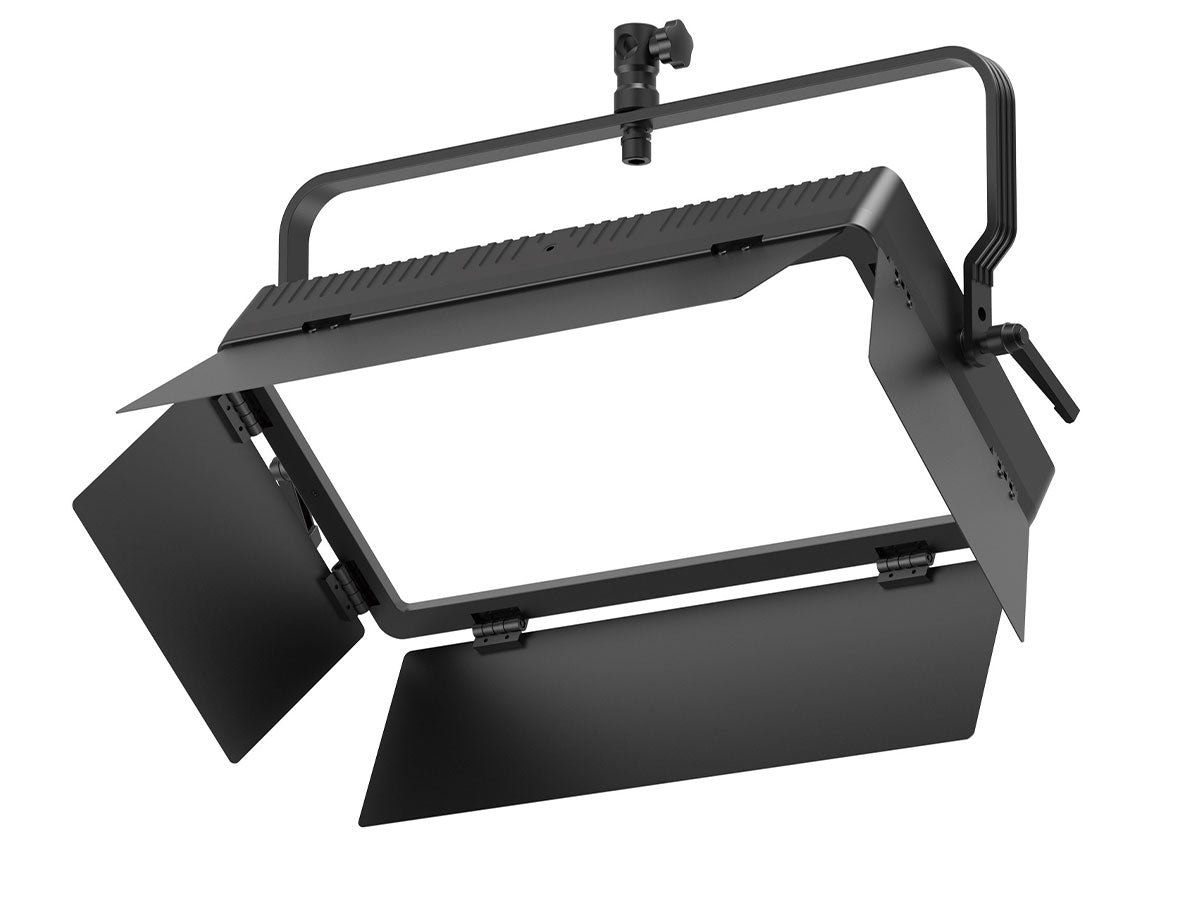

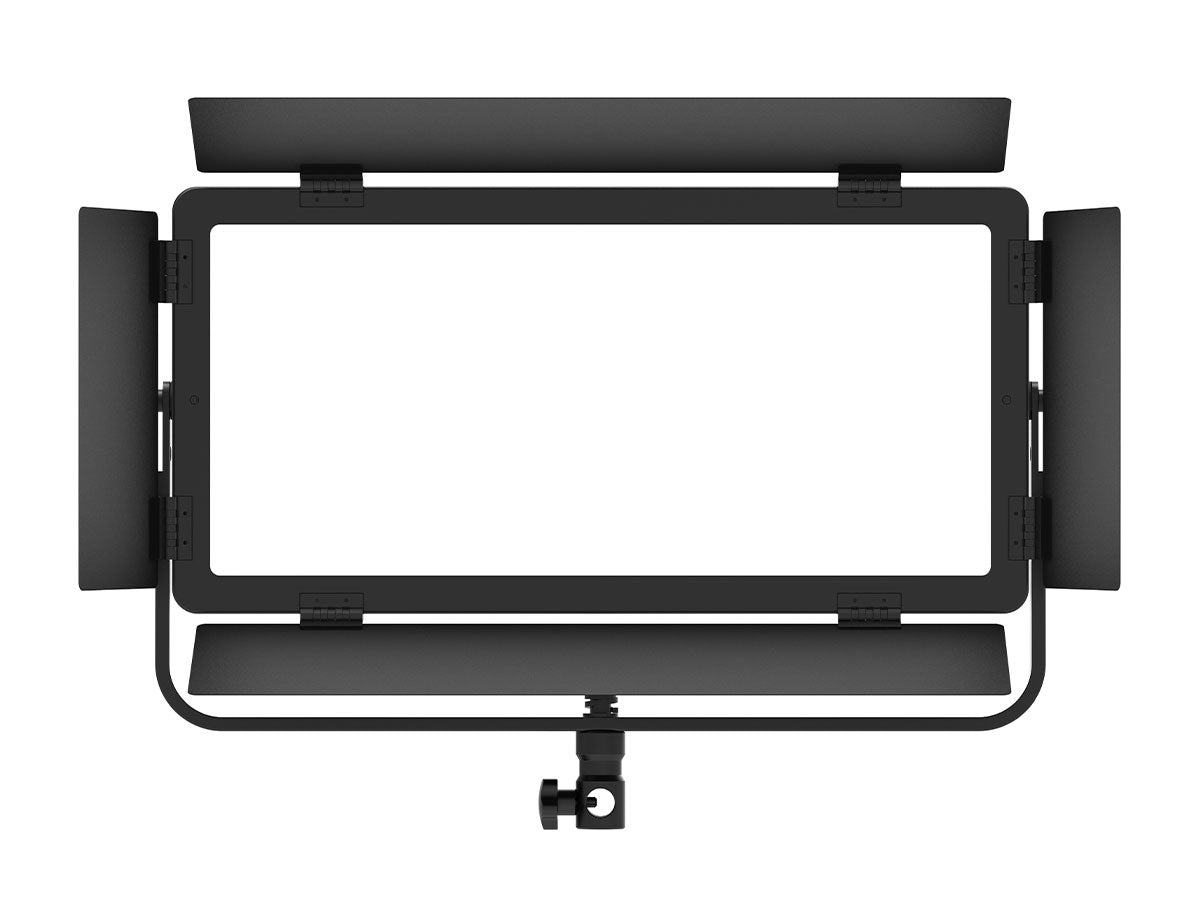

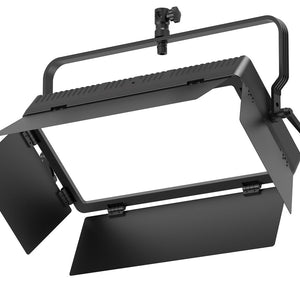

- 4-leaf metal barn doors and Yoke bracket
- Optional 40° honeycomb (LA-G100)
| LED: | 720pcs SMD LEDs |
| Illuminance: | 3300Lux @ 1m |
| Beam Angle: | 65° half peak |
| Colour Temperature: | 5600K |
| CRI: | 97 |
| TLCI: | 99 |
| Power: | 100W |
| USB: | 5V USB-A power out |
| DMX: | DMX512, 5pin XLR IN & OUT |
| AC Power: | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
| Dimensions: | 480×240×87mm |
| Lighting Area: | 435×195mm |
| Weight: | 3.2kg |
