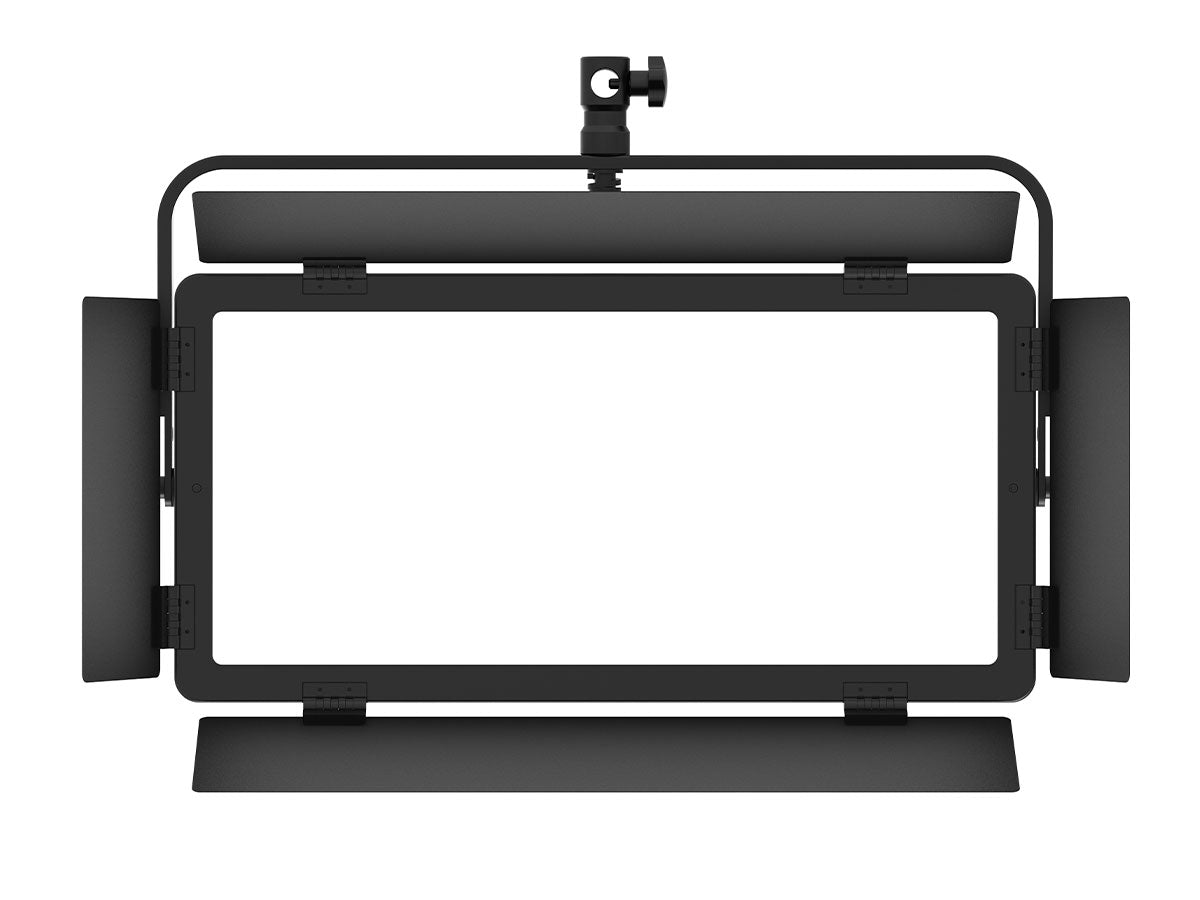

Swit 100W Bi-color Studio SMD Panel LED Light

Swit 100W Bi-color Studio SMD Panel LED Light

SKU: SWI-CL-100D
£407.00 GBP ex VAT
£488.40 GBP inc VAT
ex VAT £407.00 GBP ex VAT
£488.40 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Brighter, softer, wider beam angle
CL-100D is a 100W 2:1 Bi-color SMD LED panel light, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio install applications.
3300 Lux @ 1 meter
CL-100D has 1440pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc.
Wider Beam Angle
The CL-100D SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio.
2700K-6500K Continuously
CL-100D adopts 4-step MacAdam Ellipse SMD-LEDs, consists of 100W 2700K LEDs and 100W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K.
Accurate Color Render - CRI 97; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-100D offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors.

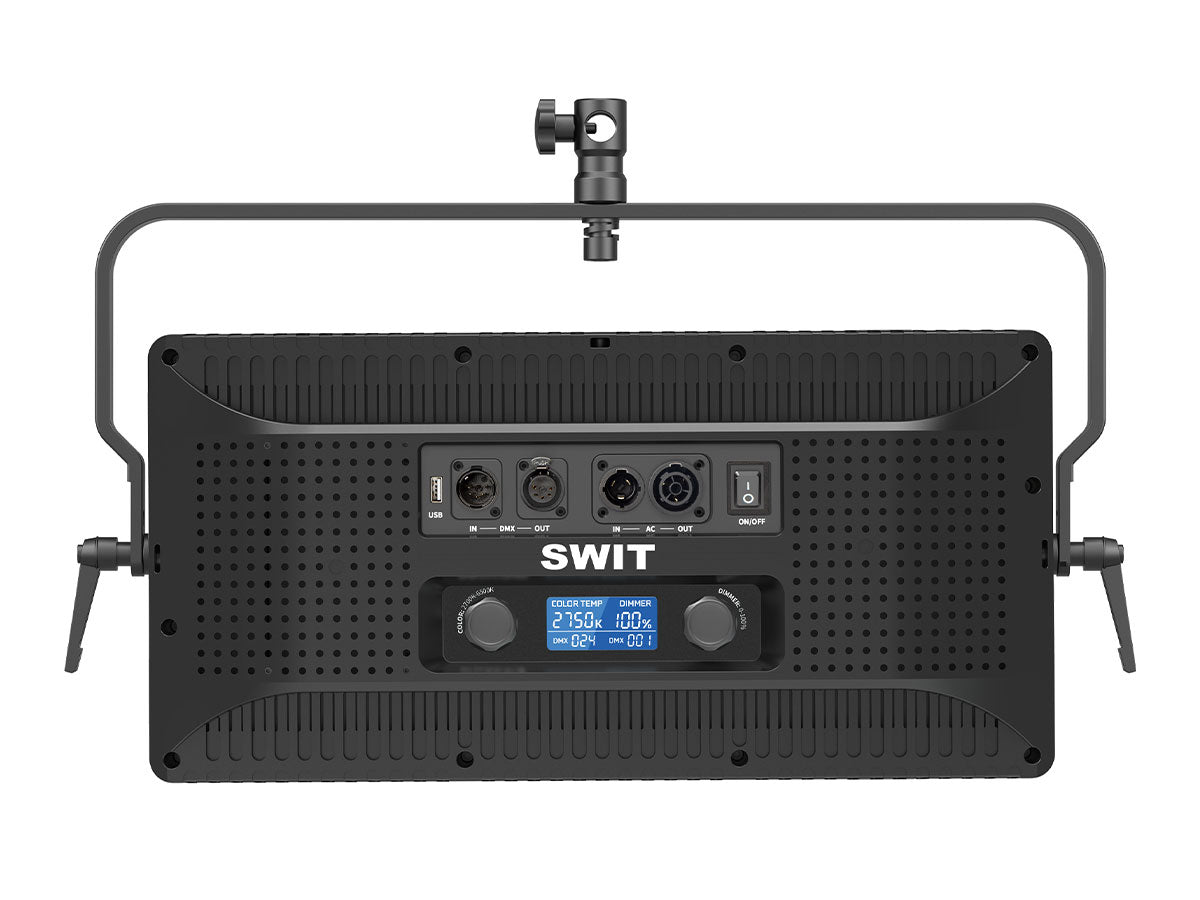

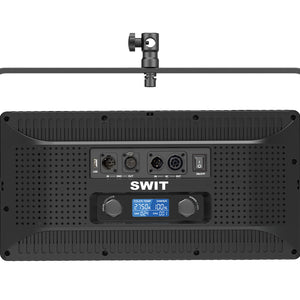

DMX, AC IN & LOOP
CL-100D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100D provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100D lights under 220V AC voltage, and 13x CL-100D lights under 110V voltage.
Independent DMX Addr Setting
The regular Bi-color lights use N and N+1 to set Dimmer and Color temp DMX addresses, which means 1x light occupy 2x DMX sliders on the console.
Now the CL-100D can set independent DMX addresses for Dimmer and Color temp. For example you can set Color temp DMX 024 for every light, and Dimmer DMX 001, 002, 003... sequentially, to save sliders on the console.
  • 1440pcs Surface mounted LEDs
  • 2:1 size, 100W, 3300Lux @ 1meter
  • Half-peak 65° wide beam angle
  • 2700K-6500K continuously adjust
  • 0-100% flick-free dimming
  • CRI Ra 97, TLCI 99, SSI (D55) 75
  • DMX512 controlled color and dimmer
  • Dimmer/Color Temp independent DMX addr
  • USB power out for wireless DMX receiver
  • LCD display color, dimmer and DMX addr
  • PowerCON TRUE1 AC in and loop out

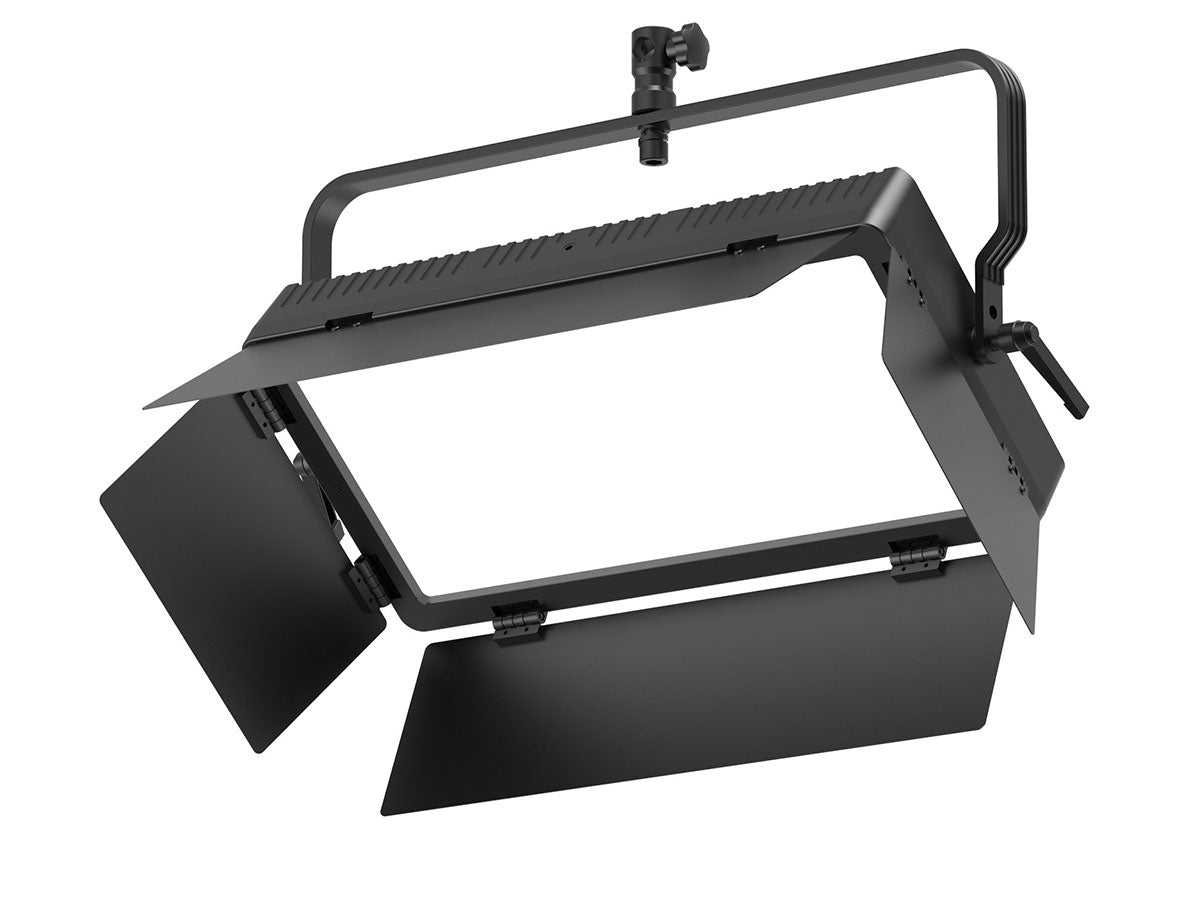

  • 4-leaf metal barn doors and Yoke bracket
LED: 1440pcs SMD LEDs
Illuminance: 3300Lux @ 1m
Beam Angle: 65° half peak
Colour Temperature: 2700K-6500K
CRI: 97
TLCI: 99
Power: 100W
USB: 5V USB-A power out
DMX: DMX512, 5pin XLR IN & OUT
AC Power: PowerCON TRUE1 AC 100-240V 50/60Hz input & output
Dimension: 480×240×87mm
Lighting Area: 435×195mm
Weight: 3.2kg
  • 1x Swit CL-100D
  • 1x Safety rope
  • 1x PowerCON TRUE1 AC cable
