Sound Devices XL-AES 8-Channel Input Expander

Sound Devices XL-AES 8-Channel Input Expander

SKU: SD-XL-AES
£207.06 GBP ex VAT
£248.47 GBP inc VAT
ex VAT £207.06 GBP ex VAT
£248.47 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications

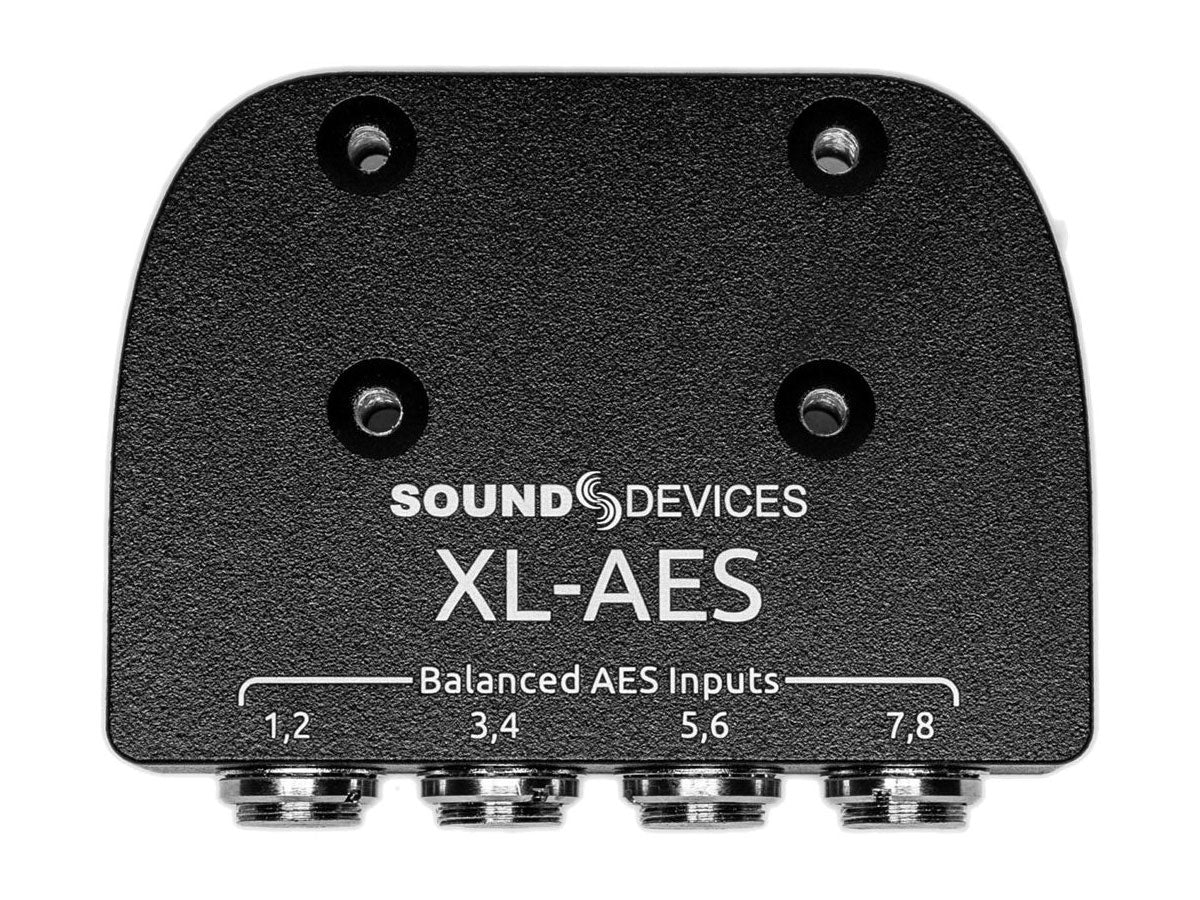

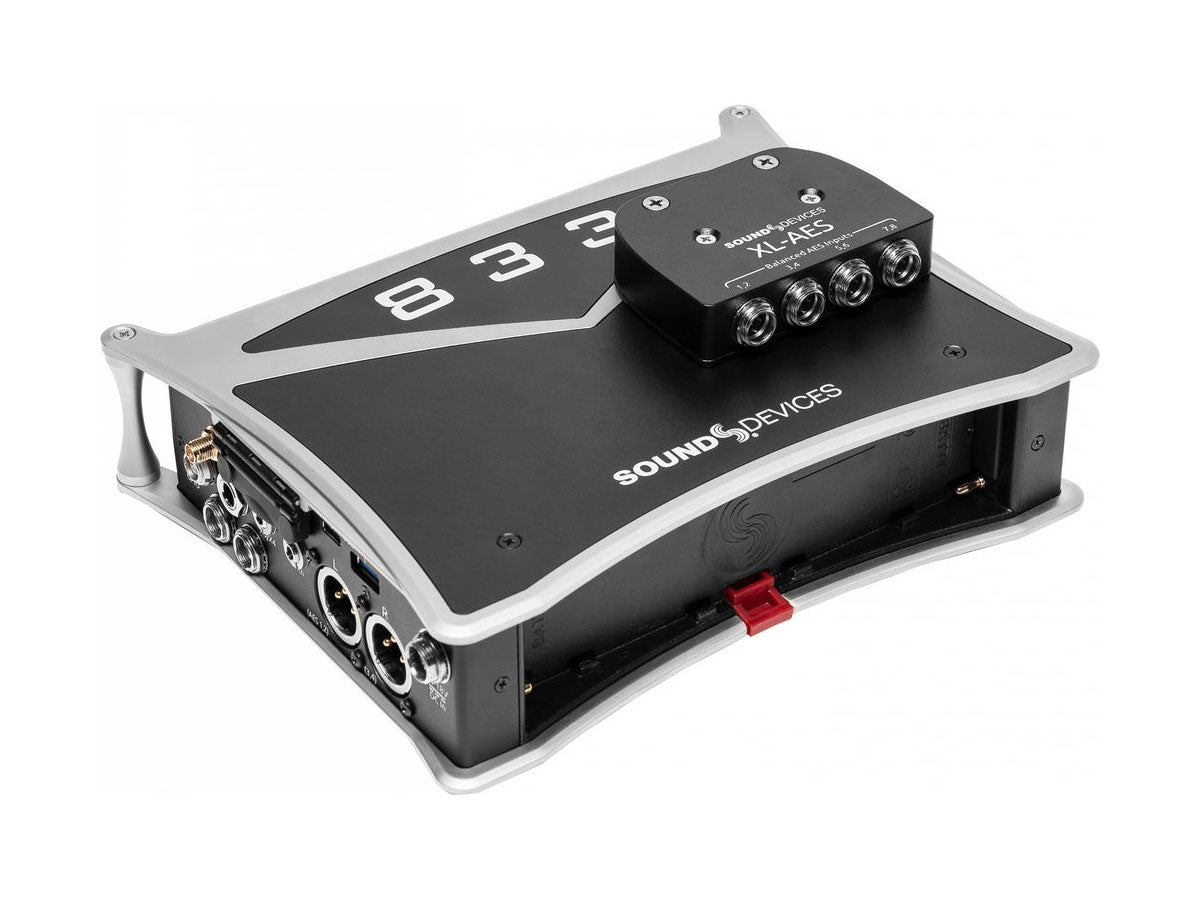

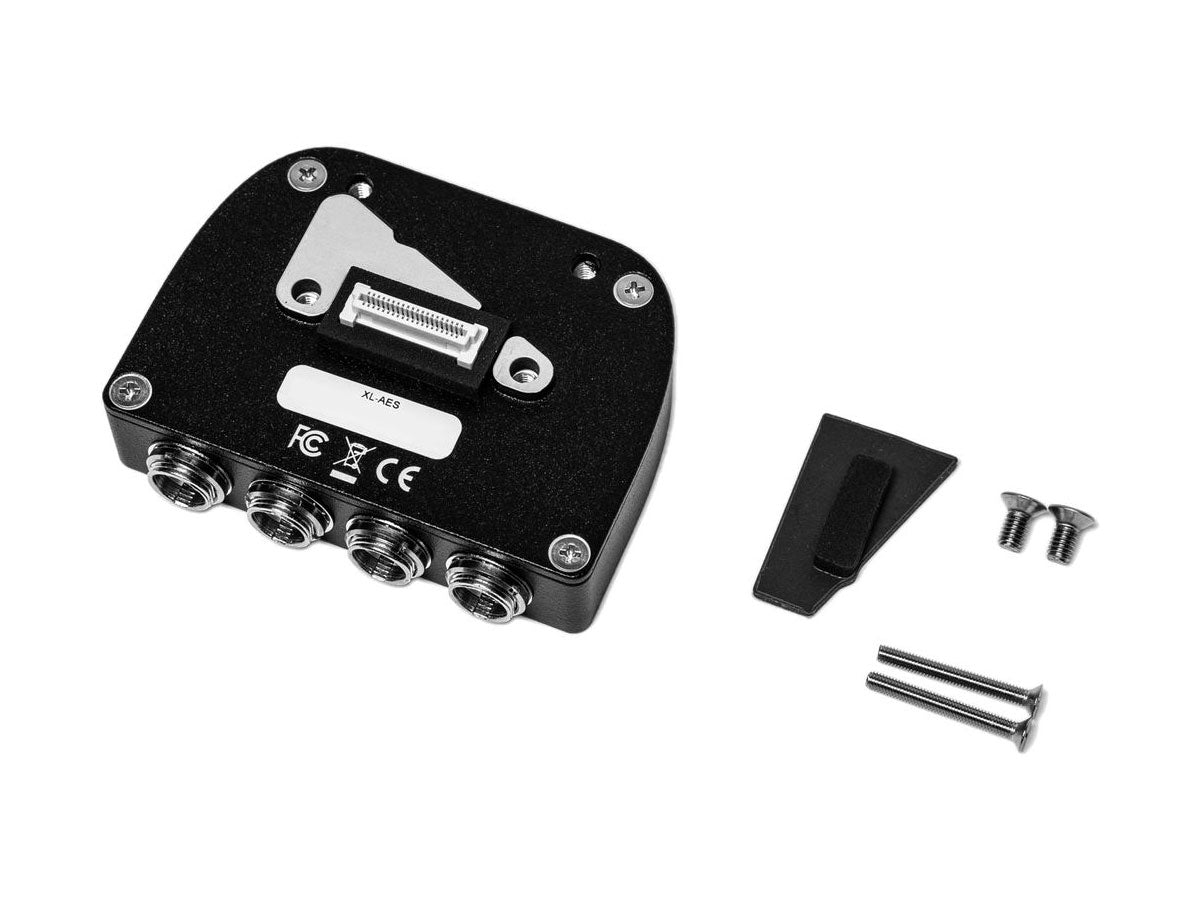

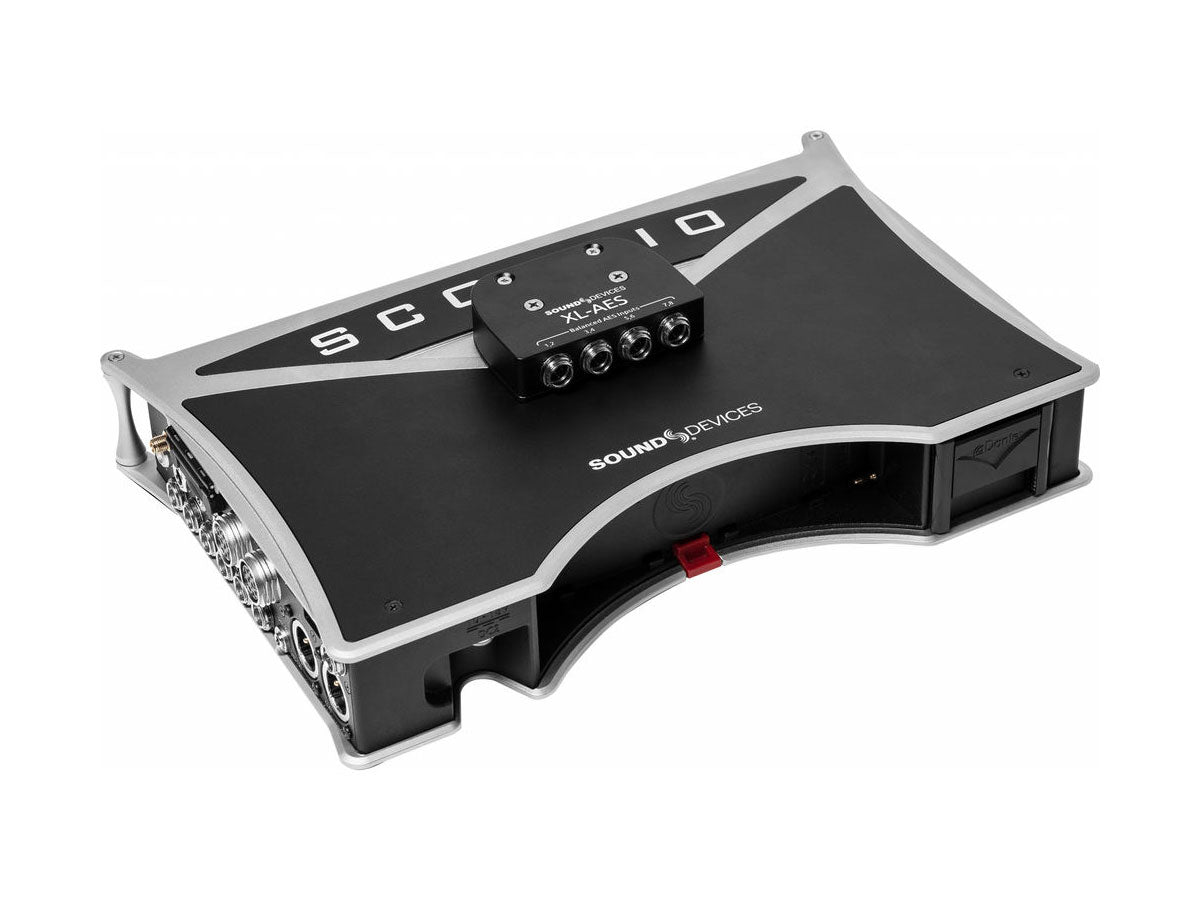

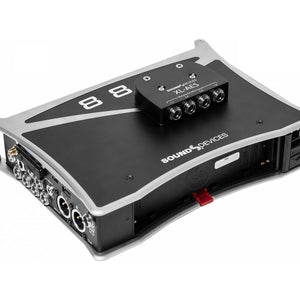

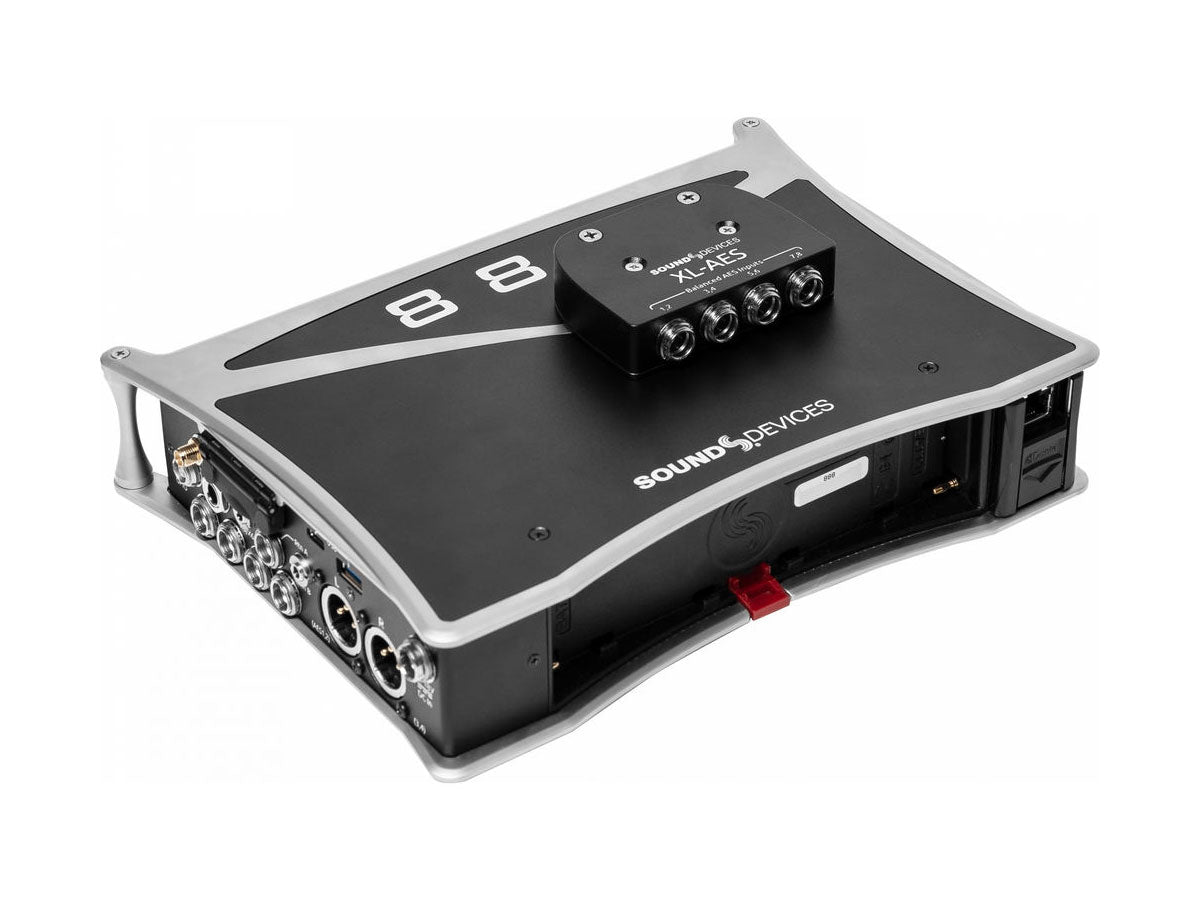

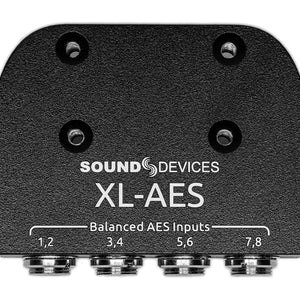

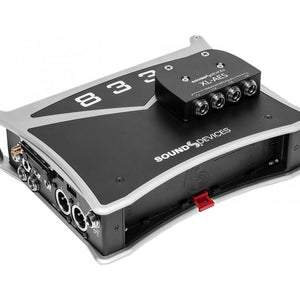

The XL-AES is an optional accessory for the Scorpio, 888, and 833 that provides 8 channels of AES3 audio connectivity through four heavy-duty TA3M input jacks. The accessory mounts directly to the expansion port on the mixer-recorder’s top panel and features a rugged milled aluminum enclosure for years of reliable use.

The XL-AES appears in the Channel Input Source menu with all other possible input sources. Any of the 8 audio channels from the XL-AES may be routed to any channel on the mixer-recorder.

  • Weight: 4.3 oz (122g).
  • Height from 8-Series (H x W x D): 1.9cm x 7.9cm x 6.1cm/.75in x 3.1in x 2.4in
  • Overall Height (H x W x D): 2.6cm x 7.9cm x 6.1cm/1.0in x 3.1in x 2.4in
  • Powering: the XL-AES receives power from the host mixer-recorder
  • Input type: AES3, balanced, TA3M connectors
  • Impedance: 110 ohms
  • Sensitivity: 200 mV or higher accepted
  • Wiring: pin 1 = ground; pin 2 = +; pin 3 = –
