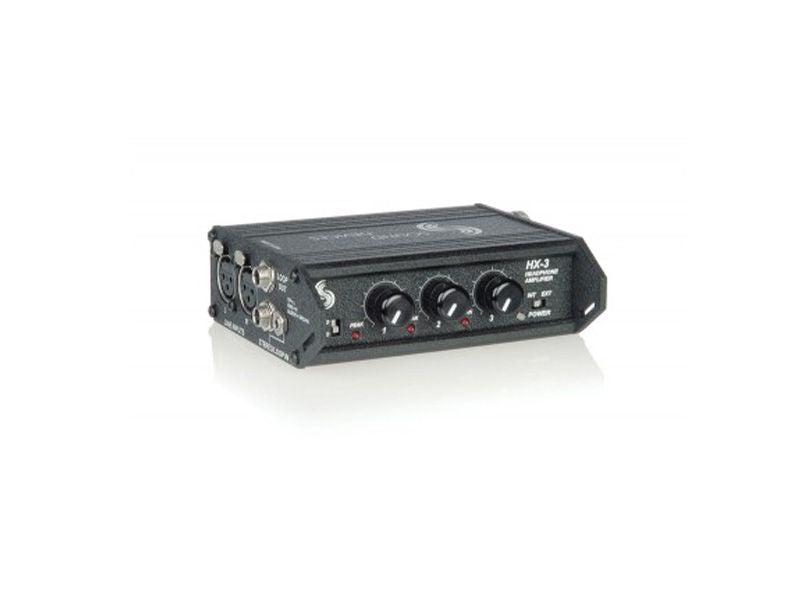

Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier
Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier
SKU:
SD-HX-3
Regular price
£522.35 GBP ex VAT
£626.82 GBP inc VAT
£626.82 GBP inc VAT
Regular price
ex VAT
Sale price
£522.35 GBP ex VAT
£626.82 GBP inc VAT
Unit price
per
£626.82 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
The Sound Devices HX-3 is a remarkably robust and well crafted portable headphone amplifier intended for professional location use in the film, broadcast, and music industries.
The HX-3 is among the elite of it's category in terms of flexible design and durability of construction, offering a very high level of sound quality and frequency response.
Loaded with features, both practical and technical, the HX-3 also comes with a very affordable price tag.
- Very lightweight, AA battery powered portable 3-channel headphone amplifier
- Durable, high-strength, extruded aluminum chassis with protective end paneling
- High output, very low noise; frequency response from 10 Hz - 50 kHZ
- Three isolated headphone outputs with individual volume controls
- 125 dB dynamic range with flat frequency response
- Panel mounted headphone connectors
- Dual XLR line level plus 1/4" and 1/8" stereo input connectors
- All-metal connectors solidly mounted to the chassis for durability and RF immunity
- Stereo or mono monitoring
- Peak LED indicates headphone overload
- Loop Output to connect additional HX-3's in series
- Internal battery-power for up to 18 hours from two AA alkaline batteries
- Power LED with low battery indication
- Chassis-isolated 5 to 18 VDC input for external alternative DC powering.
- Locking DC connector
| Number of Channels | 3 |
| Input Connections | 2 x XLR Female, Balanced Line 1 x 1/4" TRS Stereo/Loop In, Unbalanced Line 1 x 1/8" Stereo Mini, Unbalanced Line |
| Output Connectors | 3 x 1/4" TRS Stereo Headphone, Line 1 x 1/8" Stereo Mini Headphone, Line 1 x 1/4" TRS Loop Out |
| Maximum Output Level | +18 dBu |
| Function Controls | 3 x Channel Volume Knobs 1 x Mono/Stereo Switch 1 x Internal/External Power Switch |
| Frequency Response | 10 Hz - 50 kHz +/-1.0 dB, any input to any output, Gain set to 50% |
| THD + N | 0.03% maximum, 10 Hz - 22 kHz @ +10 dBu input and output level(300 Ohm Load) |
| Noise | Not specified by Manufacturer |
| Display | Peak Indicators |
| Dimensions | 1.7 x 3.7 x 5.5" (43 x 94 x 140mm) |
| Weight | 1.24 lb (0.56 kg) |
| Specialties | AA battery operation Peak indicators Stereo and Mono monitoring |
- Sound Devices HX-3 - 3 Channel Portable Headphone Amplifier
- 4 x Rubber Feet
- 1 x 1/4" to 1/8" TRS Interconnect Cable
- 1 x Locking DC Jack
