Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders

Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders

SKU: SD-CL-16
£5,176.47 GBP ex VAT
£6,211.76 GBP inc VAT
ex VAT £5,176.47 GBP ex VAT
£6,211.76 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included

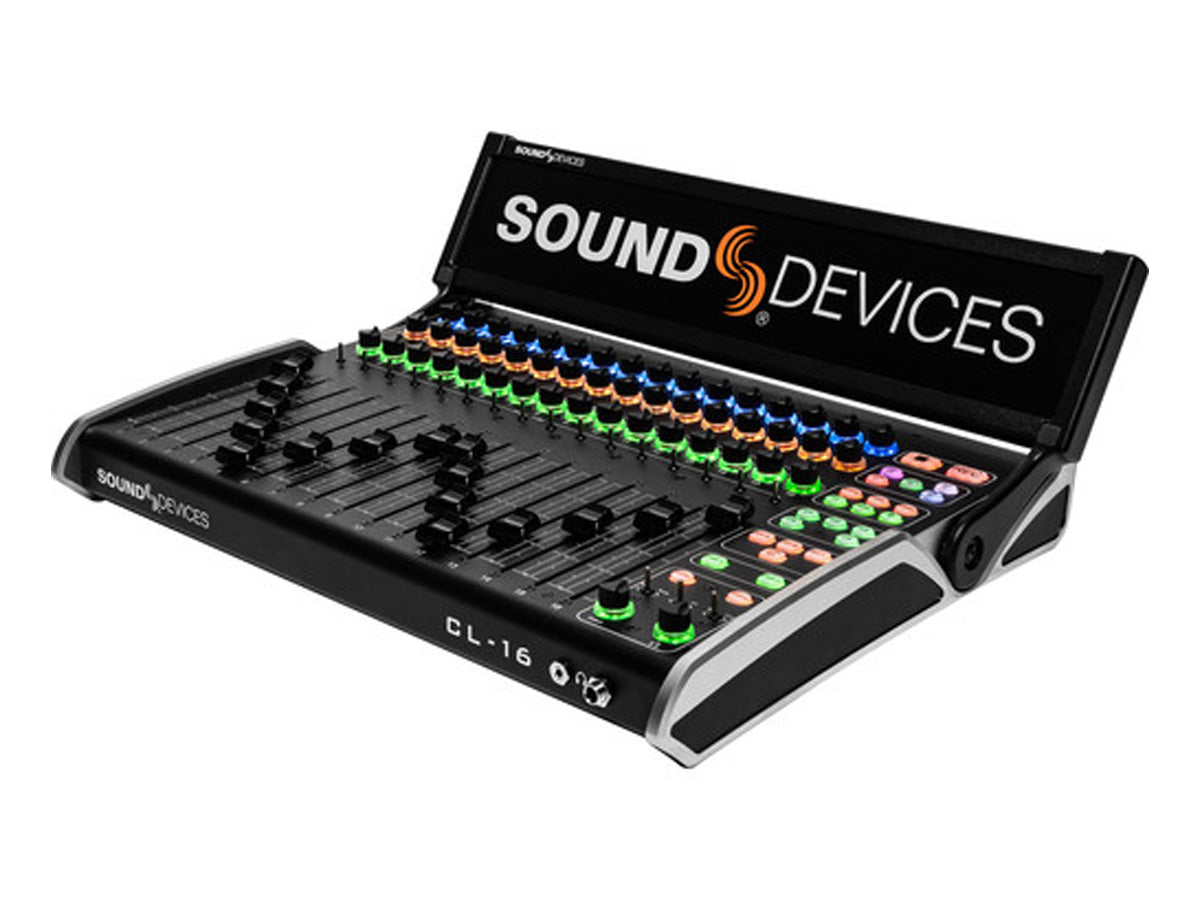

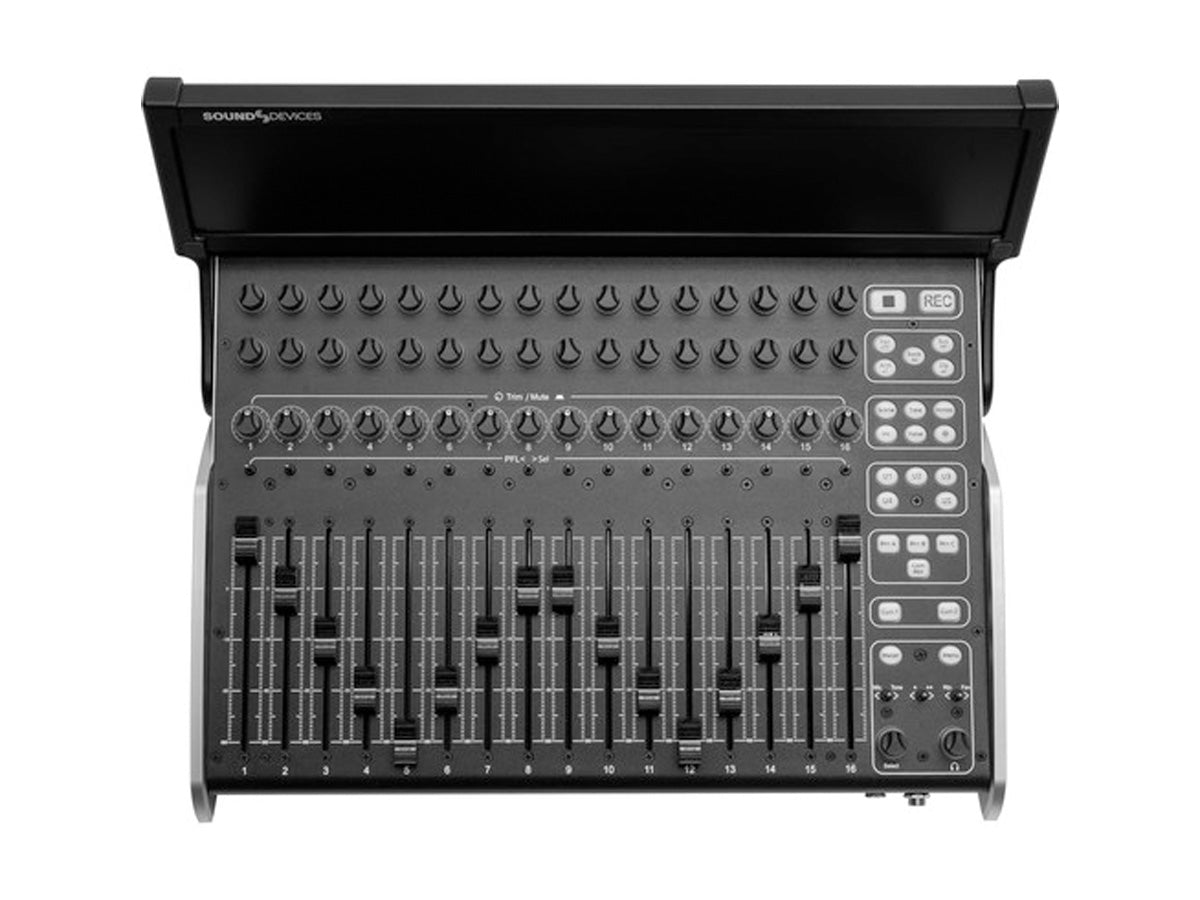

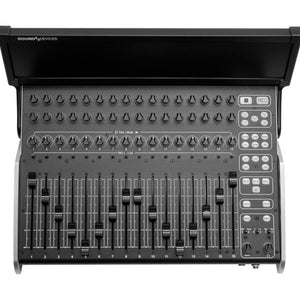

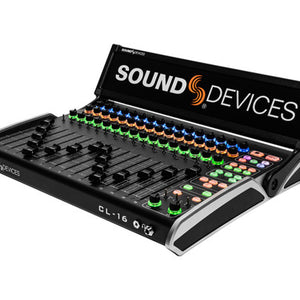

The CL-16 Linear Fader Control Surface for 8-Series combines the simplicity of traditional analog consoles with the power and flexibility of digital consoles. This bespoke control surface enhances the experience of cart-based mixing with its intuitive operation, 16 silky-smooth faders, 16 dedicated trims, and a glorious panoramic LCD. All of this is elegantly engineered into a 16.3”-wide compact unit which fits in a cart and operates from 12 V DC.

Features

  • Compatible with the 888 and Scorpio at launch, with support for the 833 in a later firmware update
  • 16 dedicated rotary trim controls
  • 16 dedicated faders
  • Intuitive design philosophy where channels 1-16 have dedicated, non-banking controls like a traditional analog console, and other important features may be quickly accessed
  • Large, sunlight-readable LCD screen folds down for easy and safe storage and transport
  • 32 multi-function rotary controls for EQ, pan, channels 17-32 gains, bus gains, output gains, and more
  • New high-reliability, silent, soft-touch buttons for key functions like record, stop, metadata, coms, returns, and more
  • Five user-assignable buttons

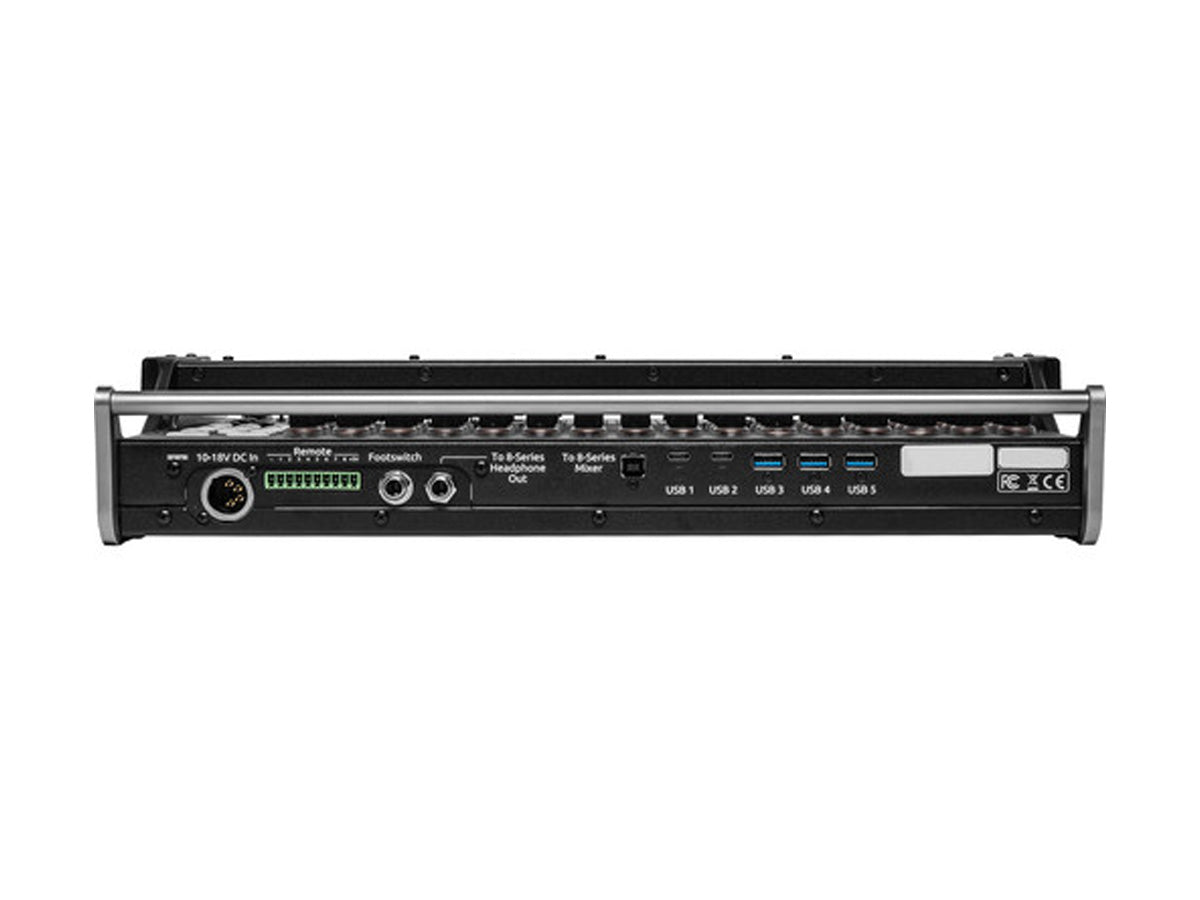

  • Built-in 5-port USB hub with (two USB-C and three USB-A) for keyboards, SD-Remote tablet, and other USB peripherals
  • ¼” and 3.5mm headphone jacks
  • Remote 10-Pin connector for custom wiring of LEDs and switches, along with ¼” foot pedal input
  • Connects to 888 and Scorpio via USB-B
  • 12 V DC-powered via 4-pin XLR
  • 16 ultra-smooth gliding Penny & Giles 100 mm linear faders - best feeling faders on the market
  • Quick bottom panel access for field servicing and cleaning of faders
Voltage 10-18 V DC at XLR-4. Pin 4= +, pin 1 = ground.
Current Draw (MIN) 560 mA quiescent at 12 V DC in, all USB ports left open
Current Draw (MID) 2.93 A, USB ports total load 5 A
Current Draw (MAX) 5.51 A, USB ports total load 10 A
USB-A Ports 5 V, 1.5 A each
USB-C Ports 5 V, 3 A each
Remote Ports, Power 5 V, 1 A available on pin 10
Remote Ports, Input 60k ohm typical input Z. Vih = 3.5 V min, Vil = 1.5 V max
Remote Ports, Output 100 ohm ouput Z when configured as ouput
Foot switch 1k ohm typical input Z. Connect to ground to operate (active low).
Weight 4.71 kg (101lbs 6oz)
Dimensions: (H x W x D) Screen Folded Down: 8.01cm X 43.52cm x 32.913cm (3.15in X 17.13in X 12.96in)
Screen Folded Up: 14.64cm X 43.52cm X 35.90cm (5.76in X 17.13in X 14.13in)
  • 10-pin Phoenix Screw Terminal Block
  • USB-A to USB-B Cable
  • ¼” TRS to ¼” TRS Headphone Cable
