The future of wireless

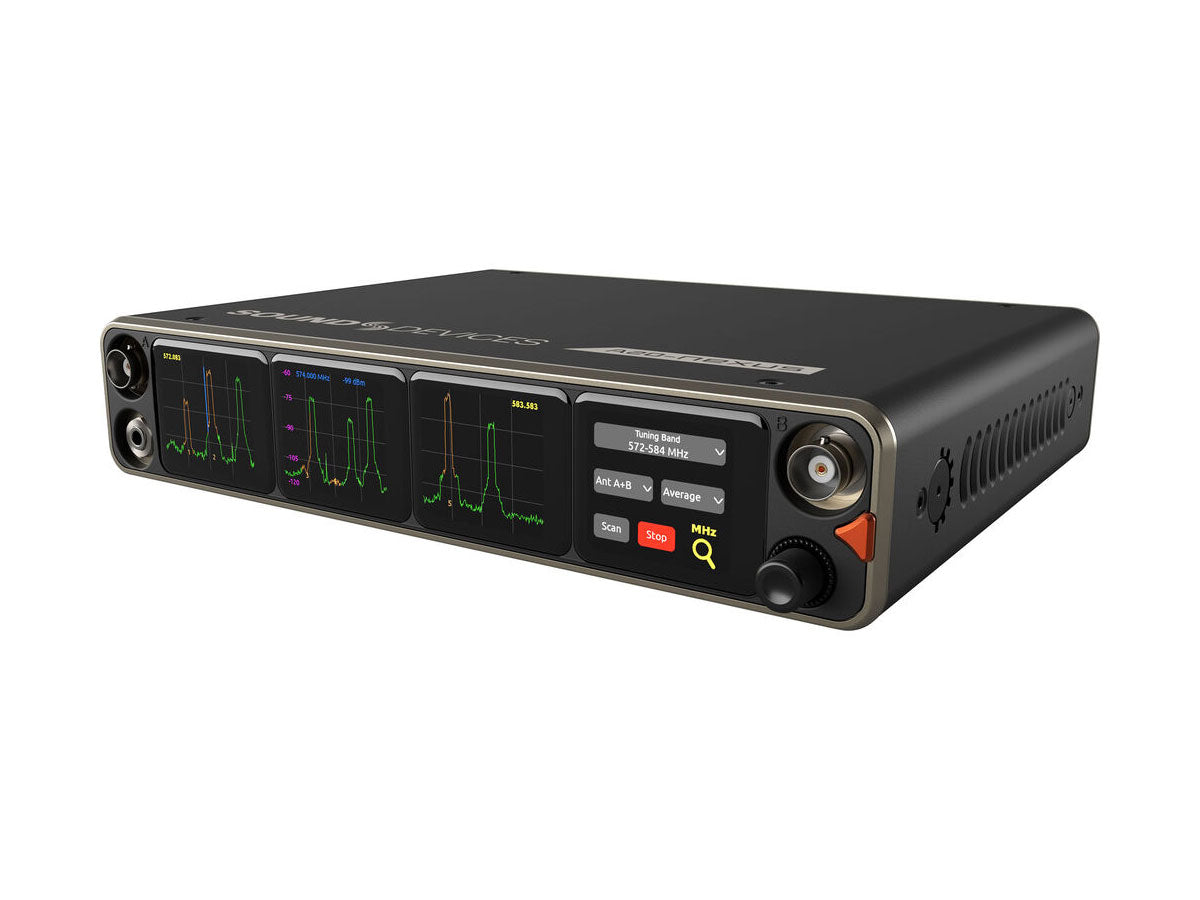

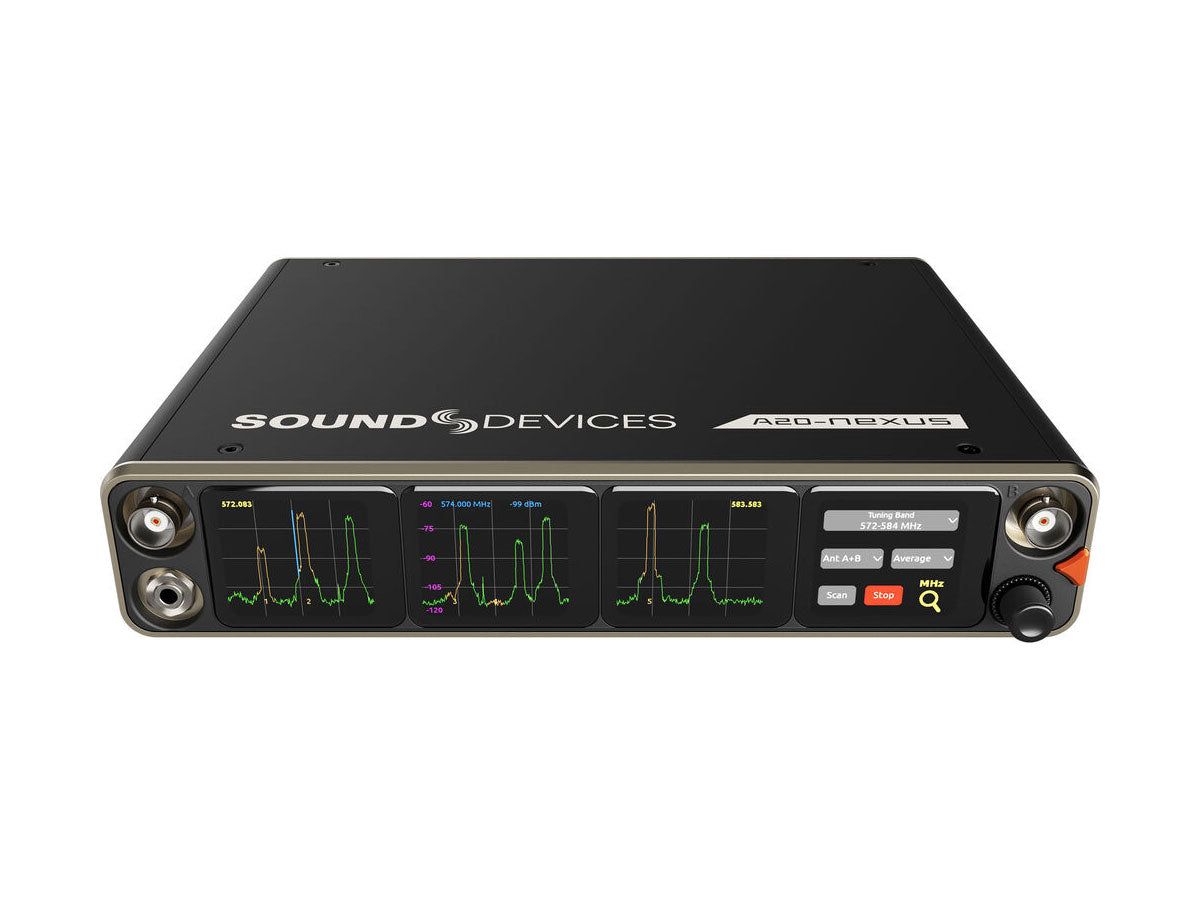

Meet the half-rack receiver with an entire rack’s worth of features. The next-generation A20-Nexus is expandable from 8 channels up to 12 and 16 with additional software and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more. With multiple options for audio outputs, powering, and remote control, the A20-Nexus can seamlessly adapt to your workflow, both now and in the future.
SpectraBand
SpectraBand technology delivers a tuning range of 470 – 1525 MHz in a single unit – an industry first! Experience ultimate flexibility as you find open spectrum away from the crowded UHF TV band. The included A20-Monarch antennas can receive the entire 470-1525 MHz range, keeping your kit small and tidy.
NexLink
Control your A20-Mini transmitter using the built-in long range remote control link. NexLink’s advanced long distance modulation reaches even farther than the A20-Mini’s long-range wireless audio transmission.
Network away
You’ve got options. Use the built-in web server with any computer, tablet, or phone to control the A20-Nexus wherever your ethernet cable can take you. Power the receiver from a distance using Power-over-Ethernet (PoE) and remotely deliver audio via Dante. The possibilities are boundless.
Real Time Spectrum Analysis

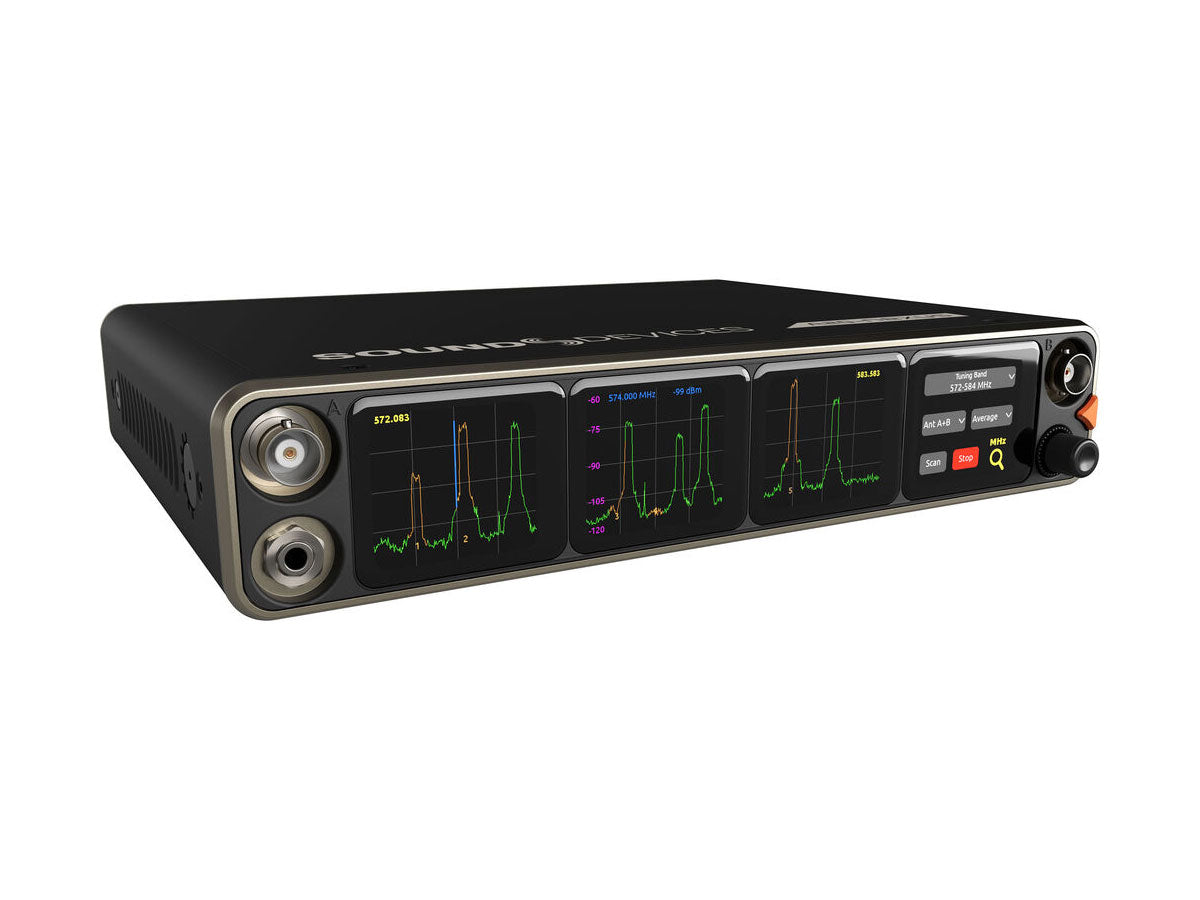

The days of waiting for a scan to complete are over. Instantly visualize the RF spectrum around you in real time and coordinate frequencies all while monitoring audio.
GainForward
With the A20-Mini’s GainForward Architecture, easily set the Mini’s gain, low-cut, and limiter directly on your A20-Nexus or mixer-recorder. This immediate, local control of gain means never having to adjust the gain on the transmitter again.
Go cableless
Thanks to its half-rack size, the A20-Nexus is equally at home in a rack, in a bag, or docked to an 8-Series mixer recorder for a cableless kit.
The A20-Nexus joins the growing lineup of Sound Devices Astral™ wireless technology. With industry-leading features like SpectraBand, GainForward, NexLink, long range modulation, real time spectrum analysis, and more, the Astral Series pushes the bounds of wireless audio.
- 8-channel ultra-high-performance, true-diversity receivers in a ½ rack size (8.0” x 6.6” x 1.6”).
- Expandable to 12 or 16 channels via additional software license (coming soon). Each +4 channel software expansion is priced at $2500 USD.
- 470 MHz – 1525 MHz tuning range via SpectraBand Technology.
- NexLink: an advanced long-distance modulation that reaches even farther than the A20-Mini’s long-range wireless audio transmission and functions separately or alongside A20-Remote.
- Dante audio-over-IP of RF receiver audio.
- Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).
- Web App control from browser on any computer, smartphone or tablet.
- Full remote operation capability: Power via PoE, audio via Dante, control via Web App.
- Dual DB-25 connectors for 16 channels of mic, line, or AES outputs
- Convert 16 channels of Dante to analog and/or AES on DB25 connectors, for sending IFB, voice-of-god, and more from mixer to set.
- Wide, 6.2” color OLED array with touch for control and monitoring.
- Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
- Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers. A20-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.
- Modular design: RF section (A20-Nexus) can be disconnected and remoted from 8-Series, as opposed to less-flexible integrated RF/Mixer/Recorder solutions.
- All NexLink control is handled by A20-Nexus and/or its Web App instead of the 8-Series for maximum flexibility.
- Full remote power-down: A20-Minis can be fully powered down via NexLink for excellent battery life. This alleviates the need for remote auto-RF-Power adjustment schemes. User is in full control of RF power settings.
- Supports GainForward Architecture: No gain setting on the A20-Mini transmitter. Adjust gain at the receiver or mixer.
- 100% digital long-range modulation delivers the longest transmission distance of any system on the market.
- Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
- RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
- BNC timecode input for auto timecode sync of transmitters over NexLink
| RF | |
| Tuning | 470 to 1525 MHz (1055 MHz switching bandwidth) 25 kHz steps SpectraBand Technology for maximum rejection of out-of-band signals Available frequencies depend on country of operation |
| Modulation | Proprietary, 100% digital RF modulation Standard or Long Range, selectable per channel |
| Spurious Rejection | >100 dB typical |
| Cascade output | 50 ohm 3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the Nexus so that the receivers maintain excellent range. Wideband power split, pre-LNA |
| RF Bias output | 12V, 200 mA each BNC Smart antenna support, Wisycom-compatible |
| Audio | |
| Latency | Standard modulation = 2 ms, analog or digital outputs Long Range modulation = 3.9 ms, analog or digital outputs |
| Audio Frequency Response | 10 Hz–20 kHz, +/- 1 dB relative to 1 kHz |
| Dynamic Range | > 130 dB with A20-Mini as transmitter |
| Output Level | Line-level: +20 dBu for 0 dBFS Mic-level: -20 dBu for 0 dBFS |
| Audio Output Sample Rate | 44.1, 48, or 96 kHz |
| Digital Audio Output | AES3 balanced connection, 110 ohm output impedance |
| Audio-Over-IP | Dante, 44.1 or 48 kHz sample rate |
| Network | |
| Dante Audio-Over-IP | 16 input/output channels |
| Control | Web-based control and monitoring of all Nexus settings |
| Connections | 2x RJ45 ports: For Dante and/or Control. Port 1 supports powering from PoE+ 1x SFP: For Dante and/or Control. Compatible with Small Form-factor Pluggable (SFP) network transceivers |
| Powering | |
| Sources | DC Input: dual, redundant (highest voltage takes precedence) PoE+: 802.3at, 30W needed (standard 15W PoE 802.3af will not work) 8-Series (through unit-to-unit connector when docked) AC mains adapter (sold separately) |
| Levels | DC input, 6.5 to 18V in, 3A minimum at 6.5 VDC 11 W idle, default configuration Extra power passed through for USB power, active antenna power, and DC output power USB-A: 5V, 500 mA output; supports keyboards, thumb drives, A20-Mini transmitters, and USB hubs |
| Environmental | |
| Operating Temperature Range | -10 °C to +55 °C |
| Dimensions (H x W x D) | 4.0 cm x 20.3 cm x 16.7 cm (1.6 in x 8.0 in 6.6 in) |
| Weight | 1.27 kg (unpackaged) 2.8 lbs (unpackaged) |
- 1x Nexus Receiver
- 2x A20-Monatch SpectraBand antennas
- 2x Articulating arm with clamp and 1/4-20 thread mount
- 2x 30in/75cm BNC-BNC cable
- 2x 2.4GHz SMA Tilting antenna
- 2x NexLink side mounting brackets with SMA to SMA cable
