Sound Devices A10-RACK - 4-Slot Wireless Enclosure

Sound Devices A10-RACK - 4-Slot Wireless Enclosure

SKU: SD-A10-RACK
£2,221.18 GBP ex VAT
£2,665.42 GBP inc VAT
ex VAT £2,221.18 GBP ex VAT
£2,665.42 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

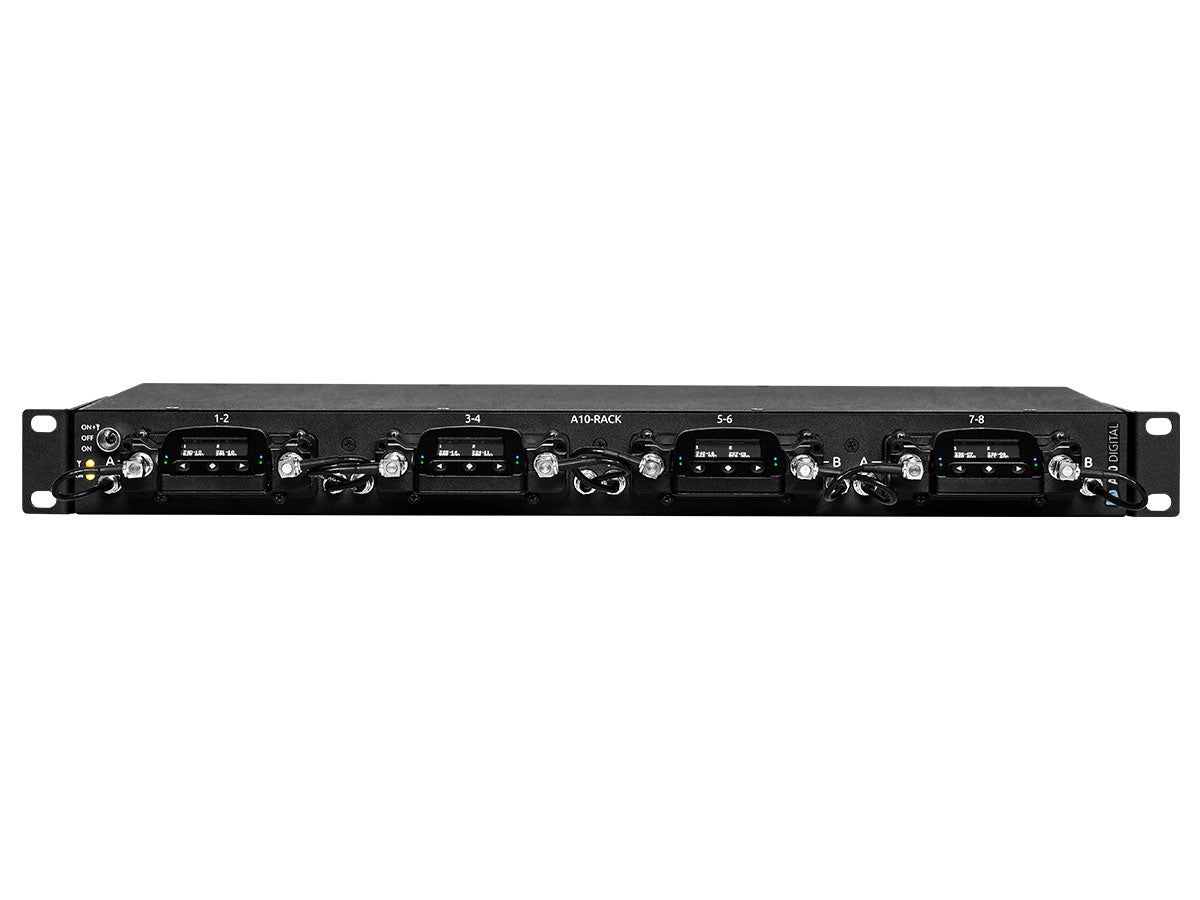

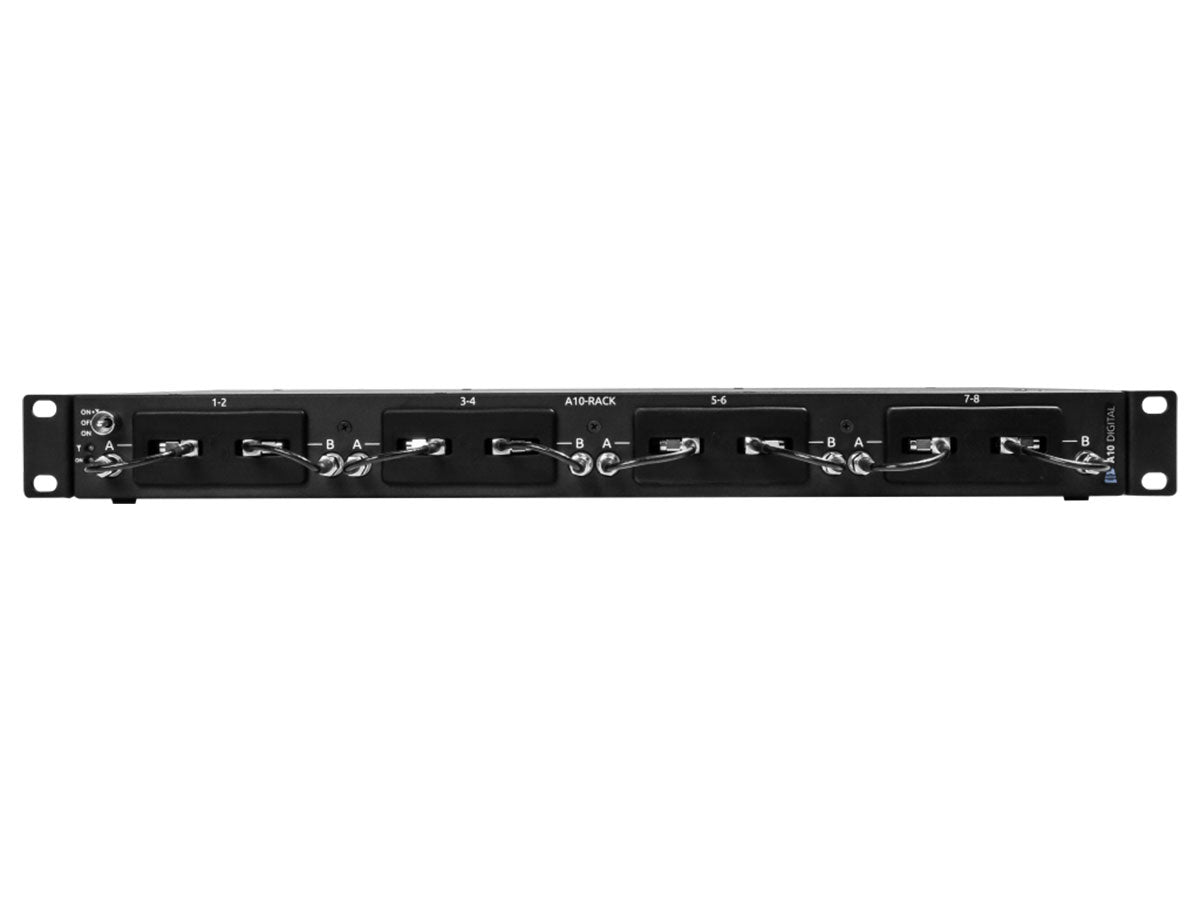

The A10-RACK offers convenient mounting, powering, RF, and audio connectivity for four uni- or SuperSlot wireless receivers in its 1 RU chassis. It is designed for dual-channel receivers from Audio Limited, including the A10-RX, plus slot receivers from Lectrosonics and Wisycom. The A10-RACK includes built-in antenna distribution with powering for active antennas. Up to eight channels of audio from single or dual-channel receivers appear on both its XLR outputs and over Dante™ audio-over-Ethernet.
RF Distribution
The A10-RACK has an integrated RF distribution amplifier. Its two RF inputs offer selectable 12 V powering for active antennas, plus loop-thru connections for another A10-RACK. A single pair of antennas can be used for up to 16 audio channels.

Powering
The A10-RACK is powered from standard 4-pin XLR, 10-18 VDC power supplies, such as Sound Devices XL-WP4 (shown right). Power supplies require 3 amps (minimum) for proper powering of the A10-RACK and connected slot receivers.
  • Accepts up to four, two-channel wireless receivers (receivers sold separately)
  • Audio output on analogue/AES3 and Dante
  • Built-in power distribution
  • Built-in antenna distribution with selectable power for active antennas
  • Powered from 4-pin XLR input (10-18 VDC)
  • USB port for firmware updates and serial access
Compatible Receivers:
  • Audio Ltd. A10-RX with A-SL
  • Audio Ltd. En2 CX2-P
  • Lectrosonics SRa
  • Lectrosonics SRb
  • Lectrosonics SRc
  • Sony DWR-S03D
  • Wisycom MCR42
Frequency Range: 470-694 MHz
Number of Receivers: Four two-channel, diversity receivers
Active Distribution Amplifier Bandwidth: 224 MHz, with powering for active antennas (12 V, 200 mA)

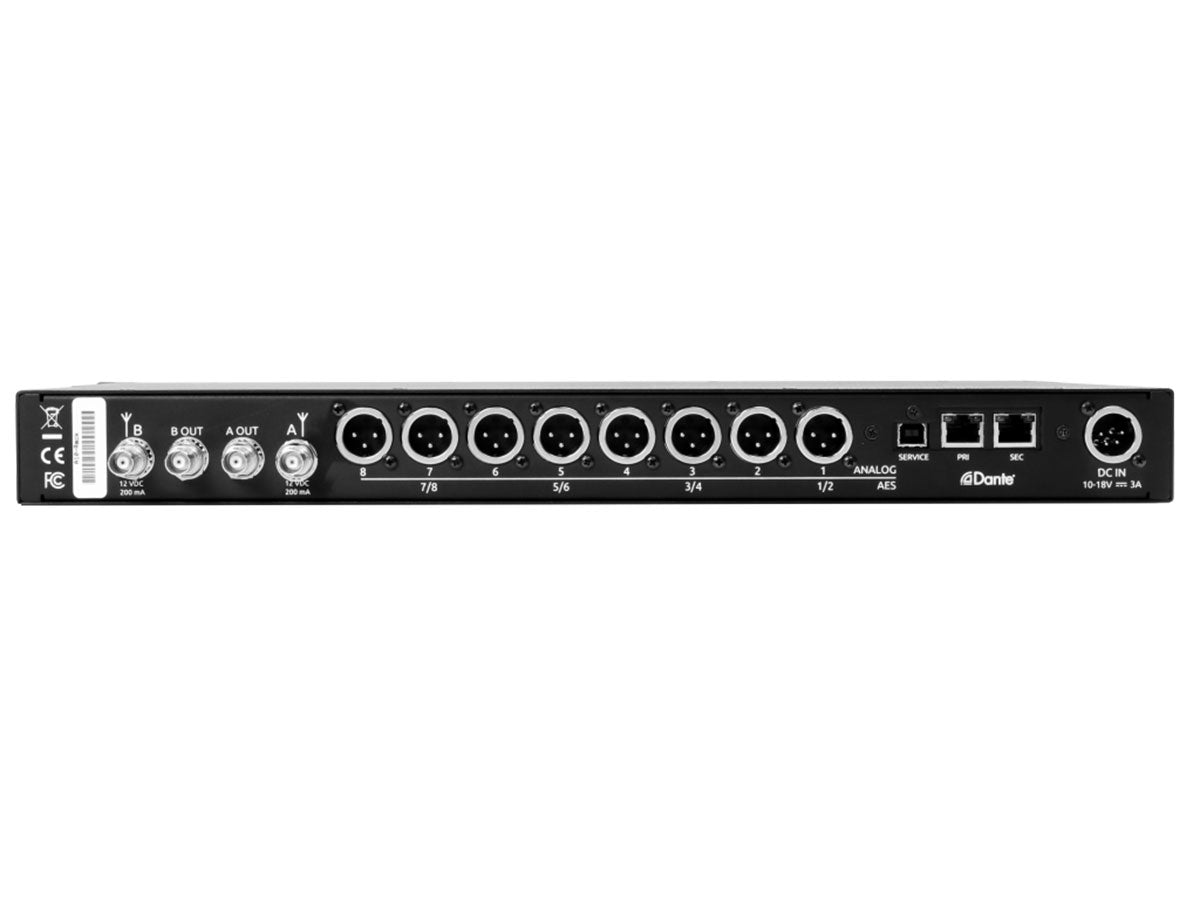

Antenna Inputs: 2 x BNC 50 Ohms
RF Outputs: 2 x BNC 50 Ohms
Power: 10–18 Volts DC, 3 amps via 4-pin XLR male
Audio Outputs: 8 x 3 pin XLR-M (analog and/or AES3)
Dante Output: 2 x RJ45 to provide Dante™ primary and secondary
Analog Output: +18 dBu maximum, balanced
Digital Output: AES3, transformer-balanced
Audio Frequency Response: 20-20,000 Hz ±1 dB
Service Port: USB-B
Dimensions (H x W x D):
  • 442 mm x 210 mm x 45 mm (without rack ears)
  • 17.4 x 8.3 x 1.8 in (without rack ears)
Weight:
  • 7.9 lbs (without receivers)
  • 3.6 kg (without receivers)
