| Image Sensor | ||
|---|---|---|
| Sensor Type | 1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2 | |
| Number of gross pixels | Approx. 21.0 Megapixels | |
| Number of effective pixels | Approx. 20.1 Megapixels | |
| Lens | ||
| Lens Type | ZEISS Tessar T* Lens, 6 elements in 6 groups | |
| F-number (Maximum Aperture) | F2.0 | |
| Iris Diaphragm | 7 blades | |
| ND Filter | - | |
| Focal Length (f = ) | f=7.6mm | |
| Angle of View (35mm format equivalent) (Still Image)*1 | 94°(20mm) | |
| Focus Range (from the front of the lens) | Approx. 5cm (0.17 ft.) to Infinity | |
| Lens | ||
| Optical Zoom | Still Image, Movie | - |
| Clear Image Zoom*2 | Still Image | 20M Approx. 2x / 10M Approx. 2.8x / 5.0M Approx. 4x |
| Movie | 4K: 1.5x HD: Approx. 2x | |
| Digital Zoom*2 | Still Image | 20M Approx.4x / 10M Approx.5.6x / 5.0M Approx.8x |
| Approx.4x | ||
| Screen | ||
| Screen Type | 7.5cm(3.0type)(4:3) / 921,600 dots / Xtra Fine / TFT LCD | |
| Touch Panel | Yes | |
| Brightness control | Manual(5 steps) / Sunny Weather | |

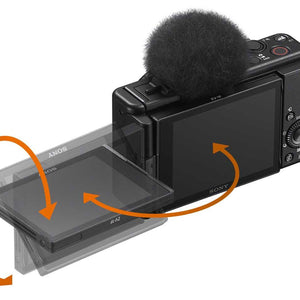

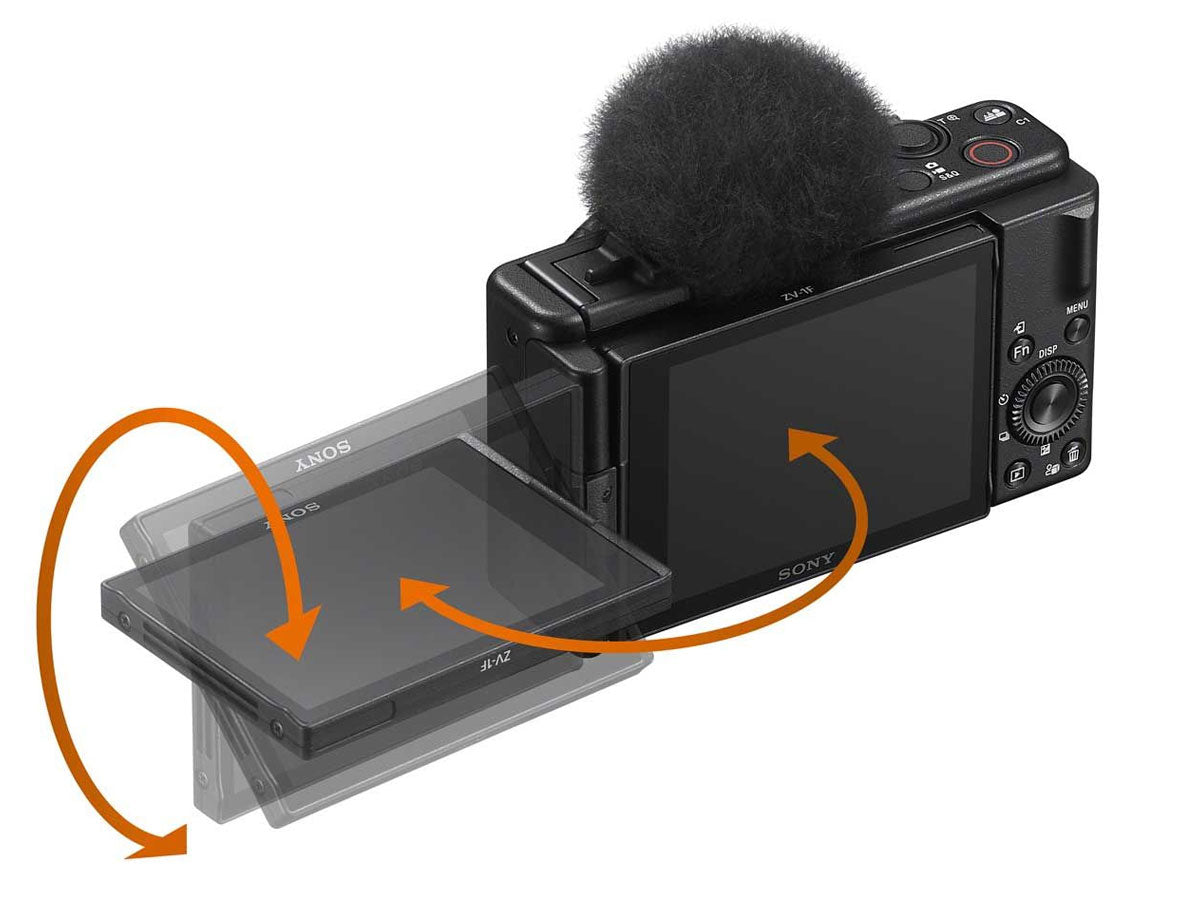

| Adjustable angle | Opening Angle:approx. 176 deg., Rotation Angle:approx. 270 deg. | |
| Veiwfinder | ||
| Screen Type/Number of dots | - | |
| Camera | ||
| Imaging Processor BIONZ | Yes (BIONZ X) | |
| SteadyShot | Electronic | |
| Focus Mode | Single-shot AF Continuous AF Manual Focus | |
| Focus Area | Wide (425 points(contrast-detection AF)) Zone Center Flexible Spot (S/M/L) Expanded Flexible Spot | |
| Object Tracking | Yes (Tracking) | |
| Eye AF | [Still images] Human (Right/Left Eye Select) / Animal; [Movie] Human | |
| Light Metering Mode | Multi Pattern Center Weighted Spot Entire Screen Avg Highlight | |
| Exposure Compensation | +/- 3.0EV, 1/3EV step | |
| Exposure Control | Yes | |
| ISO Sensitivity (Still Image)*3 | Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) | |
| ISO Sensitivity (Movie) | Auto:(ISO125Level-ISO6400Level), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 | |
| White Balance Mode | Auto Daylight Shade Cloudy Incandescent Fluor.: Warm White Fluor.: Cool White Fluor.: Day White Fluor.: Daylight Underwater Auto C.Temp./Filter Custom | |
| WB micro adjustment | Yes | |
| Electronic Shutter | Program Auto(1/4" - 1/32000) / Manual(1/4" - 1/32000) / Aperture Priority(1/4" - 1/32000) / Shutter Priority(1/4" - 1/32000) | |
| Aperture | Program Auto(F2/F8) / Manual(F2/F8) / Shutter Priority(F2/F8) / Aperture Priority(F2/F8) | |
| Image Control | Contrast Saturation Sharpness Creative look Color Space Quality(JPEG ( Extra fine, Fine, Standard) | |
| Noise reduction | high ISO NR:Normal/Low/Off | |
| Dynamic Range Functions | Off, Dynamic Range Optimizer (Auto/Level 1-5) | |
| Shooting Mode | Auto(Intelligent Auto) Program Auto Aperture Priority Shutter Speed Priority Manual Exposure Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Auto(Intelligent Auto)) S&Q Mode(Program Auto, Aperture Priority, Shutter Speed Priority,Manual Exposure, S&Q Auto(Intelligent Auto)) | |
| Continuous Shooting Speed (maximum) (with max. recording pixels)*4 *5 *6 | Speed Priority Continuous Shooting: approx. 16 fps, Continuous Shooting: approx. 3.5 fps *7 | |
| Self-Timer | 10sec. / 5sec. / 2sec. /self timer(movie) | |
| Drive modes | Single Continuous shooting Self-timer | |
| Interval Rec | Yes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking(High/Mid/Low)) *8 | |
| Panorama | - | |
| Photo Creativity | - | |
| Picture Profile | off/PP1-PP10(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset) | |
| Recording | ||
| Compatible Recording Media*9 | [XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro*10 , Memory Stick Micro(Mark2)*10 , SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)*10 | |
| Recording Format(Still Image) | JPEG(DCF Ver.2.0,Exif Ver.2.32,MPF Baseline compliant) | |
| Recording Format(Movie) | XAVC S | |
| Recording Format(Movie Audio) | XAVC S:LPCM 2ch | |
| Color Space (Still) | sRGB, Adobe RGB | |
| DCF/DPOF | DCF/EXIF/MPF | |
| Still Image Number of recorded pixels (Image Size) | 3:2mode:20M(5,472×3,648) / 10M(3,888×2,592) / 5M(2,736×1,824),4:3mode:18M(4,864×3,648) / 10M(3,648×2,736) / 5M(2,592×1,944) /16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528),1:1mode:13M(3,648×3,648) / 6.5M(2,544×2,544) / 3.7M(1,920×1,920) | |
| Movie Recording Mode | NTSC/PAL Selector: [PAL] mode XAVC S 4K: 25p 100M(3,840x2,160/25p) / 25p 60M(3,840x2,160/25p), XAVC S HD:50p 50M(1,920x1,080/50p) / 50p 25M(1,920x1,080/50p) / 25p 50M(1,920x1,080/25p) / 25p 16M(1,920x1,080/25p) / 100p 100M(1,920x1,080/100p) / 100p 60M(1,920x1,080/100p), NTSC/PAL Selector: [NTSC] XAVC S 4K: 30p 100M(3,840x2,160/30p) / 30p 60M(3,840x2,160/30p) / 24p 100M(3,840x2,160/24p) / 24p 60M(3,840x2,160/24p), XAVC S HD:60p 50M(1,920x1,080/60p) / 60p 25M(1,920x1,080/60p) / 30p 50M(1,920x1,080/30p) / 30p 16M(1,920x1,080/30p) / 24p 50M(1,920x1,080/24p) / 120p 100M(1,920x1,080/120p) / 120p 60M(1,920x1,080/120p) | |
| Slow & Quick Motion (S&Q) | ||
| Image frame rate | NTSC mode: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps / PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps | |
| Exif Print | Yes | |
| PRINT Image Matching (PIM3) | Yes | |
| Interface | ||
| Input and Output Terminal | USB Terminal Type-C (USB2.0), Micro HDMI, Microphone jack (3.5mm Stereo mini jack) | |
| NFC | - | |
| Wi-Fi | Yes(IEEE802.11b/g/n(2.4GHz band)) | |
| Eye-Fi | - | |
| Bluetooth | Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band)) | |
| Power | ||
| Power Source | DC3.6V(supplied battery) | |
| Battery System | Rechargeable battery pack NP-BX1 | |
| Power Consumption (Camera mode) | Approx. 1.5W with LCD monitor (CIPA standard) | |
| USB Charge/USB Power Supply | Yes (Shooting, Playback) | |
| Power | ||
| Battery Life (CIPA) | Still Images*11 | Monitor:Approx. 360 / Approx. 180min., Monitor (When Auto Monitor off is set to 2sec):Approx. 540 / Approx. 270min., |
| Movies (actual shooting)*12 *13 | Monitor:Approx. 60min., *14 | |
| Movies (continuous shooting)*12 | Monitor:Approx. 90min., *14 | |
| Others | ||
| InCamera Guide | Yes | |
| PlayMemories Camera Apps | - | |
| Other Shooting Functions | Face Detection Face Registration Grid Line Digital Level Gauge (pitch and roll) Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White) Zebra Marker Display Audio Rec Level Audio Level Display Step Zoom PC Remote Control Gamma Disp. Assist Set File Name Touch Shutter/Touch Focus/Touch Tracking My Menu Soft Skin Effect Product Showcase Set Background Defocus Shot Mark (Movie) | |
| Other Playback Function | BRAVIA Sync(Control for HDMI) 9/25-frame index view Auto Orientation Slide Show Forward/Rewind (Movie) Delete Protect Photo Capture Rating | |
| TRILUMINOS Color*15 | Yes | |
| 4K image output | Yes | |
| Operating Speed*16 | Start-up Time (Approx. 1.2 sec.) / Shooting Time Lag (Approx. 0.15 sec.) / Shooting Interval (Approx. 0.44 sec.) | |
| Digital Level Gauge | Yes (Pitch and roll) | |
| DIMENSIONS (W x H x D) (Approx.) | 105.5x60.0x46.4 mm (4 1/4in. × 2 3/8 in. × 1 7/8 in.) | |
| Weight (CIPA compliant) | Approx. 256g (9.1oz.)(Battery and Memory Card are included) / Approx. 229g (8.1oz.)(Body Only) | |
| Supplied Accessory | Rechargeable Battery Pack (NP-BX1) Type-C USB cable(USB2.0) Wind Screen Wind Screen Adaptor Instruction Manual | |
| Lens2 | ||
| Filter diameter | φ40.5 | |
| Linear Focus | Yes | |
| Scan System | Progressive scan | |
| Color Filter | R,G,B primary color mosaic filters | |
| Camera2 | ||
| Active Mode | Electronic | |
| Focus | Focusing Type | Contrast-detection AF |
| Metering Sensitivity | Metering Sensitivity | EV 0 to 20 (at ISO100 equivalent) |
| ISO Sensitivity(REI) | Auto Controll Range | Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) |
| Face Detection | Mode | Face Priority inAF(On/Off), Face Priority in Multi Metering(On/Off), Regist. Faces Priority(On/Off) |
| Face Registration | New Registration / Order Exchanging / Delete / Delete All | |
| Maximum number of detectable faces | 8 faces | |
| Proxy Recording | Proxy Recording | Yes(1280 x 720(Approx.9Mbps)) |
| Program shift AE | Program shift AE | Yes |
| AE locked when focus is locked | AE locked when focus is locked | Yes |
| Flash | Bracketing | - |
| Flash Compensation | - | |
| Flash Sync. Speed | - | |
| Recycling Time | - | |
| Control | - | |
| External Flash | - | |
| Flash Type | - | |
| Red Eye Reduction | Red Eye Reduction | - |
| Auto Orientation | Auto Orientation | On only |
| Monitor, Viewfinder2 | ||
| MF Assist magnification | 1.6x,4.0x | |
| Recording2 | ||
| Recording Format | Still Images: JPEG ( DCF, Exif, MPF Baseline ) compliant | |
| Capacity on a memory card that tested and proven with cameras | Memory Stick Duo | 32GB |
| Memory Stick Micro | 16GB | |
| SD Memory Card | 128GB | |
| microSD Memory Card | 64GB | |
| Microphone / Speaker | ||
| Built-in Microphone | Stereo | |
| Speaker | Mono | |
| Volume Setting | 16 steps | |
| Wind noise reduction | Off / On | |
| Playback2 | ||
| Single Image | Cue, Review (Movie) | Yes |
