Sony UWP-D27/K33 Wireless Audio Kit
Sony UWP-D27/K33 Wireless Audio Kit
SKU:
SON-UWP-D27/K33
Regular price
£949.17 GBP ex VAT
£1,139.00 GBP inc VAT
£1,139.00 GBP inc VAT
Regular price
ex VAT
Sale price
£949.17 GBP ex VAT
£1,139.00 GBP inc VAT
Unit price
per
£1,139.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Wireless bodypack microphone package with bodypack transmitter, 2-channel portable receiver, lavalier microphone and accessories: easy to use with high quality sound and seamless integration with Sony cameras.

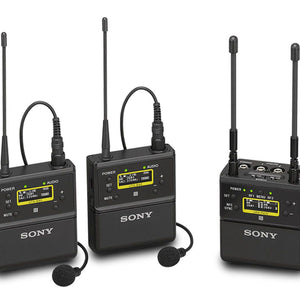

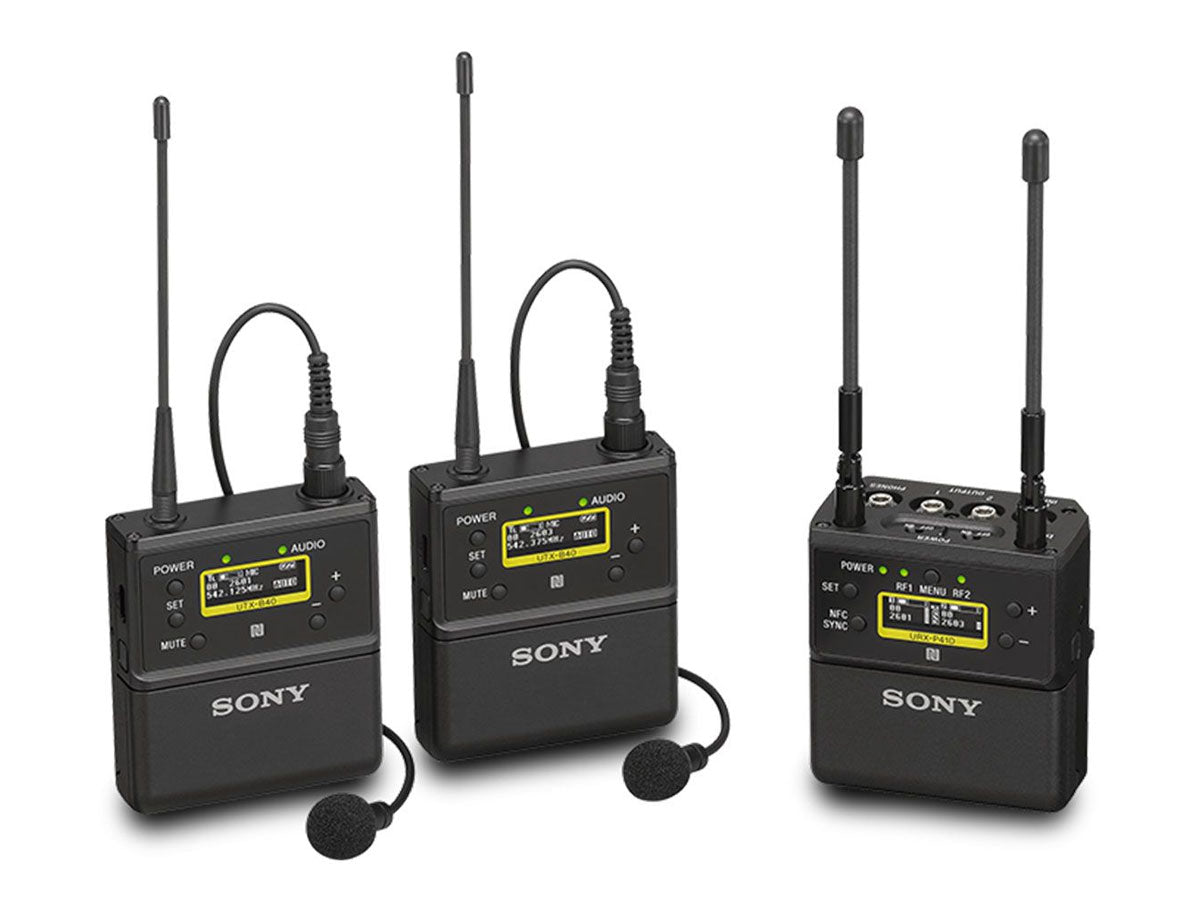

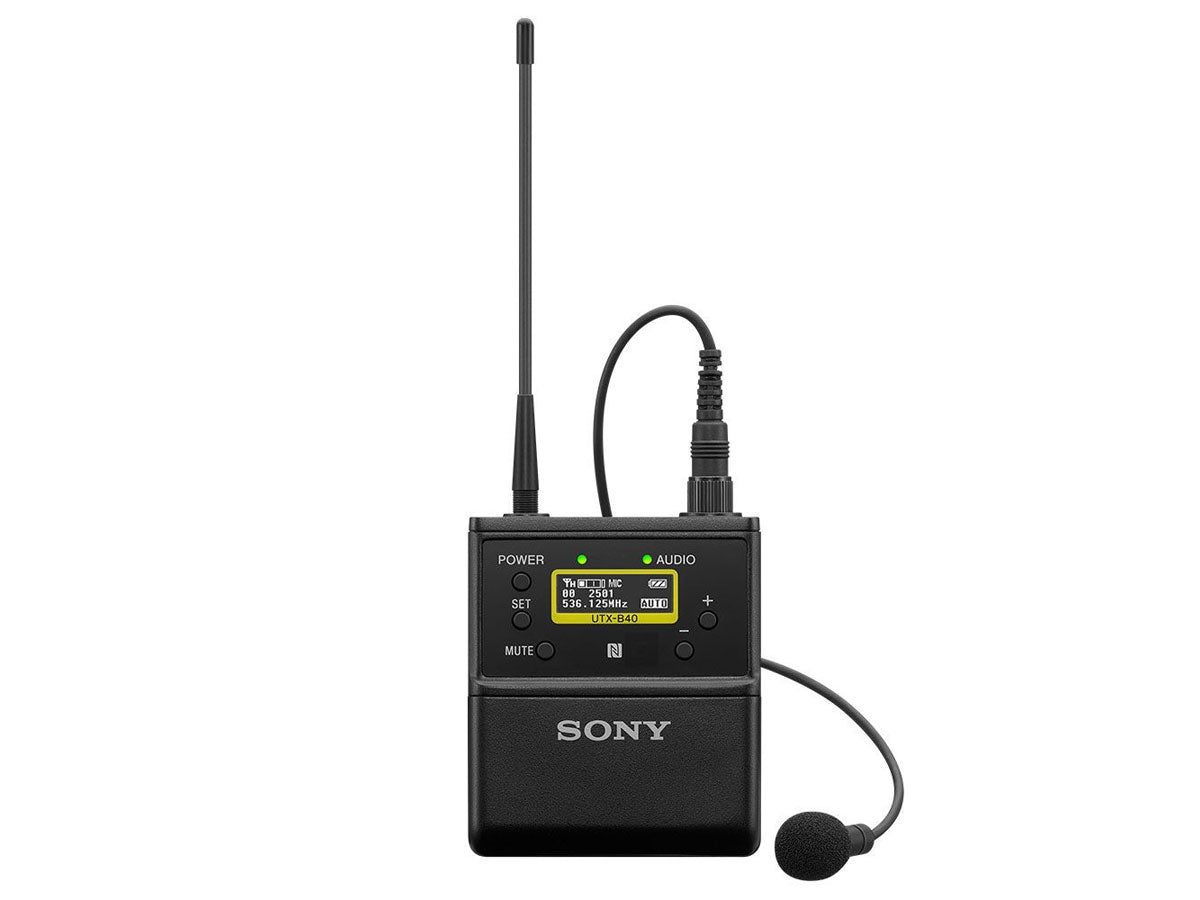

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.
Backward compatibility with IR sync
The IR port on the URX-P41D allows users to select NFC or IR in SYNC MODE from the Utility menu. This allows owners of previous transmitter models (UTX-B03/UTX-M03/UTX-P03) to sync receivers and transmitters with IR.
Portable receiver with variable output level
For use with the various input levels of different camcorders and DSLR cameras, the new system provides a variable output level control of ±12dB. Equipped with a new HIGH GAIN mode, the URX-P41D is especially useful when connecting to devices that require higher gain.
True diversity for stable audio
Excellent signal quality is assured by two independent receiver sections that ensure stable, dropout-free reception.
*Applied for 1 channel use. Antenna diversity is applied for 2 channel use.
Fast, fuss-free channel setting
Uniquely quick and convenient, Sony’s friendly NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver.
High quality sound
Advanced digital audio processing technology assures pure, high quality sound. An optional interface allows direct digital sound recording with compatible Sony cameras and camcorders via the SMAD-P5 Multi Interface Shoe Adaptor, bypassing A/D and D/A conversion stages for uncompromised audio quality.
Integration with Sony cameras
Add the optional SMAD-P5 Multi Interface Shoe Adaptor and enjoy seamless integration with compatible* Sony cameras and camcorders. Receiver information is displayed in the camera’s viewfinder, while audio signals are routed directly to the camera with no need for a cable connection.
* See details on SMAD-P5 for compatibility information
Light and compact

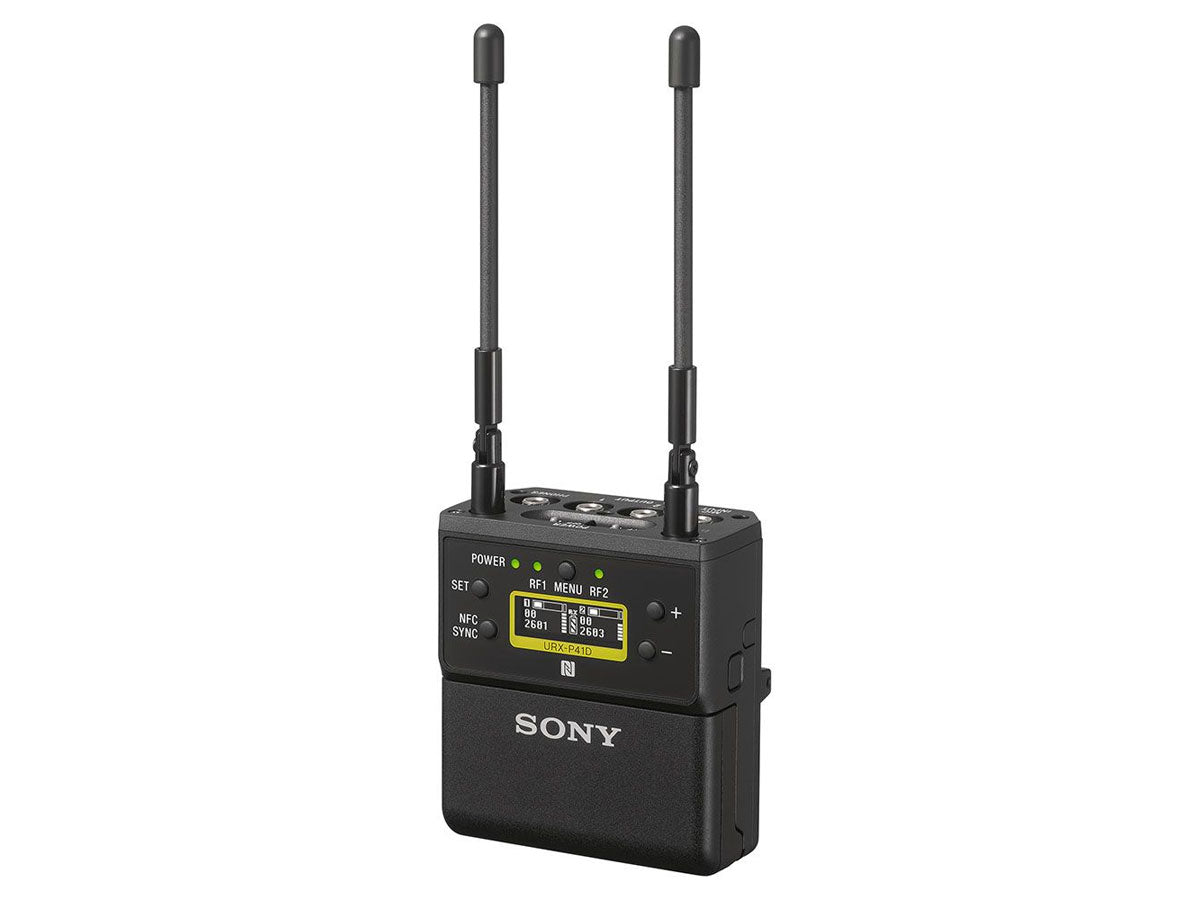

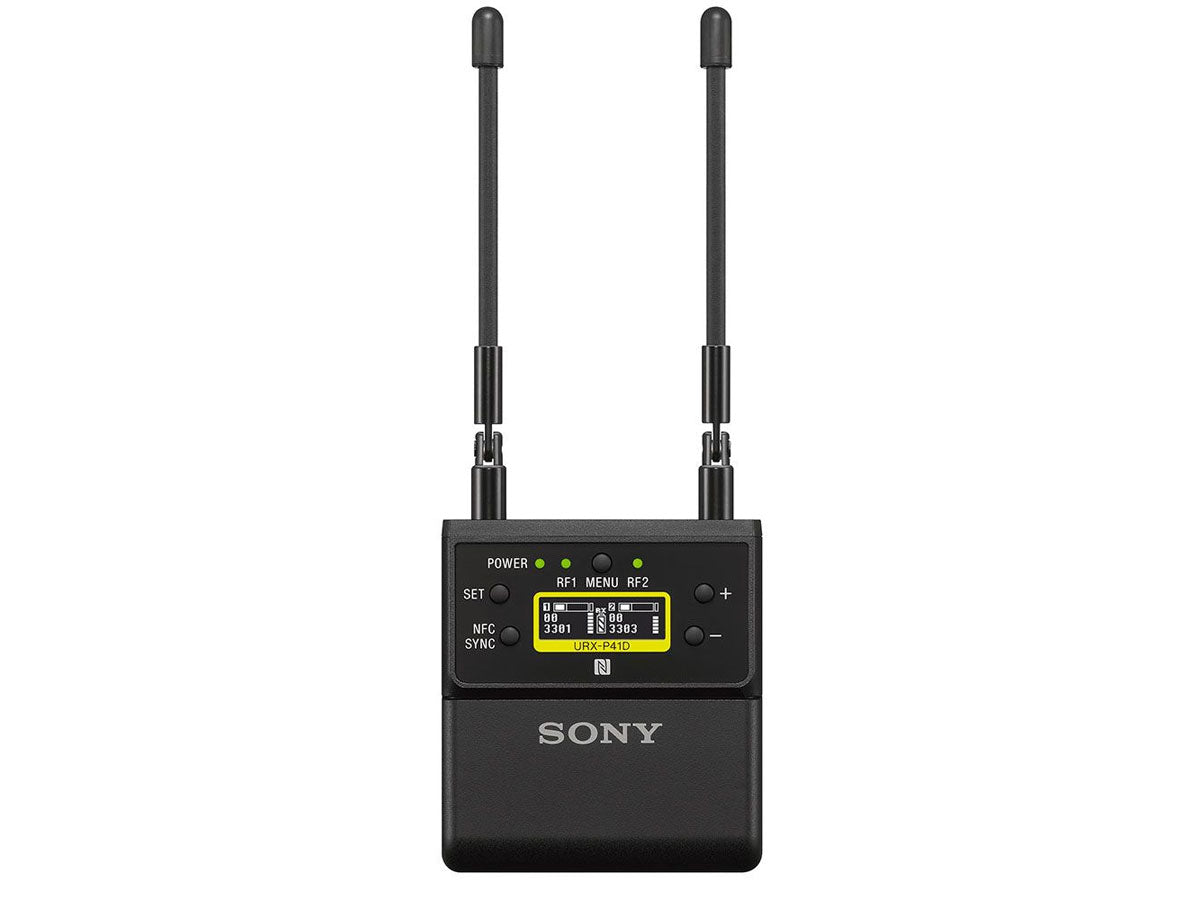

The compact size and light weight of the URX-P41D wireless receiver make it an ideal audio acquisition partner for shooting with handheld cameras and camcorders.
- ALL BAND scan mode
- Backward compatibility with IR sync
- Portable receiver with variable output level
- True diversity for stable audio
| URX-P41D/K33 | |
| Oscillator Type: | Crystal-controlled PLL Synthesizer |
| Reception Type: | Space diversity |
| Antenna Type: | 1/4 λ wavelength wire antenna (angle-adjustable) |
| Carrier Frequencies: | 14UC: 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36) 42LA: 638.125 MHz to 697.875 MHz(UHF-TV channels 42-51) 90U: 941.625 MHz to 951.875 MHz, 953.000MHz to 956.125 MHz, and 956.625MHz to 959.625 MHz 21CE: 470.025 MHz to 542.000 MHz(UHF-TV channels 21-29) 33CE: 566.025 MHz to 630.000 MHz(UHF-TV channels 33-40) 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48) 29CN: 638.025 MHz to 694.000 MHz(UHF-TV channels 29-35) E: 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR: 925.125 MHz to 937.375 MHz |
| Frequency response: | 23 Hz to 18 kHz (typical) (UC, U, CE7, LA, CN, E, KR models) 40 Hz to 15 kHz (typical) (J model) |
| Distortion (T.H.D.): | 0.9% or less (1 kHz sine wave, 5kHz modulation) |
| Signal-to-Noise Ratio: | 60 dB (1 kHz sine wave, 5 kHz modulation) 96 dB (max deviation, A-weighted) |
| Audio Delay: | Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |
| Analog Input: | 3.5-mm diameter 3-pole locking mini jack (unbalanced) |
| Analog Input Level: | -50dBV (±12dB Adjustable, 3-dB step) |
| Audio Output Level: | –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output) –20 dBFS (external connection, digital output) –50 dBV (external connection, analog output) |
| Audio Output Adjust Range: | -12dB to +12dB (3dB step) |
| Audio Output Connector: | 3.5mm diameter 3-pole locking mini jack (balanced), External connection |
| Headphone Output Connector: | 3.5mm diameter mini jack |
| Headphone Output Level: | Max. 10 mW (16-ohm) |
| Tone Signal Frequency: | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
| Display: | OLED |
| Power Requirements: | DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Battery Life: | Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF |
| Operating Temperature: | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage / Transport Temperature: | -20ºC to +55ºC (-4ºF to +131ºF) |
| Dimensions: | 63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna) |
| Mass: | Approx. 159 g (5.6 oz) (excluding batteries) |
| UTX-B40/K33 | |
| Oscillator Type: | Crystal-controlled PLL synthesizer |
| Antenna Type: | 1/4 λ wave length wire antenna |
| Carrier Frequencies: | 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
| RF Output Power: | 30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models) |
| Capsule Type: | Elect retcondenser |
| Directivity: | Omni-directional |
| Input Connector: | 3.5 mm diameter 3-pole locking mini jack |
| Reference Audio Input Level: | –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input) |
| Audio Attenuator Adjustment Range: | 0 dB to 27 dB (3 dB steps) |
| Frequency Response: | 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model) |
| Signal-to-Noise Ratio: | 60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
| Distortion: | 0.9% or less (–60 dBV, 1 kHz input) |
| Audio Delay: | Approx. 0.35 ms |
| Tone Signal Frequency: | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
| Display: | OLED |
| Power Requirements: | DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Battery Life: | Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). |
| Operating Temperature: | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage / Transport Temperature: | -20 °C to +55 °C (–4 °F to +131 °F) |
| Dimensions: | 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna) |
| Mass: | Approx. 83 g (2.9 oz) (excluding batteries) |
- 2 x UTX-B40 Body-pack Transmitter
- 1 x URX-P41D
- 1 x Shoe mount adaptor
- 3 x Belt clip
- 2 x Holder Clip
- 2 x Omni-Directional Lav Mic
- 2 x Windscreen
- 2 x XLR-BMP conversion output cable for the URX-P40/URX-P41D
- 1 x Stereo mini plug-BMP conversion cable for the URX-P41D
