Sony SRG-A12 PTZ Camera - White
Sony SRG-A12 PTZ Camera - White
SKU:
SON-SRG-A12W
Regular price
£3,600.00 GBP ex VAT
£4,320.00 GBP inc VAT
£4,320.00 GBP inc VAT
Regular price
ex VAT
Sale price
£3,600.00 GBP ex VAT
£4,320.00 GBP inc VAT
Unit price
per
£4,320.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
SRG-A12 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.
A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture, movement and what one is wearing.
Since the camera does most of the work automatically, the operator can spend its time efficiently.
PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.
Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm, it detects and tracks the subject, even when there are several people in the frame.
Choice from three shooting modes
The camera has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can select the center, left, or right angle of view, and the SRG-A40 and SRG-A12 can automatically track the subject in the selected optimal position.
Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (On Air) to Green (PTZ Auto Framing ON).
- High speed pan/tilt - Speedy, precise pan/tilt operation ensures that the camera can accurately keep track of the presenter’s movements.
- Wide angle zoom lens - As well as powerful close-ups, the camera can capture broad shots of the presenter or audience with a wide field of view.
- Clear Zoom - Clear Image Zoom technology increase maximum magnification to a huge 40x (SRG-A40) or 24x (SRG-A12) for frame-filling close-ups without reducing resolution.
- 4K Exmor R sensor - The highly sensitive 1 /2.5-type image sensor captures crisply-detailed 4K video with extremely low picture noise, even when shooting in low light.
- Preset camera positions - Store and instantly recall up to 256 preset camera positions.
- Picture Freeze Preset - The camera can output high-quality still images simultaneously while streaming 4K video.
- AF, AE and AWB - Auto Focus, Auto Exposure and Auto White Balance ensure professional-looking results without manual exposure adjustments.
- PTZ Motion Sync - Pan, tilt and zoom movements transition smoothly between preset camera positions.
- IP streaming - Stream 4K 30p video from the camera with support for popular IP protocols – ideal for live events and webcasts.
- PoE++ support - Power can be supplied to the camera via PoE++ even when using the PTZ Auto Framing feature, allowing for subject tracking operation.
- HDMI/SDI outputs - As well as live streaming over IP, the camera can simultaneously output video via HDMI and SDI for conventional production.
- Picture Setting File - Easily copy picture settings across multiple cameras for quick, convenient set-up in multi-camera shooting environments.
| CAMERA | |
| Image Sensor: | 1/2.5 type ExmorR CMOS |
| Number of Effective Pixels: | Approx. 8.5M pixels |
| Signal System: | 2160/29.97p, 25p, 23.98p 1080/59.94p, 50p, 29.97p, 25p, 23.98p 1080/59.94i, 50i 720/59.94p, 50p |
| 4K Capability: | Yes |
| Minimum Illumination (50IRE): | 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF) |
| Horizontal Resolution: | 1700 TV lines (Center)(4K), 1000 TV lines or higher (Center)(FHD) |
| Gain: | Auto/Manual (0 to +48 dB) High Sensitivity On |
| Shutter Speed: | 1/1 to 1/10000 sec(59.94 Hz system) 1/1 to 1/10000 sec(23.98 Hz system) 1/1 to 1/10000 sec(50Hz system) |
| Exposure Control: | Auto/Manual/Priority AE (Shutter, Iris) |
| White Balance: | Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual |
| Zoom Capability: | 12x, Max. 24x (HD with Tele Convert Mode) |
| Focusing System: | Auto/Manual |
| Horizontal Viewing Angle: | Approx. 70.0 degree(Wide) |
| Focal Length: | f=4.4mm(Wide) to 52.8mm(Tele) |
| F Number: | F2.0 to F3.7 |
| Minimum Object Distance: | 80 mm(Wide)~ 400 mm(Tele) |
| Pan / Tilt Angle: | Pan: ±170° Tilt: +90°/-20° |
| Pan / Tilt Speed (Max): | Pan: 300 degrees/sec, Tilt: 126 degrees/sec |
| Pan / Tilt Speed: | Pan: 1.1° to 101°/s Tilt: 1.1° to 91°/s |
| Pan / Tilt Speed (Slow): | Pan: 0.5° to 60°/s Tilt: 0.5° to 60°/s |
| Pan / Tilt Slow Mode: | Yes |
| Pan / Tilt Operation Noise: | NC30 or less (*4) (*4) Sony measurement conditions |
| Preset Position: | 256 (CGI) 100 (VISCA) |
| Picture Freeze Preset: | Yes |
| PTZ Motion Sync: | Yes |
| NETWORK | |
| IP Video Resolution: | 3840x2160, 1920x1080, 1280x720, 640x360 |
| Compression Format: | H.264: High/Main/Baseline Profile H.265: Main Profile |
| Maximum Frame Rate: | H.264: 60fps H.265: 60fps |
| Bitrate Compression Mode: | CBR/VBR (selectable) |
| Range of Bitrate Setting: | 512Kbps~50 Mbps |
| Multi Streaming Capability: | 3 |
| Maximum Number of Clients: | 5 |
| Protocols: | IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT |
| NDI | HX Capability: | Yes Option (need to attach a license) |
| CAMERA FEATURES | |
| Auto ICR (Auto Mode of IR Cut Filter Removal): | Yes |
| Day / Night: | Yes |
| Visibility Enhancer: | Yes |
| Image Stabilizer: | Yes |
| Image Flip: | Yes |
| Picture Setting File: | Yes |
| Flicker Cancel: | On/Off |
| Hide OSD Menu: | On/Off |
| Standby Mode: | Yes |
| Remote Standby: | Yes |
| PTZ Auto Framing: | Yes |
| WEB UI | |
| Ver Up: | Yes |
| Languages: | Japanese, English, French, Spanish, German, Italian, Chinese, Traditional Chinese, Korean, Portuguese, Russian, Polish, Hindi, Turkish |
| OS and Browser: | Windows 11 64-bit w/ Chrome, Windows 10 64-bit w/ Chrome, Windows 11 64-bit w/ Edge, Windows 10 64-bit w/ Edge, macOS 11 w/ Chrome, macOS 12 w/ Chrome |
| AUDIO | |
| Channel: | 2ch |
| Audio Codec: | AAC LC 128kbps/ST (IP) AAC LC 256kbps/ST (IP) |
| Setting Option: | Auto level control: On/Off, Equalizer: Off/Low cut/Voice enhancement, Input selection: Microphone/Line, Mic volume: -10~+10 (21 steps), Audio codec |
| Embedded Audio in Baseband Video: | Yes (3G-SDI, HDMI) |
| Embedded Audio in IP Streaming: | Yes |

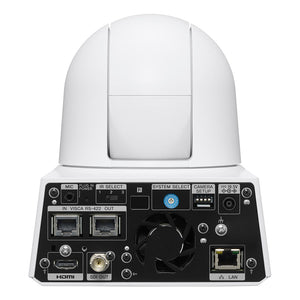

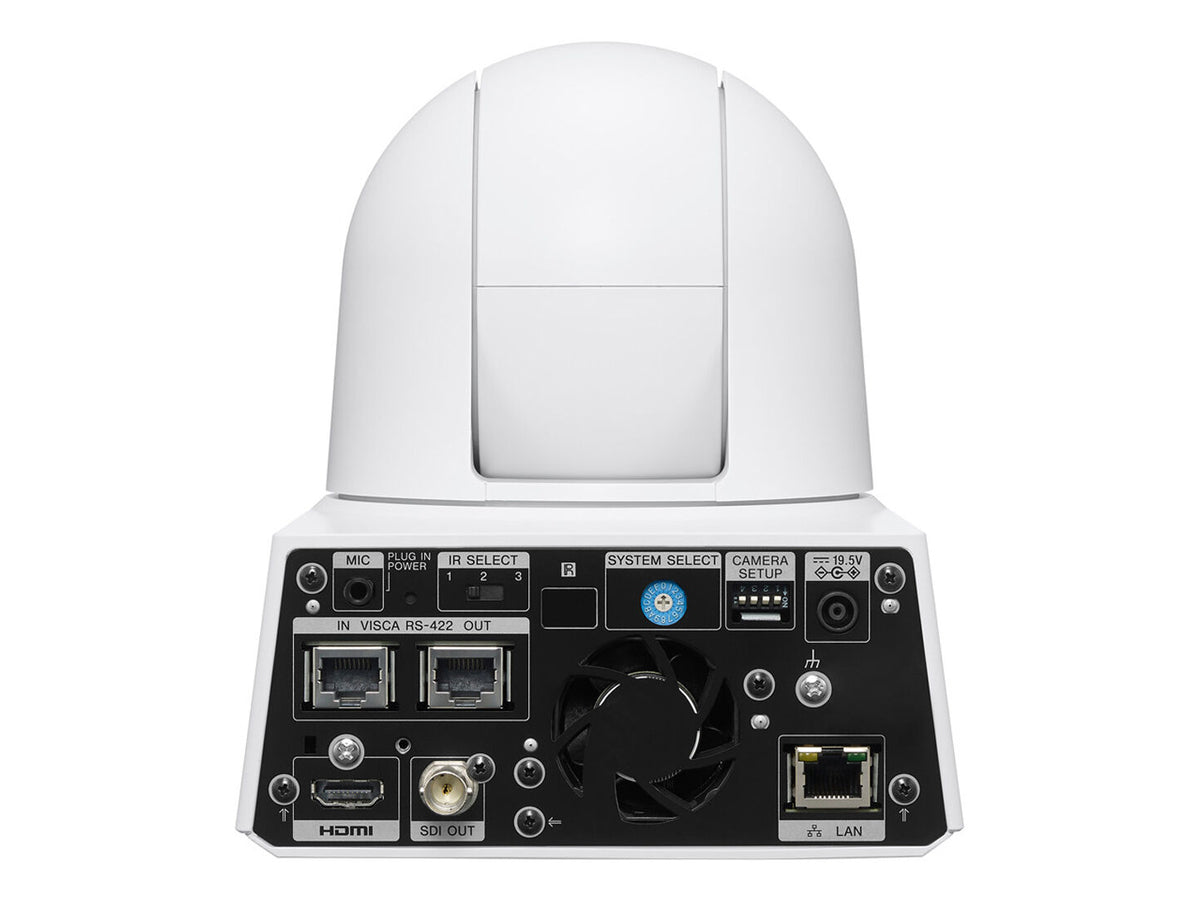

| INTERFACE | |
| 4K Video Output: | HDMI x1, IP (streaming) x1 |
| HD VIdeo Output: | 3G-SDI x1, HDMI x1, IP (streaming) x1 |
| SD Video Output: | IP (streaming) x1 |
| Remote Video Format Switching: | Yes |
| HDMI Colour Space: | YCbCr, 4:2:2 8bit RGB, 4:4:4 8bit |
| Camera Control Interface: | VISCA RS-422 RJ45(In/Out) VISCA over IP RJ45 |
| IR Remote Control: | Yes |
| Microphone Input: | Stereo Mini-phone(φ3.5mm) x1, (Mic/Line Selectabe) |
| Sync System: | INT |
| Tally: | Front x 1 Red/Green (for PTZ Auto Framing) |
| Power Connector Type: | IEC60130-10 (JEITA standard RC-5320A) Type5 |
| GENERAL | |
| Power Requirements: | DC 19.5V PoE++(IEEE802.3bt type4 class8) |
| Power Consumption: | DC19.5V : 80W PoE++ : 71.3W |
| Operating Temperature: | 0 °C to 40 °C 32 °F to 104 °F |
| Storage Temperature: | -20 °C to +60 °C -4 °F to +140 °F |
| Dimensions (W x H x D): | 156.7 x 184.0 x 200.0mm 6-1/4" x 7-1/4" x 7-7/8" |
| Mass: | Approx. 2.0 kg Approx. 4lb 6.5oz |
| Body Colour: | White |
| Size of Screw Hole for Tripod: | 1/4-20UNC x1 |
| Mountable Angle: | < ±15° |
| Ceiling Mount: | Yes |
- 1x Sony SRG-A12 PTZ Camera
- 1x AC power adaptor
- 1x R Remote Commander Unit
- 2x Ceiling bracket
- 1x Wire rope
- 9x Screw M3 x 8
- 1x Screw M2.6 x6 BLACK
- 1x HDMI cable fixing plate
- 1x Safety regulation
- 1x Download site information
- 1x Warranty
