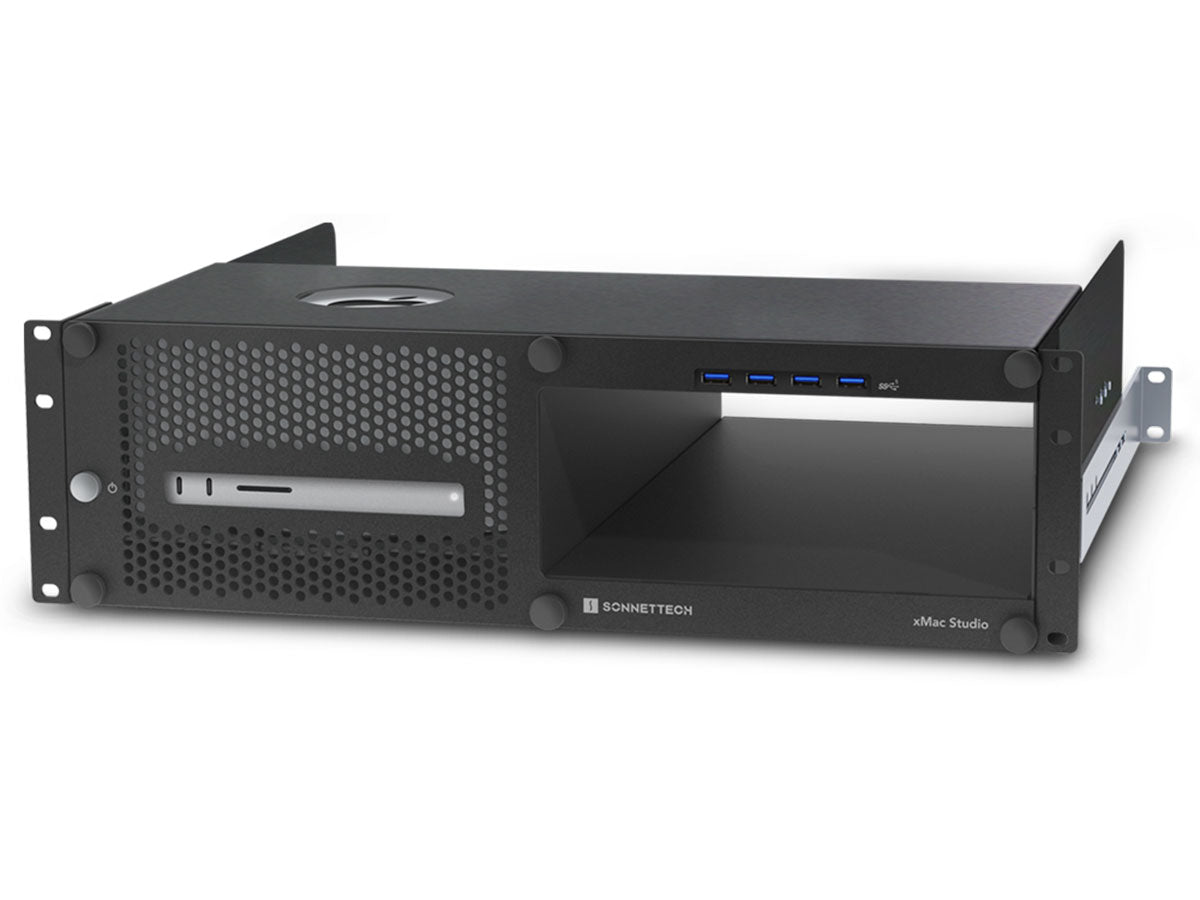

Sonnet XMAC-STD-0 xMac Studio / No Module

Sonnet XMAC-STD-0 xMac Studio / No Module

SKU: SON-XMAC-STD-0
Regular price £603.00 GBP ex VAT
£723.60 GBP inc VAT
Regular price ex VAT Sale price £603.00 GBP ex VAT
£723.60 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
A Mac Studio™ delivers phenomenal processing power, outperforming computers multiple times its size and price — it also provide a lot of ports to connect things. But how do you incorporate a Mac Studio into off-the-desk professional workflows?
Sonnet’s xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module to support diverse audio and video application needs.

Enclosure with no module

  • Pro rackmount enclosure with an open bay for an Echo III or Echo I Thunderbolt to PCIe card expansion module
  • Includes one adhesive-backed magnet for mounting an SSD drive

Easy Access to Mac Studio and PCIe Card Expansion Module

xMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion module in a rack, placing the Mac Studio behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio on with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the computer’s front ports and SD card slots. When equipped with an Echo III or Echo I PCIe Card Expansion Module, three rear panel locking thumbscrews allow you to easily pull out and access the module and PCIe cards through the front without removing the front panel. xMac Studio’s design enables you to connect and disconnect cables without needing to remove the Mac Studio from the enclosure.
An opening on top of xMac Studio ensures hindrance-free wireless signal access. The xMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.
Go with the Airflow – Supports Mac Studio’s Thermal Design
xMac Studio secures your Mac Studio without trapping in recirculating hot rack air, supporting its thermal design to keep it as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath the Mac Studio ensures the computer’s ability to draw in cool air through its base, while a completely open back enables it to expel warm air out the back unimpeded.

Secure up to Three Thunderbolt or USB SSD Drives Under the Mac Studio
xMac Studio provides space beneath the computer to house up to three Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of the SSD, insert the SSD and connect it to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.

Workflows on the Go
Do you need to take your workflow on the road? The xMac Studio is a perfect travel solution. Its 16.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studio in place during transport – make xMac Studio ideal for use in molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.
  • Connects PCIe Card Slots to Mac Studio - Use high-performance PCIe cards with the Mac Studio
  • Makes Your Mac Studio Road-ready - 3U rackmount enclosure with firm rubber cushions securely holds the Mac Studio and Thunderbolt expansion module in place, adding mobility to your workflow
  • Ideal for Use in Server Rooms - Standard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24” deep
  • Front to Back Airflow Management - Supports direct airflow through the enclosure, Mac Studio, and Thunderbolt expansion module to keep them operating as cool in a rack as on a desk, even when the xMac Studio is mounted between two other rack-mounted components
  • Front Panel Power Switch and Integrated USB-A Ports - Front panel button enables operation of the computer’s rear-mounted power switch; integrated USB-A hub enables connection of four USB peripherals to the Mac Studio
  • Easy Access - No tools required – removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studio. Secured with three thumbscrews on the back, the Thunderbolt expansion module can be removed and reinstalled through the front of the enclosure without removing the front plate
  • Space for Storage - Behind a covered opening beneath the computer is a space to place up to three USB or Thunderbolt SSDs (sold separately); an included adhesive-backed magnet secures them in place
  • Open Slot and Port Access - Provides access to the computer’s SD card slot and front and back panel ports, enabling you to connect and disconnect cables easily
COMPATIBILITY
Mac Compatibility:
Mac Studio
PCEe Cards Compatibility:
For a list of compatible PCIe cards, see this PDF.
HARDWARE
Part Number:
XMAC-STD-0
Warranty:
2-year
Form Factor:
3U rackmount enclosure
External Connectors:
Four USB-A ports
Dimensions:
48 x 41.9 x 13.3cm / 19 x 16.5 x 5.2"
SSD Maximum Height:
  • 0.7 in. (18 mm) inserted from rear
  • 0.9 in. (23 mm) inserted from front
Weight:
7.26kg / 16lbs
Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
  • xMac Studio enclosure
  • Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
  • Thunderbolt cable
  • ThunderLok 3 Thunderbolt connector retainer clip
  • Extension rails for rack depth 16-24 inches
  • Two adhesive-backed magnets
  • Documentation
