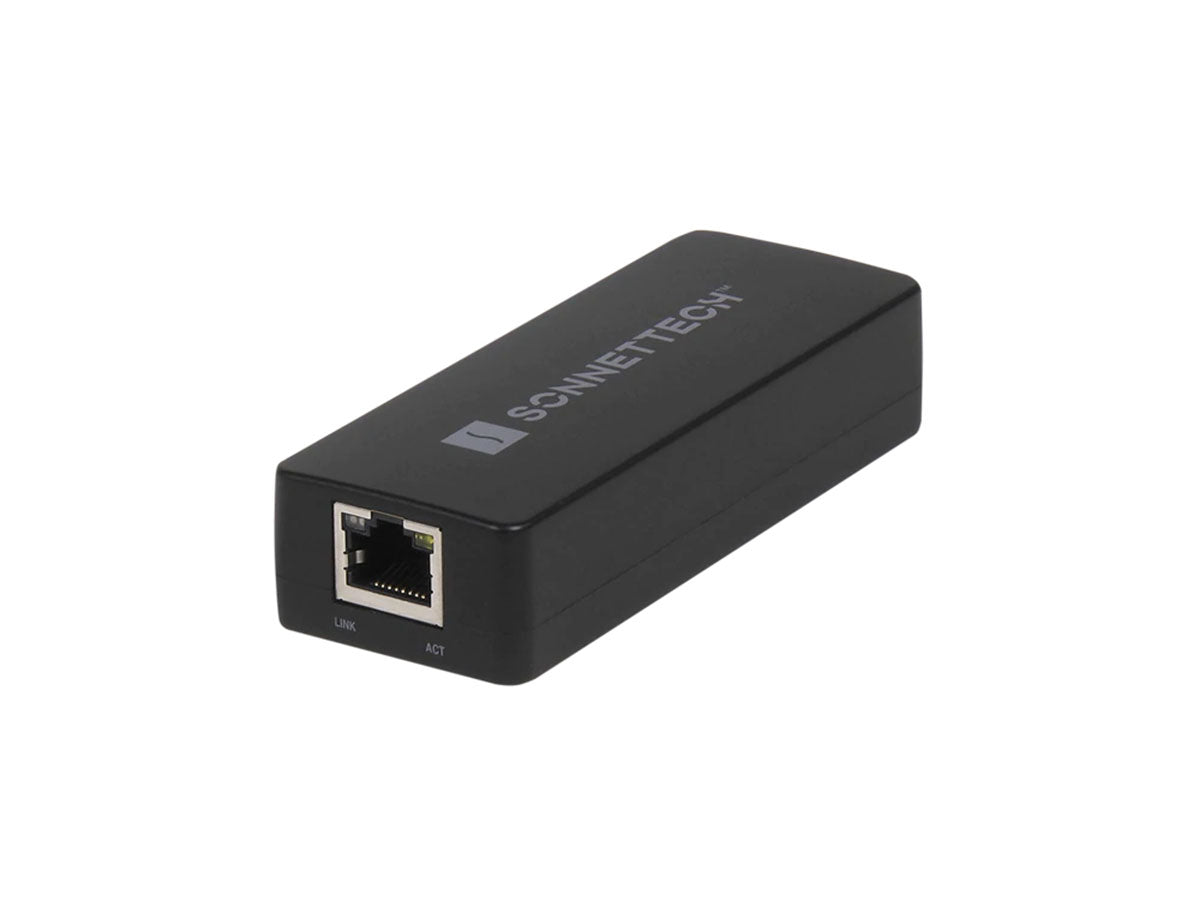

Sonnet Thunderbolt AVB Adapter

Sonnet Thunderbolt AVB Adapter

SKU: SON-AVB-TB
£166.00 GBP ex VAT
£199.20 GBP inc VAT
ex VAT £166.00 GBP ex VAT
£199.20 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
The Single-adapter Solution for Connecting to Pro Tools | Carbon

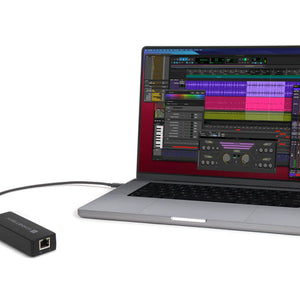

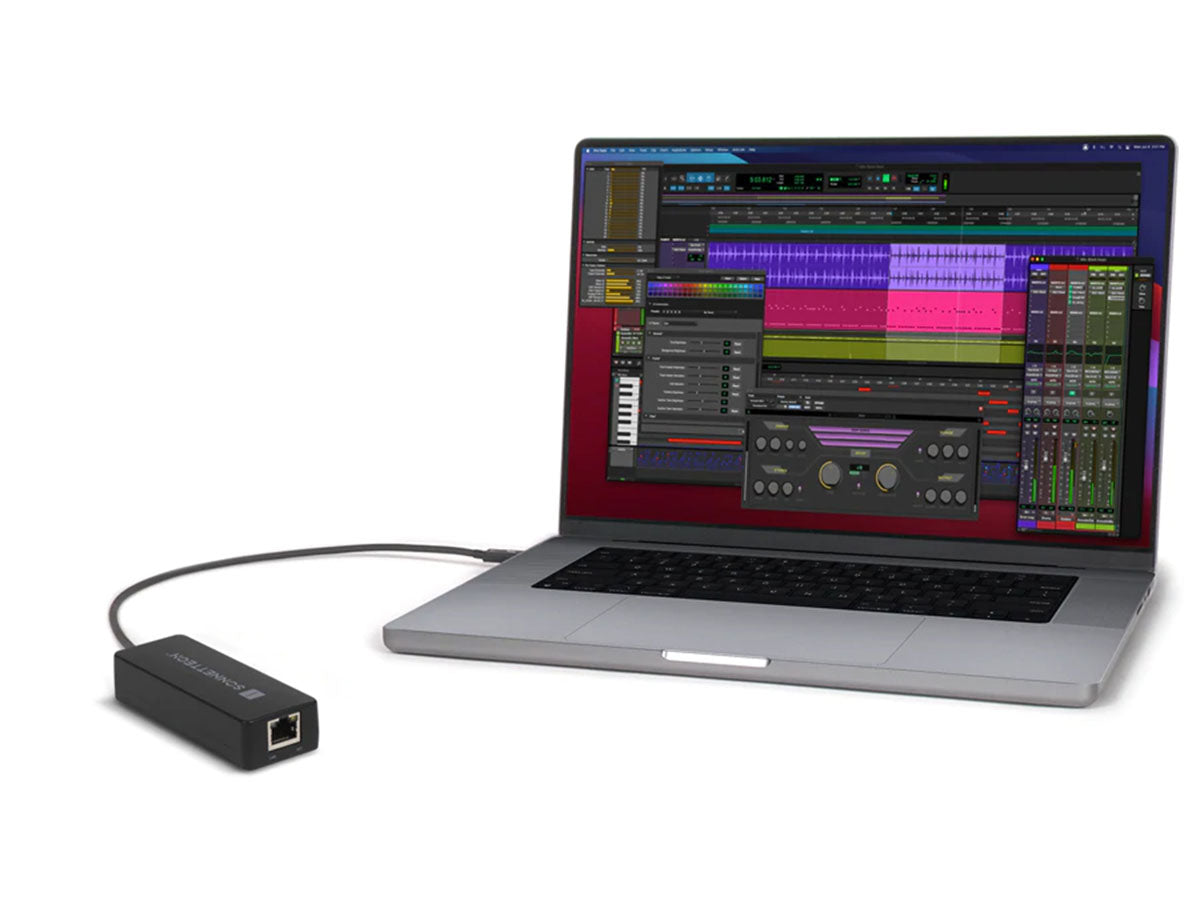

The Avid® Pro Tools | Carbon audio interface for music production has been described as a creative game changer; its innovative use of eight onboard HDX processors and a custom FPGA enable you to track and monitor with near-zero latency when using AAX DSP plug-ins. Because Carbon connects to your Mac® over Ethernet using a proprietary version of AVB (Audio Video Bridging, aka IEEE 802.1), you’ll have to use an AVB capable Thunderbolt™ Gigabit Ethernet adapter if your computer doesn’t have onboard Ethernet. The Avid Qualified Sonnet Thunderbolt AVB adapter is your single-adapter solution for connecting your supported Mac with Thunderbolt ports to the Carbon interface.

AVB-Compliant Ethernet Adapter
  • Connect to Other Devices On a Network - Beyond its support for the Pro Tools | Carbon interface, the Sonnet Thunderbolt AVB Adapter enables you to add your Mac as an endpoint in an AVB network and connect to other devices such as audio interfaces, mixers, plug-in processors, personal monitor stations, stage boxes, speakers, speaker processors, and others. Audio Video Bridging support makes the adapter perfect for use in pro audio and video applications where synchronization of data streams is critical.
  • What is the Benefit of an AVB Network? - An AVB network is extremely reliable since it is designed to reserve a portion of the available Ethernet network bandwidth for its own data. Packets of AVB data are sent regularly in allocated slots within the reserved bandwidth, ensuring AVB packets maintain time synchronization.
  • Thunderbolt Interface for Low Latency - Featuring a 40Gbps Thunderbolt™ interface, the Sonnet Thunderbolt AVB Adapter supports the low-latency, fully synchronized streaming of audio and video over Ethernet required for Avid Pro Tools | Carbon and AVB support.
Bus-Powered Operation
Operating off its Thunderbolt connection, Sonnet’s Thunderbolt AVB Adapter is bus-powered, so there’s no need to plug in a power supply or power cable.

Pocketable. Powerful. - Gigabit Ethernet to Go
The Sonnet Thunderbolt AVB Adapter measures just 1.5 inches wide by 3.9 inches deep by 0.8 inches tall, small enough to tuck out of sight or fit easily into a pocket in your backpack or equipment bag. Enabling truly portable use, the Sonnet adapter is powered by your computer’s Thunderbolt port, connected through the included Thunderbolt cable.

Simple Setup
  • Drivers and Configuration App Built Into macOS - The basic drivers that support the Sonnet Thunderbolt Adapter are included in macOS®. Basic configuration takes place in Network control panel, while configuration for use in AVB applications is handled in the Audio MIDI Setup application and control software.
  • 40Gbps Thunderbolt Cable and ThunderLok 3 Included - Sonnet includes a 0.5-meter 40Gbps Thunderbolt cable that is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip(1) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the adapter by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable, so it won’t get lost when not in use.
  • Avid Qualified - Avid qualified single-adapter solution for connecting your supported Mac to the Avid Pro Tools | Carbon audio interface.
  • AVB-Compliant - Enables you to make your Mac an endpoint in an AVB Ethernet network.
  • 40Gbps Thunderbolt Interface - Supports extremely low latency required for AVB applications.
  • Pocketable - Compact and highly portable.
  • Bus-Powered, Energy Efficient - Powered through Thunderbolt port – requires no power adapter.
  • Easy Setup - Configure the adapter's basic settings using operating system preferences.
  • Apple M1 Series Compatible - Compatible with M1, M1 Pro, and M1 Max Macs.
  • Intel Mac Compatible - Compatible with Mac computers with Thunderbolt 3 ports.
COMPATIBILITY
Mac Compatibility:
  • Mac® (M1/M2 series)
  • Mac (Intel®) with Thunderbolt 3 ports
  • macOS® 10.12.6+
  • macOS Ventura compatible
Pro Tools Carbon Compatibility:
See Avid support page for supported Mac computers
HARDWARE
Part Number:
AVB-TB
Warranty:
2-year
Form Factor:
Thunderbolt Ethernet adapter
External Connectors:
1x Thunderbolt port
1x RJ45 port
GbE Controller:
Broadcom BCM57762
Bus Interface:
40Gbps Thunderbolt
Network Support:
1000BASE-T, 100BASE-TX
Packets:
Maximum packet size: 9000 bytes
Data Rates Supported:
1Gb/s, 100Mb/s
Advanced Features:
  • Audio Video Bridging (AVB) protocols over Ethernet compliant with IEEE 802.AS, 1588-2008, P802.1Qat, and P802.1Qav
  • Energy-Efficient Ethernet (IEEE 802.3az)
  • Virtual LAN (VLAN) support - IEEE 802.1q VLAN
  • Wake-on-LAN (WOL) support
Stateless Offloads:
  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
  • RSS (Receiver Side Scaling)
AVDECC Compliant:
Yes
Operating Temperature:
0ºC to 35ºC (32ºF to 95ºF)
Dimensions:
5 x 3.9 x 0.8 in. (38.1 x 98.4 x 20.6 mm)
Weight:
  • Adapter: 0.20 lbs (0.09 kg)
  • Complete Package: 0.40 lbs (0.18 kg)
Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
  • Sonnet Thunderbolt AVB Adapter
  • 0.5-meter Thunderbolt cable
  • ThunderLok 3 Thunderbolt connector retainer clip(1)
  • Documentation
