Sonnet SxS PRO X Thunderbolt 3 Single-Slot Card Reader

Sonnet SxS PRO X Thunderbolt 3 Single-Slot Card Reader

SKU: SON-TB3-1SXSPX
Regular price £214.00 GBP ex VAT
£256.80 GBP inc VAT
Regular price ex VAT Sale price £214.00 GBP ex VAT
£256.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Supports SxS PRO X Cards at Full Speed - Superior Ingest Performance
Co-developed by Sony®, SxS™ professional memory cards are the onboard recording media used in many past and current Sony and ARRI pro digital video cameras and camcorders. The latest generation cards—SxS PRO X—offer a nearly 3x increase in maximum read speeds of the previous generation. If you use SxS media in your workflow, you should use an SxS card reader capable of supporting SxS PRO X and every other SxS memory card at maximum speed. For the fastest ingests, get a Sonnet SxS PRO X Thunderbolt™ 3 Single-Slot Card Reader; it’s the best tool for the job.

Small and Ultra-fast - Ingest at Maximum Read Speeds

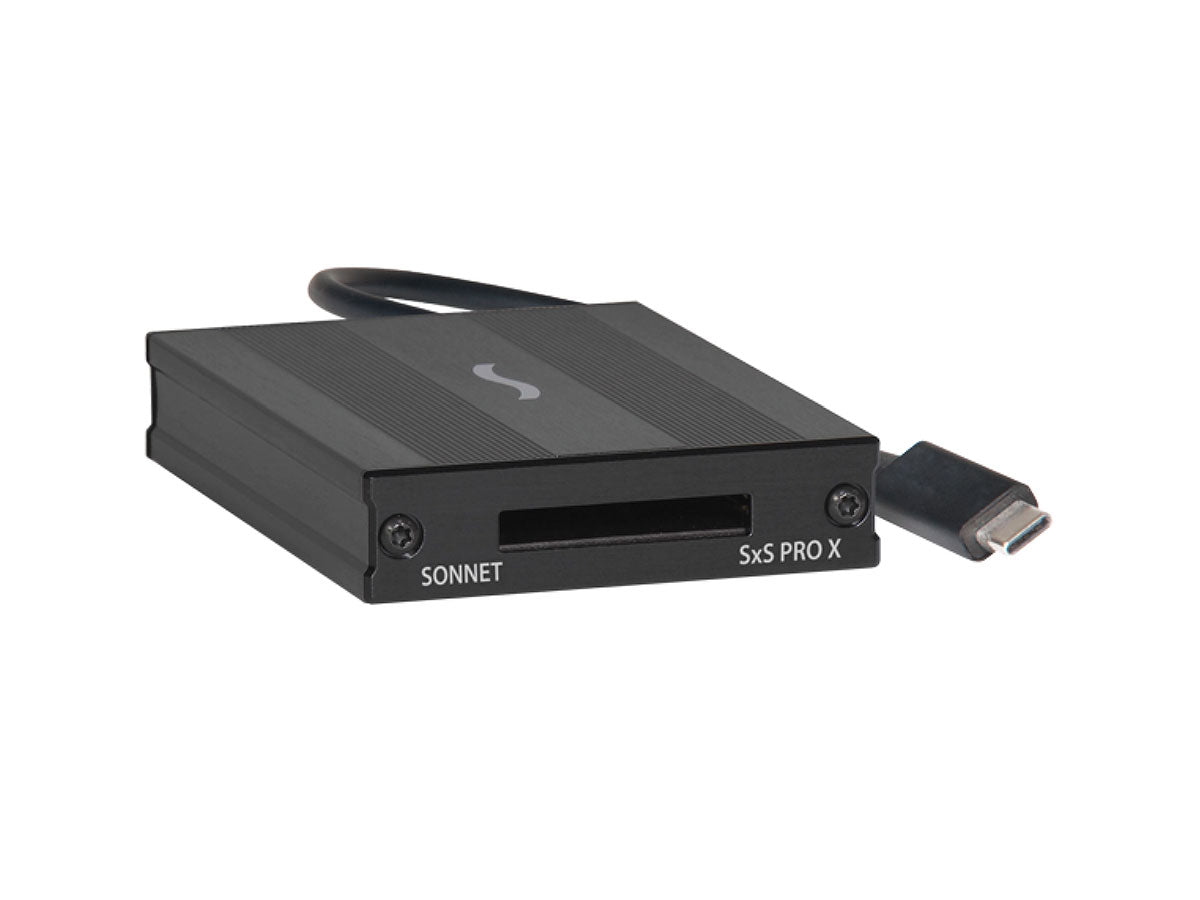

The SxS PRO X Thunderbolt 3 Single-Slot Card Reader is small, ultra-fast, and easily reads all SxS memory cards at their rated speeds.

The Perfect Travel Companion - Bus-Powered Operation
When you need to travel light and don’t have a large stack of cards to ingest, extra power bricks and cables take up extra space and can weigh you down. Sonnet’s SxS PRO X Thunderbolt 3 Single-Slot Card Reader is bus-powered, operating off its Thunderbolt connection so there’s no need to plug in a power supply or power cable.

Supports all SxS Media - Broad Card Support
The SxS PRO X Card Reader supports all generations of SxS media up to the latest PRO X cards. Additionally, this reader(2) supports XQD cards with the Sony ExpressCard Adapter for XQD Memory Card (QDA-EX1) or SD cards with Sonnet's SDHC Adapter for SxS Slot (SD-SXS-E34).

Compact, Rugged and Portable - The Single-slot SxS Card Reader for Digital Imaging Technicians (DITs)
Equipment size and design features matter. Sonnet’s SxS PRO X Thunderbolt 3 Single-Slot Card Reader measures just 2.8 inches wide by 4.1 inches deep by 0.8 inches tall (about the size of a deck of playing cards), making it suitable for use in any workspace and workflow. Featuring a rugged aluminium enclosure, the Sonnet reader packs easily into a computer bag or backpack. Its single-port Thunderbolt interface and bus-powered operation make it perfect for use at the end of a daisy chain (such as multiple Sonnet SF3™ Series dual-slot pro card readers).

Thunderbolt 3 - Fastest External Interface Available
Featuring a 40Gbps Thunderbolt™ 3 interface, this reader ingests footage from all SxS memory cards to any Mac® or Windows® computer with Thunderbolt 3 ports—on location, in the studio, or in the edit suite—at the fastest speeds the cards will support.

All the Right Connections - Included at No Extra Charge – Thunderbolt 3 Cable. ThunderLok 3.

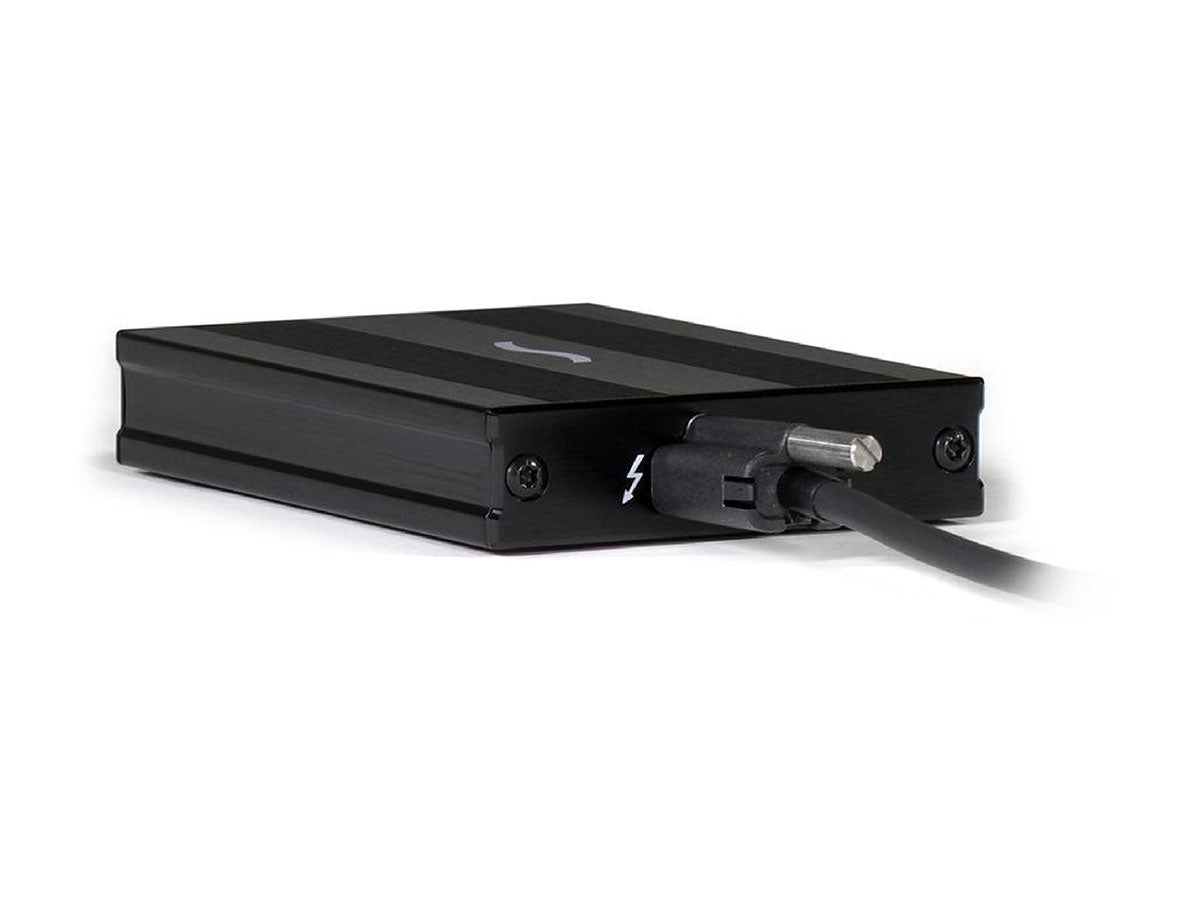

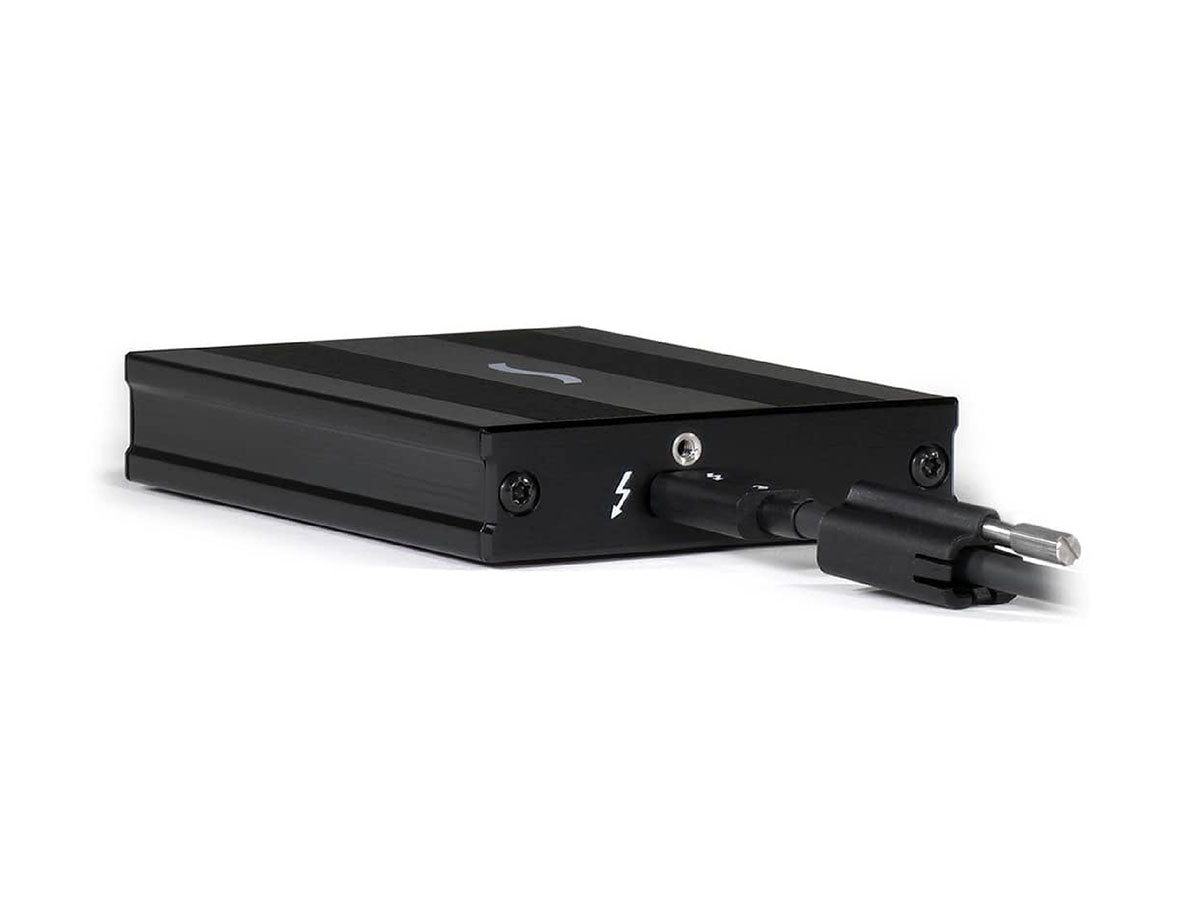

Sonnet includes a 0.5-meter Thunderbolt 3 (40Gbps) cable that supports Thunderbolt 3’s full bandwidth. Sonnet also provides a ThunderLok 3 Thunderbolt connector retainer clip(3) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the reader by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
  • Superior Ingest Performance - Ingests footage from any SxS card at maximum supported speeds; up to 1250 MB/s with SxS PRO X, and up to 440 MB/s for SxS Pro+ media(1).
  • Bus-powered - Ideal for use with a laptop computer when no power outlet is available.
  • Broad Card Support - Supports all SxS media, including SxS PRO X and SxS PRO+ E Series cards. XQD™ and SD™ cards are supported when used with adapters(2).
  • Pocket-Sized and Rugged - Small and rugged aluminium enclosure for easy packability and reliable operation.
  • 40Gbps Thunderbolt 3 Peripheral - This Thunderbolt 3 card reader provides 2 lanes of PCIe 3 to the SxS PRO X card slot. (Thunderbolt 4 devices are limited to one lane of PCIe.)
  • Mac & Windows Compatible - Supports Mac and Windows computers
COMPATIBILITY
Mac Compatibility:
  • Mac (M1/M2 series)
  • Mac (Intel) with Thunderbolt 3 ports
  • macOS® 10.12.6+
  • macOS Ventura compatible
Windows Compatibility:
  • Windows computer with Thunderbolt 4 or Thunderbolt 3 ports
  • Windows 11 or 10
Supported Media:
  • Sony SxS, SxS-1, SxS Pro, SxS Pro+, and SxS Pro X
  • SD, SDHC, SDXC (requires Sonnet SD-SXS-E34 adapter, sold separately)
  • Sony AXS media NOT supported
HARDWARE
Part Number:
  • TB3-1SXSPX
Warranty:
  • 2-year
Form Factor:
  • Portable card reader
Bus Interface:
  • 40Gbps Thunderbolt
External Connectors:
  • SxS card slot
  • Thunderbolt port
Operating Temperatures:
  • 0ËšC to 35ËšC (32ËšF to 95ËšF)
Dimensions:
  • 72 x 105 x 19.5 mm / 2.8 x 4.1 x 0.8"
Weight:
  • Reader: 0.35 lbs (0.16 kg)
  • Complete Package: 0.60 lbs (0.27 kg)
Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
  • SxS PRO X Thunderbolt 3 Single-Slot Card Reader
  • 0.5-meter Thunderbolt 3 cable
  • ThunderLok 3 retainer clip
  • Documentation
