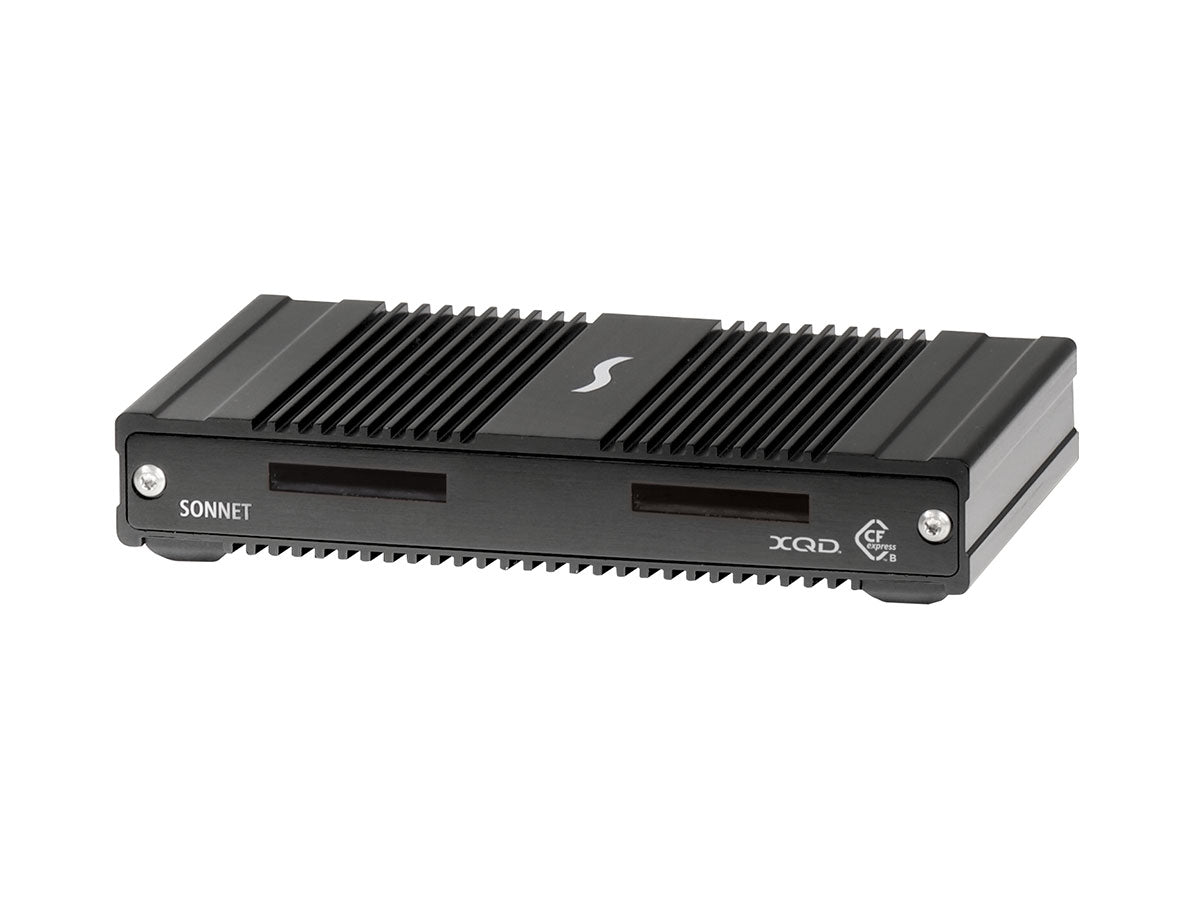

Sonnet SF3 Series - CFexpress/XQD Pro Card Reader
Sonnet SF3 Series - CFexpress/XQD Pro Card Reader
SKU:
SON-SF3-2CFEX
Regular price
£370.00 GBP ex VAT
£444.00 GBP inc VAT
£444.00 GBP inc VAT
Regular price
ex VAT
Sale price
£370.00 GBP ex VAT
£444.00 GBP inc VAT
Unit price
per
£444.00 GBP inc VAT
Only 1 left in stock.
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Superior Ingest Performance
Whether you’re capturing 4K at 60P RAW video footage to CFexpress™ memory cards, or shooting hundreds of photos in a session and saving them to XQD™ memory cards, the generated files are huge, and the cards fill up fast. Moving those files to your computer for editing is a must, but if you use the wrong tool, you’ll spend a lot of time waiting around. Get a Sonnet SF3™ Series - CFexpress/XQD Pro Card Reader; it’s the ultimate tool for finishing the job fast.
Ready for Racking
Sonnet’s SF3 Series pro card readers include threaded mount points that enable you to securely attach two readers side-by-side on a rack tray in just 1U of rack space.
The CFexpress/XQD Reader for Digital Imaging Technicians (DITs)
Measuring 5.75 inches wide by 1 inch tall by 3.5 inches deep, the SF3 Series - CFexpress/XQD Pro Card Reader is suitable for use in any workspace and workflow; for DITs working multi-camera shoots or in a small space, the Sonnet reader’s design advantages stand out.
Built with rugged aluminum enclosures, SF3 Series card readers are designed to be stacked and daisy chained, enabling multiple CFexpress/XQD, REDMINI-MAG®, SxS™, and CFast™ 2.0 readers to occupy the same footprint, while connecting to your computer through a single cable. Now you can take advantage of Thunderbolt 3’s 2750 MB/s bandwidth to ingest four, six or more cards simultaneously!
Built with rugged aluminum enclosures, SF3 Series card readers are designed to be stacked and daisy chained, enabling multiple CFexpress/XQD, REDMINI-MAG®, SxS™, and CFast™ 2.0 readers to occupy the same footprint, while connecting to your computer through a single cable. Now you can take advantage of Thunderbolt 3’s 2750 MB/s bandwidth to ingest four, six or more cards simultaneously!
Sonnet SF3 Series Pro Card Readers
Designed to be Stacked and Daisy Chained
Fastest External Interface Available - Thunderbolt 3 - The USB-C That Does It All
Featuring a dual-port 40Gbps Thunderbolt 3 interface, this professional reader ingests footage from CFexpress 2.0 Type B or XQD memory cards to any Mac® or Windows® computer with Thunderbolt 3 ports—on location, in the studio, or in the edit suite—at the fastest speeds the cards will support.

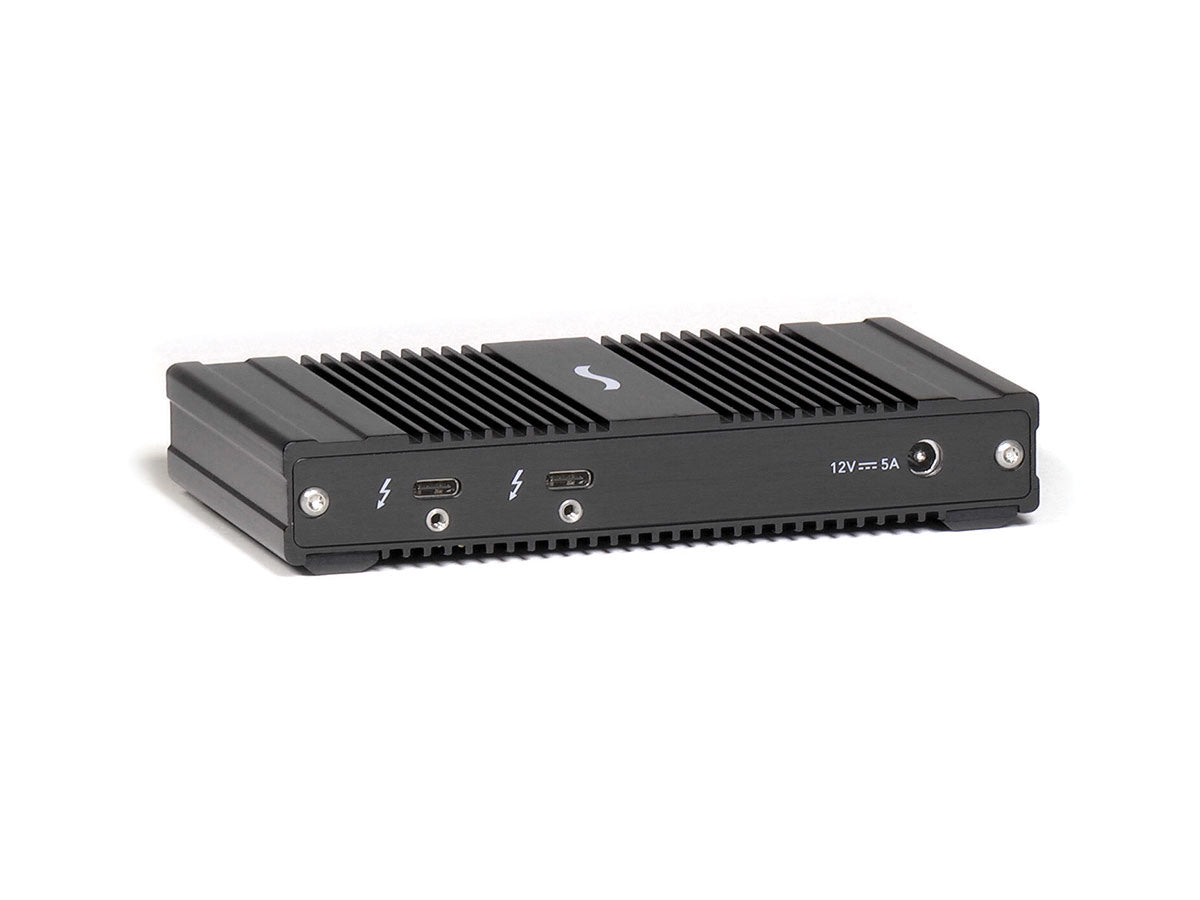

Two Thunderbolt 3 Ports
The SF3 Series - CFexpress/XQD Pro Card Reader features two Thunderbolt 3 ports; the first one used for connecting to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer.
10Gbps USB 3.2 Gen 2 Support
The reader includes 10Gbps USB 3.2 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter.
Supports Two 4K or One 5K Display
The Sonnet reader also provides full support for connecting up to two 4K displays @ 60Hz or one 5K display @60Hz.
Provides 15W of Power
For connected devices requiring extra power, 15 watts is provided to bus-powered Thunderbolt 3 peripherals, such as the SF3 Series - CFast 2.0 ProCard Reader.
Included at No Extra Charge - Thunderbolt 3 Cable. ThunderLok 3.
Sonnet includes a 0.5-meter Thunderbolt 3 (40Gbps) cable that, unlike some other cables, transfers data at Thunderbolt 3’s full 2750 MB/s bandwidth, and supports up to 100W of Power Delivery (PD). In addition, Sonnet provides a ThunderLok 3 Thunderbolt connector retainer clip(3) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
- Superior Performance - Ingests footage from CFexpress 2.0 Type B cards and XQD cards at up to maximum supported speeds
- Cuts Ingest Times by up to Half - Dual card slots enable simultaneous ingest of footage from two cards for greater efficiency
- Rugged, Compact, Stackable - Small and rugged aluminum enclosure for reliable operation; design enables multiple SF3 Series card readers to occupy same footprint
- Rackable - Threaded mount points enable secure attachment of two readers side-by-side on a rack tray in just 1U of rack space
- 40Gbps Thunderbolt™ 3 Interface - Fastest interface available; offers 2750 MB/s of PCIe bandwidth
- Two Thunderbolt 3 Ports - One port connects to computer; second port supports daisy chaining of up to five additional SF3 Series pro card readers
- Backward Compatible - With Thunderbolt 2 and Thunderbolt Macs when used with an Apple® Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter and a Thunderbolt cable (both sold separately)
- Mac & Windows Compatible - Supports Mac and Windows computers
| COMPATIBILITY | |
| Mac Compatibility: |
|
| iPad Pro Compatibility: |
|
| Windows Compatibility: |
|
| Supported Media: |
|
| HARDWARE | |
| Part Number: |
|
| Warranty: |
|
| Form Factor: |
|
| Bus Interface: |
|
| External Connectors: |
|
| Power Adapter: |
|
| Dimensions: |
|
| Weight: |
|
| Compliance: |
|
- Sonnet SF3 Series - CFexpress/XQD Pro Card Reader
- Power adapter
- Power cable
- 0.5-meter Thunderbolt 3 cable
- ThunderLok3 retainer clip
- Documentation
