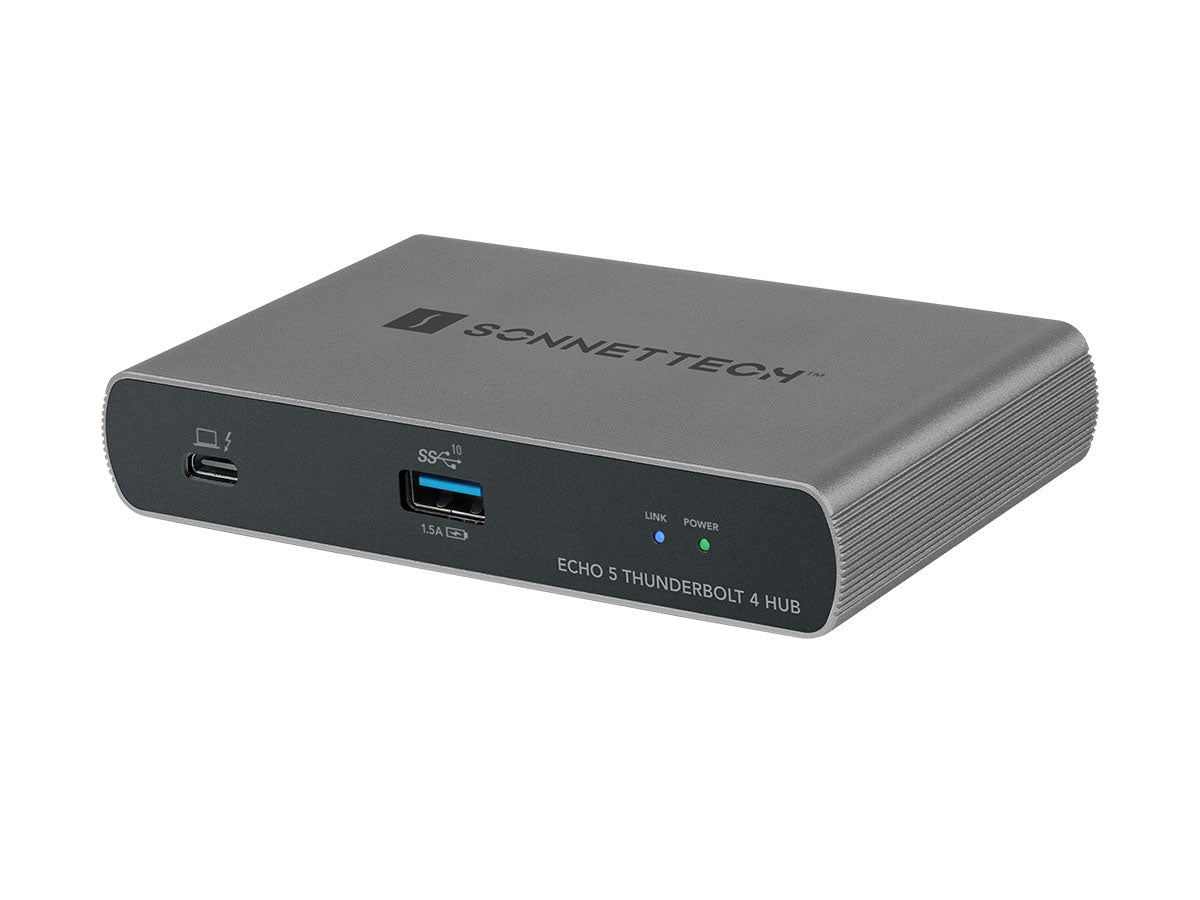

Sonnet Echo 5 Thunderbolt 4 Hub

Sonnet Echo 5 Thunderbolt 4 Hub

SKU: SON-ECHO-HB5-T4
£166.00 GBP ex VAT
£199.20 GBP inc VAT
ex VAT £166.00 GBP ex VAT
£199.20 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Thunderbolt 4 - The Highest-Bandwidth, Most Versatile Connection Available
The Thunderbolt hub you've always wanted, without paying for the extra features you don’t need. A single cable powers your laptop and connects to multiple Thunderbolt and USB peripheral devices. Sonnet’s Echo™ 5 Thunderbolt 4 Hub – the compact universal hub for today and tomorrow.
  • Directly attach three Thunderbolt peripherals – and daisy chain up to a total of 5 devices
  • Alternate use—attach three USB devices to Thunderbolt ports (or at the end of Thunderbolt chains)
  • Attach one USB device with Type A connector
  • Connect up to two 5K displays; or a single display up to 8K resolution!
  • Charge your laptop
  • Charge your phone or tablet
Connect to Your Peripherals and Power Your Computer with One Cable
Plug in your Thunderbolt devices, monitor(s), and USB peripherals, and then connect them all to your computer from the hub with the included Thunderbolt cable. The Echo 5 Thunderbolt 4 Hub will even power your laptop with up to 85W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.

Port Multiplication - Turn One Thunderbolt Port into Three - Flexible Device Connectivity for Work and Play
Based on the Intel® Goshen Ridge controller, the Echo 5 Thunderbolt Hub features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For bus-powered devices, the Hub’s Thunderbolt peripheral ports provide 15W per port, supporting the most demanding bus-powered Thunderbolt and USB peripherals—they can even charge your iPhone® or iPad® twice as fast as using the USB Type A port.

Versatile Thunderbolt Expansion
Perfect for Thunderbolt 4 Windows and Thunderbolt 3 and 4 Macs (including Apple® M1 Macs with dual Thunderbolt/USB4 ports). Connect the hub and create three separate independent Thunderbolt expansion chains. Add and disconnect devices from one chain without affecting the others.

Connect - Super Fast USB NVMe SSDs at Full Speed
The Echo 5 Thunderbolt 4 Hub features a USB 3.2 Gen 2 (10Gbps) Type A port on the front to support super fast USB NVMe SSDs at full speed. And unlike some other hubs, the Echo 5 doesn’t skimp on power either—it provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Charge - iPhone, iPad, USB Devices
The Echo 5 hub also supports charging your iPhone, iPad, or other device that charges over USB.

Thunderbolt Certified for Mac and Windows
The Echo 5 Thunderbolt 4 Hub is certified for use with M1 Max/M1 Pro/M1 Mac computers, Intel Macs with Thunderbolt 3 ports running macOS® 12 (Monterey) or 11 (Big Sur), and Windows computers with Thunderbolt 4 ports.
  • 5-port Compact Thunderbolt 4 Hub With Four Thunderbolt Ports, Dual 4K Display Support, 60W Thunderbolt Charging, and Front USB 3 Charging Port
  • Compatible with all Thunderbolt™ 4 computers, all M1/M1 Pro/M1 Max Macs, all Thunderbolt 3 Macs, and iPad Pro® tablets with a Thunderbolt port
  • One Cable Peripheral Connection - Instant access – plug peripherals into the Echo 5 and connect your computer to the hub with the included Thunderbolt cable.
  • Five Ports - Includes four Thunderbolt 4 ports, one USB 3.2 Gen 2 Type A (charging) port.
  • Three Thunderbolt 4 Ports for Peripherals - Connects three Thunderbolt peripherals directly (with support for daisy chaining additional peripherals). Also supports USB4 and USB 3 devices.
  • Powerful 10Gbps USB Type A Charging Port - Front panel USB 3.2 Gen 2 (10Gbps) port supports super fast USB 3 NVMe SSDs at full speed. Provides up to 7.5W of power, ensuring bus-powered devices will operate without fail; can also charge an iOS device or other device that charges via USB.
  • Support for 4K, 5K, 6K and 8K @60Hz Displays - Depending on your computer, supports up to two 5K displays or a single 4K, 5K, 6K, or 8K display (see Compatibility PDF).
  • Many Display Interfaces Supported - Connect Thunderbolt and USB-C displays directly. Supports HDMI and DisplayPort displays with a Thunderbolt-compatible adapter (sold separately).
  • Travel-Sized Thunderbolt Port Expander - Measuring just 5.1 inches wide by 2.8 inches deep by 0.9 inches high, the hub can be tossed into your backpack with your laptop or tablet to provide the extra Thunderbolt and USB connectivity you need on the go.
  • Charge Your Computer - Provides up to 85W through the included Thunderbolt cable to power and charge your laptop.(2)
  • Apple M1 Compatible - Supports all Apple M1/M1 Max/M1 Pro computers.
  • Intel Mac Compatible - Supports all Thunderbolt 3 Mac computers running macOS 12 or 11
  • Intel Windows Compatible - Supports all Thunderbolt 4 Windows computers
  • Apple M1 iPad Pro Compatible - Supports all iPad Pro tablets with a Thunderbolt port.
COMPATIBILITY
Mac Compatibility:
  • Mac (M1 or M2) supports only one display
  • Mac (M1/M2 Pro, M1/M2 Max, or M1 Ultra) supports two displays
  • Mac (Intel) with Thunderbolt 3 ports supports two displays
  • macOS 13 (Venutra), 12 (Monterey), or 11 (Big Sur) required
iPad Pro Compatibility:
  • M1/M2 series iPad Pro supports only one mirrored display
Windows Compatibility:
  • Windows computer with Thunderbolt 4 ports supports two displays
  • Windows computer with USB4 port
  • Windows computer with Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU
HARDWARE
Part Number:
  • ECHO-HB5-T4
Warranty:
  • 2-year
Form Factor:
  • Thunderbolt hub
External Connectors:
  • Four Thunderbolt 4 ports
  • One USB 3.2 Gen 2 (10Gbps) Type A charging port
  • One power connector
Thunderbolt 4 Computer Port:
  • Power Delivery
    • Provides laptop charging up to 85W
  • Cables Supported
    • Any Thunderbolt 4 cable (0.7-meter cable included)
    • 100W ≤ 0.8-meter 40Gbps Thunderbolt cables
  • Cables Not Supported
    • 60W 40Gbps Thunderbolt cables
    • ≥ 1.0-meter 40Gbps Thunderbolt cables
Thunderbolt 4 Peripherals Ports:
  • Connectivity
    • With USB-C connector
  • Peripherals Supported
    • Thunderbolt 4
    • Thunderbolt 3
    • Thunderbolt 2 (macOS)
    • USB4
    • USB 3, 2.0, and 1.1 devices
    • Thunderbolt 3 and USB-C monitors
    • DisplayPort and HDMI monitors
  • Charging
    • 15W capacity to charge iPad, iPhone, or other device supporting PD charging
    • Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Port:
  • Connectivity
    • With USB Type A connector
  • Peripherals Supported
    • USB 3, 2.0 and 1.1 devices
  • Data Transfer Rate
    • USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
  • Charging
    • 7.5W capacity to charge iPad, iPhone, or other device
    • USB Battery Charging 1.2–compliant
    • Supports simultaneous charging and syncing
Power Adapter:
  • Universal 100W, 100-240V AC, 50-60 Hz
Power Delivery:
  • Provides laptop charging up to 85W
Operating Temperatures:
  • 0ËšC to 35ËšC (32ËšF to 95ËšF)
Dimensions:
  • Hub: 12.9 x 7.2 x 2.16 cm / 5.1 x 2.8 x 0.9"
  • Power Supply: 5.6 x 14.8 x 3.2 cm / 2.2 x 5.8 x 1.3"
Weight:
  • Hub and Power Supply: 1.35 lbs (0.61 kg)
  • Complete Package: 2.30 lbs (1.04 kg)
Compliance:
  • RoHS 3 (Directive 2015/863)
  • IEC62368-1 and IEC62368-2 Safety
  • FCC Part 15, Subpart B
  • CISPR 32 / EN 55032
  • UKCA
  • Power Supply (PSE certified; UL certified; VCCI certified)
  • Echo 5 Thunderbolt 4 Dock
  • Power adapter
  • Power cord
  • 0.7-meter Thunderbolt 4 cable
  • Documentation
