Sonnet DuoModo xMac mini/Echo III Rackmount System

Sonnet DuoModo xMac mini/Echo III Rackmount System

SKU: SON-DM-ZM-E3-R
£1,864.00 GBP ex VAT
£2,236.80 GBP inc VAT
ex VAT £1,864.00 GBP ex VAT
£2,236.80 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features

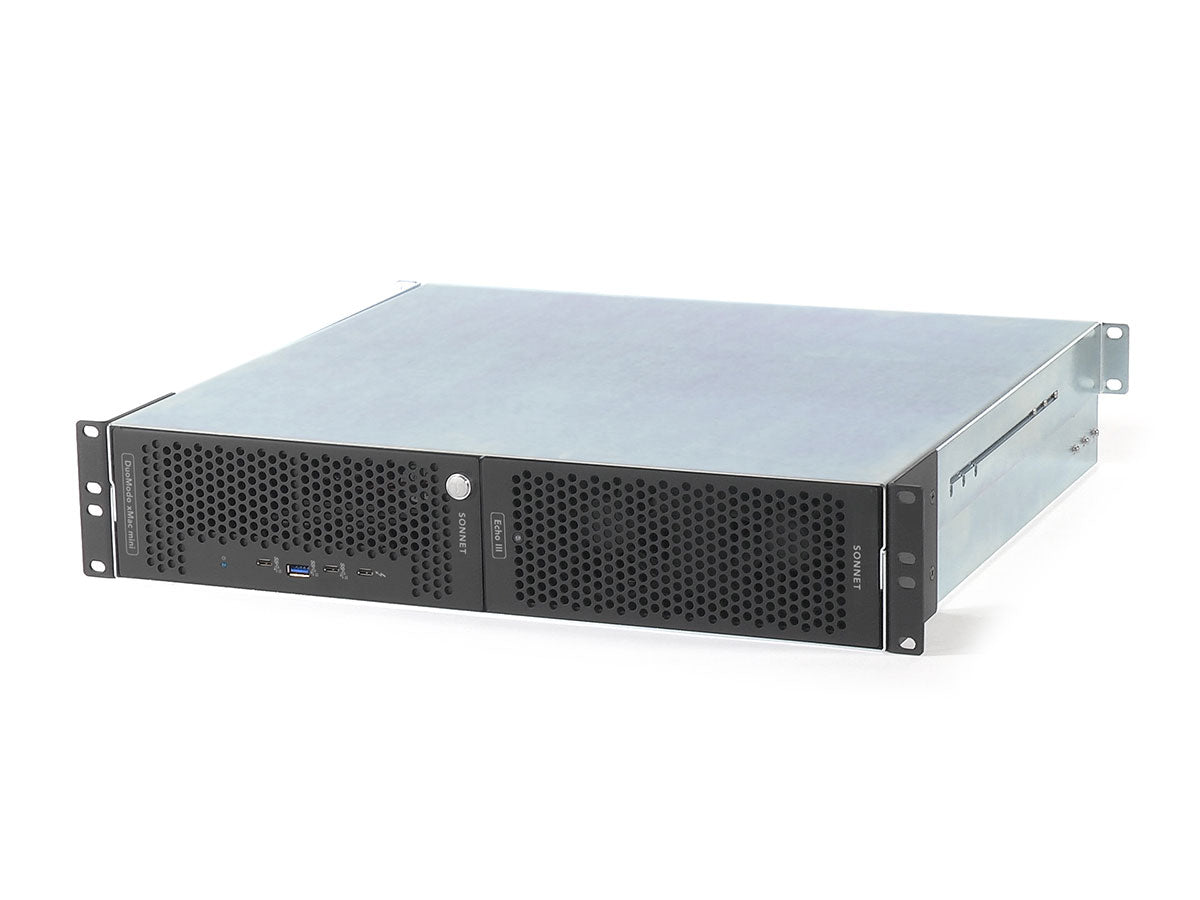

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.

  • Mac mini Integration + Three PCIe Slots
  • System Configuration
    • For Intel® or Apple® M1 Mac mini®
  • Dual-Module Rackmount Enclosure
    • Dual-module 2U Rackmount Enclosure
    • Rugged Steel Construction
    • Blank Plate Included for Single Module Applications
    • Same Enclosure Used in Echo III Rackmount
    • 19 inches Wide x 16.5 inches Deep x 3.5 inches High
    • Included Rack Rails Support Installation in Racks 16-24" Deep
  • xMac mini Module
    • Securely Holds an Intel or Apple M1 Mac mini (sold separately) in a Rugged Steel Frame
    • Open Access to the Computer’s Ports in Back
    • Built-in Thunderbolt™ 3 Dock with SSD Sockets
    • Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
    • Two M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
    • One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
    • Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
    • Quiet, Dual Temperature-controlled Fans
    • Power Cable Included
    • Thunderbolt 3 (40Gbps) Cable Included
  • Echo III Module
    • Three Versatile PCIe Slots
    • One x16 plus Two x8 PCIe Slots
    • Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
    • AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
    • Built-in 400W Power Supply with 75W Auxiliary Power Connector
    • Powers On and Off Automatically with Connected Computer
    • Dual temperature-controlled Noctua fans rated at 17 dbA
    • Two Thunderbolt 3 Ports
    • 40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
    • Power Cable Included
    • Thunderbolt 3 (40Gbps) Cable Included
    • ThunderLok 3 Thunderbolt Connector Retainer Clip Included
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed and Made in the USA
