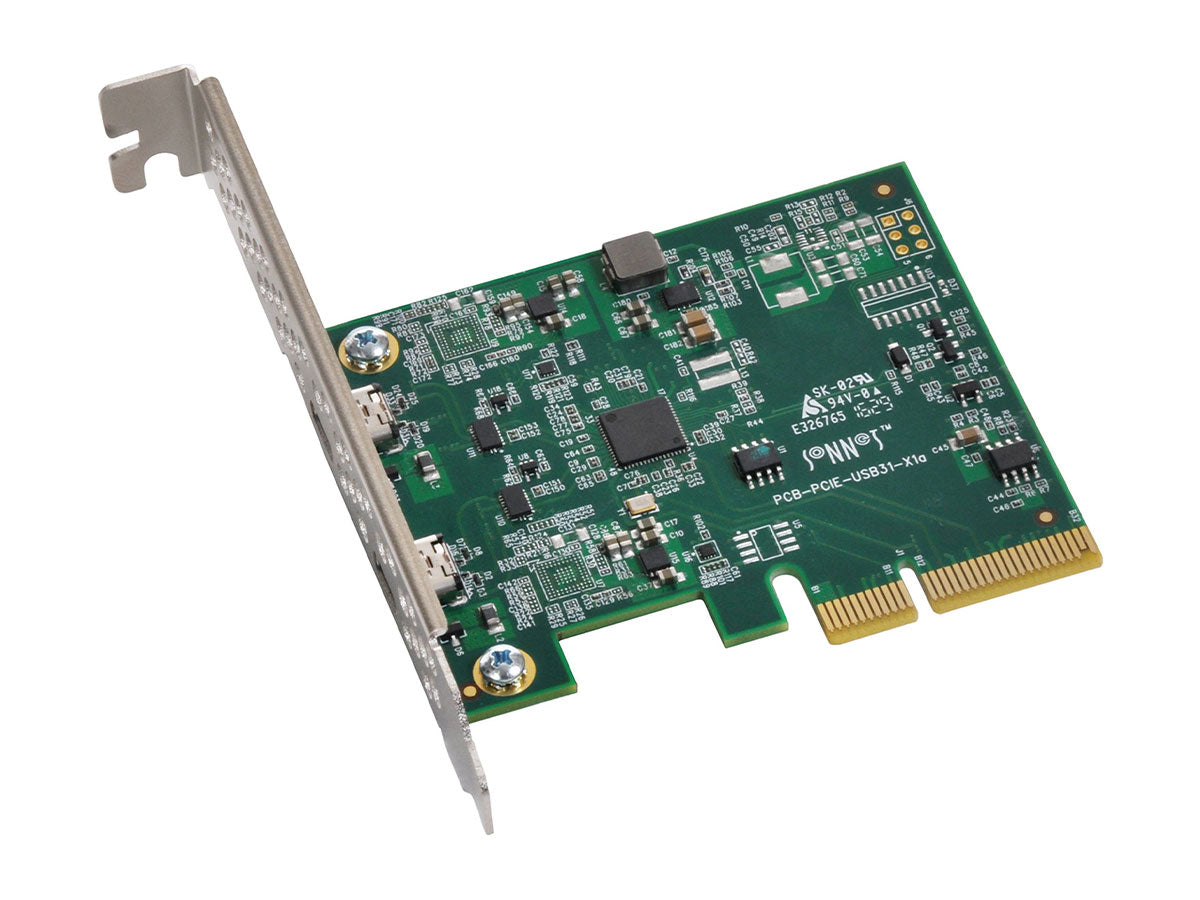

Sonnet Allegro USB-C PCIe Card
Sonnet Allegro USB-C PCIe Card
SKU:
SON-USB3C-2PM-E
Regular price
£89.00 GBP ex VAT
£106.80 GBP inc VAT
£106.80 GBP inc VAT
Regular price
ex VAT
Sale price
£89.00 GBP ex VAT
£106.80 GBP inc VAT
Unit price
per
£106.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Amazing USB 3.2 Gen 2 Performance
Add Two USB-C 10Gbps Ports to Mac Pro, Windows, and Linux Computers with PCIe Slots; and Thunderbolt to PCIe Card Expansion Systems
When it comes to supporting the fastest USB drives available, your computer’s USB 3.0 ports are perfectly adequate…for connecting peripherals that don’t depend on the ultimate USB 3.2 speeds. However, common USB 3.0 ports can be underachievers—at 5Gbps, they can’t support the maximum performance from many storage devices, and may not provide enough power to enable them to operate. You need SuperSpeed USB-C®.
The Allegro™ USB-C PCIe(1) card supports data transfers at up to twice as fast as USB 3.0, and can also deliver 15W of power per port to USB-C bus-powered devices (three times the 4.5W specified in the USB 3.0 spec). Don’t settle for mediocre performance or insufficient power for the fastest SSDs—install an Allegro USB-C card to instantly add two Gen 2 USB 3.2 ports to your system and take full advantage of today’s SSD performance.
The Sonnet Speed Advantage
Sonnet's Allegro USB-C PCIe card supports data transfers up to 960 MB/s when connected to a USB-C Gen 2 SSD RAID device—transfers complete in half the time compared with using a USB 3.0 2.5-inch SSD. And unlike other 2-port USB-C cards, the Allegro card provides 10Gbps bandwidth per port, enabling it to support simultaneous 925 MB/s data transfers from each of two separate SSDs! Other cards limit simultaneous transfers to 550 MB/s, a significant disadvantage when time is of the essence.
Full Power
Sonnet specially engineered the Allegro USB-C card to provide 15W of power through each of its ports. The ports communicate with the host that 3A of VBUS current is available, enabling this Sonnet solution to support USB-C bus-powered SSDs and SSD RAID devices that need 15W during demanding write operations.
Regulates Power to Each Port
Ordinary USB-C adapter cards deal with power delivered through the ports as an afterthought, requiring an additional power source for the card and providing little regulation. The Allegro is no ordinary adapter card. The card regulates its own power without requiring a back-of-the card power cable connection, thus enabling full compatibility in any computer or Thunderbolt expansion system that doesn’t have these power connectors available.
Sonnet’s Allegro PCIe card is unique in regulating power to each port independently, giving each one protection from power glitches on the adjacent port. Without this protection (such as found on an ordinary card), connects and disconnects of one device may cause auto-disconnects of the other.
Resettable Fuses
The Allegro features a resettable fuse on each port to protect the card and computer should there be a cable or peripheral failure. Should a fuse trip on the Sonnet card, you can reset it simply by shutting down the computer.
Add USB 3.2 to Your Thunderbolt Mac
Got a Mac with a Thunderbolt connection, but no PCIe slot? The Allegro is ideal for use in Sonnet’s Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount systems.
Easy Installation
This Allegro USBC-C PCIe installs easily into any PCIe x4 (mechanical) slot; both low-profile and full-height mounting brackets are included. The Sonnet card features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals.
- Two SuperSpeed USB-C 10Gbps Ports - Adds two USB-C 10Gbps ports to your Mac Pro®, Windows® PC, or Linux® computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system
- Amazing Performance - Transfers data up to 960 MB/s from a single drive, and up to 925 MB/s from each of two drives simultaneously
- Super-Powered Ports - Supports USB-C bus-powered SSD, SSD RAID, and hard drive devices with up to 15W (3.0A) power per port
- Protected Ports - Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects
- Resettable Fuses - Device overcurrent fuses are resettable—just shut down your machine to reset a fuse without permanent damage to card or computer
- PCIe Data Link Auto-Negotiation - Card auto-negotiates one lane data link in a PCIe 3.0 slot and two lanes in a PCIe 2.0 slot, ensuring full 10Gbps performance in either generation PCIe slot
- Broad USB Device Support & Compatibility - Supports storage, hubs, and other USB-IF compliant USB devices
- Supports Hot-Swappable Device Connection - Plug in and disconnect peripherals without shutting off your computer
- Add USB 3.2 Gen 2 to Thunderbolt Expansion Systems - Add two SuperSpeed USB-C 10Gbps ports to Thunderbolt to PCIe card expansion systems
- Easy Installation - Quick and easy user installation into any available PCIe slot
| COMPATIBILITY | |
| Mac Compatibility: |
|
| Windows Compatibility: |
|
| Linux Compatibility: |
|
| Thunderbolt PCIe Expansion System Compatibility: |
|
| HARDWARE | |
| Warranty: | 2-year |
| Form Factor: | PCIe x4 low-profile computer card; full-height mounting bracket attached, low-profile bracket included |
| Bus Interface: | PCI Express 3.0 x2 |
| Peripherals Supported: |
|
| Bus Powered Peripherals Supported: |
|
| Cables Supported: |
|
| Chipset: | ASMedia 3142 |
| RoHS Compliant: | Yes |
| USB SUPPORT | |
| Number of Ports: | 2 external |
| Standard: | Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards |
| UASP: | USB attached SCSI protocol supported under macOS 10.12+, Windows 10 |
| Chipset Throughput: | 16 Gbps combined port throughput |
| Number of Devices Supported: | Up to 31 |
| Hot Plug: | Supports hot-pluggable and hot swappable device connection |
| Boot Support: | No computers support booting at this time |
- Allegro USB-C PCIe Adapter Card with attached full-height mounting bracket
- Low-profile mounting bracket
- Documentation
