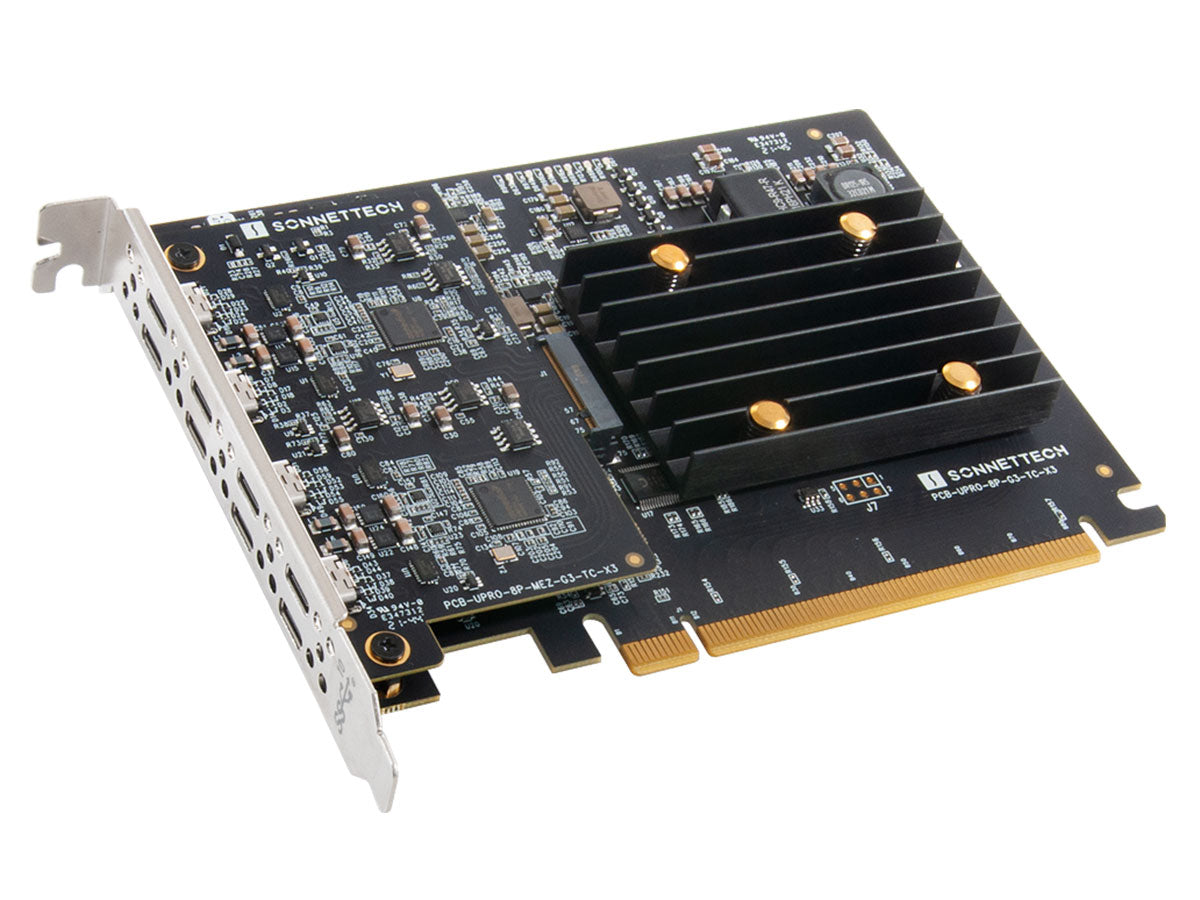

Sonnet Allegro Pro USB-C 8-Port PCIe Card
Sonnet Allegro Pro USB-C 8-Port PCIe Card
SKU:
SON-USB3C-8PM-E
Regular price
£439.00 GBP ex VAT
£526.80 GBP inc VAT
£526.80 GBP inc VAT
Regular price
ex VAT
Sale price
£439.00 GBP ex VAT
£526.80 GBP inc VAT
Unit price
per
£526.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Pro Ports. Max Performance from Each One - First pro PCIe adapter card with eight external USB-C ports, four USB 3.2 controllers, and an x8 PCIe 3.0 bridge chip
Even in computers with multiple expansion card slots, every slot is valuable—there may not be space to install two 4-port adapter cards. Sonnet’s Allegro™ Pro USB-C® 8-Port PCIe Card is the first adapter card ever to feature eight high performance USB-C ports, fitting them neatly on a standard full-height PCIe card bracket. Ports are spaced to enable connection of eight cables (and even USB-C male to USB-A female adapters).
Why Sonnet? Many multi-port USB cards split a single USB controller’s bandwidth among their ports, limiting performance when two or more devices are connected and operating. When installed in a computer’s PCIe 3.0 or 4.0 slot, Sonnet’s card provides full 10Gbps bandwidth to every one of its eight ports, ensuring maximum performance from each one.
- Eight USB-C 10Gbps Ports - Ports are spaced to enable connection of eight cables (and even USB-C to USB-A adapters)
- Four USB 3.2 Gen 2 Controllers + PCIe 3.0 Bridge Chip - x8 PCIe 3.0 bridge chip, four independent USB 3.2 controllers controlling a pair of ports each, can concurrently deliver full 10Gbps bandwidth through each port
- Intelligent Power Delivery & Management - Independent, per-port power regulation–prevents power glitches that cause auto-disconnects of already-connected drives
The Most Capable 10Gbps USB Card - USB SSD Nirvana
Equipped with NVMe SSDs, the fastest USB 3.2 Gen 2 drives available can transfer data at incredible speeds. Chances are your computer has few ports capable of supporting their full performance. Upgrade your workflow in a major way by installing Sonnet’s Allegro Pro USB-C 8-Port PCIe Card in your Mac Pro®, Windows, or Linux computer; or Echo™ III Thunderbolt™ to PCIe card expansion system to support up to eight NVMe USB drives at maximum performance, no power adapters needed.
High Speed Simultaneous Transfers - 10Gbps from Every Port!
Many multi-port USB cards are simple hubs that split a single USB controller’s bandwidth between all its ports, which limits their performance when two or more devices are connected and operating. When installed in a computer’s PCIe 3.0 or 4.0 slot, Allegro Pro USB-C 8-Port PCIe Card supports eight simultaneous 10Gbps transfers. It is ideal for transferring data from multiple drives to the computer (and from drive to drive)—data transfers from a single USB 3.2 NVMe SSD device at up to 1000 MB/s. Compared to using a USB 3.1 Gen 1 or USB 3.0 adapter card, transfers complete in half the time!
Built to Perform - Advanced Bandwidth Management Architecture
With its advanced architecture, the Allegro Pro USB-C 8-Port PCIe Card can deliver full 10Gbps bandwidth to each of its ports. This is accomplished by providing each USB controller access to two lanes of PCIe 3.0 via an x8 PCIe 3.0 bridge chip, plus by implementing advanced data traffic management to eliminate bandwidth congestion. By providing full-bandwidth PCIe bridging to four controllers and by eliminating bandwidth congestion, this Sonnet card is the highest-performing USB 3.2 Gen 2 PCIe card ever made.
Sonnet Port Power Advantages
Sonnet designed the Allegro Pro USB-C 8-Port PCIe Card with a focus on intelligent power delivery and management for attached drives powered through its ports—unlike ordinary USB adapter cards designed without attention to detail.
- 7.5W of Power Provided Through Each Port Simultaneously - This Allegro card supports eight USB bus-powered SSDs or hard drives.
- No Auxiliary Power Required - Ordinary USB cards need a separate power connection. Sonnet’s Allegro card draws all the power necessary to operate connected drives from the slot it’s installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system regardless of it having extra power connectors available.
- Independent, Per-Port Power Regulation - The Allegro card protects each port from power glitches on neighboring ports to prevent auto-disconnects of already-connected drives. Ordinary USB cards can deliver poor power regulation, allowing a connected drive to be forced off (auto-disconnected) when an additional drive is connected or disconnected.
- Resettable Fuses - Unlike ordinary USB cards, the Allegro card features a resettable fuse on each port that protects both the card and computer should a cable or peripheral fail. Resetting a tripped fuse is simple—just shut down and then restart your computer.
Virtually Independent - Supports Four Independent Physical Connections to Virtual Machines (VMs)
The Allegro Pro USB-C 8-Port PCIe Card’s four independent USB 3.2 controllers control a pair of ports each. If your VM software supports direct physical connections, then each of these four controllers can be independently attached to a separate virtual machine.
Broad Device Support - Easy Card Installation
The Allegro Pro USB-C 8-Port PCIe Card offers hot-pluggable and hot-swappable device connection support with automatic device configuration and works with all USB-IF compliant USB peripherals. This full-height Sonnet card installs easily into a PCIe x16 slot and does not require a driver installation.
- 8-port, USB-C 10Gbps (USB 3.2 Gen 2) PCIe Card with Four USB Controllers Plus USB-C Charging
- Eight 10Gbps USB-C Ports on a Single Card - Adds eight USB-C 10Gbps ports to your Mac Pro, Windows, or Linux computer; or Thunderbolt to PCIe card expansion system
- Supports Eight USB-C Cables - Ports are spaced to enable connection of eight cables (and even USB-C male to USB-A female adapters)
- Four Independent USB Controllers, Full 10Gbps Bandwidth Per Port - PCIe 3.0 bridge chip and four USB 3.2 controllers enable each port to support data transfers at up to 1000 MB/s, even while transferring files from multiple drives concurrently
- Advanced Data Traffic Management - This Sonnet card supports “Multiple Ins,” which means that that the host can issue a read request to one endpoint device and then proceed with other transactions without waiting for the response from the first device, eliminating traffic congestion
- Powered Ports - Supports USB-C bus-powered SSD, SSD RAID, and hard drive devices with up to 7.5W power per port
- Protected Power Delivery - Sonnet USB 3.2 cards uniquely have a power switch on each USB 3 port that manages and monitors the current flow of the port. The switch limits the current draw when a new USB 3 device is connected, minimizing the voltage droop of the main USB 5V power rail, thereby protecting devices connected to other USB ports from going offline because of port power droop
- Supports Four Independent Physical Connections to VMs - Four independent USB 3.2 controllers control a pair of ports each. If your VM software supports direct physical connections, then each of the Sonnet card’s controllers can be independently attached to a separate virtual machine
- Supports Hot-Swappable Device Connections - Plug in and disconnect peripherals without shutting off your computer
- Broad USB Device Support and Compatibility - Supports storage, hubs, and other USB-IF compliant devices
- Easy Installation - Quick and easy installation into any available x16 PCIe slot, plus no driver installation required
- Great for Use in Thunderbolt Expansion Systems - Use in Sonnet Thunderbolt expansion systems with an available x16 PCIe card slot to power and connect eight 10Gbps USB SSDs to your computer
- Mac, Windows, and Linux Compatible - Compatible with Mac, Windows, and Linux computers
| COMPATIBILITY | |
| Mac Compatibility: |
|
| Windows Compatibility: |
|
| Linus Compatibility: |
|
| Thunderbolt Compatibility: |
|
| HARDWARE | |
| Part Number: |
|
| Warranty: |
|
| Form Factor: |
|
| Bus Interface: |
|
| Peripherals Supported: |
|
| Bus-Powered Peripherals Supported: |
|
| Cables Supported: |
|
| Chipsets: |
|
| USB Standard: |
|
| UASP: |
|
| Hot Plug: |
|
| Boot Support: |
|
| Operating Temperature: |
|
| Compliance: |
|
- Allegro Pro USB-C 8-Port PCIe Card
- Documentation
