SmallRig VB50 Mini V-Mount Battery
SmallRig VB50 Mini V-Mount Battery
£112.19 GBP inc VAT
£112.19 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
VB50 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 45W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc.

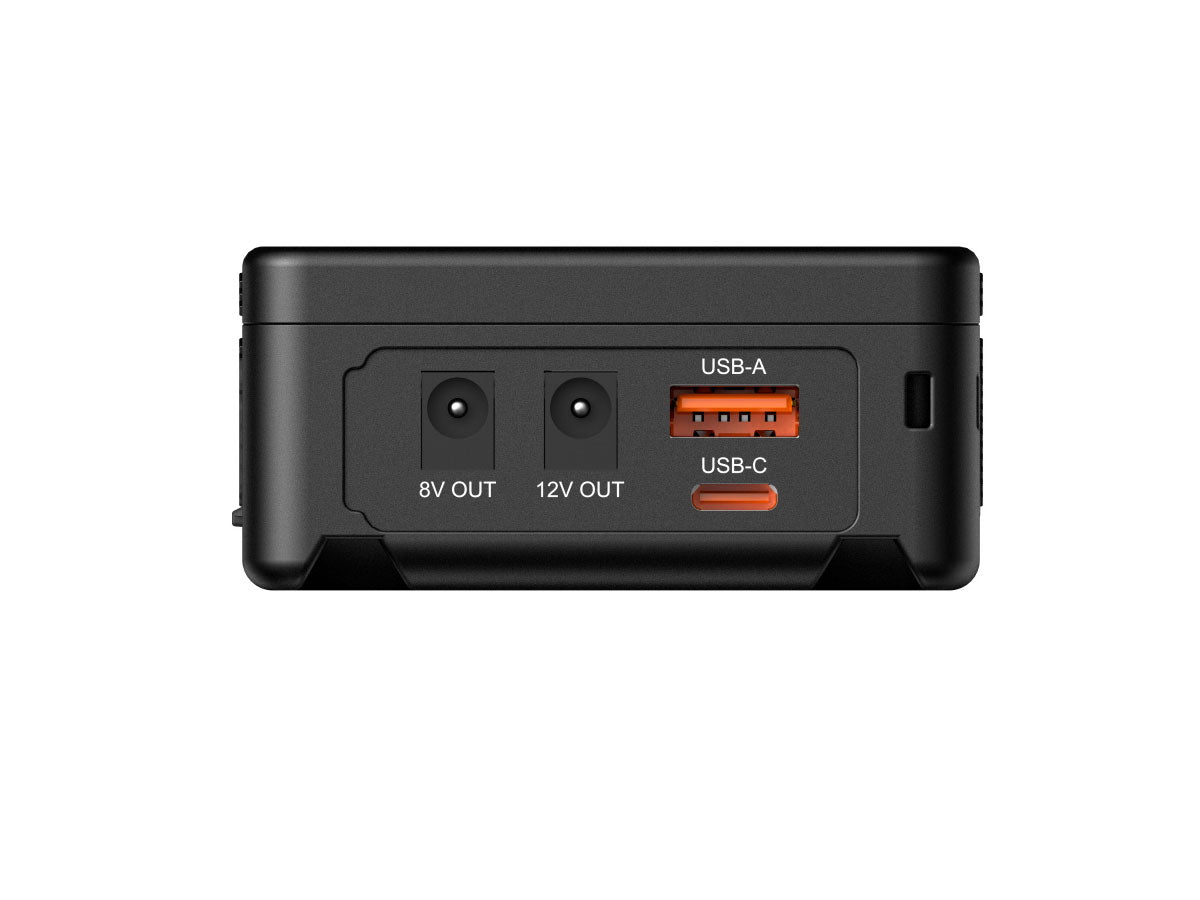

Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
- Compact and lightweight to be carried around - Designed to lighten the burden of the film industry, the VB series are approximately 30% smaller than traditional V-mount batteries!
- Intelligent BMS chip for efficient and safe use - A built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging!

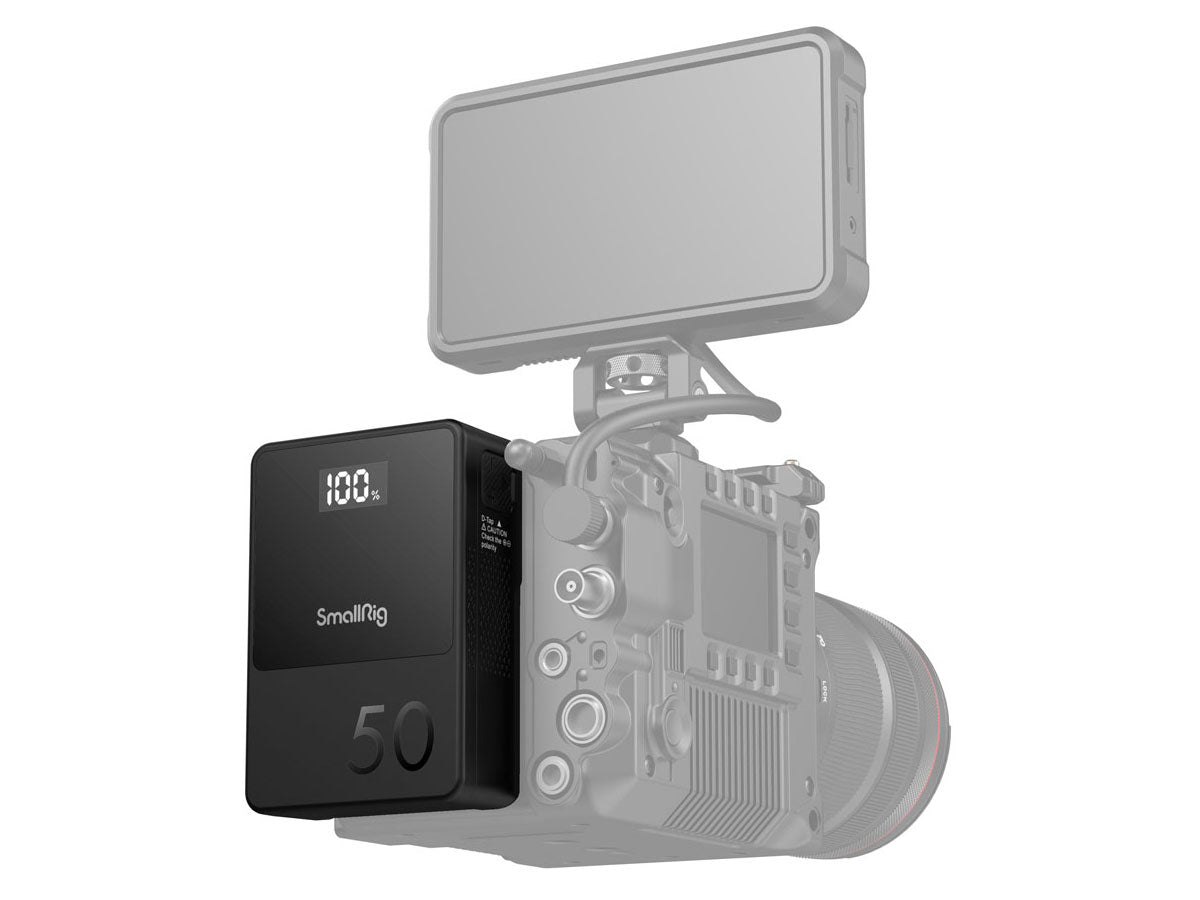

- Various interfaces for high compatibility - Compatible with camera/ camcorder / monitor / wireless video transmitter / video light, etc.

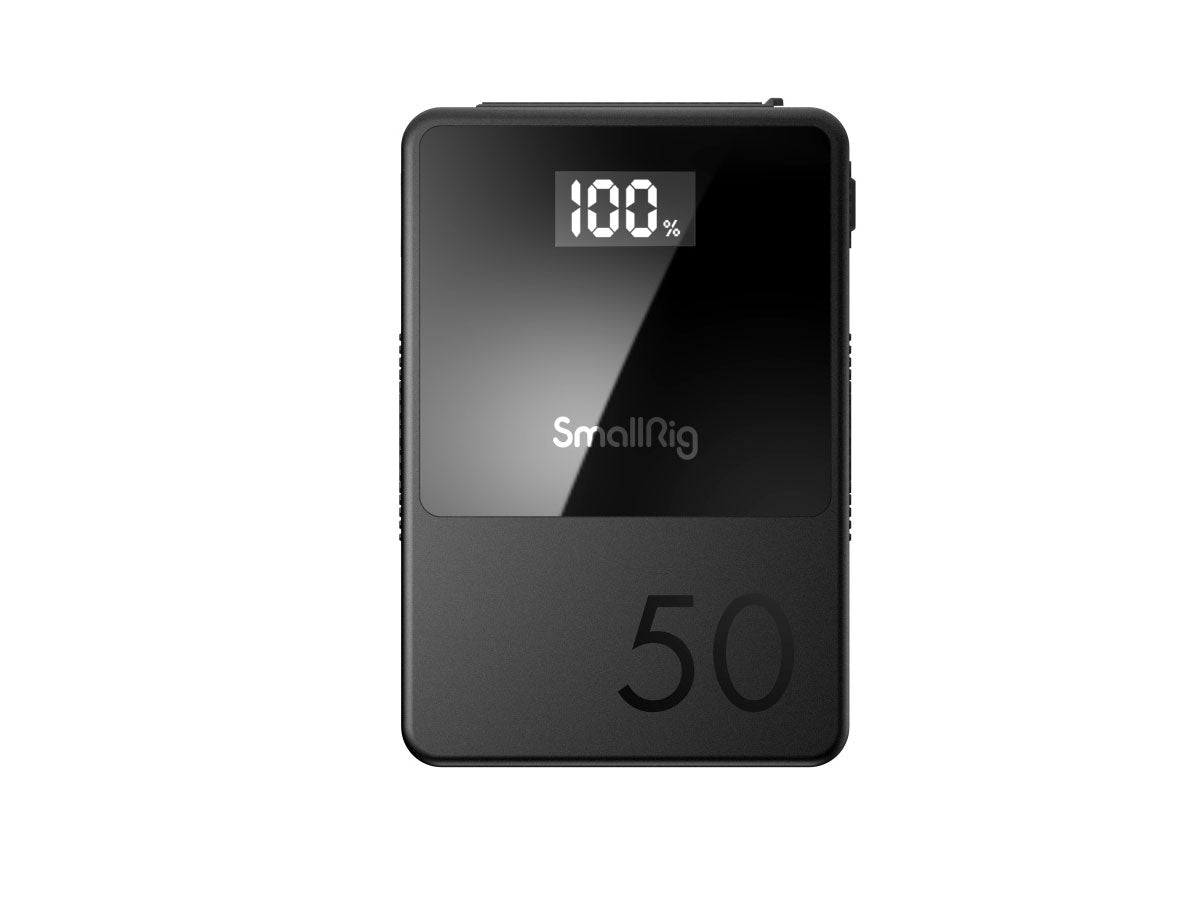

- Practical OLED display for precise control - Keeps track of the battery's working status at all times!
- Premium li-battery with guaranteed quality and safety - Built-in high-capacity premium li-battery, a double guarantee of quality and performance!
| Materials: | Fireproof PC |
| Capacity: | 14.8V 3.4Ah 50Wh |
| Rated Power: | Discharge: 50W Charge: 45W |
| V-Mount / D-Tap Input: | 5A (Max) |
| V-Mount / D-Tap Output: | 14.8V / 12A (Max) |
| USB-A Output: | QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
| USB-C Input / Output: | PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-16V / 3A APPLE-2.4A: 5V / 2.4A |
| DC1 Output: | 8V / Max3A |
| DC2 Output: | 12V / Max3A |
| Cutoff Voltage: | 11V |
| Optional Charging Method: | 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 45W) |
| Dimensions: | 107.0 × 73.0 × 34.0 mm |
| Weight: | 330 g ± 10 g |
- 1x VB50 Mini V-Mount Battery
- 1x User Manual
