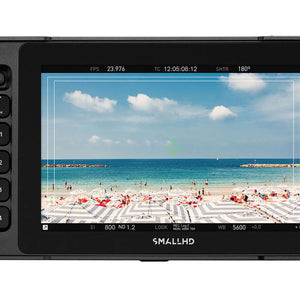

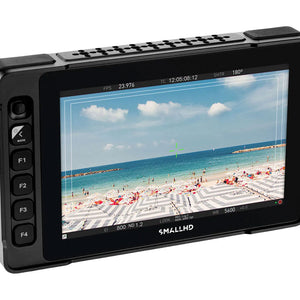

SmallHD Ultra 7
SmallHD Ultra 7
SKU:
SHD-16-0727
Regular price
£2,278.00 GBP ex VAT
£2,733.60 GBP inc VAT
£2,733.60 GBP inc VAT
Regular price
ex VAT
Sale price
£2,278.00 GBP ex VAT
£2,733.60 GBP inc VAT
Unit price
per
£2,733.60 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Coming Soon

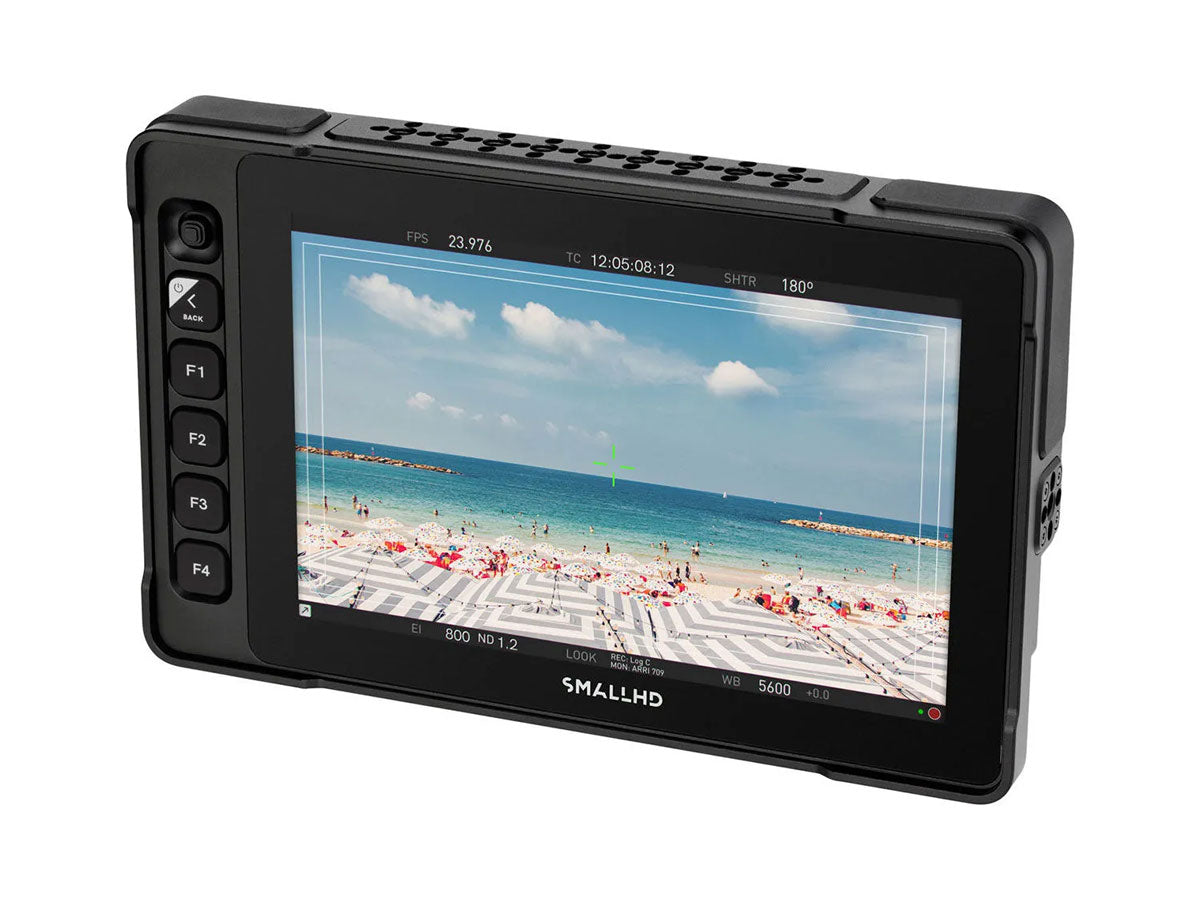

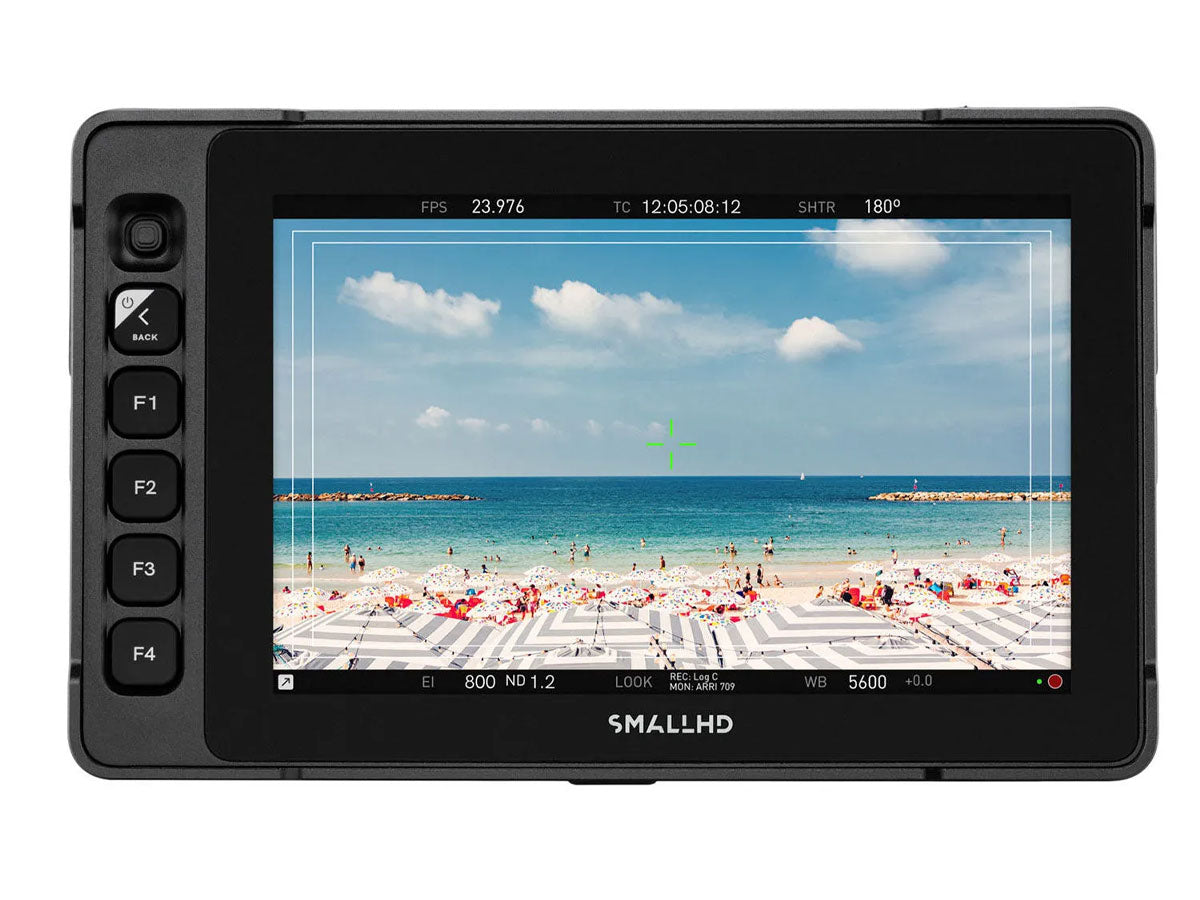

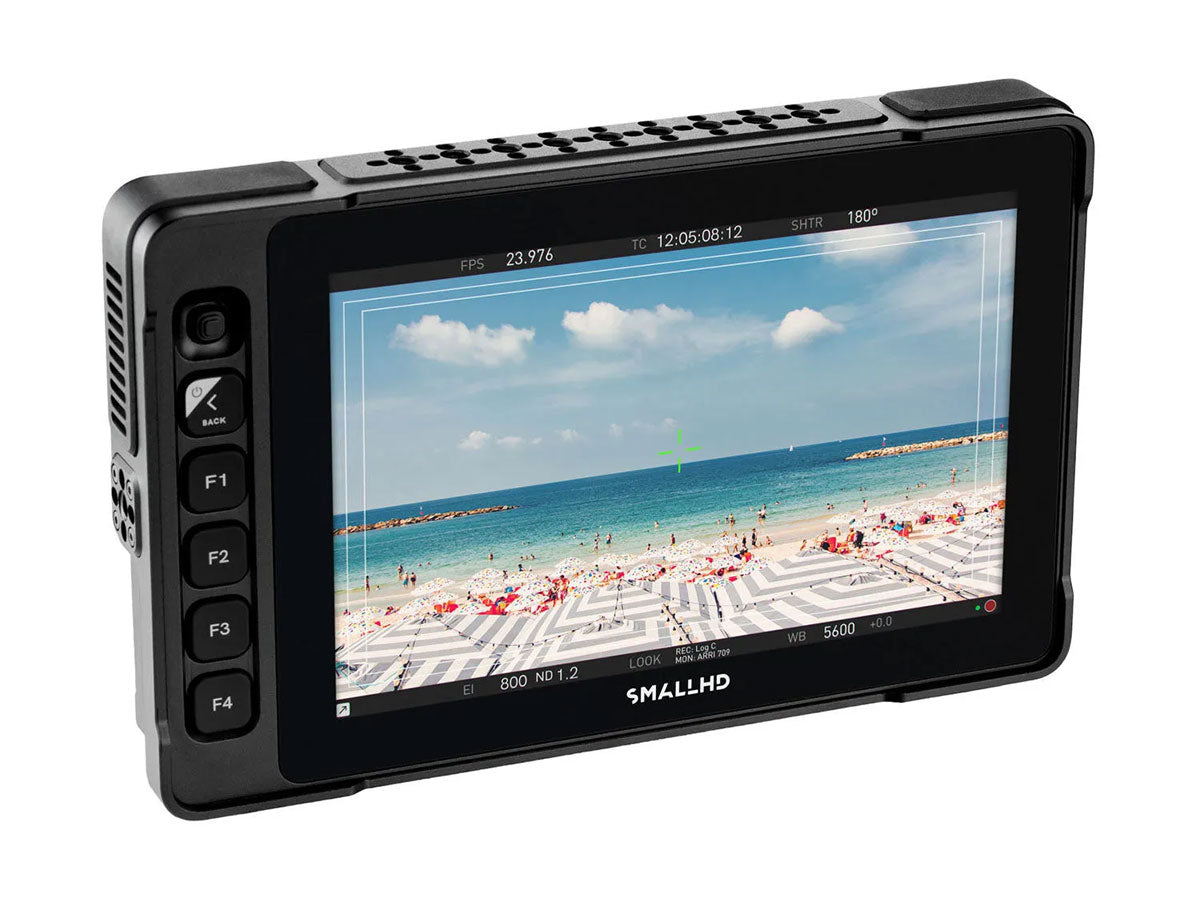

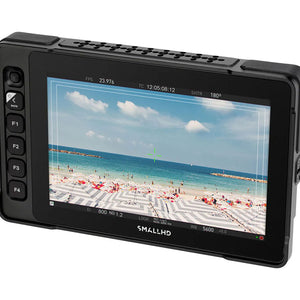

Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite oflarge front-facing custom-function buttons for maximum control in all conditions. Experience all yourfavorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerfulenough to ingest a 4K signal with 6G-SDI.
Ultra 7 is adaptable to all situations and conditions, including optional Gold or V-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE CameraControl, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable soldseparately).
We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology.Ultra 7 Bolt 6 RX integrates a Bolt 6 Receiver directly inside an Ultra 7 monitor, allowing you towirelessly send the image from your camera up with the new internal V-Antenna. The Ultra 7 Bolt 6 RX is available as a Gold Mount or V-Mount option in either the 750 or 1500range.
Designed to withstand the extremes of any production environment, Ultra 7 has the processing power of our 4K Production monitors, customizable function buttons, and shock absorbing bumpers.
Rugged, powerful, and feature-rich, the Ultra 7 offers 2300nits of brightness, 6G-SDI that allow you to ingest4K signal, a 2-Pin power passthrough for cleaner builds, an Ethernet port for camera control, plus ajoystick and tactile physical buttons for control in any conditions. Utilize all your favorite PageOS tools, functions, and settings pages on a fully-loaded 7-inch touchscreen monitor.
QD-LED Edge-Lit LCD Panel Technology
SmallHD LEDs for Ultra 7 panels have the highest tolerance for colour uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film,ensuring the purest colour accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.
Built to Withstand the Harshest Production Environments
With an IP53 rating and ultra-durable water, dirt, heat, cold, and drop- resistant chassis, Ultra 7 was designed to withstand all the rigors and elements that professional filmmakers endure.
- Ultra Bright (2300nits)
- Dust and water resistant with an IP53 rating
- 6G-SDI for modern 4K end-to-end workflows
- Camera Control compatible with all current SmallHD licenses
- Function Buttons for tactile control
| DISPLAY | |
| Panel Type: | IPS LCD |
| Diagonal Size: | 7.02" |
| Max Brightness: | 2300nits |
| Contrast: | 1000:1 |
| Gamut: | 95% DCI-P3 Coverage / 98% REC 709 |
| Colour Depth: | 10-bit Processing (8-bit panel) |
| Backlight Type: | LED Edgelit |
| EVF | |
| Resolution: | 1920x1200 |
| INPUT SIGNAL | |
| 3G-SDI Input Types: | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| 6G-SDI Input Types: | YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| HD-SDI Input Types: | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Input Types: | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Input Types: | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| OUTPUT SIGNAL | |
| 3G-SDI Output Types: | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| HD-SDI Output Types: | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Output Types: | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Output Types: | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Output Types: | HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |

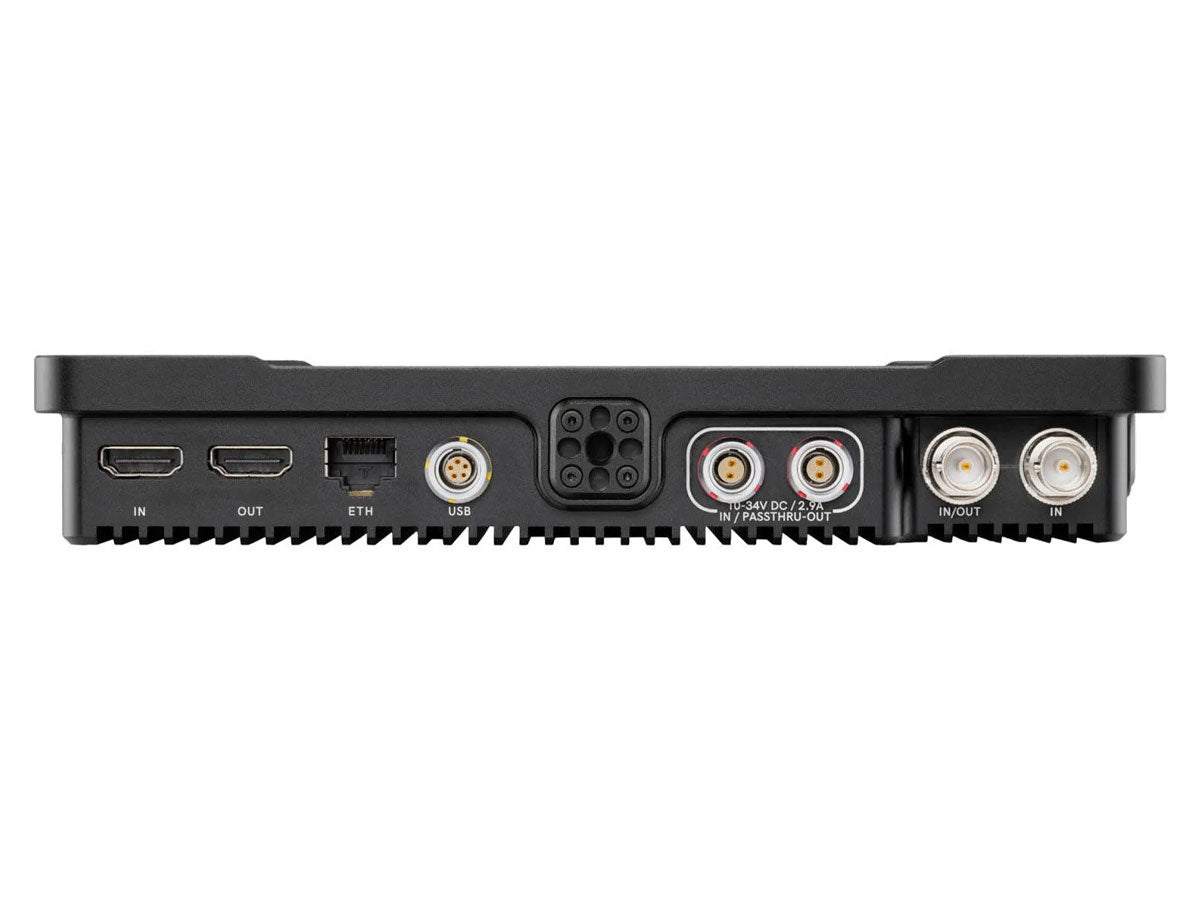

| DATA I/O | |
| SDI: | 1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible) |
| HDMI: | 1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio: | 1x 3.5mm 3-pin Stereo Headphone Jack |
| Ethernet: | RJ45 |
| POWER | |
| Connector: | 2-Pin Locking Connector |
| Voltage: | DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max |
| Power Supply: | Recommend DC 12~15V at ~2.5 amp or greater |
| Battery Types: | V Mount, Gold Mount Micro Battery Plates |
| Overload Protection: | DC input: Reverse polarity |
| SOFTWARE | |
| Pixel Zoom: | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides: | Preset Aspect Ratios & Customizable |
| DSLR Scale: | Canon 5DMkii & Canon 7D |
| Custom Scale: | Yes (Underscan Only) |
| Anamorphic De-Squeeze: | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate: | Automatic or Manual Control |
| Image Flip: | Automatic or Manual Control |
| Cross Conversion: | Yes: HDMI → SDI & SDI → HDMI (Coming Soon) |
| Focus Assist: | User Adjustable Color Style and Intensity |
| Peaking: | User Adjustable Intensity |
| False Colour: | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra: | Dual - User Configurable |
| Waveform: | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope: | Yes |
| RGB Parade: | Fully User Customizable |
| Histogram: | Luma & RGB Style |
| Image Capture: | Yes |
| LUTS: | - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed |
| Custom LUTS: | - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device |
| Colour Pipe: | - Unique Calibrations may be saved to each Color Pipe - Accurate color processing |
| Overlay: | With Opacity Slider and Blink Setting |
| Audio Meters: | HDMI & SDI up to 8 channel |
| Multi-View: | 2 camera feeds simultaneously while filling vertical 9x16 screen with two 16:9 images on its vertical axis (Coming Soon) |
| ENVIRONMENTAL | |
| Dimensions: | 20.9 x 13.0 x 3.45cm / 8.23 x 5.12 x 1.36" |
| Weight: | 907g / 32oz |
- 1x Ultra 7 16-0727
- 1x D-Tap to 2pin Power Cable 36in 17-3000
