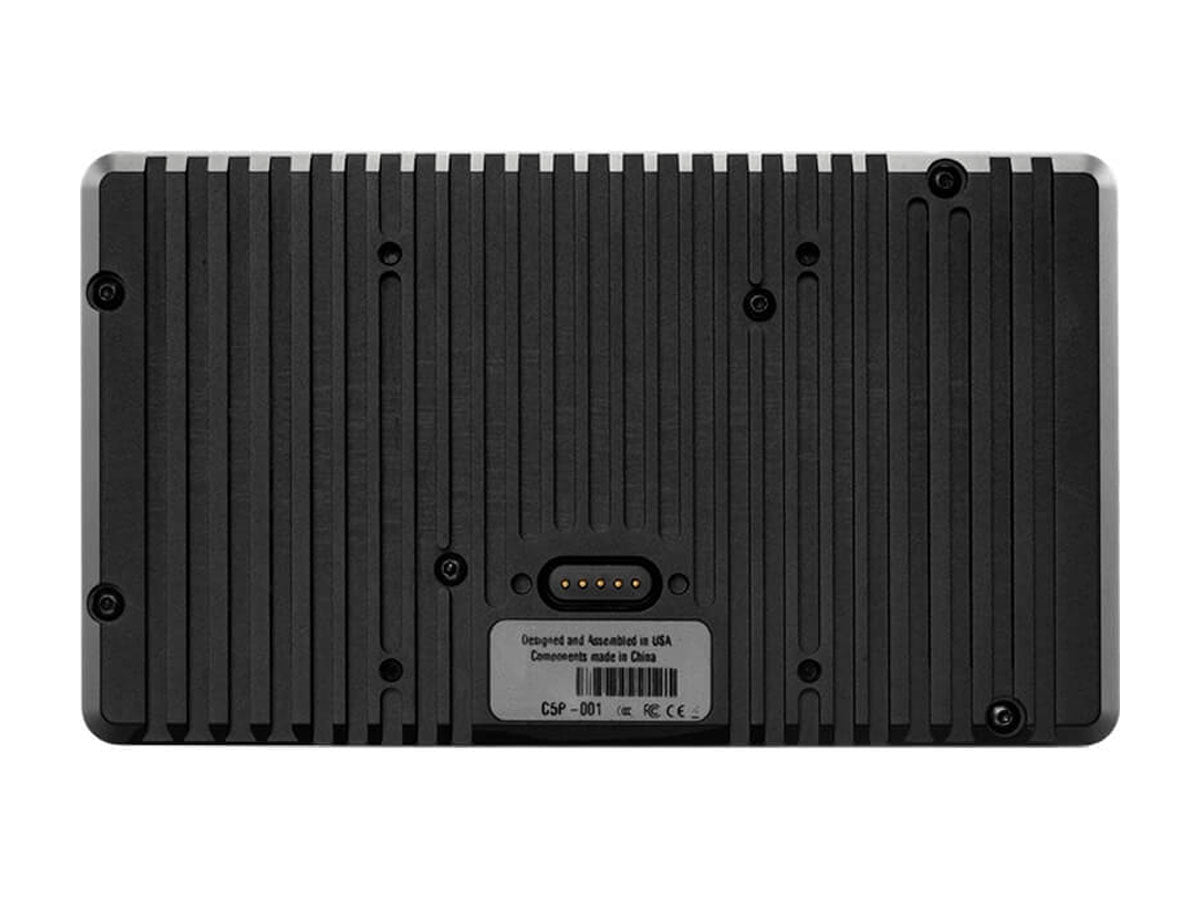

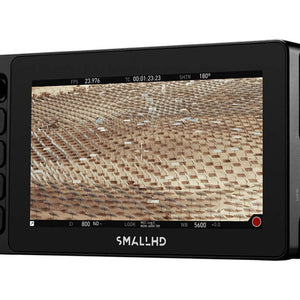

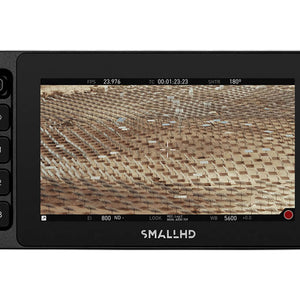

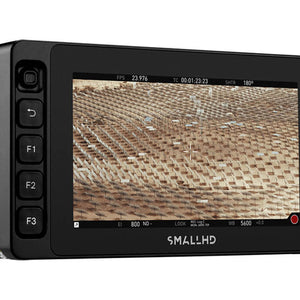

SmallHD Ultra 5 Monitor

SmallHD Ultra 5 Monitor

SKU: SHD-16-0527
£1,653.00 GBP ex VAT
£1,983.60 GBP inc VAT
ex VAT £1,653.00 GBP ex VAT
£1,983.60 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

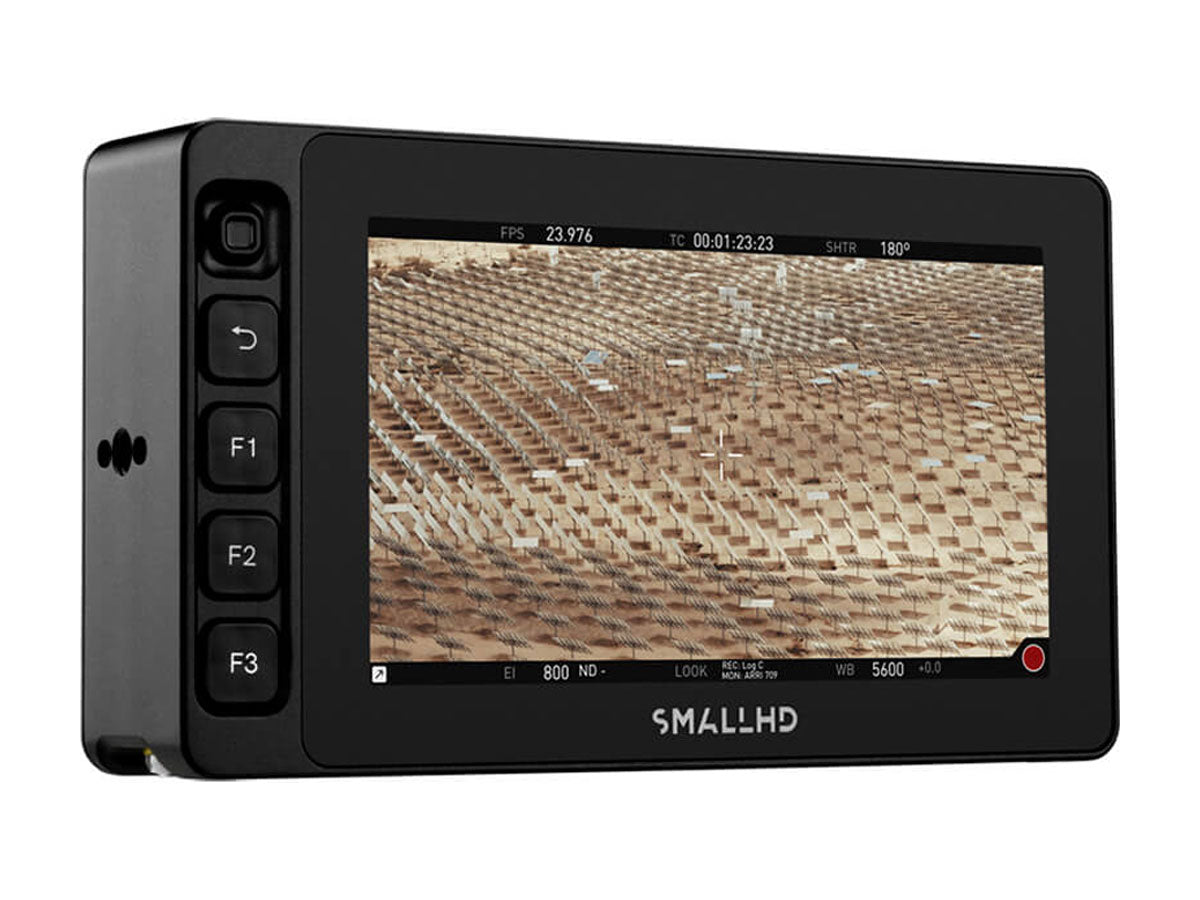

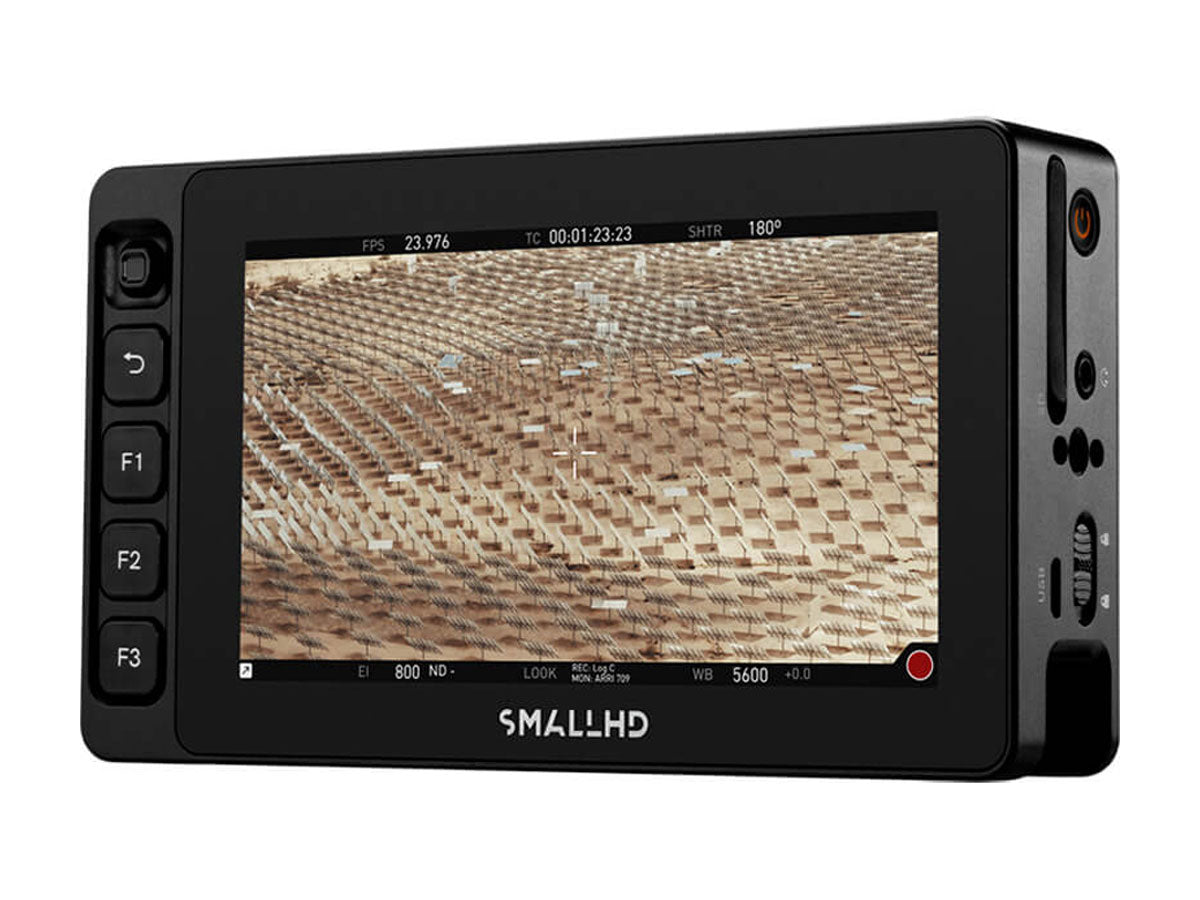

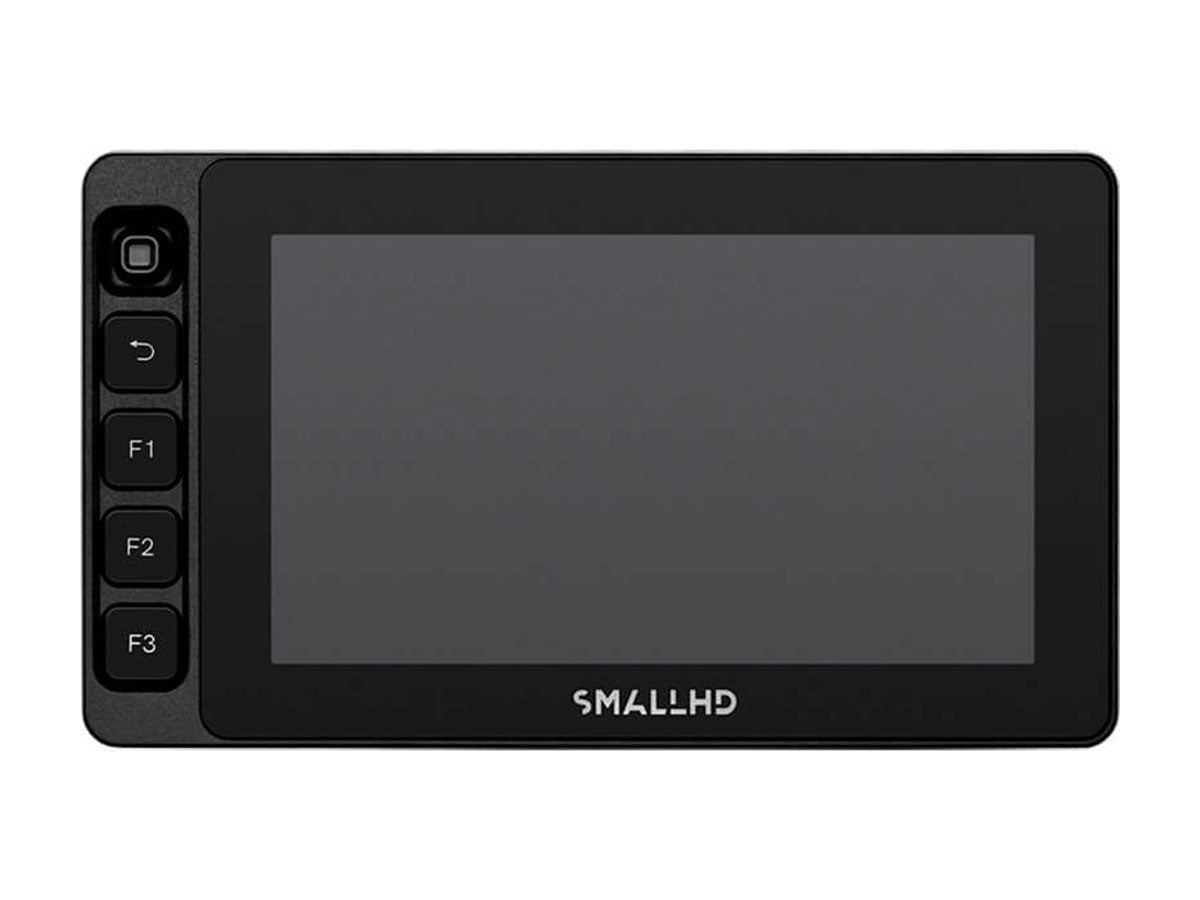

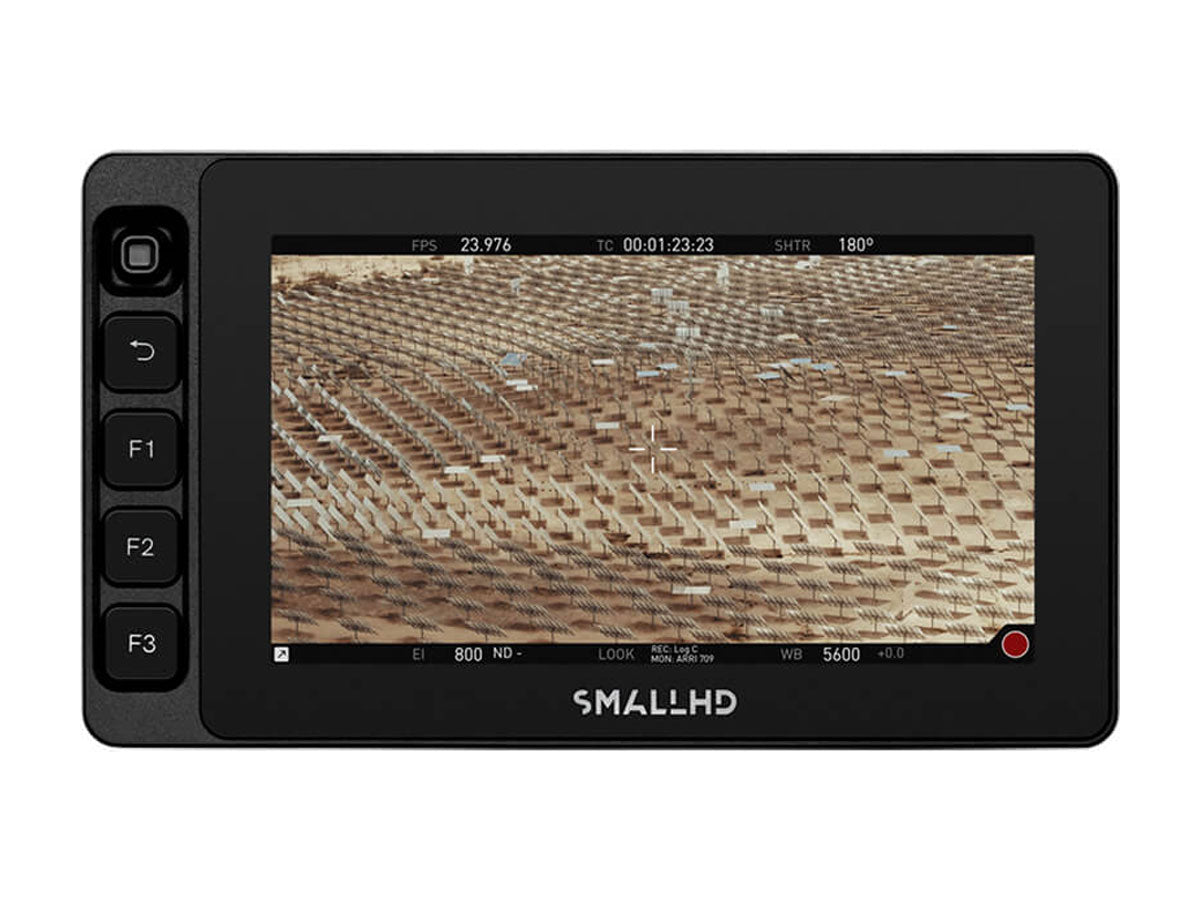

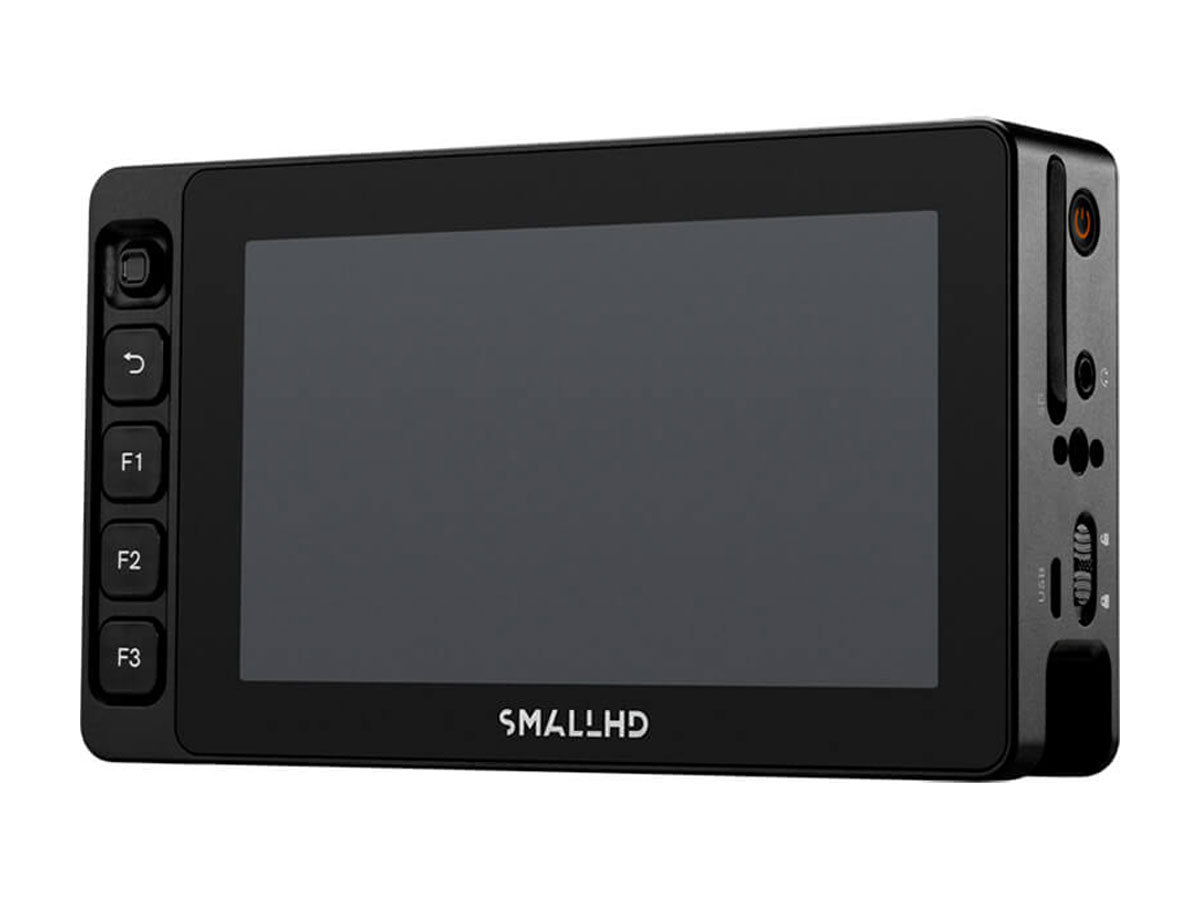

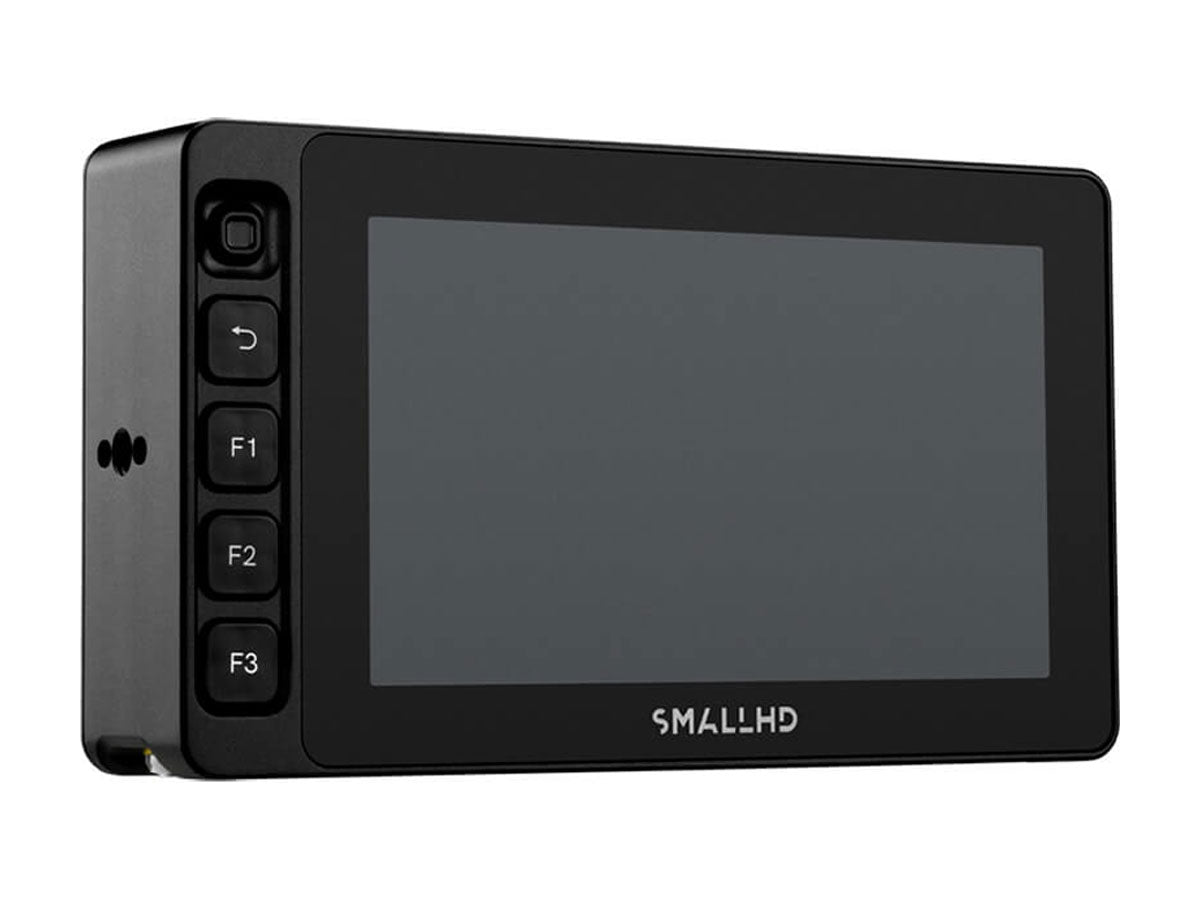

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

  • Daylight-viewable, 5-inch monitor with custom-function buttons designed for high-end production use
  • Model: 16-0527
  • Display: 5-inch Touchscreen, 1920x1080, 440 PPI
  • Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
  • Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
  • Power Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

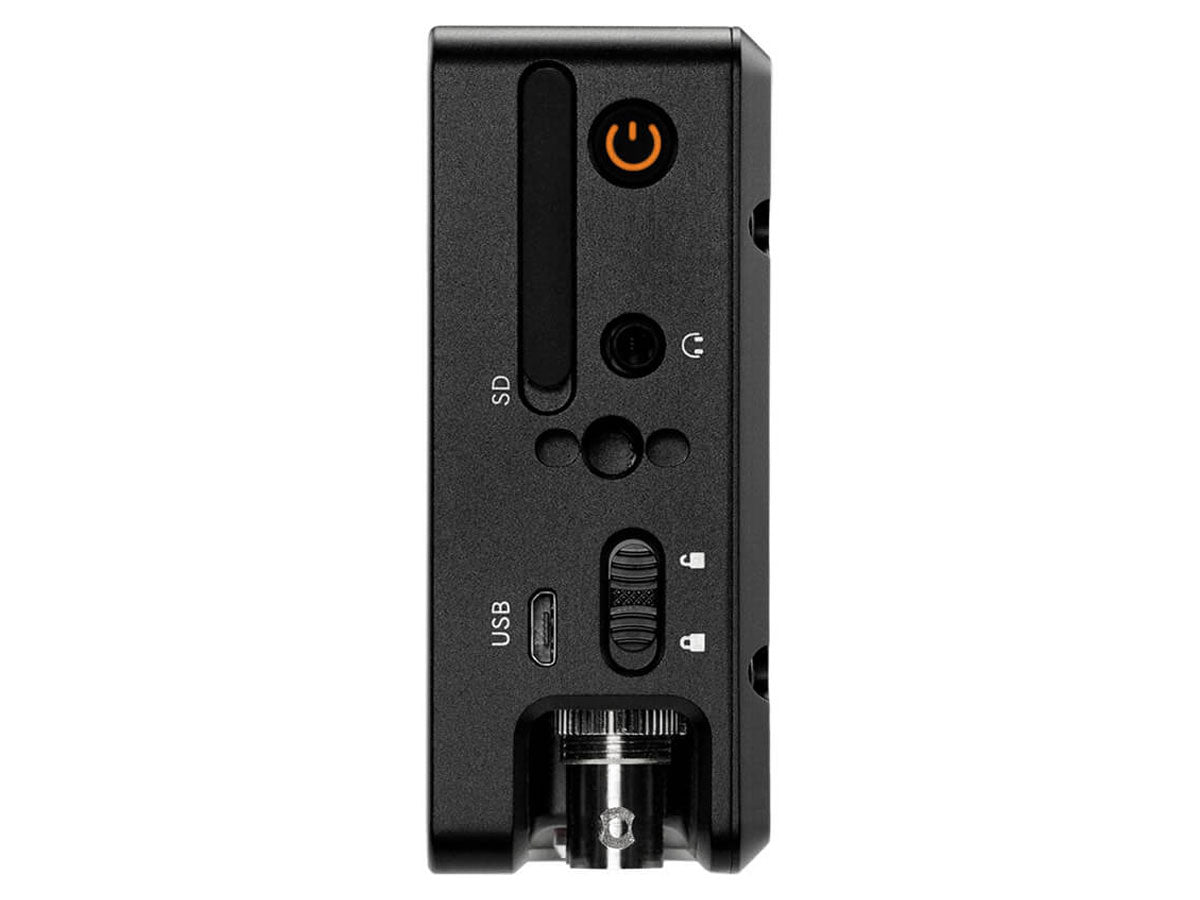

  • Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB
ENVIRONMENTAL
Item Weight: 505g
Height: 8.61cm
Width: 13.41cm
Length/Depth: 3.45cm
Mount Points: 6x 1/4-20 Mounting Points
DISPLAY
Panel Type: Touch-Screen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Max Brightness: 3000nits
Backlight Type: Edgelit
INPUT SIGNAL
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
OUTPUT SIGNAL
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

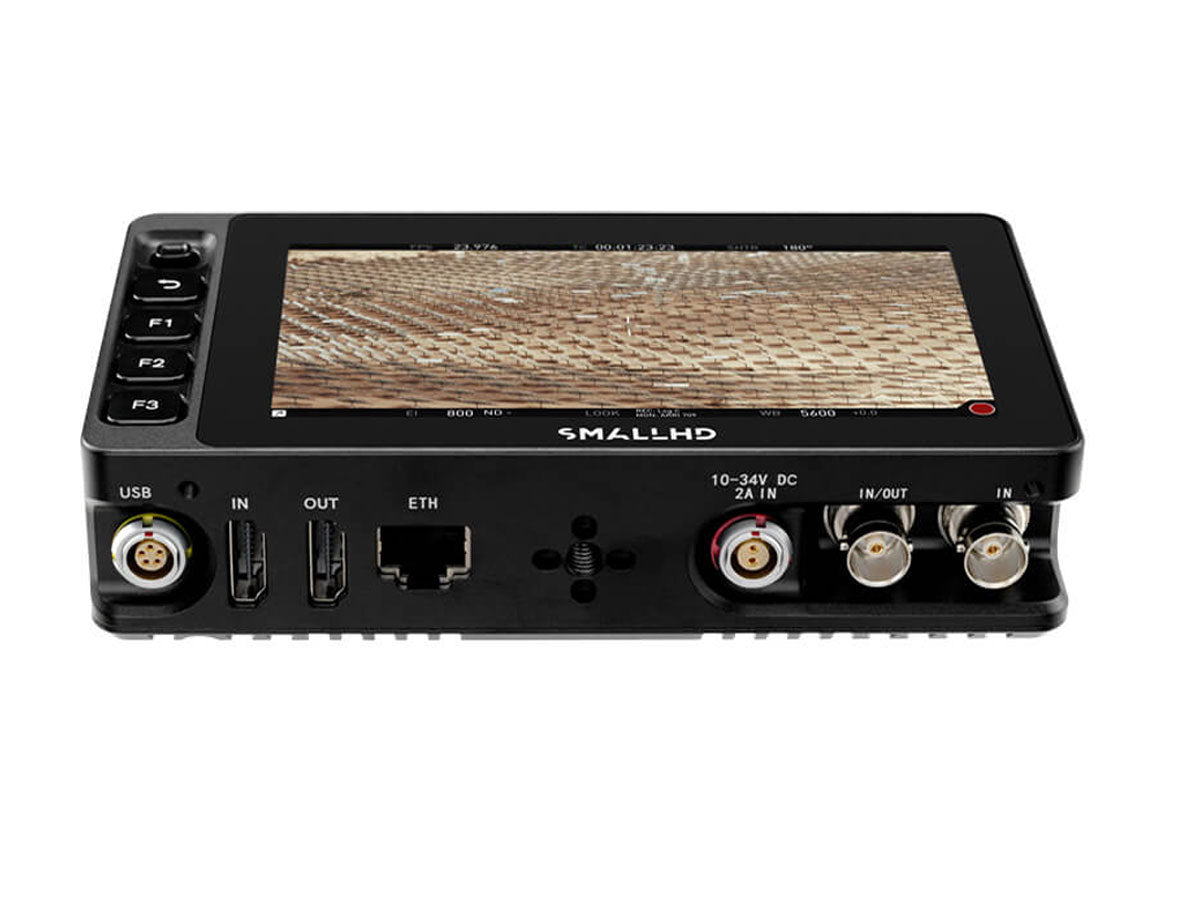

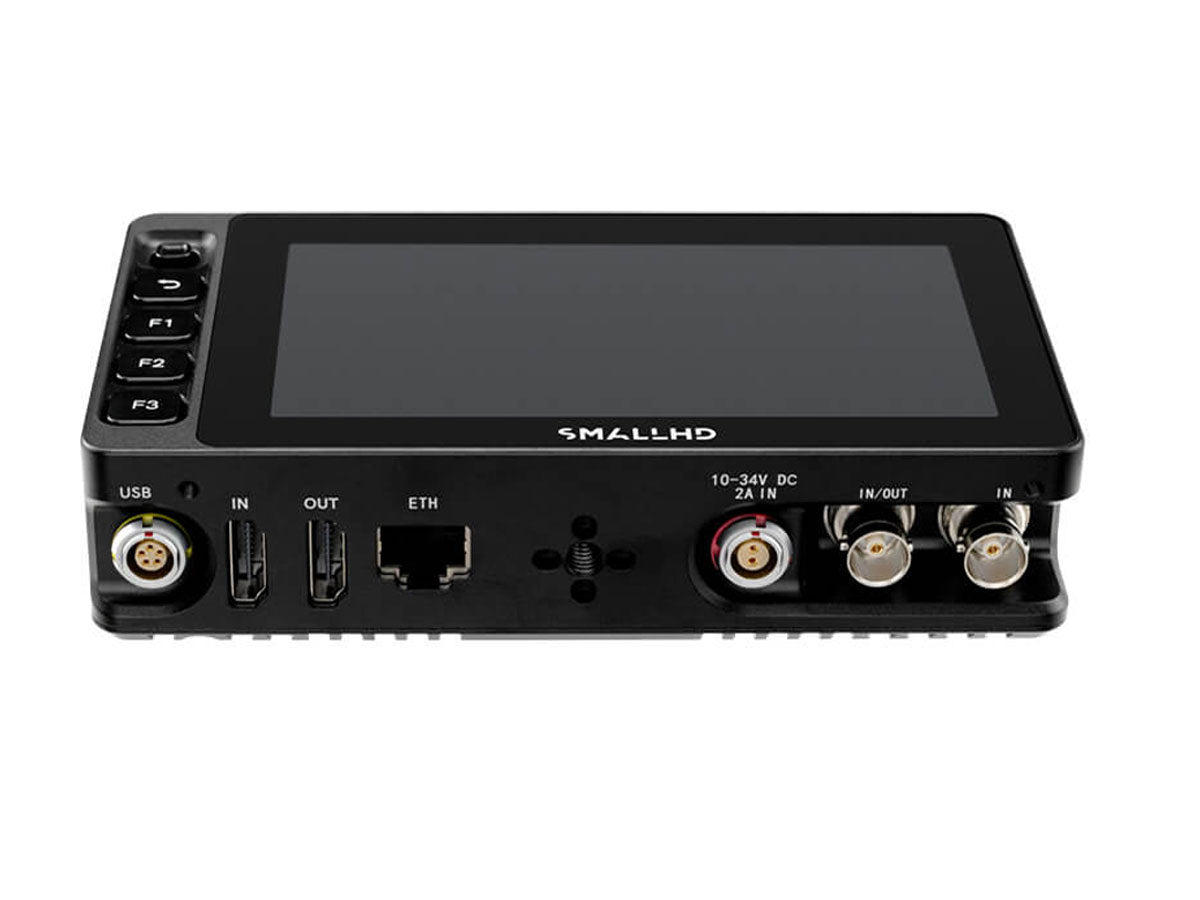

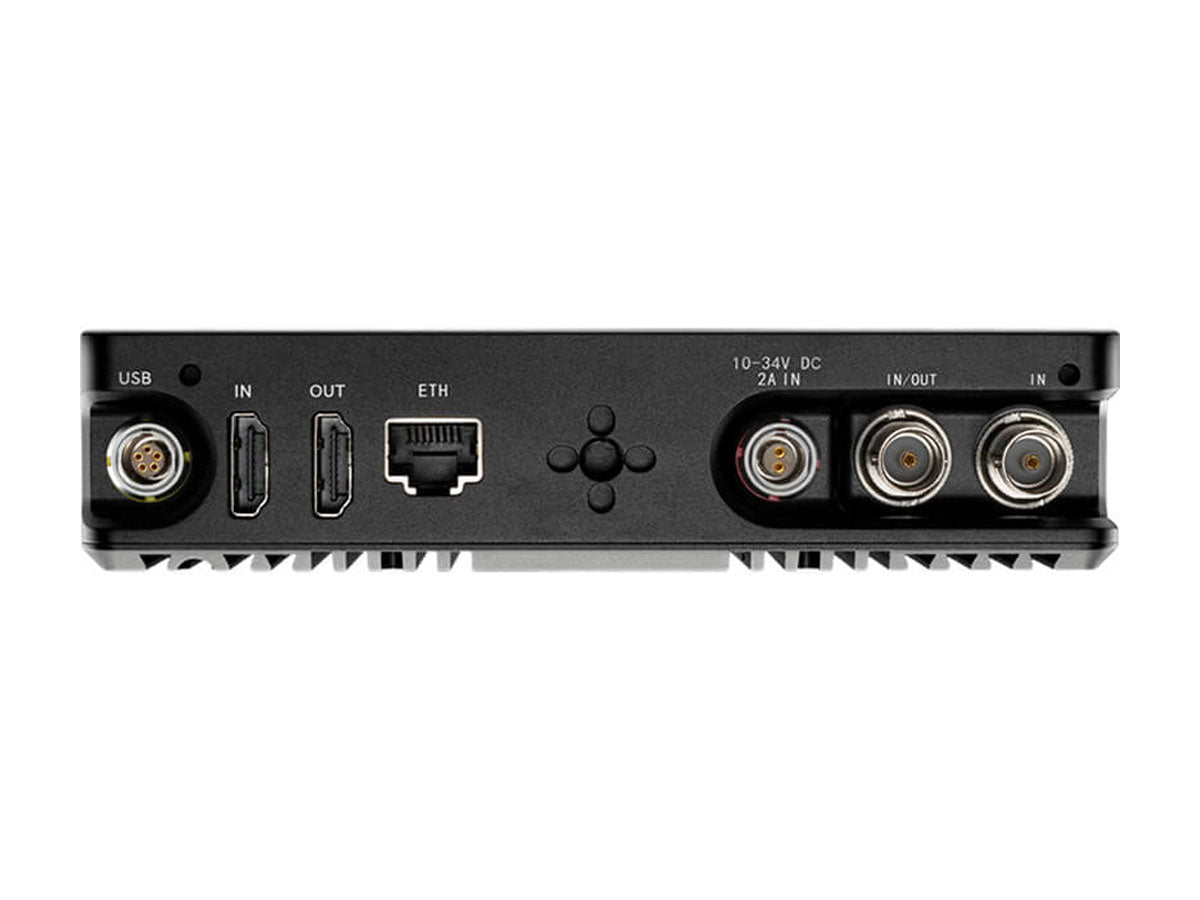

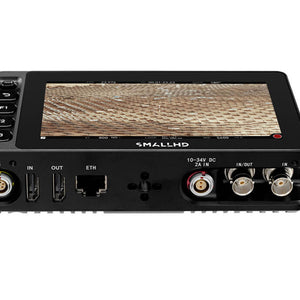

CONNECTOR TYPE
SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio: 1x 3.5mm Stereo Headphone Jack
DATA I/O
Connector Type: 1x RJ45 Ethernet
Storage Media: 1x SD Card Slot
USB: 1x Micro USB 1x Locking USB
POWER
Input: 2-pin Locking Power Input (10-34V DC, 2.1A)
SOFTWARE
Pixel Zoom: Yes
Focus Assist: Yes
Peaking: Yes
False Colour: Customizable False Color Overlays
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
  • 1 x SmallHD Ultra 5 Monitor
