SHAPE Compact REVOLT Shoulder Baseplate
SHAPE Compact REVOLT Shoulder Baseplate
£570.00 GBP inc VAT
£570.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

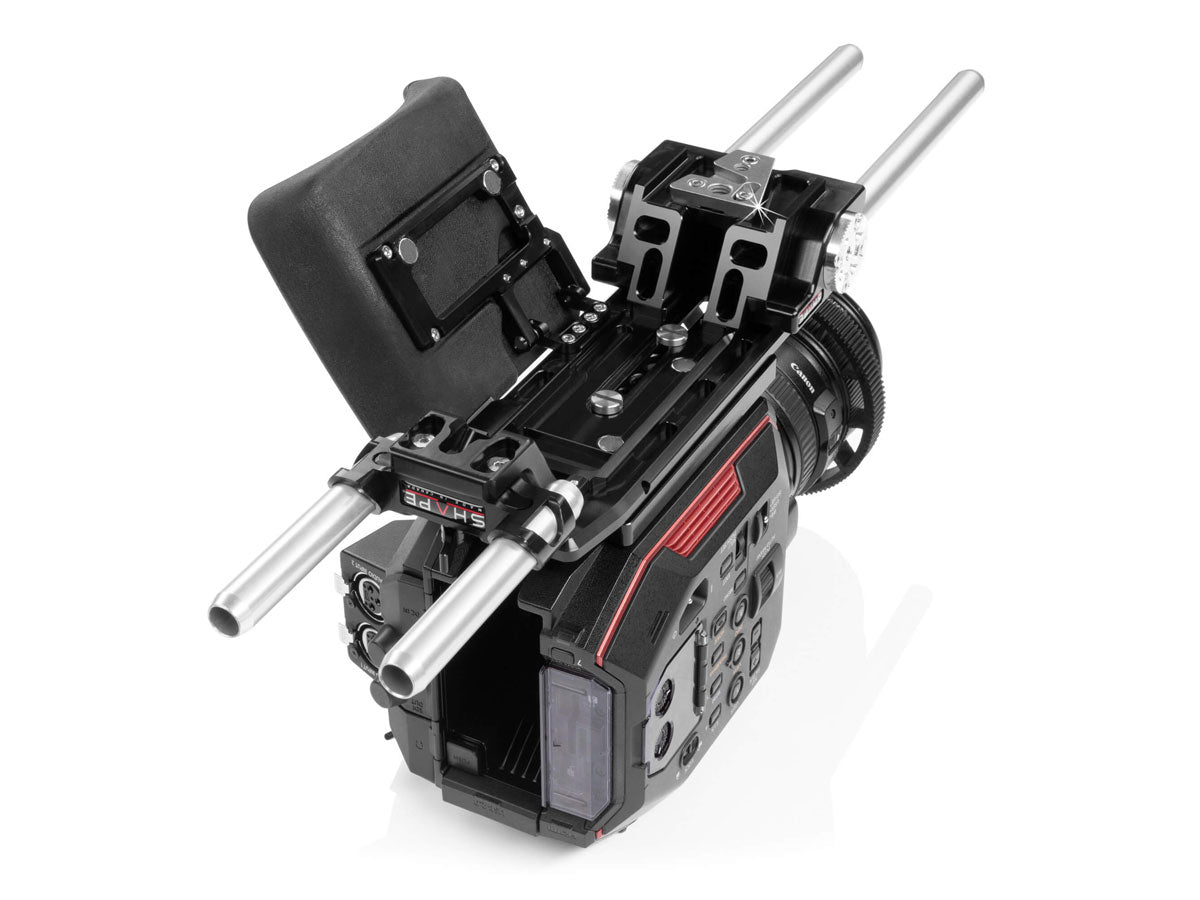

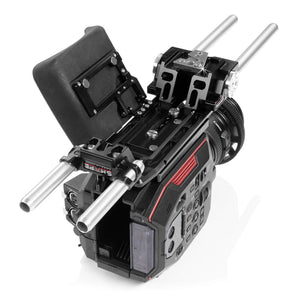

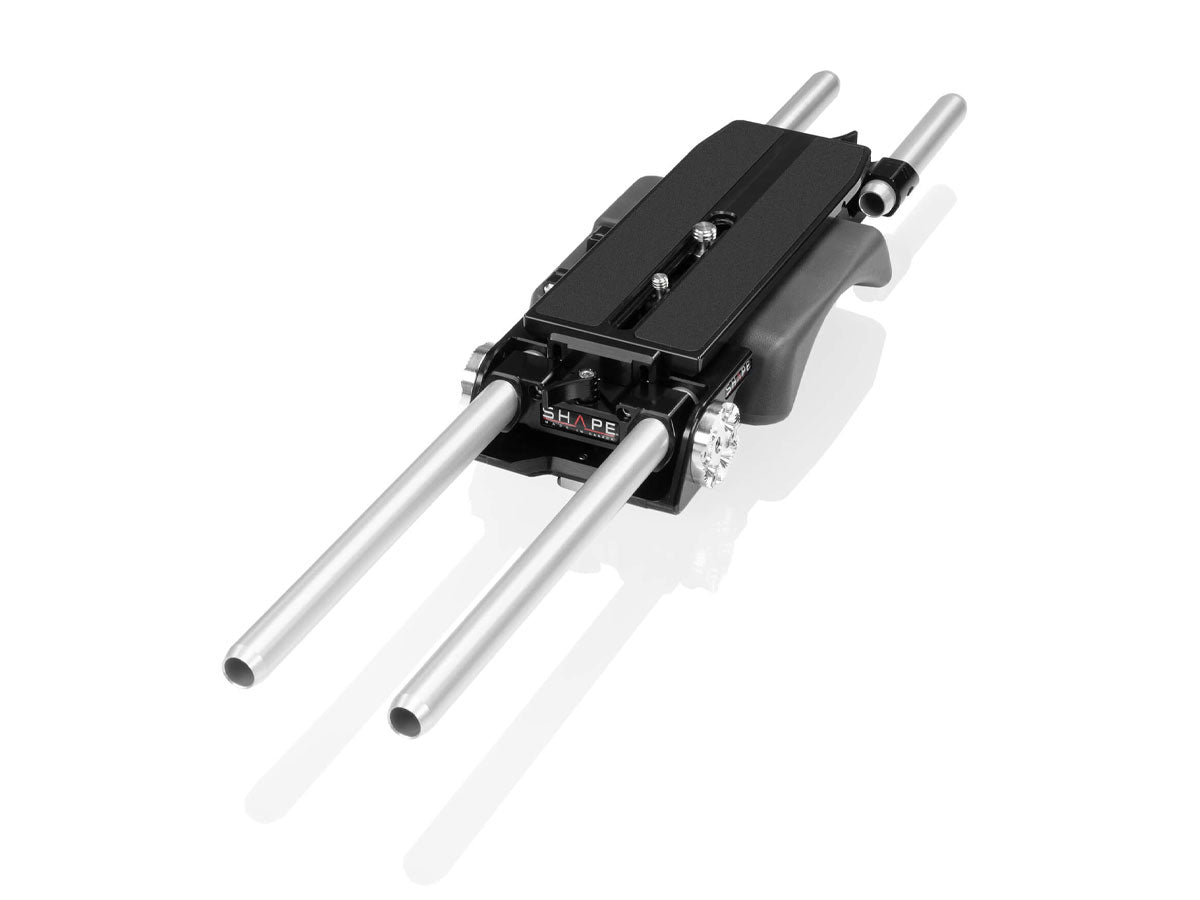

The compact universal shoulder baseplate (BP20) is a lighter, fixed-plate version of the VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.
- Robust baseplate made of CNC Machined Aluminium
- Bracket system with magnet let you swivel the baseplate to the left allowing access to the camera screws
- Protective rubber pads to protect your camera

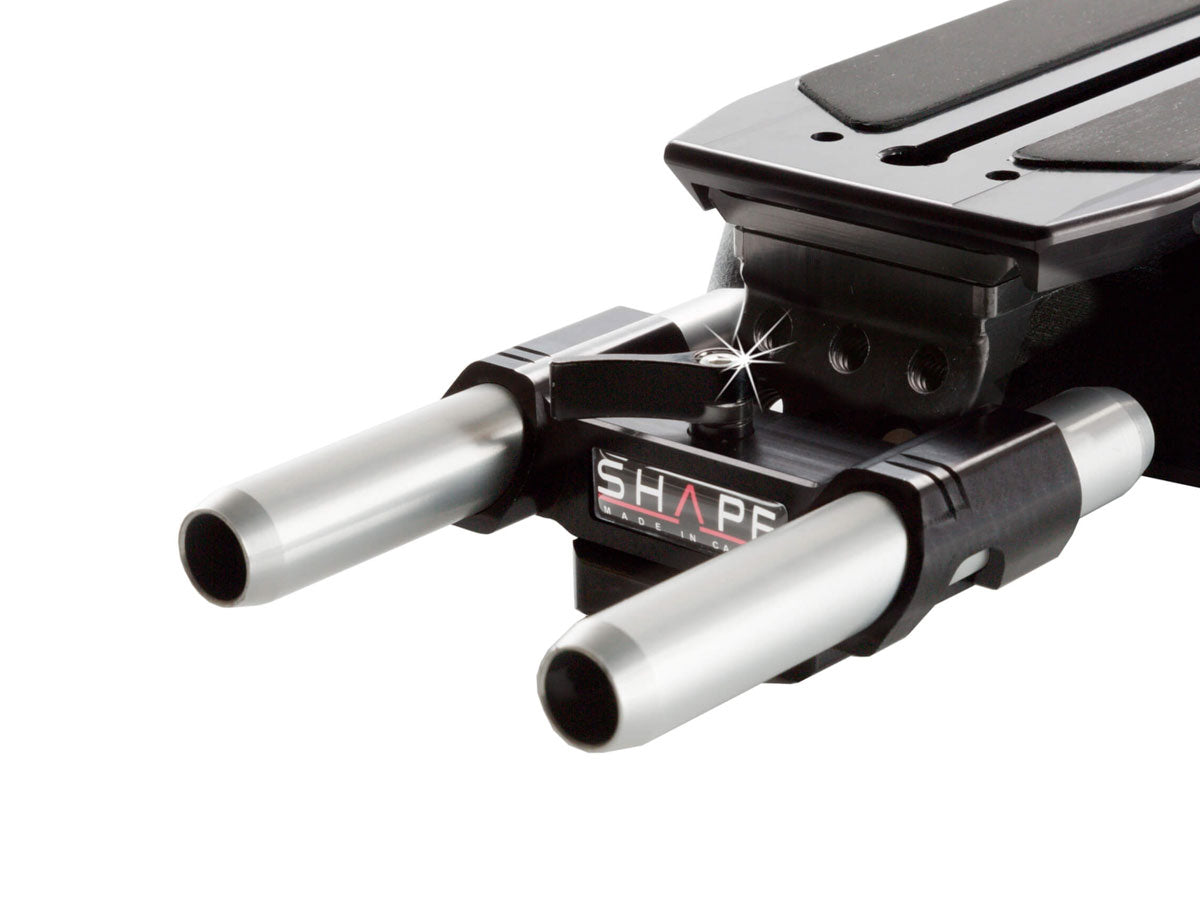

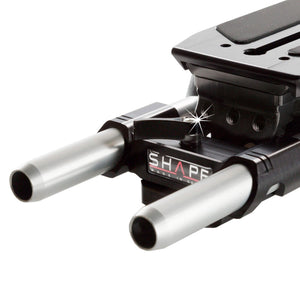

- Front and rear 15 mm rod bloc system with safety ratchet knob to tighten the rods
- Come with a pair of 15 mm rods 8’’ and 15 mm rods 4’’
- Designed with 2 standard Arri rosettes for handles mount

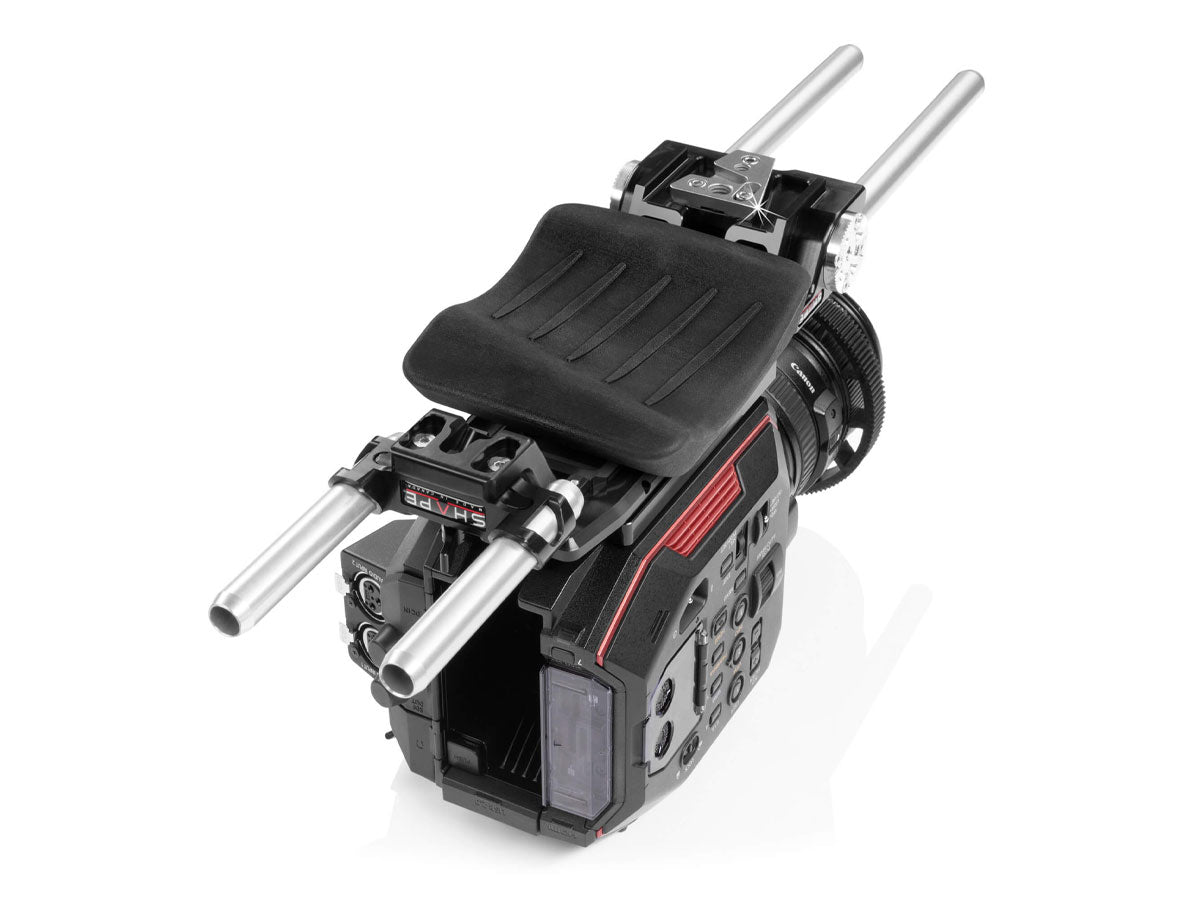

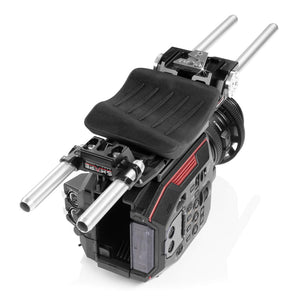

- Soft, ergonomic and thick shoulder pad made of gel padding and slip-free material
- Designed with a sophisticated tool box to store your extra screws and Allen key
- Designed with a standard quick release adapter plate compatible with most VCT tripod plate
- Black Push-button
- Quick release handgrips with multiple points of adjustment
- Compatible with Arri Rosettes
- Patented Push-button technology (Push, adjust, release, and then its lock)
- Ergonomic handles with rubber handgrips for stability and precision
- Stainless steel locking mechanism for durability
- Designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers
- CNC machined parts and hard anodized aluminum for resistance
| Dimensions: | 0.95 kg / 2.09 lbs |
| Weight: | 25.40 x 11.43 x 5.08 cm / 10 x 4.5 x 2 in |
- 1x Compact REVOLT shoulder baseplate (BP20), includes Shoulder pad
- 2x 15 mm rods 8in
- 2x 15 mm rods 4in
- 1x Set of Compact Quick Handle ARRI Rosette - Black
