Sennheiser XSW 1-825 DUAL-GB Set

Sennheiser XSW 1-825 DUAL-GB Set

SKU: SEN-508268
£390.83 GBP ex VAT
£469.00 GBP inc VAT
ex VAT £390.83 GBP ex VAT
£469.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

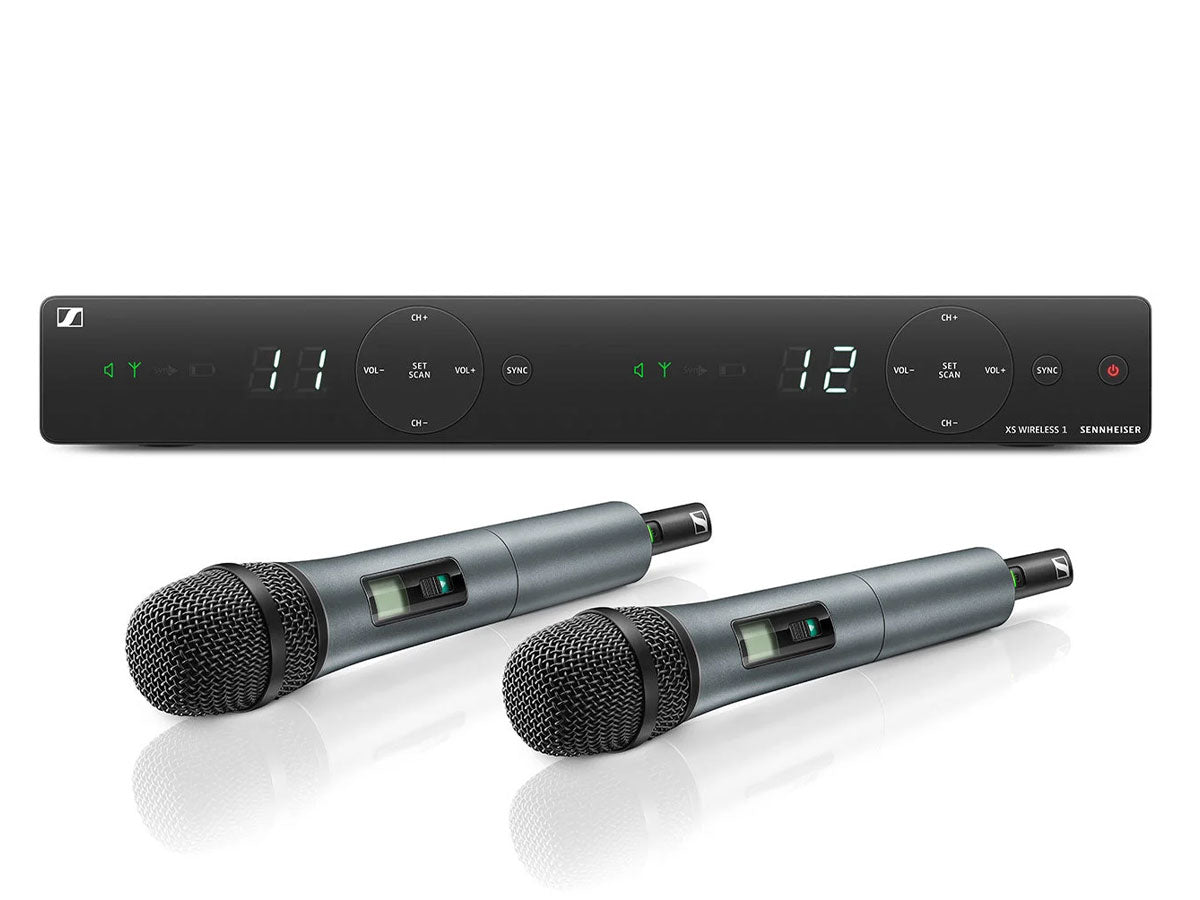

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

  • Antenna-switching 2-channel diversity reception

  • Integrated antennas

  • Automatic frequency management and synchronization via remote channel for easy setup

  • Selectable UHF frequencies within a large bandwidth

  • Up to 10 compatible channels

System
Frequency range 606-630 MHz
Dimensions Ø 48 x L 180 mm
Connector XLR-3
Frequency response 55 - 16,000 Hz
THD, total harmonic distortion ≤ 0.9%
Transducer principle dynamic
Weight 330 g (0.73 lbs)
Pick-up pattern cardioid
Nominal impedance 300 Ω (at 1 kHz)
Min. terminating impedance 1 kΩ
Storage temperature –20°C to +70°C
Operating temperature 0°C to +40°C
Signal-to-noise ratio ≥ 103 dBA
Switching bandwidth Up to 24 MHz
Modulation Wideband FM
Frequency 80 factory presets (8 banks of 10 channels each)
Sensitivity 1.8 mV/Pa (free field, no load at 1 kHz)
Synchronization Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
Temperature Range 0 °C ... +40 °C (+32 °F ... +104 °F)

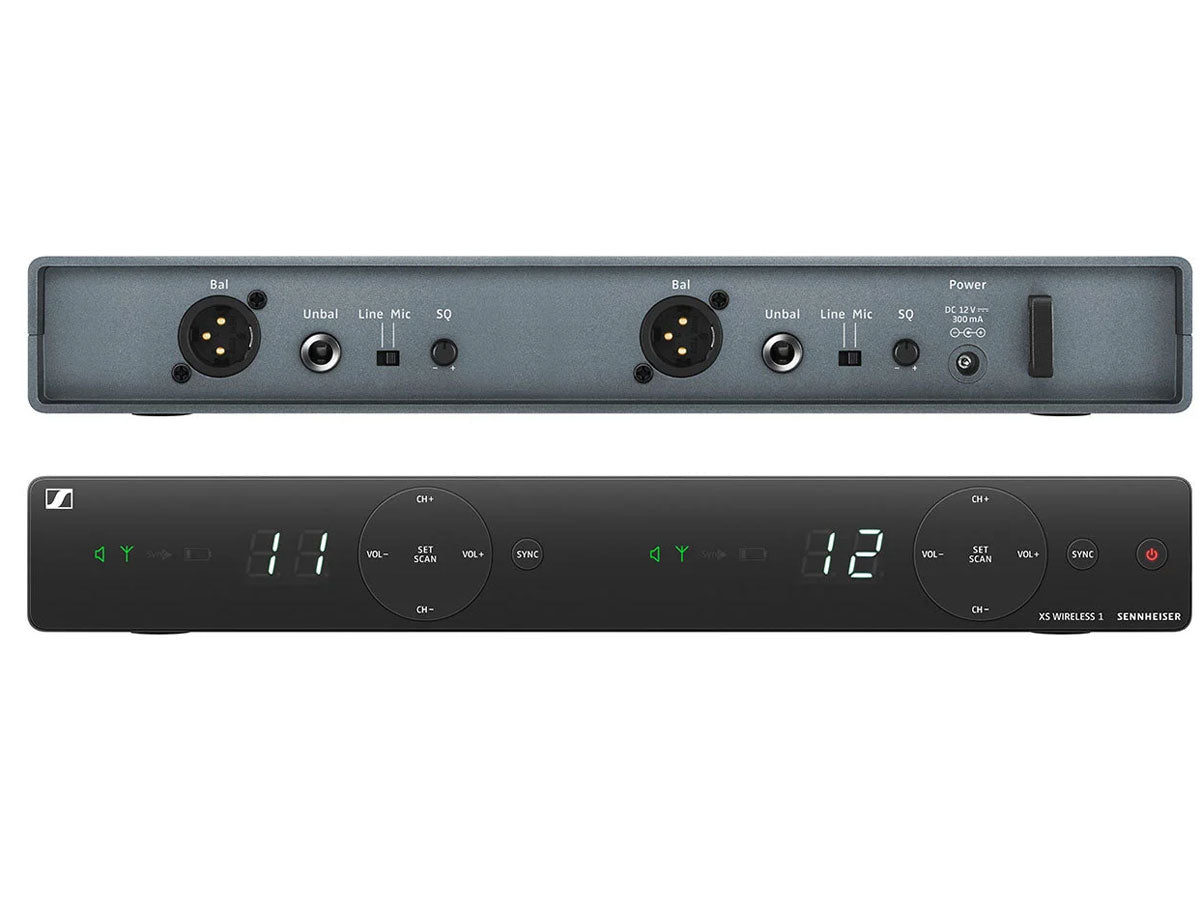

EM-XSW 1 DUAL
Dimensions approx. 320 x 126.5 x 42 mm
Weight approx. 620 g
Power supply 12 V DC nom. / 300 mA
Output voltage (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
Housing Rugged ABS housing
Sensitivity < 3 μV at 52 dB(A) rms S/N (at peak deviation)
Squelch Adjustable from 3 dBμV to 28 dBμV
AF frequency response 50 to 16,000 Hz (–3 dB)
Audio adjustment range 45 dB, adjustable in 5 dB steps
Line / Mic level 20 dB, switchable
Receiver Principle Double superheterodyne
Diversity principle Antenna switching diversity via internal antennas

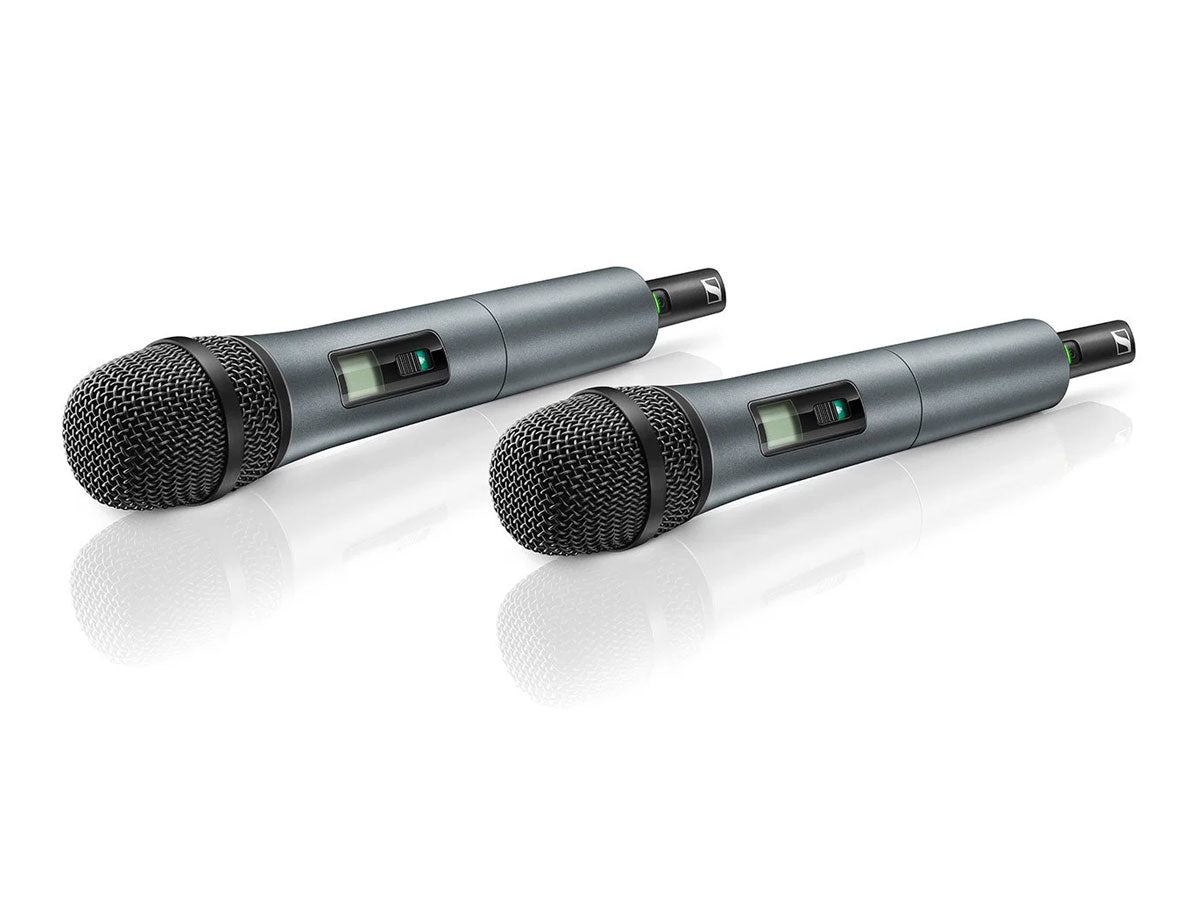

SKM 825-XSW / SKM 835-XSW
Dimensions Approx. 260 x 50 mm
Microphone Dynamic
Weight Approx. 245 g
Pick-up pattern Cardioid
RF output power 10 mW
Operating time Approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
Housing Rugged ABS housing
Sensitivity 0 to -30 dB, adjustable in 10 dB steps
Input sensitivity 1.5 mV / Pa
AF frequency response 80-16,000 Hz
  • 2 x SKM 825-XSW transmitters w/ mute switch & e825 capsules
  • 1 x EM-XSW 1 DUAL stationary receiver
  • 2 x MZQ 1 mic clips,
  • 1 x NT 12-5 CW power supply
  • 2 x Pairs AA batteries
