Sennheiser Wireless G4 Combo Base Set
Sennheiser Wireless G4 Combo Base Set
£959.00 GBP inc VAT
£959.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
PLEASE NOTE: Microphone head not included. For display purposes only.
The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.

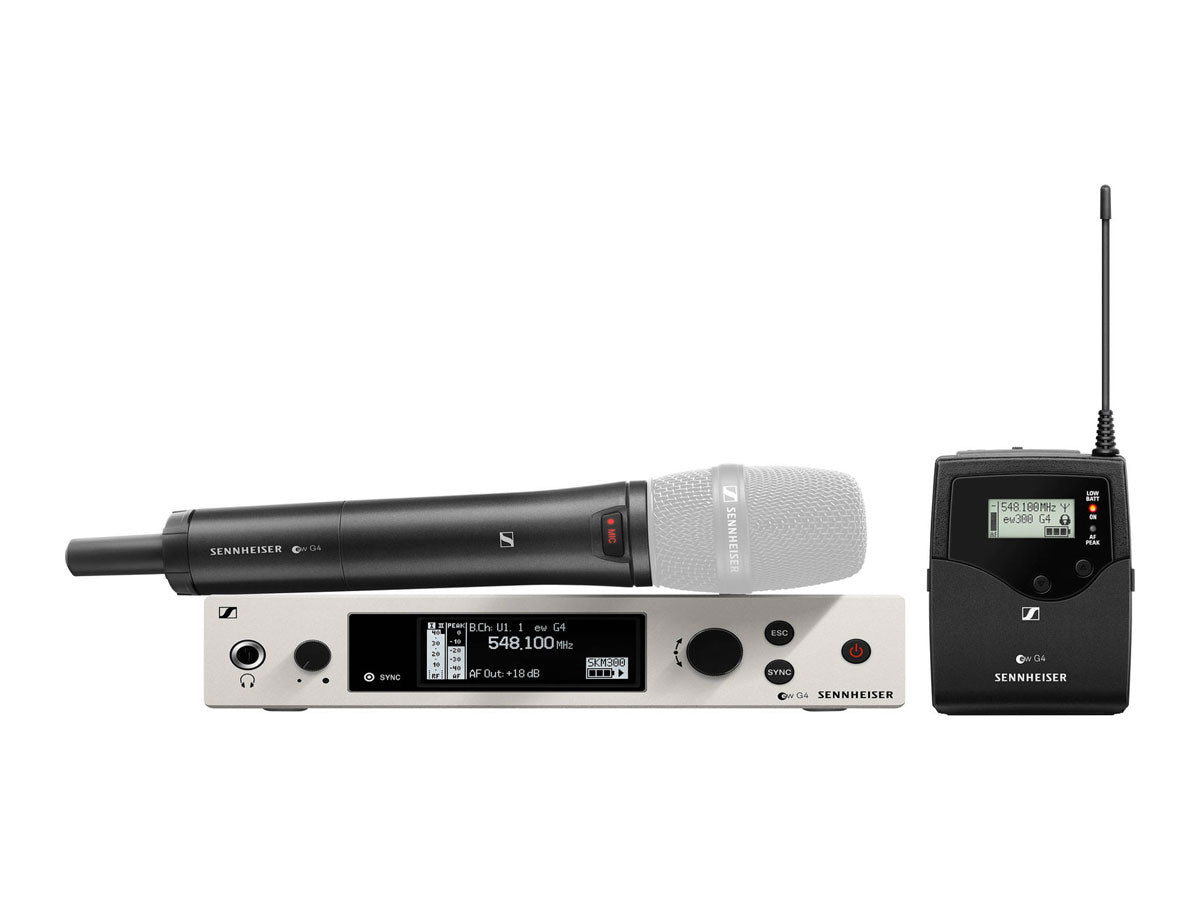

The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.
The G4 300 series has an integrated network port allowing control, monitoring and setup via Sennheiser Control Cockpit and WSM Software, with a broad range of products and exisitng accessories (such as microphones), the series allows usage in any environment. Some extra features include up to 88 MHz bandwidth, up to 32 channels, increased RF output power, transmission range of up to 100 metres, and complete compatibility with the LSP 500 PRO wireless speaker system.
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
| EM 300 G4 | |
| Frequency | 606-678MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD (Total Harmonic Distortion) | ≤ 0.9 % |
| Weight | Approx. 980 g |
| Audio Output | 6.3 mm jack socket (unbalanced): +12 dBu |
| XLR socket (balanced): +18 dBu | |
| Signal-to-noise Ratio | ≥ 115 dBA |
| Switching Bandwidth | up to 88 MHz |
| Peak Deviation | ±48 kHz |
| Nominal Deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power Supply | 12 V DC |
| Antenna Connector | 2 BNC sockets |
| Current Consumption | 350 mA |
| Adjacent Channel Rejection | Typically ≥ 75 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Receiving Frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, |
| each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels | |
| RF Sensitivity | < 2.5 μV for 52 dBA eff S/N |
| Squelch | 5 to 25 dBμV in steps of 2 dB |
| Equaliser | Preset 1: Flat |
| Preset 2: Low Cut (-3 dB at 180 Hz) | |
| Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) | |
| Preset 4: High Boost (+6 dB at 10 kHz) | |
| Temperature Range | -10 °C to +55 °C |
| Receiver Principle | True diversity |
| Blocking | ≥ 75 dB |
| SKM 300 G4 | |
| Dimensions | Approx. Ø 50 x 265 mm |
| Compander | Sennheiser HDX |
| THD (Total Harmonic Distortion) | ≤ 0.9 % |
| Weight | (incl. batteries) approx. 450 g |
| Signal-to-noise Ratio | ≥ 115 dBA |
| RF Output Power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching Bandwidth | up to 88 MHz |
| Peak Deviation | ±48 kHz |
| Nominal Deviation | ±24 kHz |
| Operating Time | Typically 8 h |
| Modulation | Wideband FM |
| Power Supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current Consumption | at nominal voltage: typ. 180 mA |
| with transmitter switched off: ≤ 25 µA | |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission Frequency | Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, |
| no intermodulation, 6 frequency banks with up to 32 programmable channels | |
| AF Frequency Response | 80 – 18,000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency Stability | ≤ ±15 ppm |

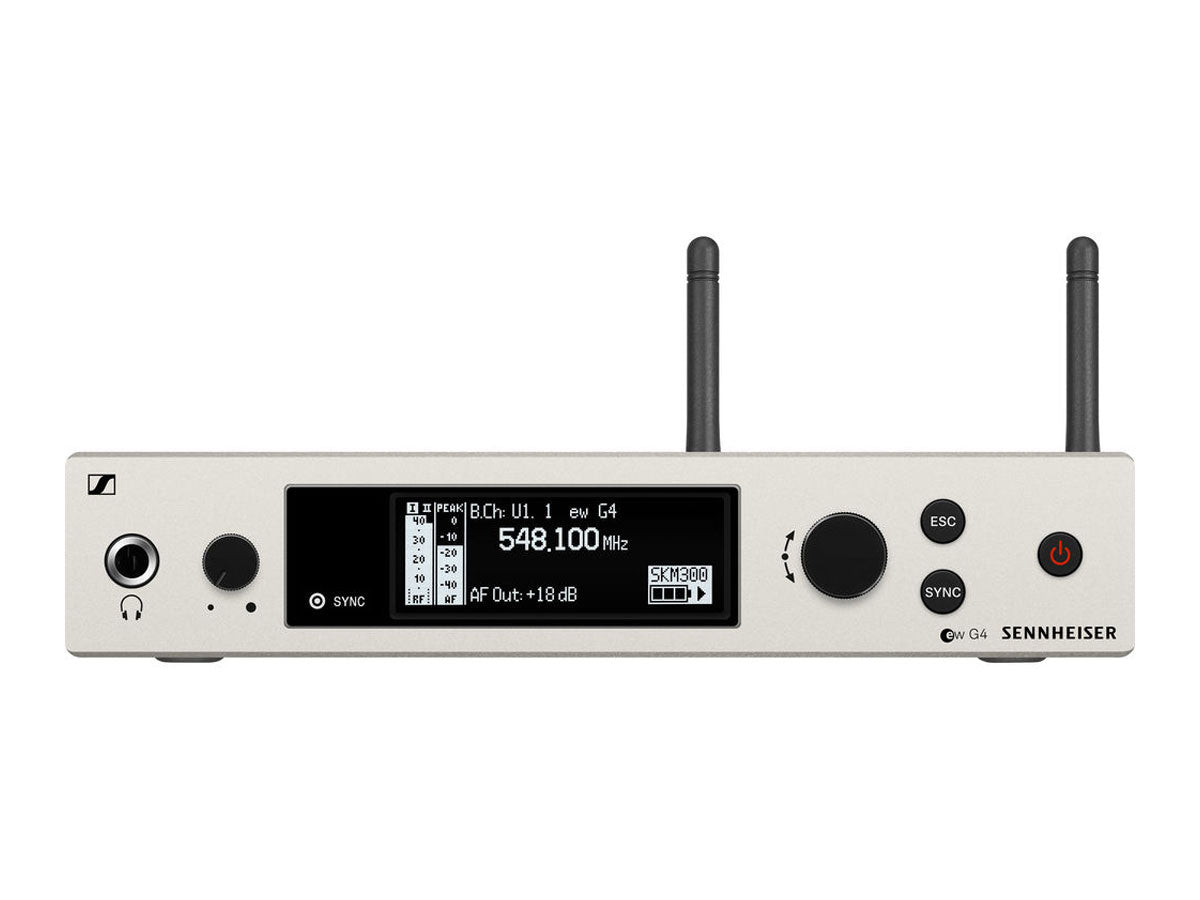

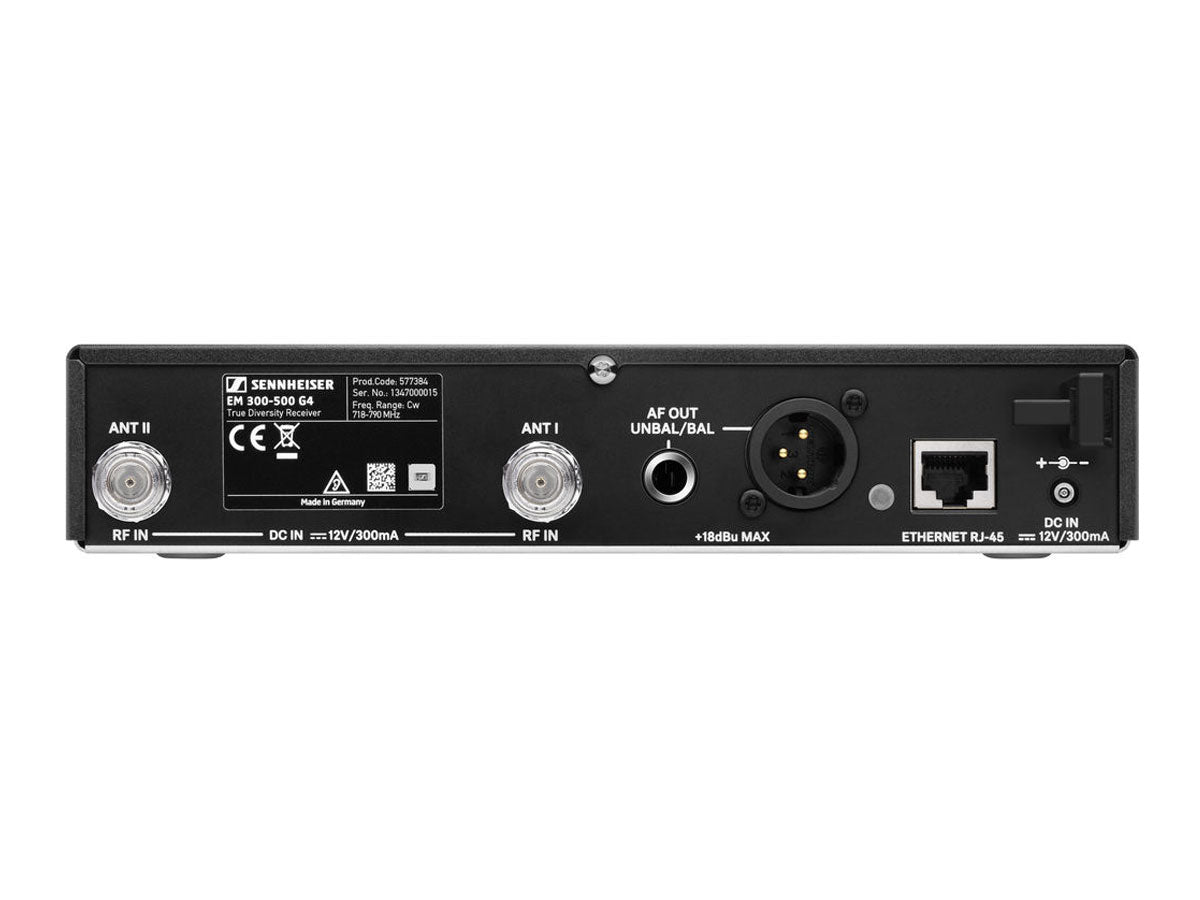

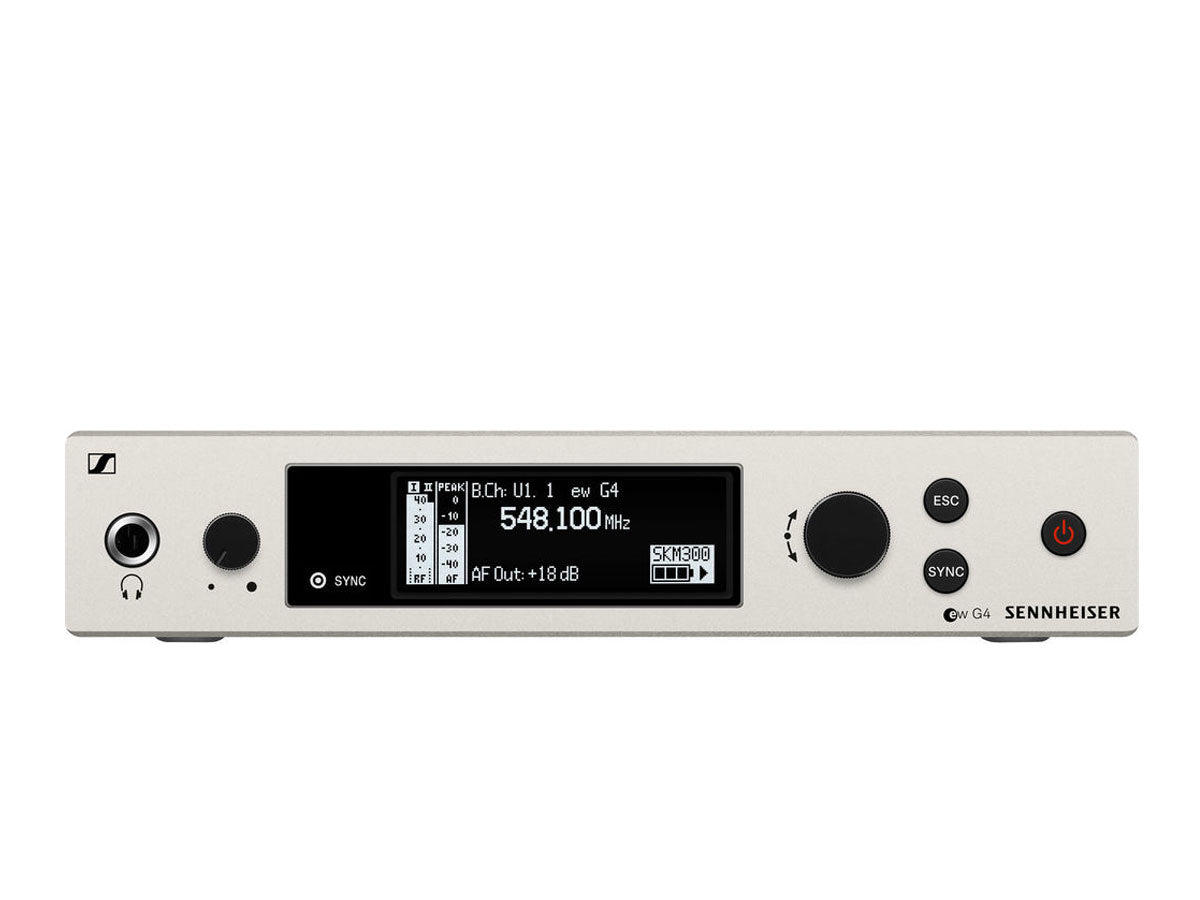

- 1 x EM 300-500 G4 true diversity receiver

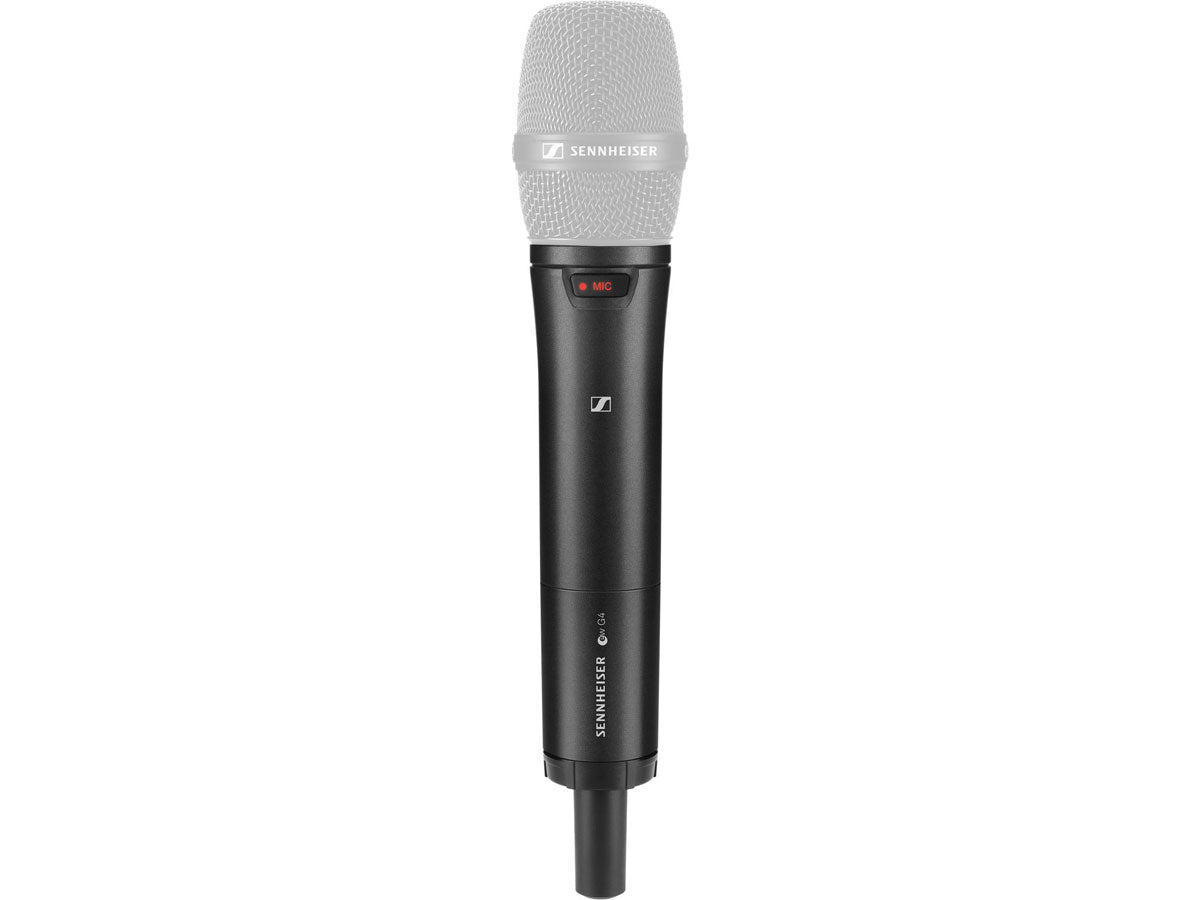

- 1 x SKM 300 G4-S handheld transmitter

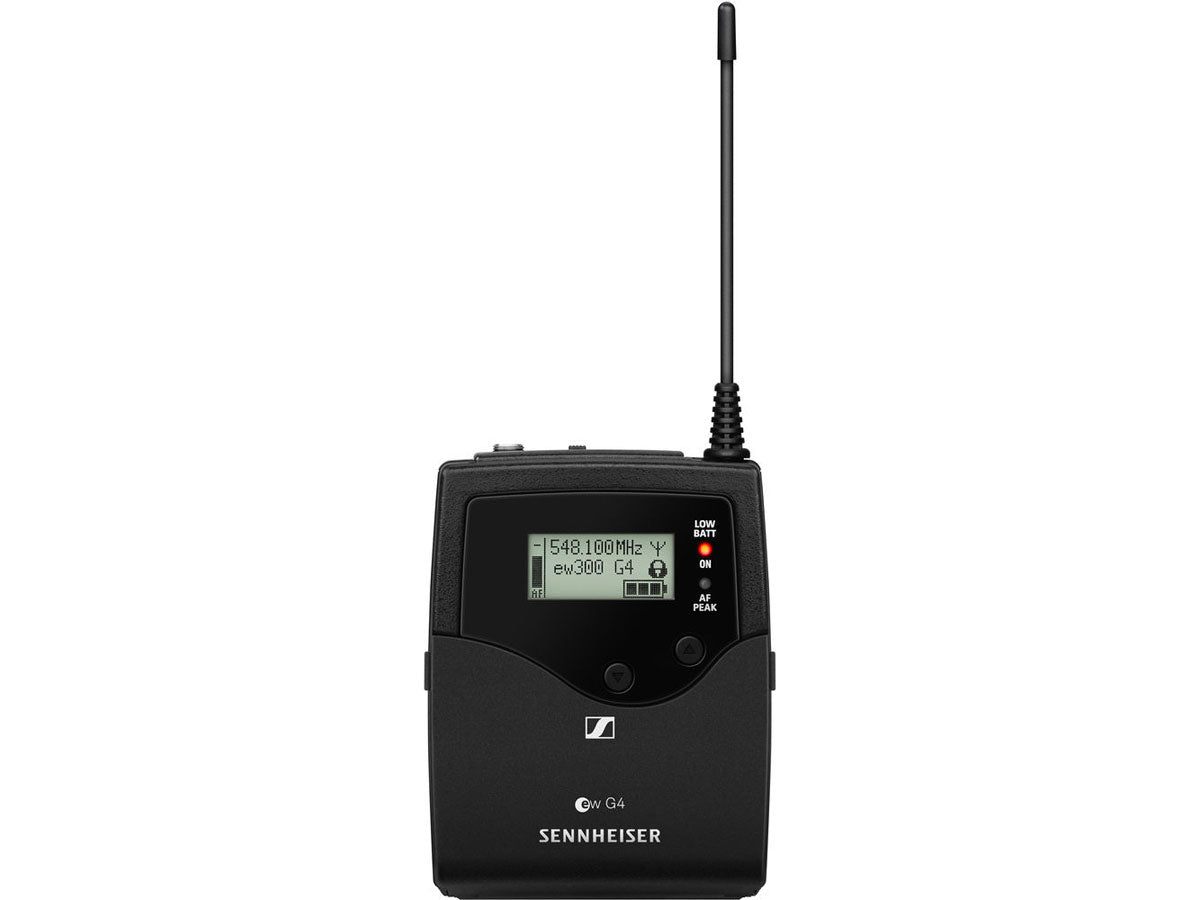

- 1 x SK 300 G4-RC bodypack transmitter
- 1 x MZQ 1 microphone clamp
- 4 x AA batteries
- 1 x power supply
- 2 x rod antennas
- 1 x GA 3 rackmount set
- 1 x quick guide
- 1 x safety guide
- 1 x manufacturer declaration sheet
