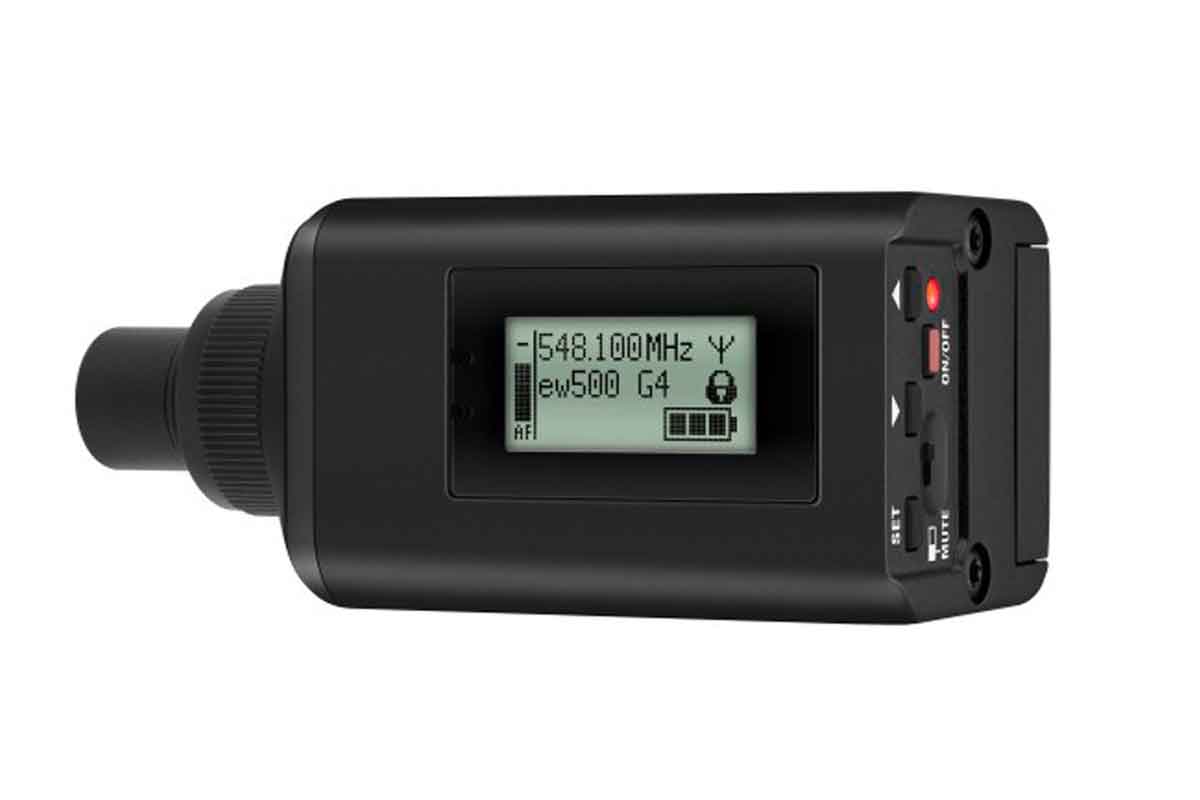

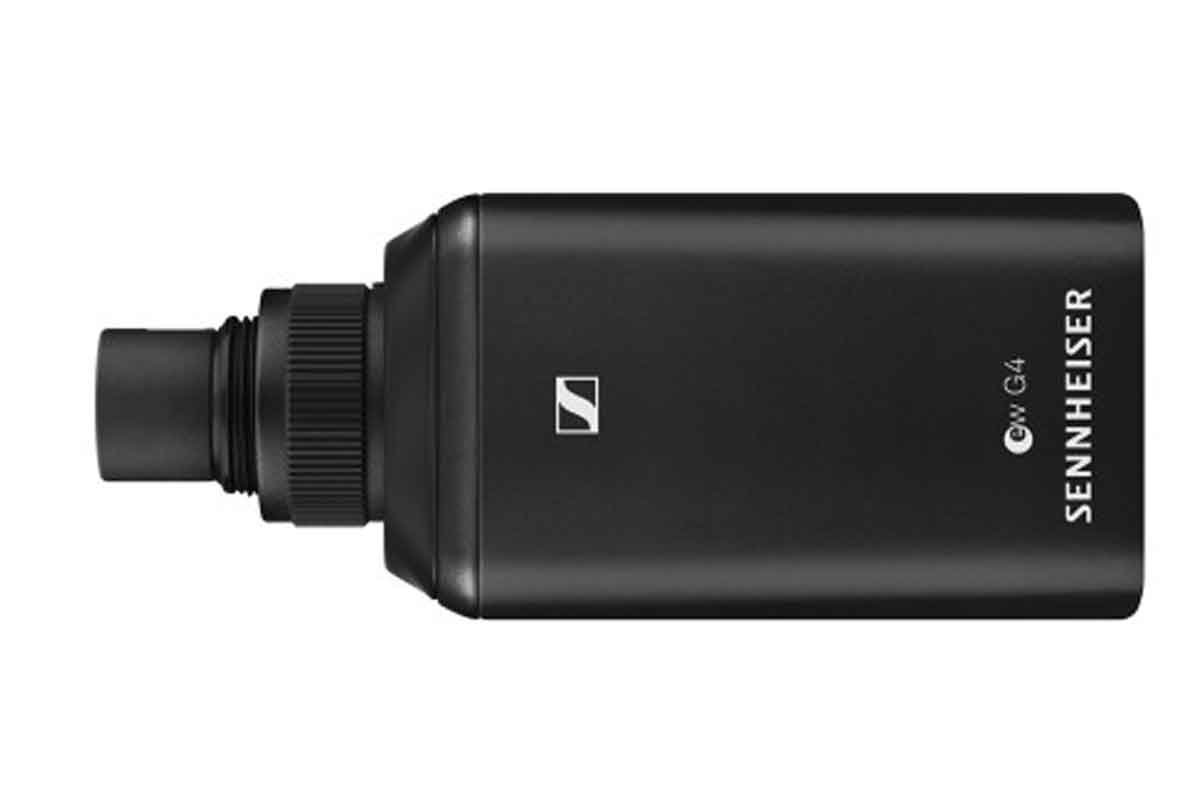

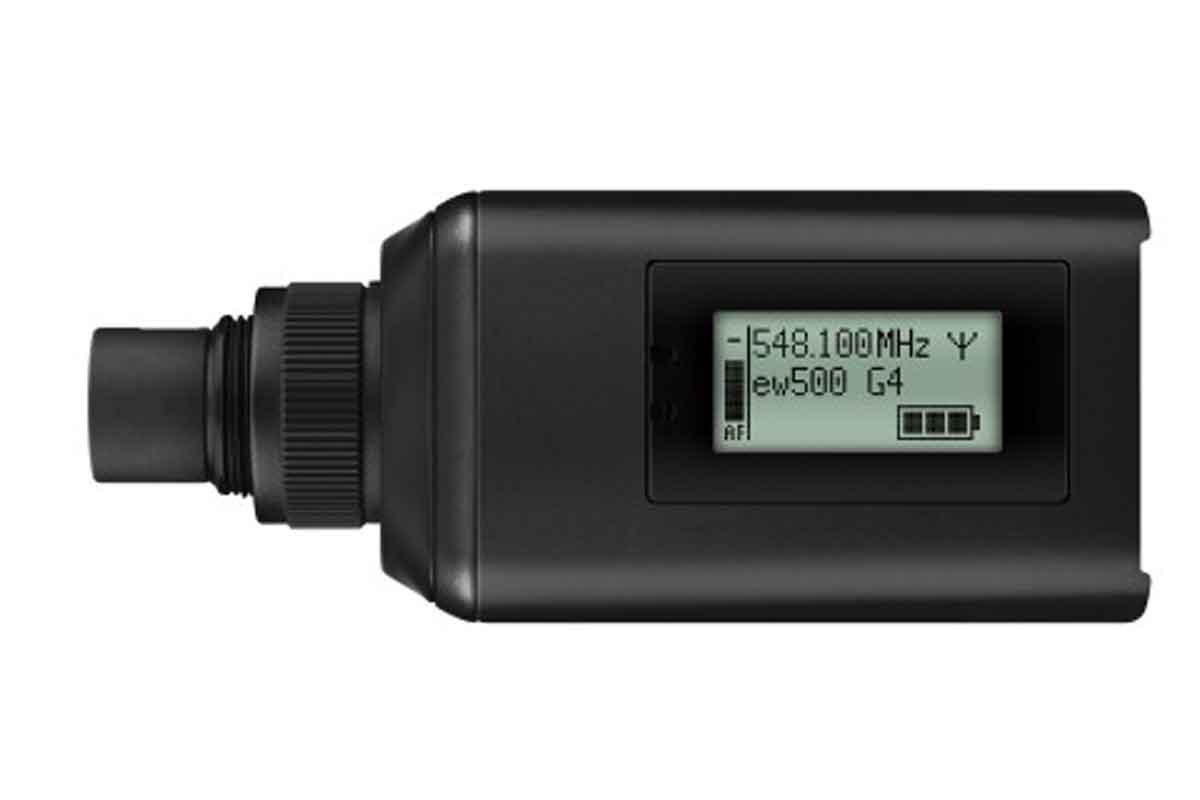

Sennheiser SKP 500 G4-GBW (SK500G4GBW) Evolution Wireless G4 Plug-in Transmitter with Phantom Power 606-678MHz

Sennheiser SKP 500 G4-GBW (SK500G4GBW) Evolution Wireless G4 Plug-in Transmitter with Phantom Power 606-678MHz

SKU: SEN-507815
£399.17 GBP ex VAT
£479.00 GBP inc VAT
ex VAT £399.17 GBP ex VAT
£479.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The ultimate wireless system that grows with you. The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 metres / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
RF characteristics:
Modulation Wideband FM
Frequency range GBw: 606 - 678 MHz
Transmission frequencies Max. 2880 frequencies, adjustable in 25 kHz steps
  20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω switchable:
  Low: typ. 10 mW
  Standard: typ. 30 mW
  High: typ. 50 mW
Pilot tone squelch Can be switched off

AF characteristics:
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 120 dBA
Total harmonic distortion ≤ 0.9 %
Max. input voltage 6 V
Input impedance 68 kΩ, unbalanced
Input capacitance Switchable
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps

Overall device:
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 210 mA
  with transmitter switched off: ≤ 25 µA
Operating time Typically 8 h
Dimensions Approx. 105 x 43 x 43 mm
Weight (incl. batteries) approx. 195 g
  • 1x SKP 500 G4 pro plug-on transmitter
  • 2x AA batteries
  • 1x POP 1 pouch with belt clip
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet
