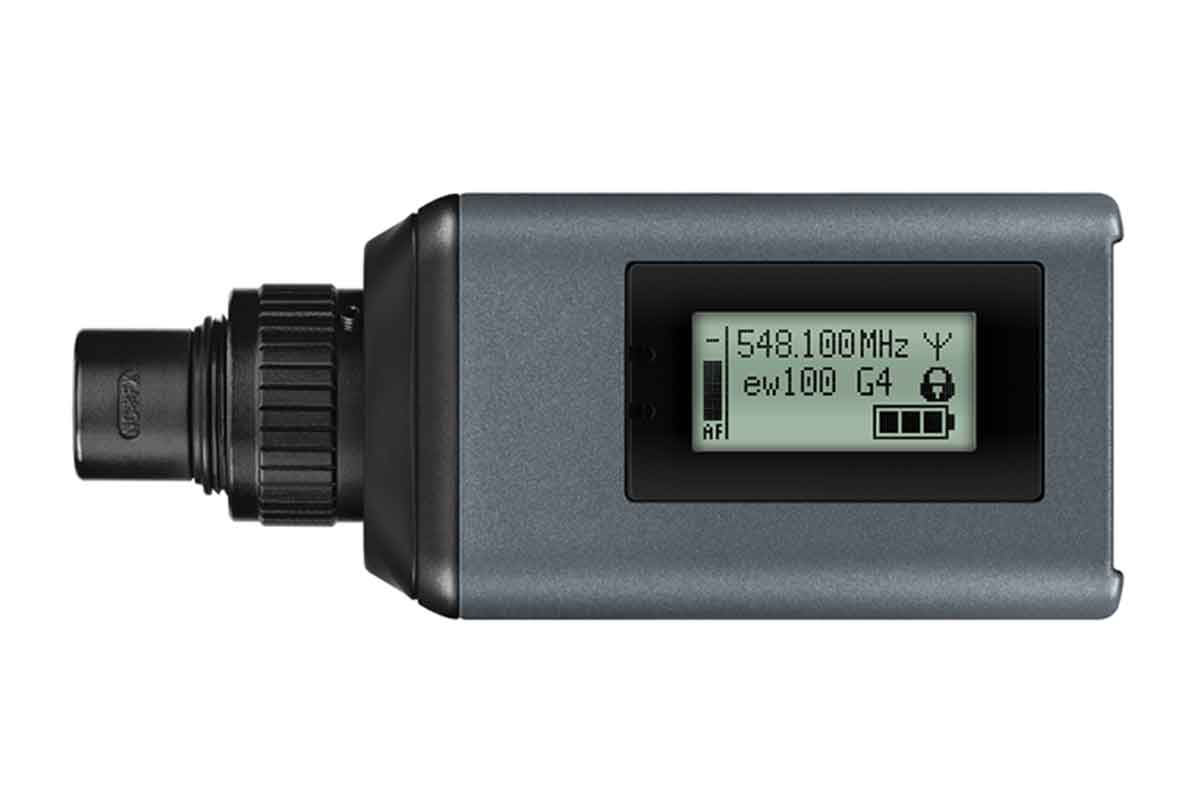

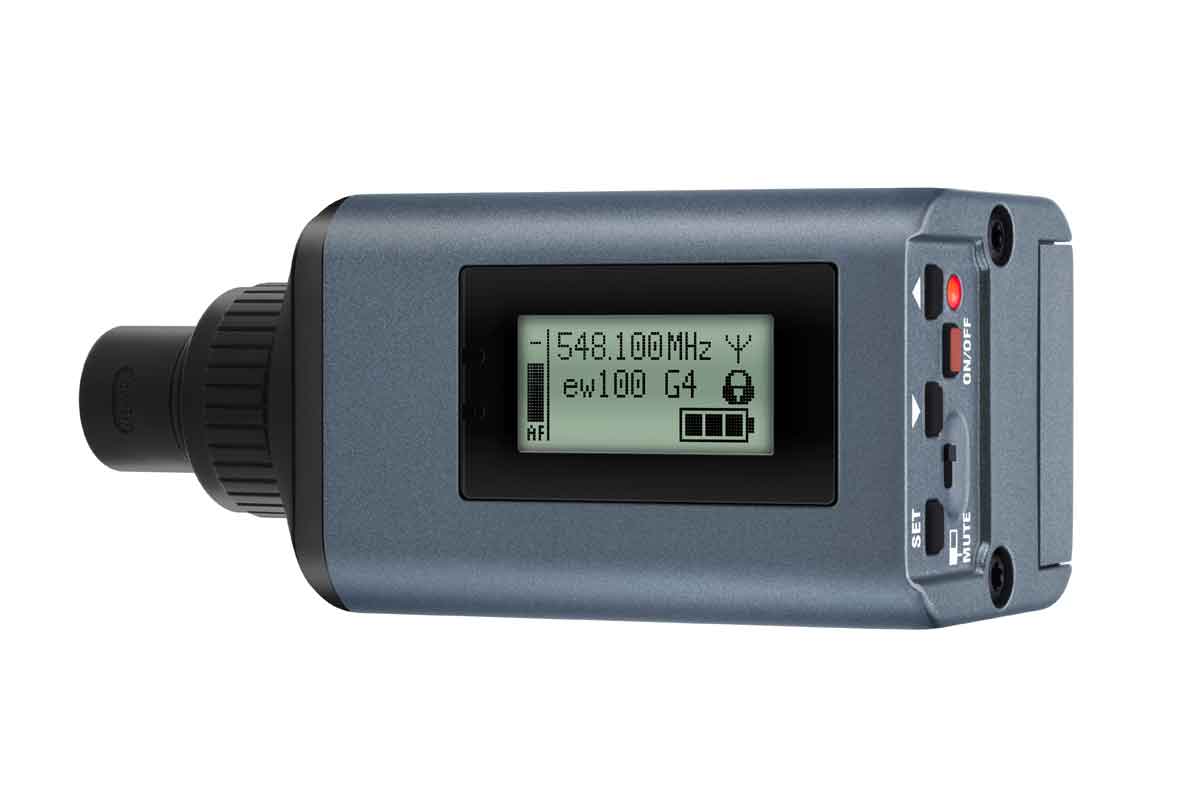

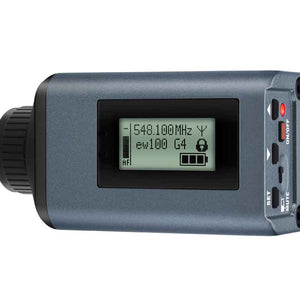

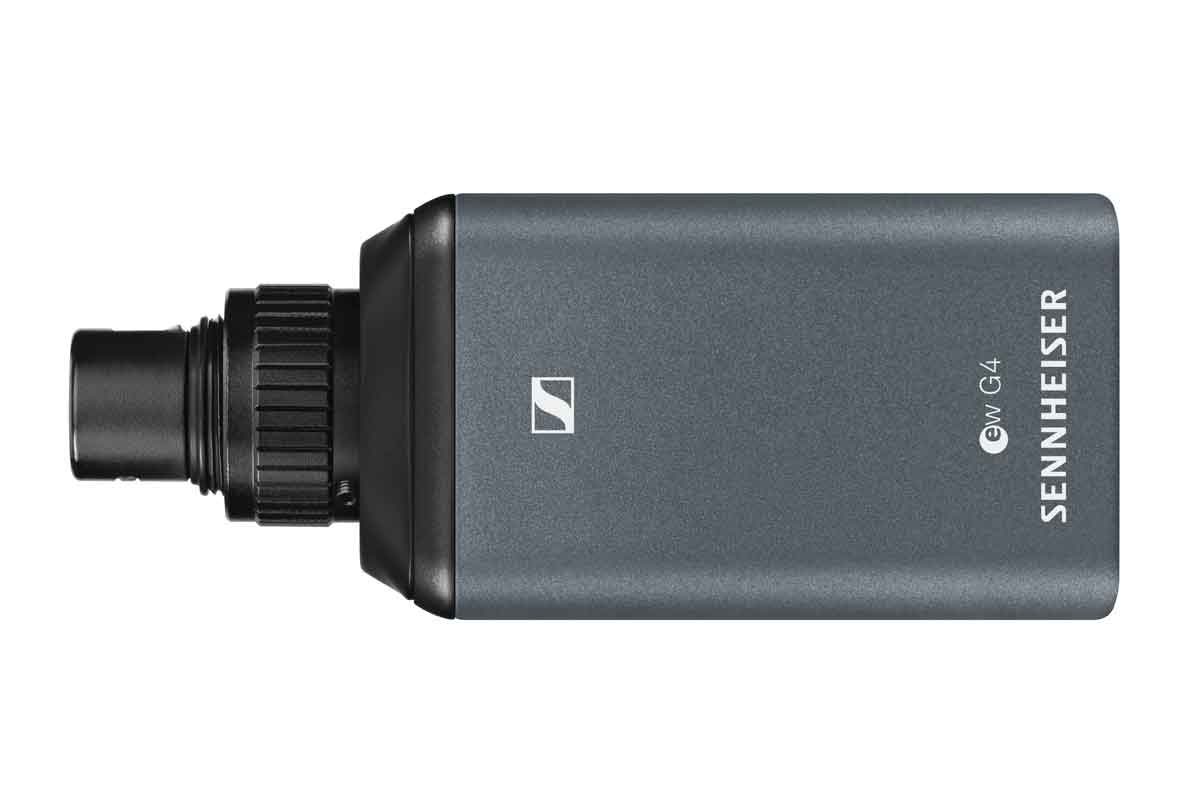

Sennheiser SKP 100 G4-GB (SKP100G4) Evolution Wireless G4 Plug-In Transmitter 606-648MHz

Sennheiser SKP 100 G4-GB (SKP100G4) Evolution Wireless G4 Plug-In Transmitter 606-648MHz

SKU: SEN-507654
£215.83 GBP ex VAT
£259.00 GBP inc VAT
ex VAT £215.83 GBP ex VAT
£259.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The ultimate wireless system that grows with you. The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

  • Powerful camera receiver, easily mounted on any kind of camera
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 metres / 330 feet
  • Up to 8 hours of operation time
RF characteristics:
Modulation Wideband FM
Frequency range GB: 606 - 648 MHz
Transmission frequencies Max. 1680 frequencies, adjustable in 25 kHz steps
  20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
  1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω Max. 30 mW
Pilot tone squelch Can be switched off

AF characteristics:
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA
Total harmonic distortion ≤ 0.9 %
Max. input voltage 3.3 V
Input impedance 68 kΩ, unbalanced
Input capacitance Switchable
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps

Overall device:
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
  BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
  with transmitter switched off: ≤ 25 µA
Operating time Typically 8 h
Dimensions Approx. 105 x 43 x 43 mm
Weight (incl. batteries) approx. 195 g
  • 1x SKP 100 G4 plug-on transmitter
  • 2x AA batteries
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet
