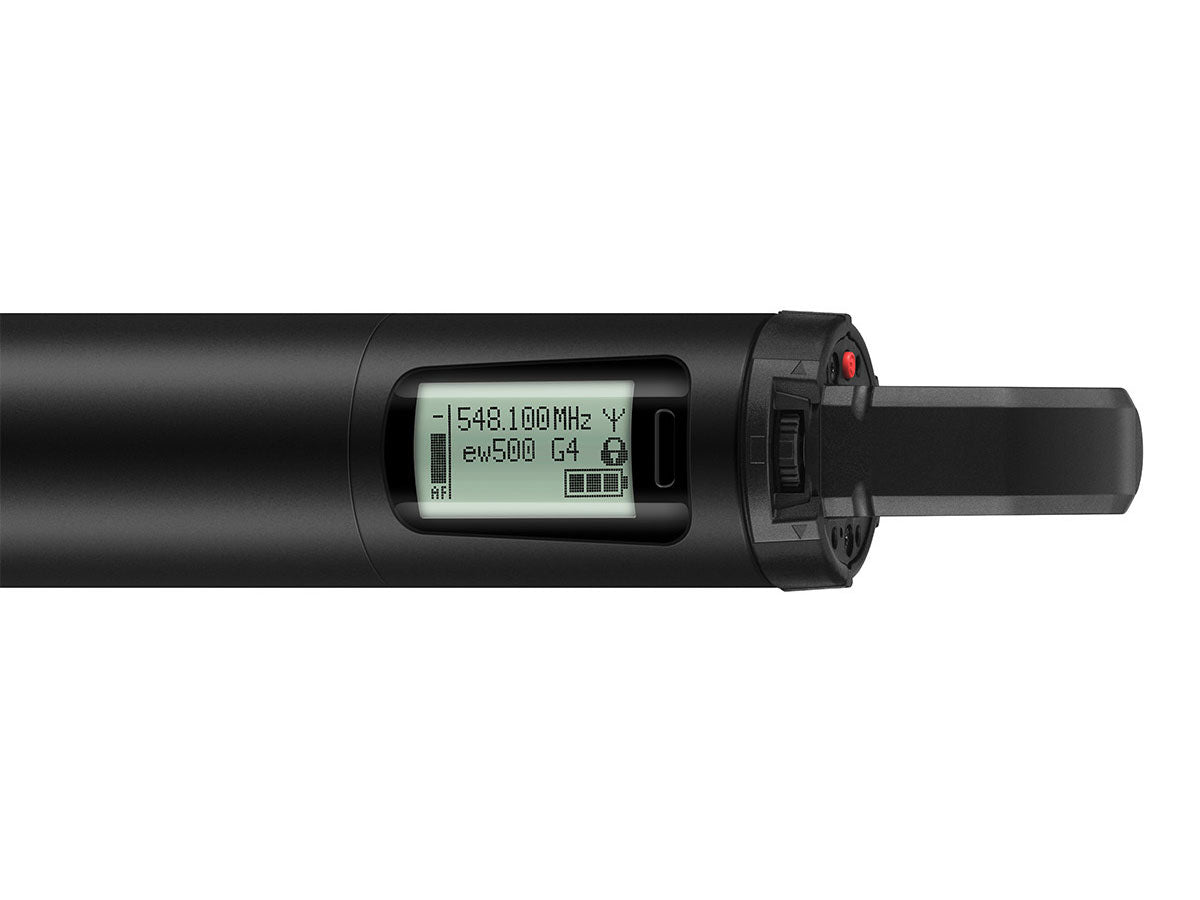

Sennheiser SKM 500 G4-GW

Sennheiser SKM 500 G4-GW

SKU: SEN-509774
£332.50 GBP ex VAT
£399.00 GBP inc VAT
ex VAT £332.50 GBP ex VAT
£399.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Powerful handheld transmitter with a lightweight black aluminium housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

  • Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Frequency range Gw: 558 - 626 MHz
Switching bandwidth up to 88 MHz
Powering 3 V battery / 2.4 V rechargeable battery
Dimensions Approx. Ø 50 x 265 mm
Peak deviation ±48 kHz
Transmission frequency Max. 3520 frequencies, adjustable in 25 kHz steps,
  20 frequency banks, each with up to 32 factory-preset channels, no intermodulation,
  6 frequency banks with up to 32 programmable channels
Compander Sennheiser HDX
Nominal deviation ±24 kHz
THD, total harmonic distortion ≤ 0.9 %
Operating time Typically 8 h
AF frequency response 80 – 18,000 Hz
Weight (incl. batteries) approx. 450 g
Modulation Wideband FM
Temperature Range -10 °C to +55 °C
Signal-to-noise ratio ≥ 115 dBA
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Frequency stability ≤ ±15 ppm
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Current consumption at nominal voltage: typ. 180 mA with transmitter switched off:
  ≤ 25 μA
  • 1 x SKM 500 G4 handheld transmitter
  • 1 x MZQ 1 microphone clamp
  • 1 x 2 AA batteries
  • 1 x pouch
  • 1 x quick guide
  • 1 x safety guide
  • 1 x manufacturer declaration sheet
