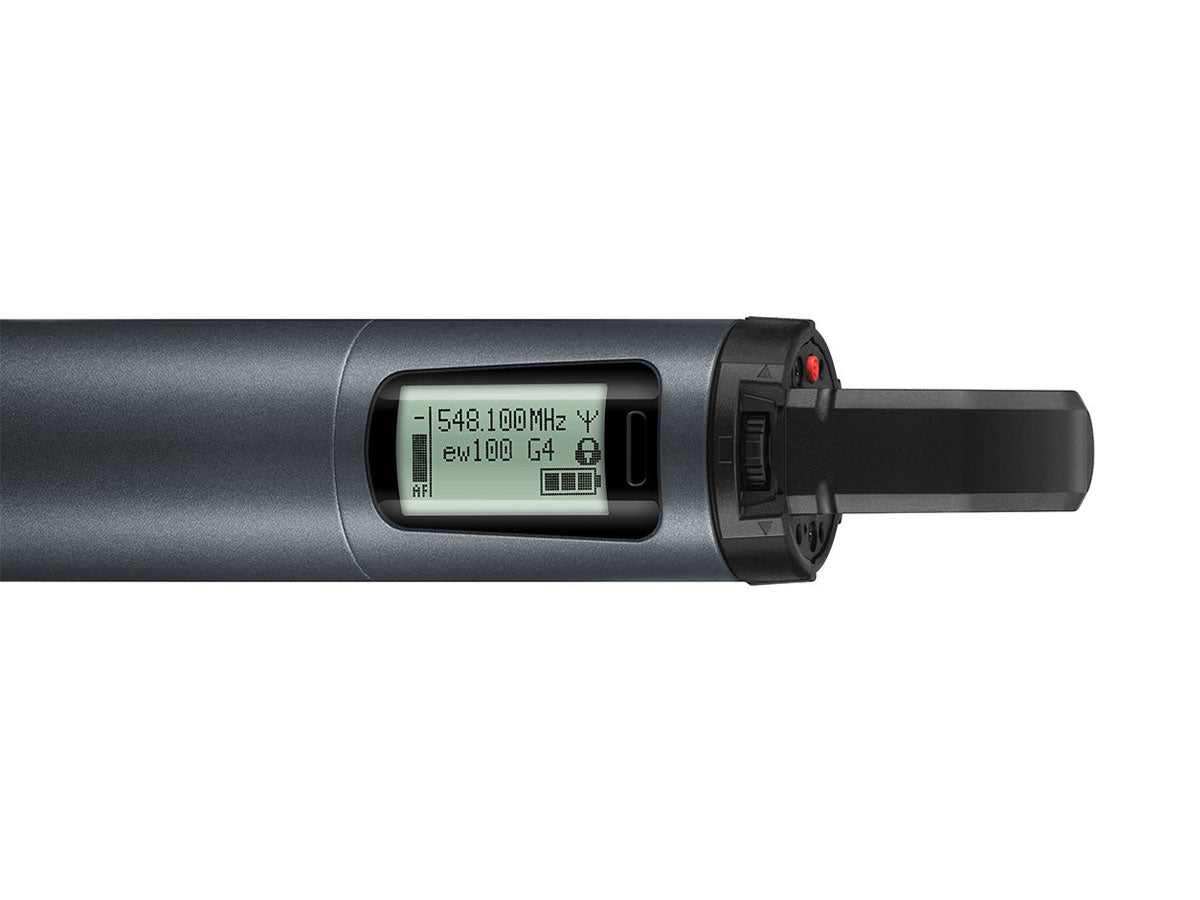

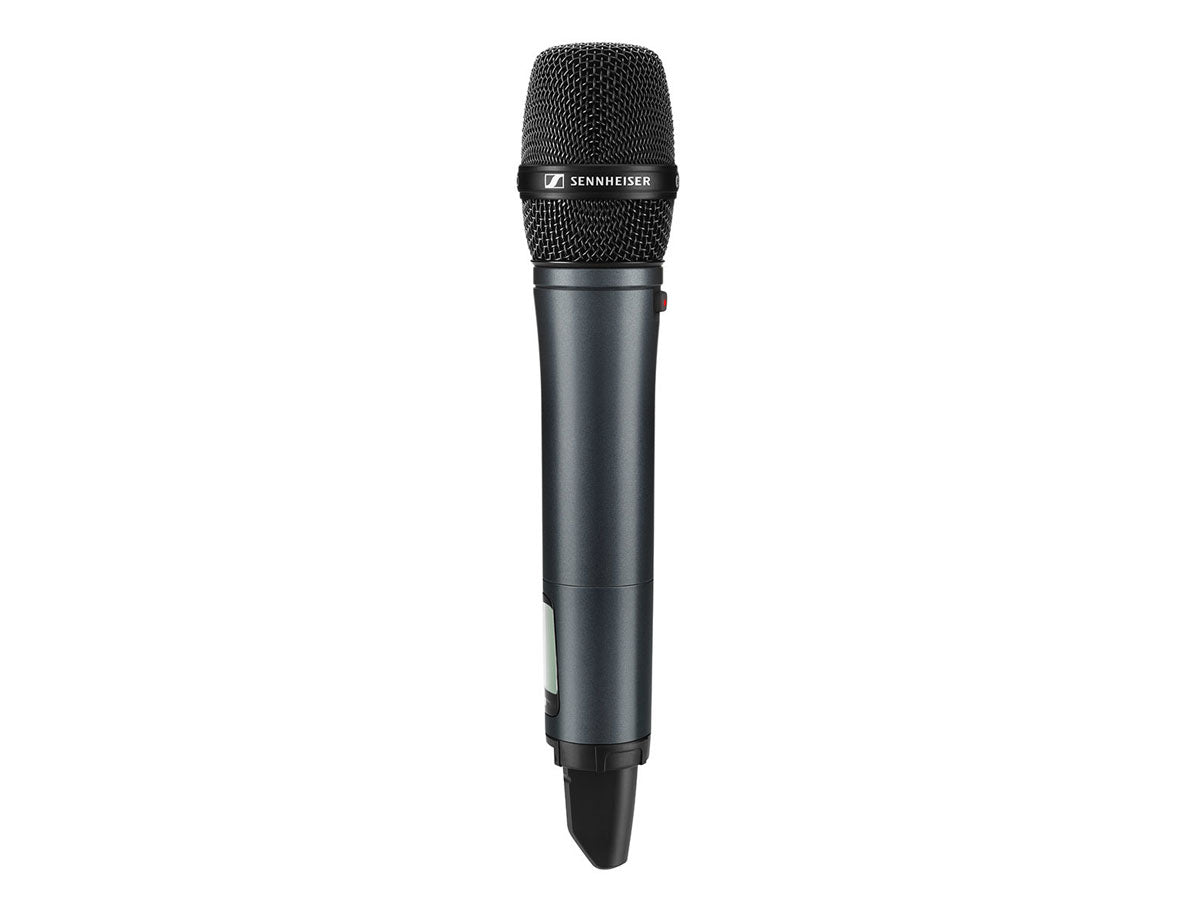

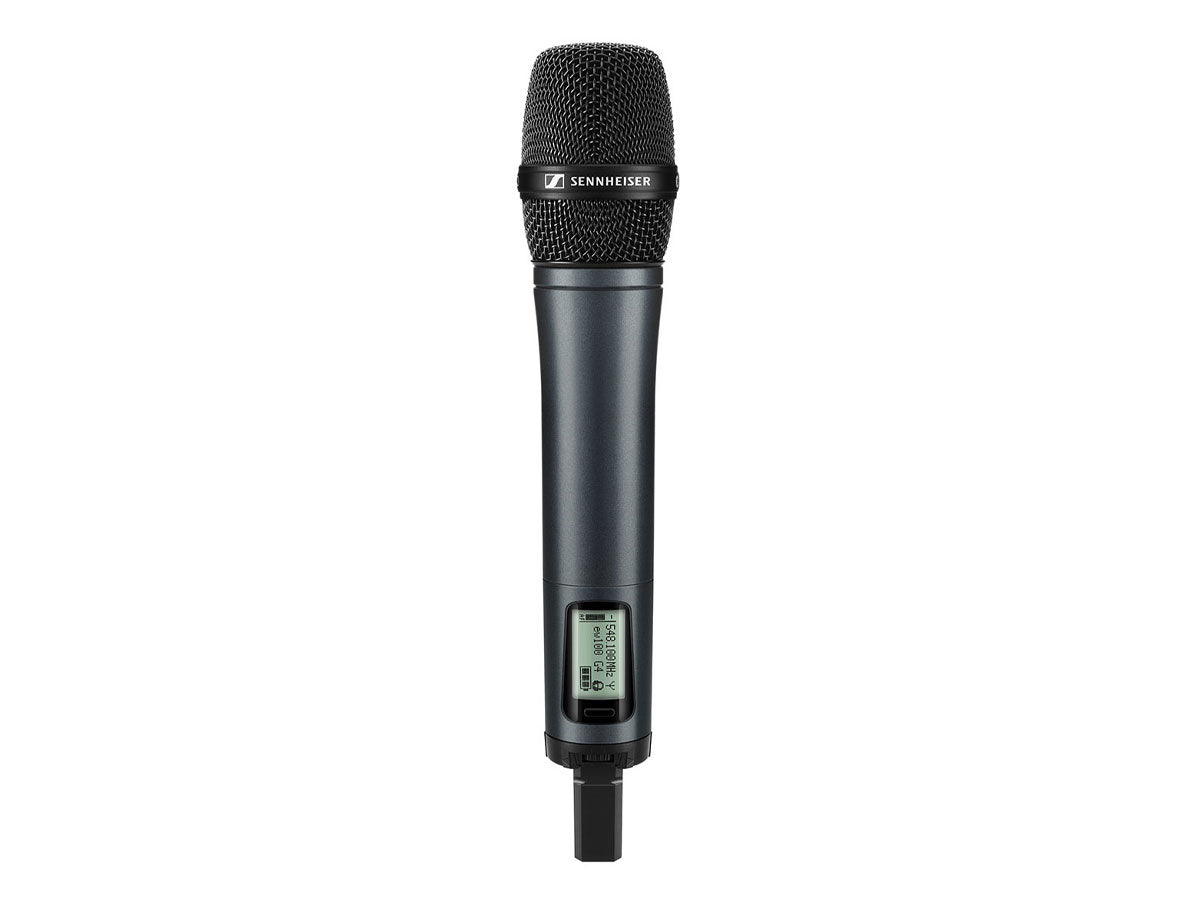

Sennheiser SKM 100 G4-S-GB Handheld Transmitter with Mute Switch
Sennheiser SKM 100 G4-S-GB Handheld Transmitter with Mute Switch
SKU:
SEN-509988
Regular price
£215.00 GBP ex VAT
£258.00 GBP inc VAT
£258.00 GBP inc VAT
Regular price
ex VAT
Sale price
£215.00 GBP ex VAT
£258.00 GBP inc VAT
Unit price
per
£258.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The SKM 100 G4-S-GB Handheld Transmitter with Mute Switch is a powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch for evolution wireless G4 100 Series systems.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
- Easy and flexible wireless synchronization
- Fast frequency allocation
- Up to 20 compatible channels
- Up to 42 MHz bandwidth
- Up-to 100m transmission range
- High RF output power
| Frequency Range: | GB: 606 - 648 MHz |
| Modulation: | Wideband FM |
| Transmission Frequency: | Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| AF Frequency Response: | 80 – 18,000 Hz |
| Frequency Stability: | ≤ ±15 ppm |
| Switching Bandwidth: | up to 42 MHz |
| Peak Deviation: | ±48 kHz |
| Nominal Deviation: | ±24 kHz |
| Signal-to-Noise Ratio: | ≥ 110 dBA |
| THD, Total Harmonic Distortion: | ≤ 0.9 % |
| Compander: | Sennheiser HDX |
| RF Output Power: | Max. 30 mW |
| Powering: | 3 V battery / 2.4 V rechargeable battery |
| Max Input Voltage: | 3 Veff |
| Power Supply: | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current Consumption: | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA |
| Input Impedance: | 40 kΩ |
| Operating Time: | Typically 8 h |
| Temperature Range: | -10 °C to +55 °C |
| Dimensions: | Approx. Ø 50 x 265 mm |
| Weight: | (incl. batteries) approx. 450 g |
- SKM 100 G4-S handheld transmitter
- MZQ 1 microphone clamp
- 2 x AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
