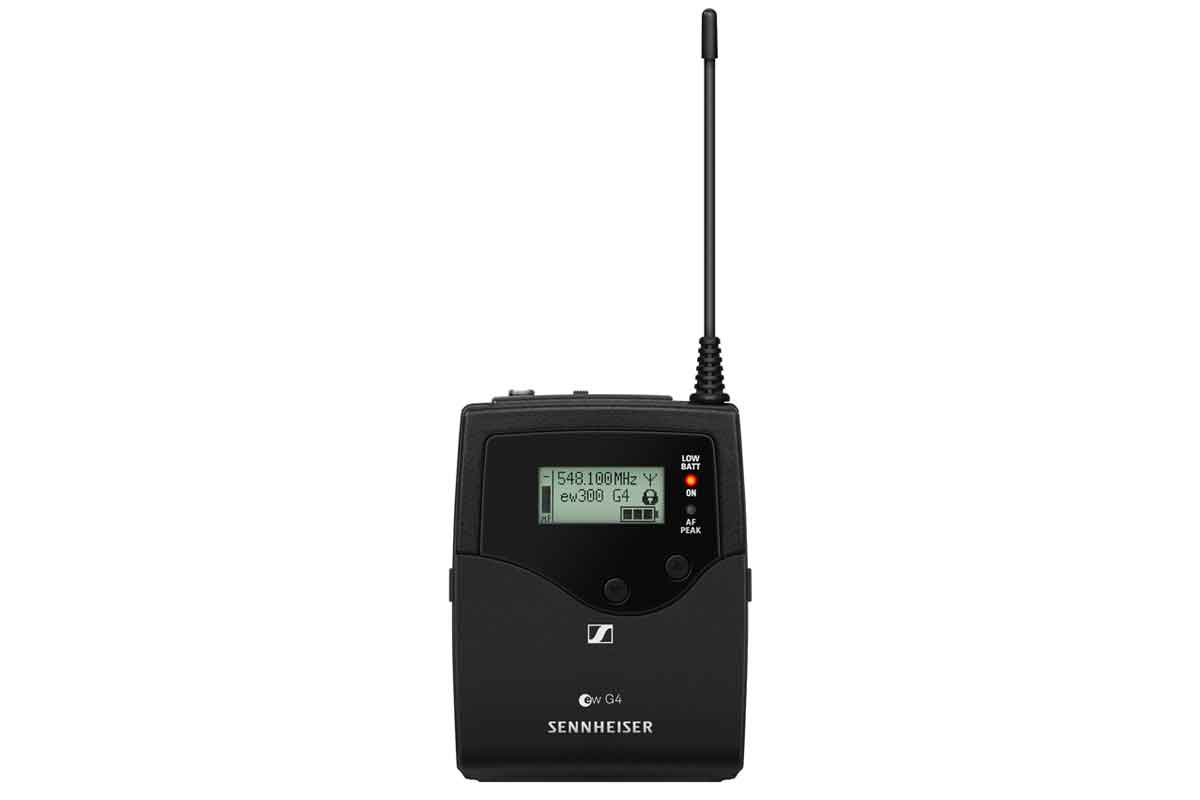

Sennheiser SK 300 G4-RC-GBW (SK300G4RC) Evolution Wireless G4 Bodypack Transmitter 606-678MHz

Sennheiser SK 300 G4-RC-GBW (SK300G4RC) Evolution Wireless G4 Bodypack Transmitter 606-678MHz

SKU: SEN-507720
£257.50 GBP ex VAT
£309.00 GBP inc VAT
ex VAT £257.50 GBP ex VAT
£309.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Specifications
  • What's Included

The ultimate wireless system that grows with you. The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Robust bodypack transmitter with increased bandwidth and transmission power for evolution wireless G4 300 Series systems, delivering exceptional speech intelligibility in Business and Education.

RF characteristics:
Modulation Wideband FM
Frequency range GBw: 606 - 678 MHz
Transmission frequencies Max. 2880 frequencies, adjustable in 25 kHz steps
  20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  6 frequency banks with up to 32 programmable channels
Switching bandwidth up to 72 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω switchable:
  Low: typ. 10 mW
  Standard: typ. 30 mW
  High: typ. 50 mW
Pilot tone squelch Can be switched off

AF characteristics:
Compander system Sennheiser HDX
AF frequency response Mic: 80 – 18,000 Hz
  Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 115 dBA
Total harmonic distortion ≤ 0.9 %
Max. microphone/line input voltage 3 V
Microphone/line input impedance 40 kΩ, unbalanced / 1 MΩ
Input capacitance Switchable
Setting range for input sensitivity 60 dB, adjustable in 3 dB steps

Overall device:
Temperature range -10 °C to +55 °C

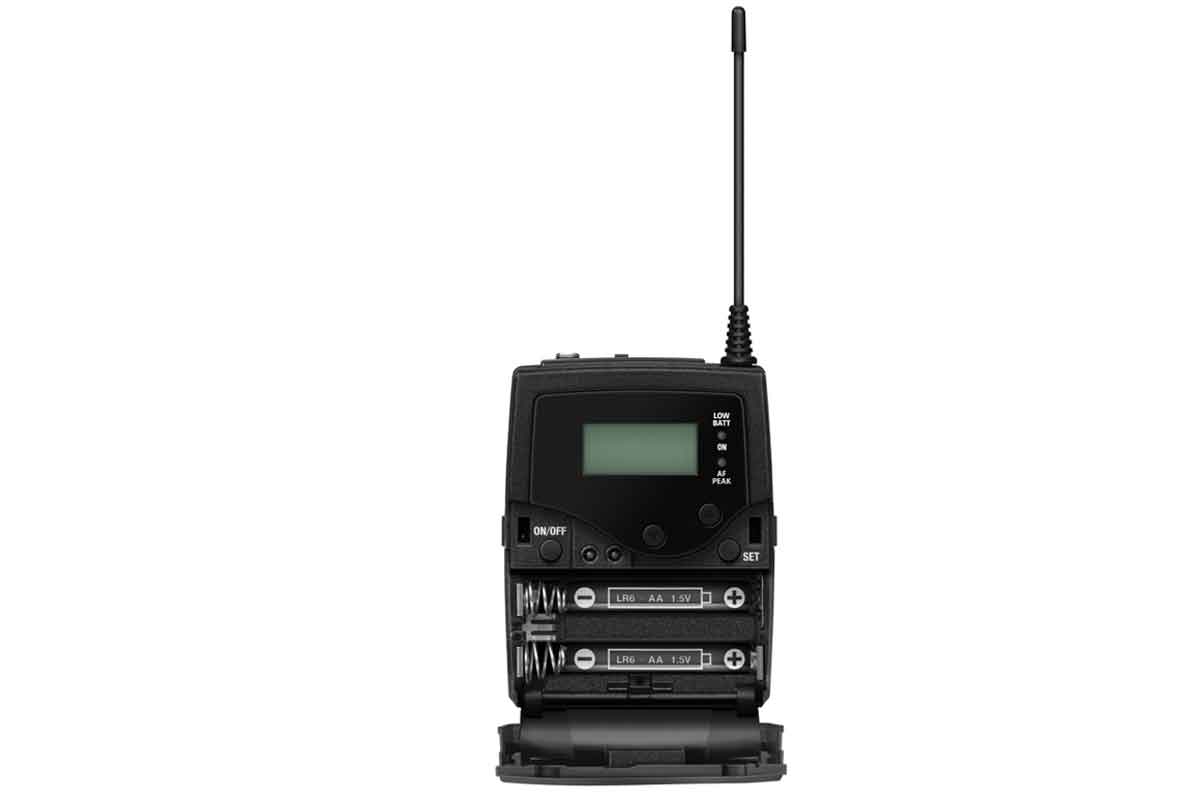

Power supply 2 AA batteries, 1.5 V or
  BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
  with transmitter switched off: ≤ 25 µA
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
  • 1x SK 300 G4-RC bodypack transmitter
  • 2x AA batteries
  • 1x Pouch
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet
