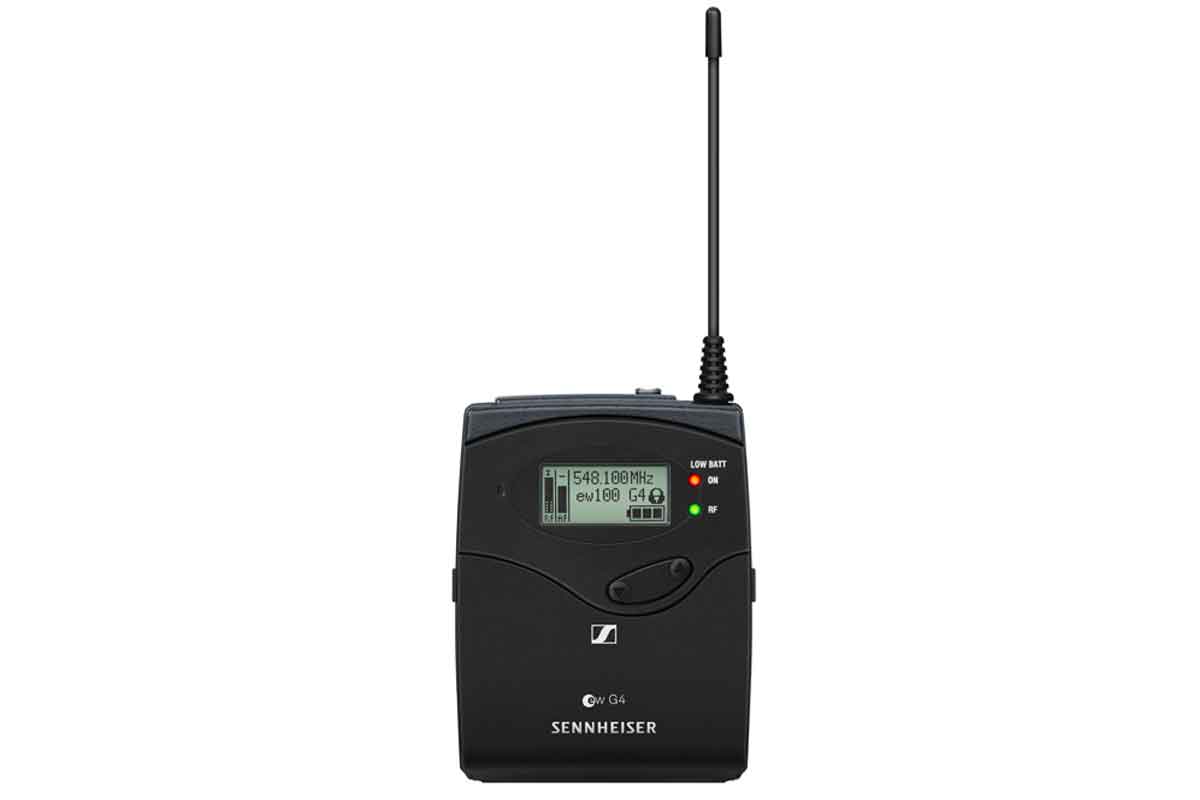

Sennheiser SK 100 G4-GB (SK100G4) Evolution Wireless G4 Bodypack Transmitter 606-648MHz

Sennheiser SK 100 G4-GB (SK100G4) Evolution Wireless G4 Bodypack Transmitter 606-648MHz

SKU: SEN-507585
£215.83 GBP ex VAT
£259.00 GBP inc VAT
ex VAT £215.83 GBP ex VAT
£259.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The ultimate wireless system that grows with you. The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

  • Robust bodypack transmitter for daily use on stage
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via newlinking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 metres / 300 feet
  • High RF output power (up to 30 mW) depending oncountry regulations
RF characteristics:
Modulation Wideband FM
Frequency range GB: 606 - 648 MHz
Transmission frequencies Max. 1680 receiving frequencies, adjustable in 25  kHz steps
  20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
  1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω Max. 30 mW
Pilot tone squelch Can be switched off

AF characteristics:
Compander system Sennheiser HDX
AF frequency response Mic: 80 – 18,000 Hz
  Line: 25 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dB
Total harmonic distortion ≤ 0.9 %
Max. microphone/line input voltage 3 V
Microphone/line input impedance 40 kΩ, unbalanced / 1 MΩ
Input capacitance Switchable
Setting range for input sensitivity 60 dB, adjustable in 3 dB steps

Overall device:
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
  BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
  with transmitter switched off: ≤ 25 µA
Operating time Typically 8 h
Dimensions Approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
  • 1x SK 100 G4 bodypack transmitter
  • 2x AA batteries
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manfacturer declaration sheet
