Sennheiser SK 100 G4-GB
Sennheiser SK 100 G4-GB
SKU:
SEN-509882
Regular price
£215.83 GBP ex VAT
£259.00 GBP inc VAT
£259.00 GBP inc VAT
Regular price
ex VAT
Sale price
£215.83 GBP ex VAT
£259.00 GBP inc VAT
Unit price
per
£259.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

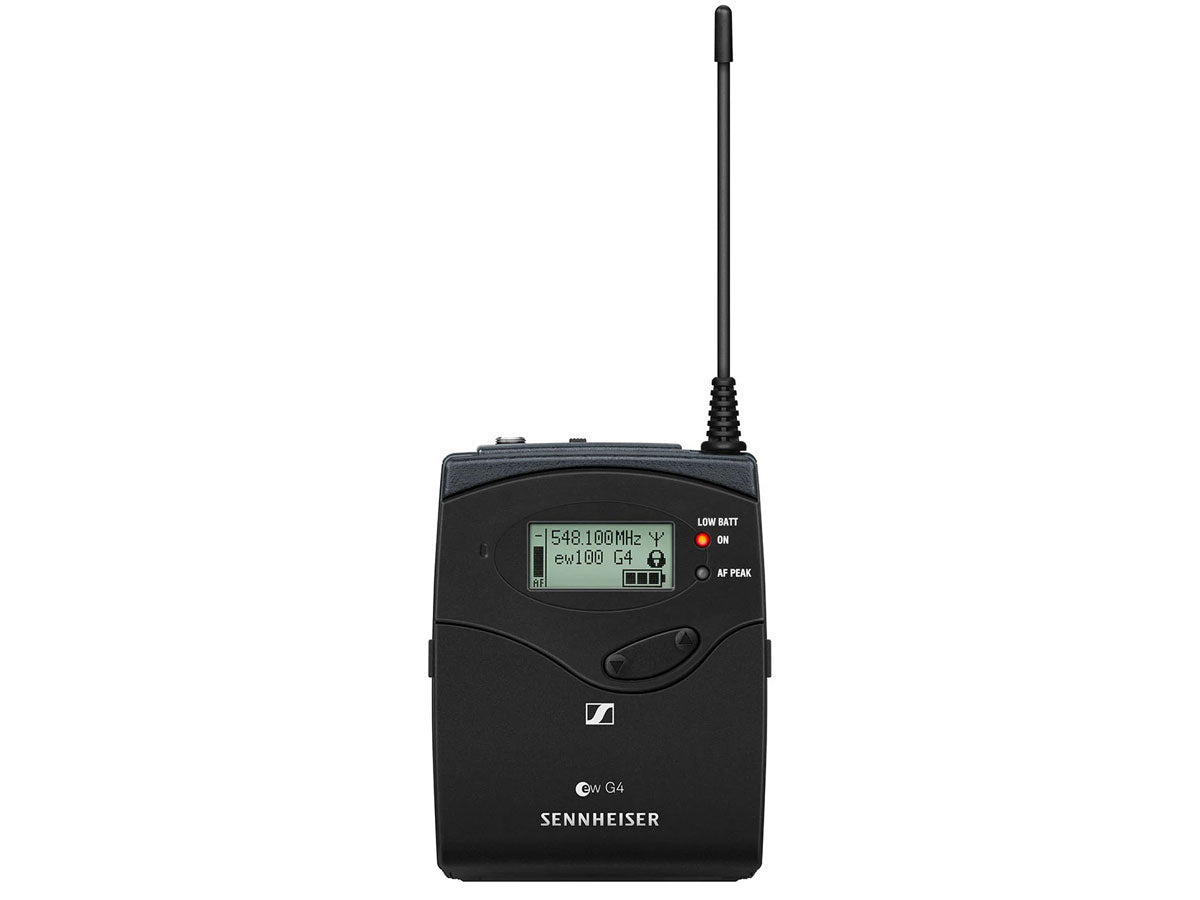

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.
- Robust bodypack transmitter for daily use on stage.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
| Frequency Range: | GB: 606 - 648 MHz |
| Compander: | Sennheiser HDX |
| THD, Total Harmonic Distortion: | ≤ 0.9 % |
| Signal-to-Noise Ratio: | ≥ 110 dBA |
| RF Output Power: | Max. 30 mW |
| Switching Bandwidth: | up to 42 MHz |
| Peak Deviation: | ±48 kHz |
| Nominal Deviation: | ±24 kHz |
| Operating Time: | Typically 8 h |
| Modulation: | Wideband FM |
| Power Supply: | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current Consumption: | at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA |
| Input Impedance: | 40 kΩ, unbalanced / 1 MΩ |
| Max. Input Voltage: | 3 Veff |
| Powering: | 3 V battery / 2.4 V rechargeable battery |
| Transmission Frequency: | Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| AF Frequency Response: | Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz |
| Temperature Range: | -10 °C to +55 °C |
| Frequency Stability: | ≤ ±15 ppm |
| Dimensions: | Approx. 82 x 64 x 24 mm |
| Weight: | (incl. batteries) approx. 160 g |
- SK 100 G4 bodypack transmitter
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
