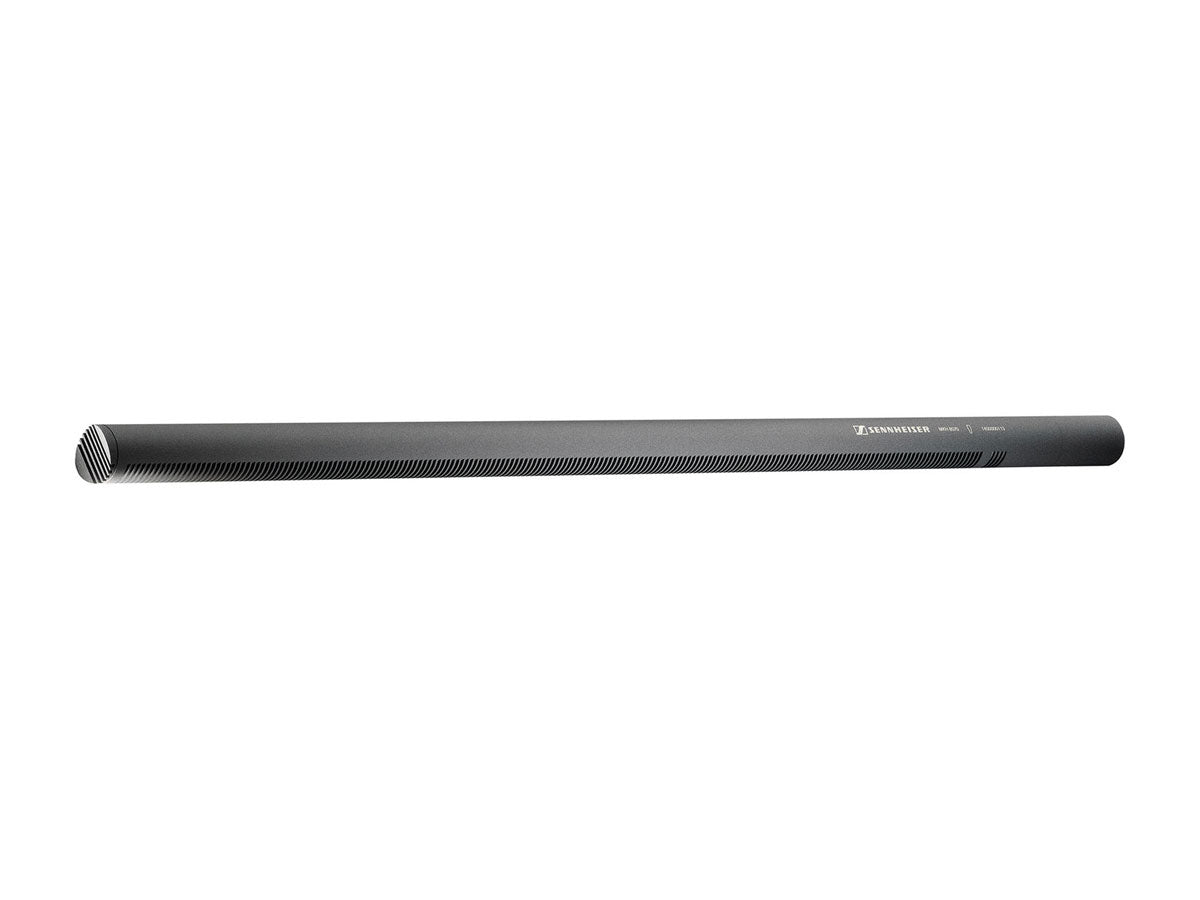

Sennheiser MKH 8070 Microphone

Sennheiser MKH 8070 Microphone

SKU: SEN-506293
£1,162.50 GBP ex VAT
£1,395.00 GBP inc VAT
ex VAT £1,162.50 GBP ex VAT
£1,395.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The long shotgun microphone MKH 8070 was especially designed for picking up distant sources of sound in best quality. Its very natural sound makes it the ideal choice for major broadcast and sporting events. Featuring extreme directivity and a pronounced lobar pick-up pattern it will reliably capture that magic moment from a distance, even under the toughest sonic and climatic conditions. The MKH 8070's special design ensures attenuation of off-axis sound without coloration. Like all mics of the 8000-family it can be easily combined with the MZD 8000 digital module, turning it into a full-fledged digital microphone.

  • Lobar pick-up pattern
  • Enhanced directivity
  • Very natural sound
  • Uncolored off-axis sound
  • Exceptionally low inherent self-noise
  • Extremely low distortion
  • Transformerless and fully floating balanced output
  • High output signal
  • Rugged metal housing
  • Non-reflective Nextel® coating
  • Extremely weather-proof due to RF circuit• Nextel®- • Becomes a digital mic when combined with the MZD 8000 digital module
  • Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Transducer Principle (Microphone): RF condenser microphone
Frequency Response: 45 - 20000 Hz
Audio Output: XLR-3M balanced, transformerless, floating
Pick-up Pattern: lobar
Sensitivity in Free Field, No Load (1 kHz): 112 mV/Pa (-19 dBV/Pa)
Nominal Impedance: 25 Ohm
Min. Terminating Impedance: 2000 Ohm
Phantom Powering: 48 V +/- 4 V
Equivalent Noise Level: 8 dB
Equivalent Noise Level, Weighted as per CCIR: 21 dB
Maximum Sound Pressure Level (Passive): 124 dB SPL
Current Consumption: 3.3 mA
Dimensions: diameter 19 mm, lenght 465 mm (432 mm excluding XLR module)
Weight: 332 g (300 g excluding XLR module)
  • 1 x Shotgun microphone MKH 8070
  • 1 x Microphone clip
  • 1 x Foam windshield
  • 1 x Threaded transport tube
  • 1 x User manual
