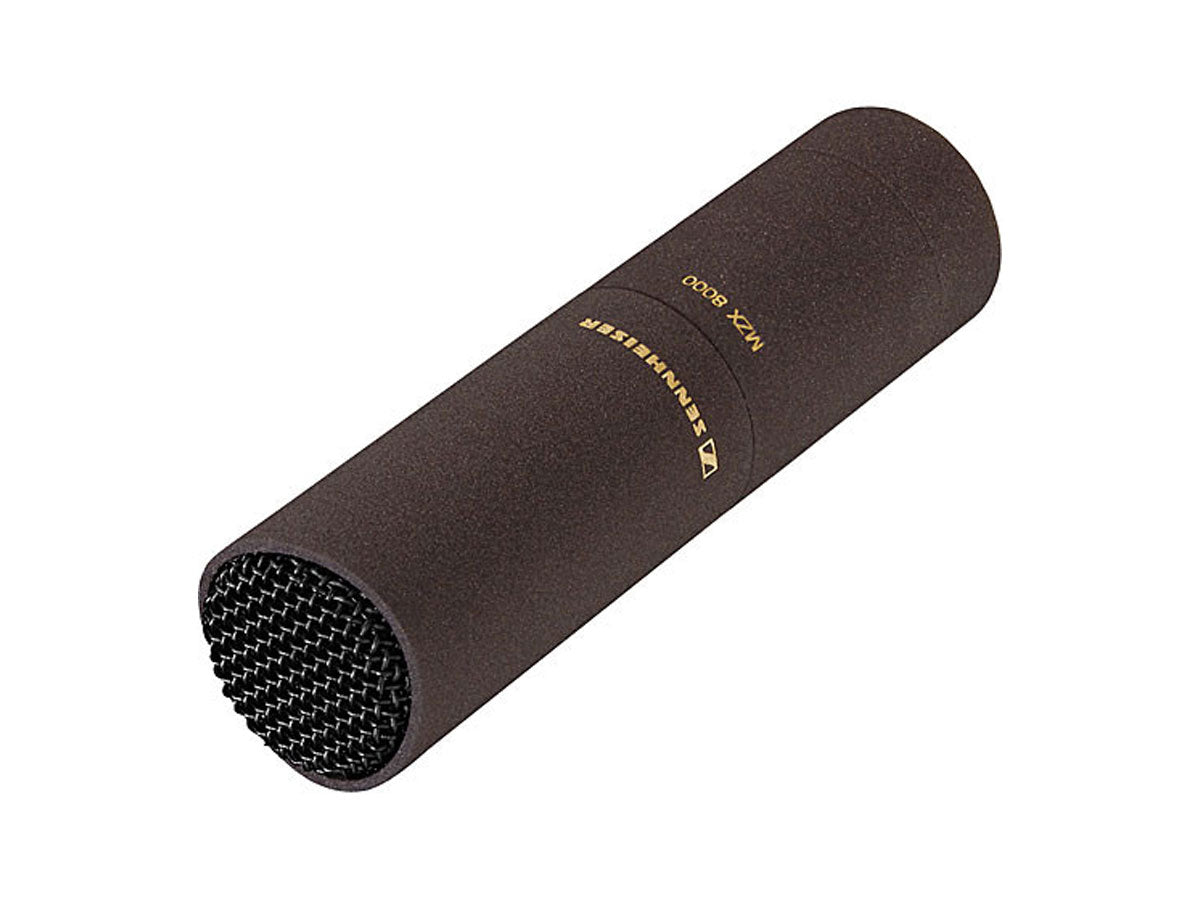

Sennheiser MKH 8020 Microphone
Sennheiser MKH 8020 Microphone
SKU:
SEN-506287
Regular price
£958.33 GBP ex VAT
£1,150.00 GBP inc VAT
£1,150.00 GBP inc VAT
Regular price
ex VAT
Sale price
£958.33 GBP ex VAT
£1,150.00 GBP inc VAT
Unit price
per
£1,150.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The omni-directional MKH 8020 is ideal for recording large and small sound sources, for a “Decca Tree” or for use in an OSS “Jecklin Disk” array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambience is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass.
- Omni-directional pick-up pattern
- Modular design
- Wide frequency response - 10 to 60.000 Hz
- Symmetrical transducer with 2 backplates providing extremly low distortion
- Extremly low inherent self-noise
- Accurate directional pattern
- Non reflective Nextel coating
- Ideal for stereo and surround recordings, as an M microphone and for ambience
| Transducer Principle (Microphone): | RF condenser microphone |
| Frequency Response: | 10 - 60.000 Hz |
| Audio Output: | XLR-3M balanced, transformerless, floating |
| Pick-up Pattern: | omni-directional |
| Sensitivity in Free Field, No Load (1 kHz): | 31 mV/Pa (- 30 dBV/Pa) |
| Nominal Impedance: | 25 Ω |
| Min. Terminating Impedance: | 1000 Ω |
| Phantom Powering: | 48 V +/- 4V |
| Equivalent Noise Level: | 10 dB(A) |
| Equivalent Noise Level, Weighted as per CCIR: | 21 dB |
| Maximum Sound Pressure Level (Passive): | 138 dB SPL |
| Current Consumption: | 3.3 mA |
| Dimensions: | 19 mm diameter, lenght 74 mm (41 mm excluding XLR module) |
| Weight: | 55g (25 g excluding XLR module) |
- MKH 8020 microphone
- Microphone head MKHC 8020
- XLR module MZX 8000
- Microphone clip MZQ 8000
- Windshield MZW 8000
- User manual
- Plastic transport case
