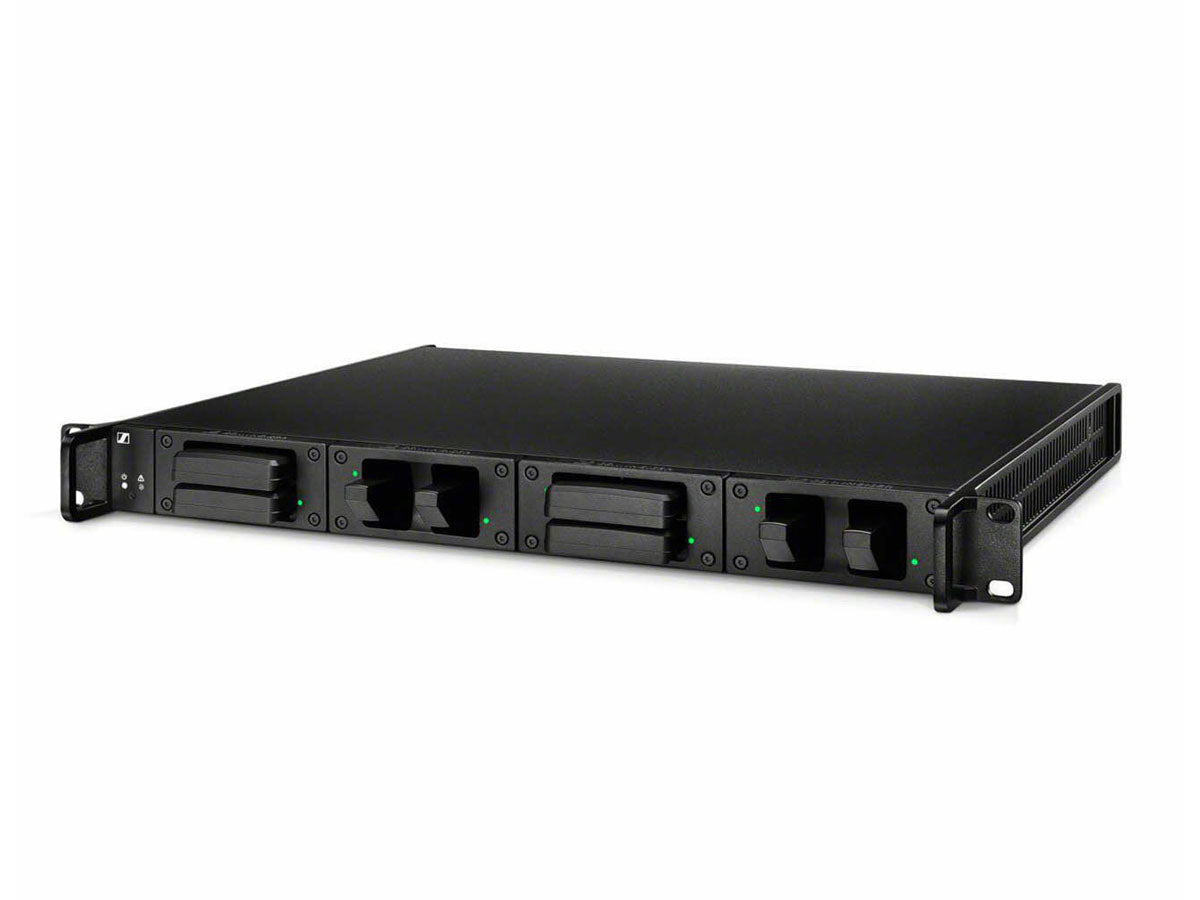

Sennheiser L 6000 Charger

Sennheiser L 6000 Charger

SKU: SEN-507300
£807.50 GBP ex VAT
£969.00 GBP inc VAT
ex VAT £807.50 GBP ex VAT
£969.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-colour LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.

Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62). Three-colour LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods.
The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted.

Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).

  • 19 inch charging station in 1 RU
  • Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
  • Quick overview of charging status with three-colour LEDs
  • Intelligent charging control with four fans for optimum cooling
  • Storage mode keeps battery packs in optimum charge condition for longer storage periods
  • Integrates into the Wireless Systems Manager
Charging Time:

BA 60: 80 %: approx. 1:15 h, 100%: approx. 2:30h
BA 61: 80 %: approx. 1:45 h, 100%: approx. 3:15 h
BA 62: 80% approx. 1:15 h, 100% approx. 2:45 h
Power Consumption:

Max. 85 W
Min. 1 W
Power Supply: 100 - 240 V AC, 50/60 Hz
Capacity: Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
Operating Relative Humidity: Max. 90 % at 40 °C
Charging Current: 2 A
Display: Multi-colored

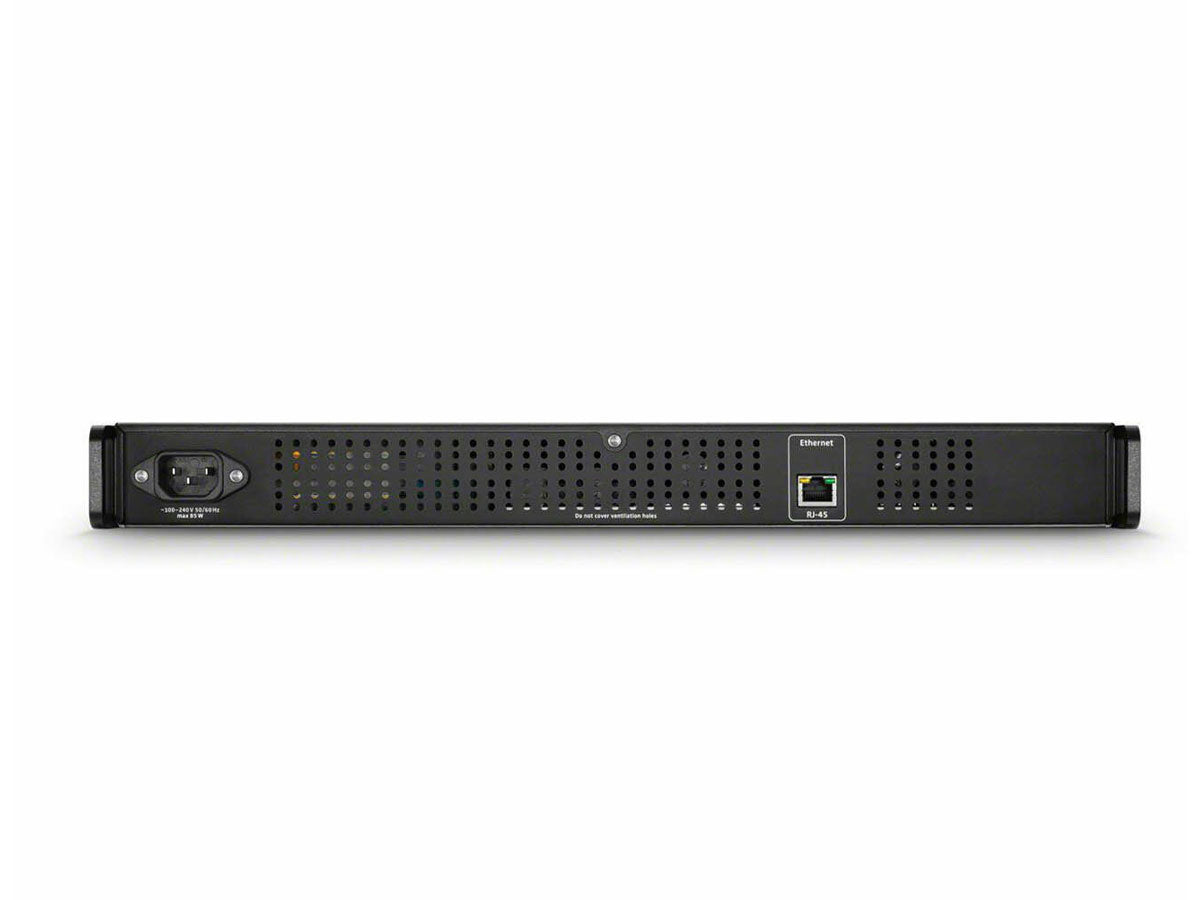

Network Protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Temperature Range: Charging: 0 - 50 °C
Ambient: -10 - 50 °C
Charging Voltage: 4.2 V
Power Plug: 3-pin, protection class I as per IEC/EN 60320-1
Average Discharge Current: 0.15 A
Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)
Dimensions: 44 x 483 x 373 mm
Weight: 5.1 kg
  • 1 L 6000
  • 1 Mains Cable (EU, UK or US plug)
  • 4 Dummy Cover incl. Screws
  • Quick Guide
  • Safety Guide
  • 2 Sticker
  • 4 Rubber Feet
