Sennheiser EW-DP ENG SET (S1-7)
Sennheiser EW-DP ENG SET (S1-7)
£789.00 GBP inc VAT
£789.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Building on Sennheiser’s extensive knowledge amassed from decades of wireless excellence, EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. Rounding out the award-winning Evolution Wireless Digital series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.
At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

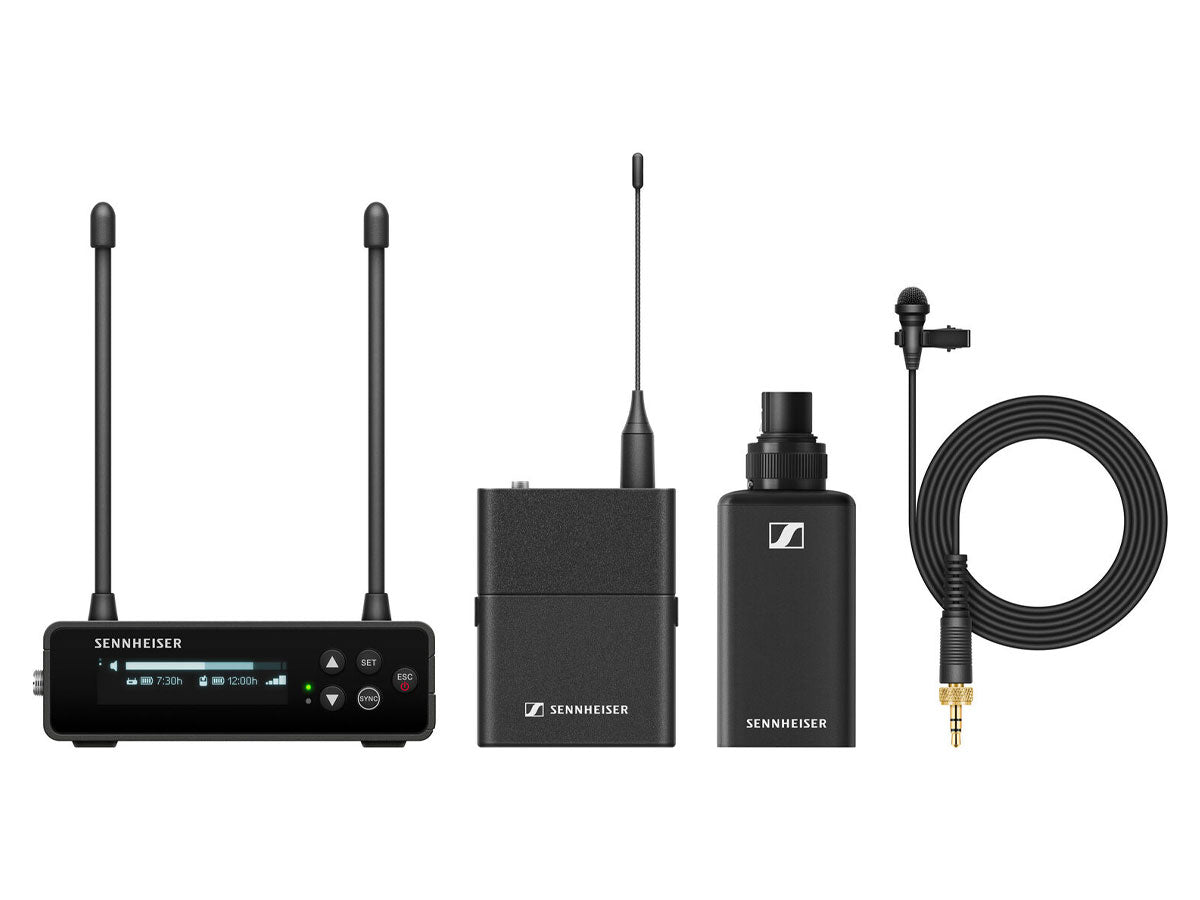

The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system. The SKP transmitter turns any wired microphone into a wireless option. Features include an XLR input with +48V phantom power, a 3.5 mm locking input, and a micro-SD card slot for 24-bit, 48 kHz on-board recording. From boom mics to handhelds and even lavaliers, this versatile tool acts as a problem solver when you need it most.
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB input dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
| SYSTEM | ||
| Audio Link Frequency Ranges: | Q1-6: | 470.2 - 526 MHz |
| R1-6: | 520 - 576 MHz | |
| R4-9: | 552 - 607.8 MHz | |
| S1-7: | 606.2 - 662 MHz | |
| S4-7: | 630 - 662 MHz | |
| S7-10: | 662 - 693.8 MHz | |
| U1/5: | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz | |
| V3-4: | 925.2 - 937.3 MHz | |
| Y1-3: | 1785.2 - 1799.8 MHz | |
| Bluetooth Low Energy (BLE) Frequency Range: | 2402 - 2480 MHz | |
| Audio Frequency Response: | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | |
| Audio THD: | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |
| Dynamic Range: | 134 dB | |
| System Latency: | 1.9 ms | |
| Operating Temperature: | -10°C - +55°C / 14°F - 131°F | |
| Relative Humidity: | 5 - 95 % (non-condensing) | |
| EW-DP EK | ||
| Input Voltage: | 1.8 - 4.35 V | |
| Input Current: | Typ. < 250 mA / Max. < 400mA (BA 70) Typ. < 400 mA / Max. < 750mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) | |
| Power Supply: | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA 9V / 900mA 12V / 700mA | |
| Transmit Power (Radiated): | BLE: max. 10 mW EIRP Audio output power < 2 dBV max. (high level) / < 4dBU max (high level) | |
| Headphone Output: | < 50 mW into 16 Ohms | |
| Dimensions: | 86 x 67 x 28 mm / 3.39" x 2.64" x 1.1" | |
| Weight (Without Antennas & Power Supply): | approx. 140g / 0.31 lbs | |
| EW-D SK (BODYPACK TRANSMITTER) | ||
| Input Voltage: | 2.0 - 4.35 V | |
| Input Current: | < 300 mA | |
| Power Supply: | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack | |
| Occupied Bandwidth: | 200 kHz | |
| Transmit Power (Radiated): | Audio link- 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP | |
| Dimensions (Without Antenna): | 63 x 80 x 20 mm / 2.48" x 3.15" x 0.79" | |
| Weight (Without Batteries): | 120 g / 0.26 lbs | |
| ME 2 (LAVALIER MICROPHONE) | ||
| Transducer Principle: | Pre-polarized condenser microphone | |
| Pick-Up Pattern: | Omni-directional | |
| Sensitivity (Free Field, No Load) (1 kHz): | 17 mV/Pa | |
| Max. SPL at 1kHz: | 130 dB | |
| Frequency Response: | 50 to 18,000 Hz | |
| Equivalent Noise Level (A-Weighted): | 32 dB | |
| Connector: | 3.5 mm jack | |
| Cable Length: | approx. 1.60 m / 62.99" | |
| Supply Voltage: | 7.5 V | |

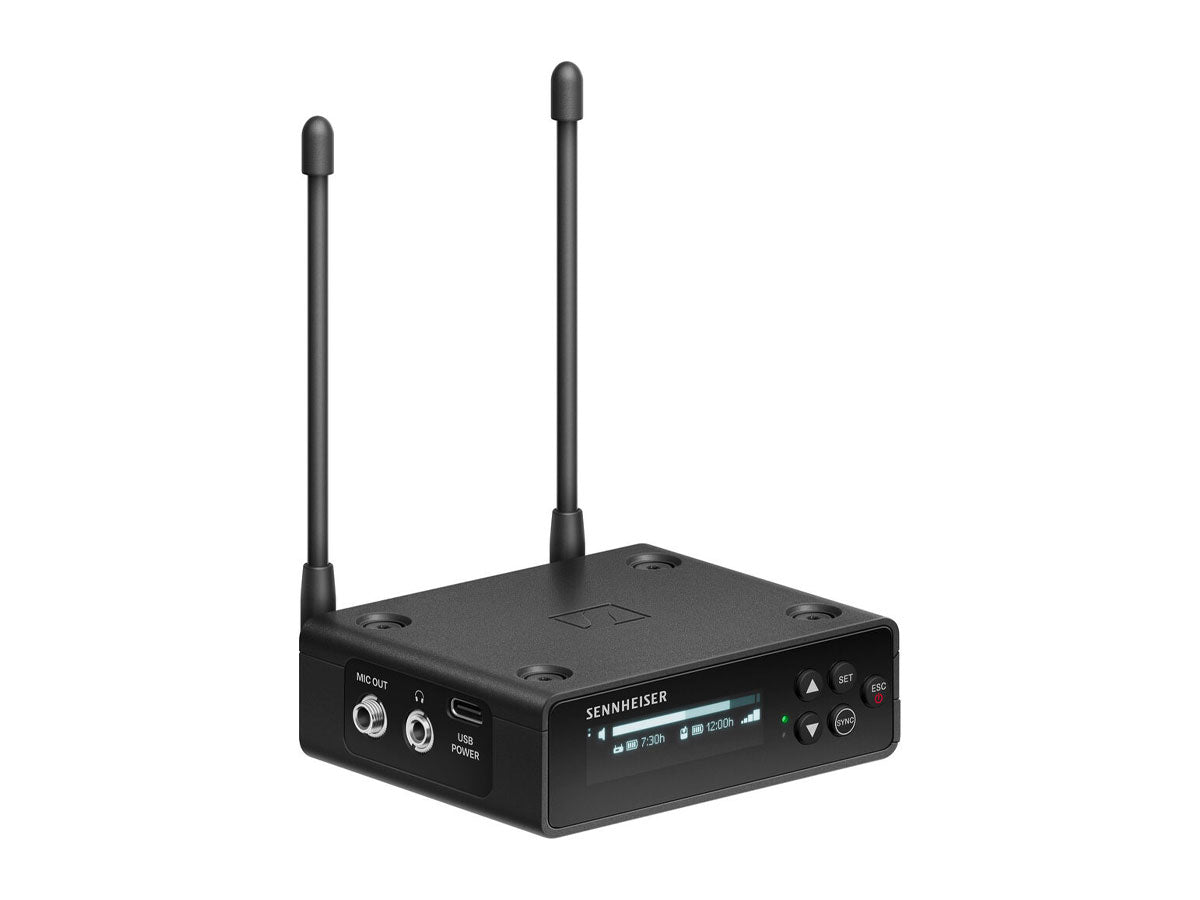

- 1x EW-DP EK digital portable single channel receiver

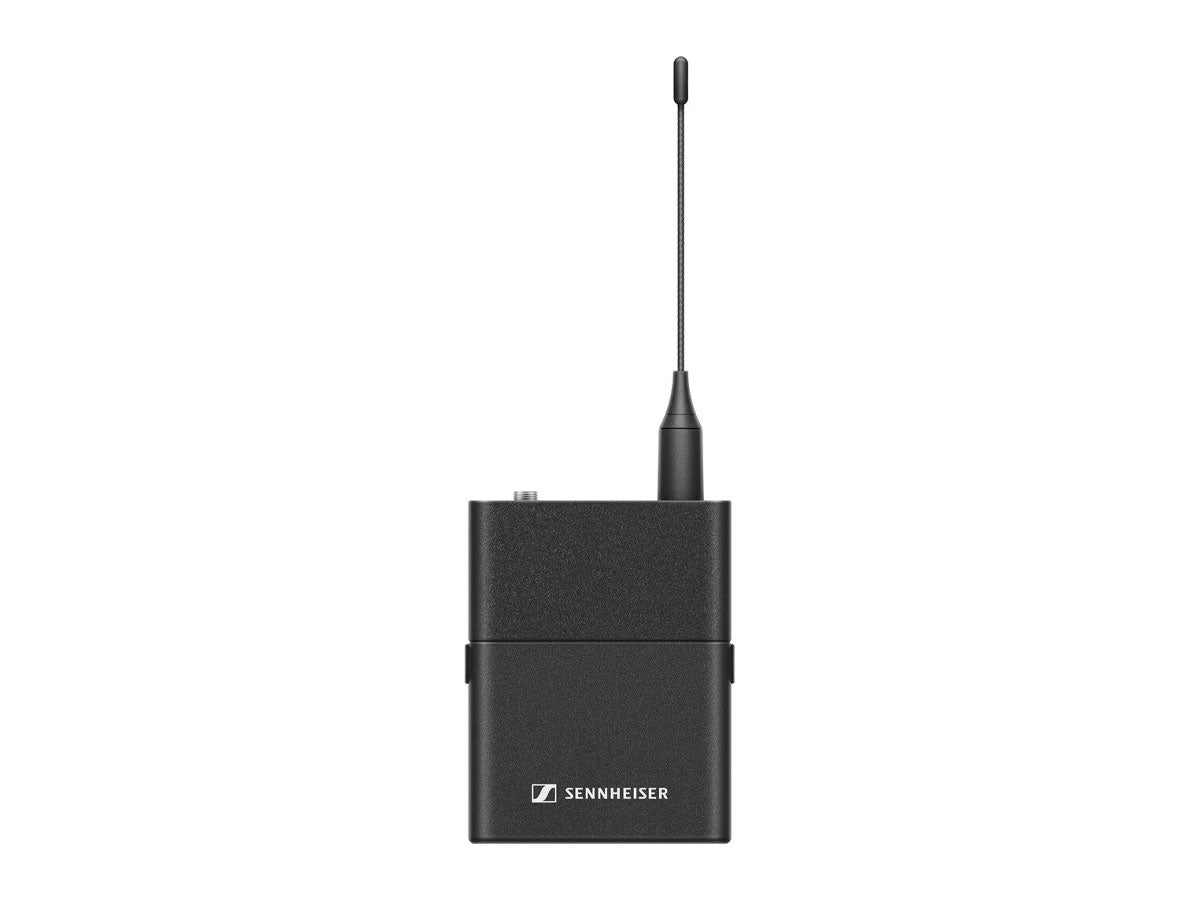

- 1x EW-D SK digital bodypack transmitter

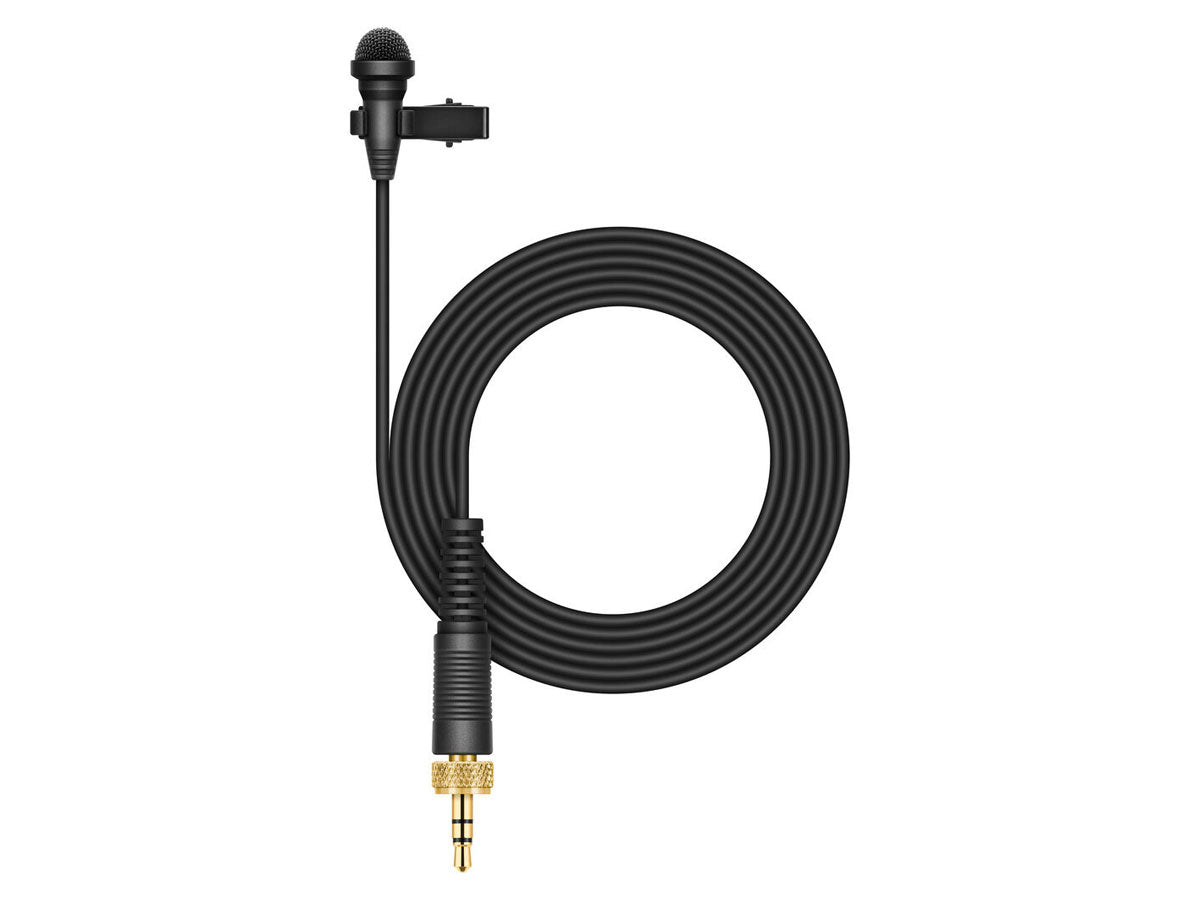

- 1x ME 2 omnidirectional lavalier microphone

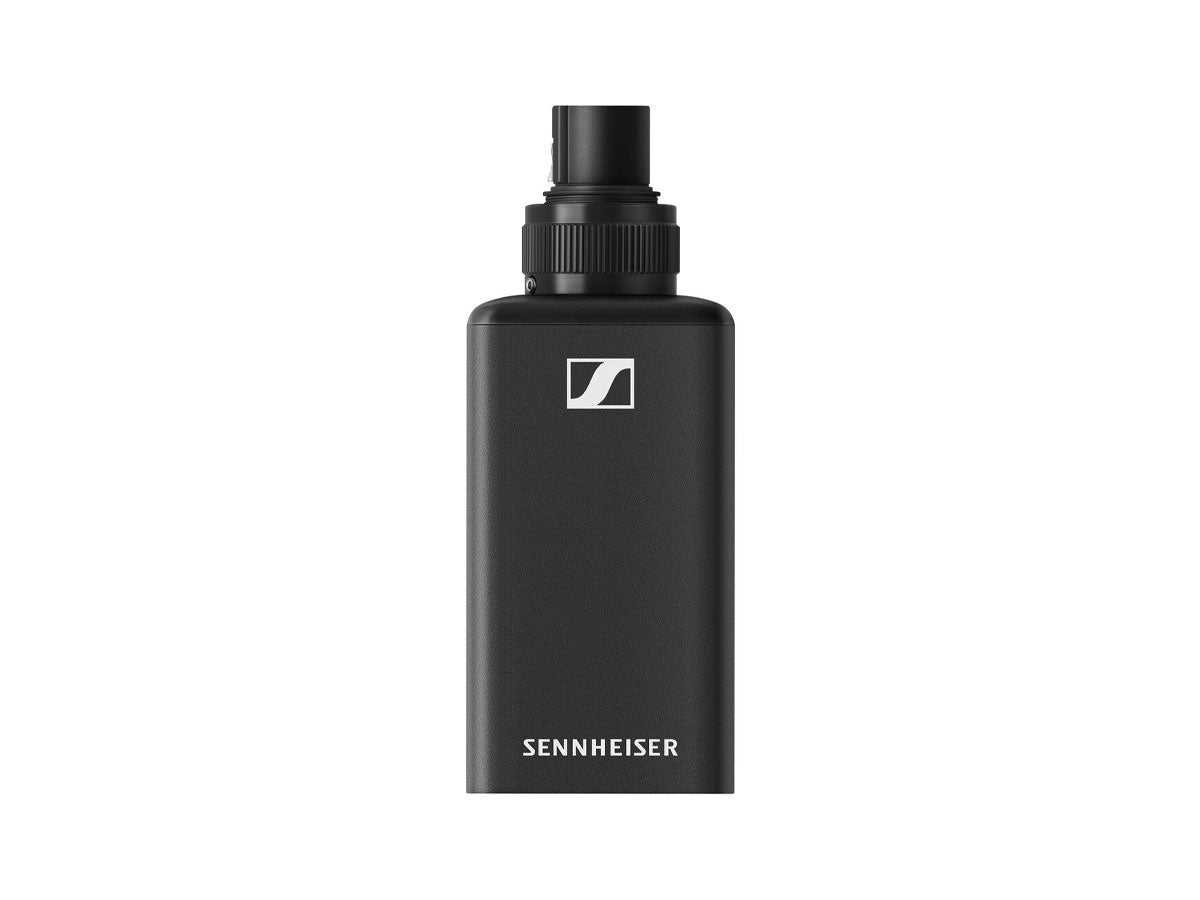

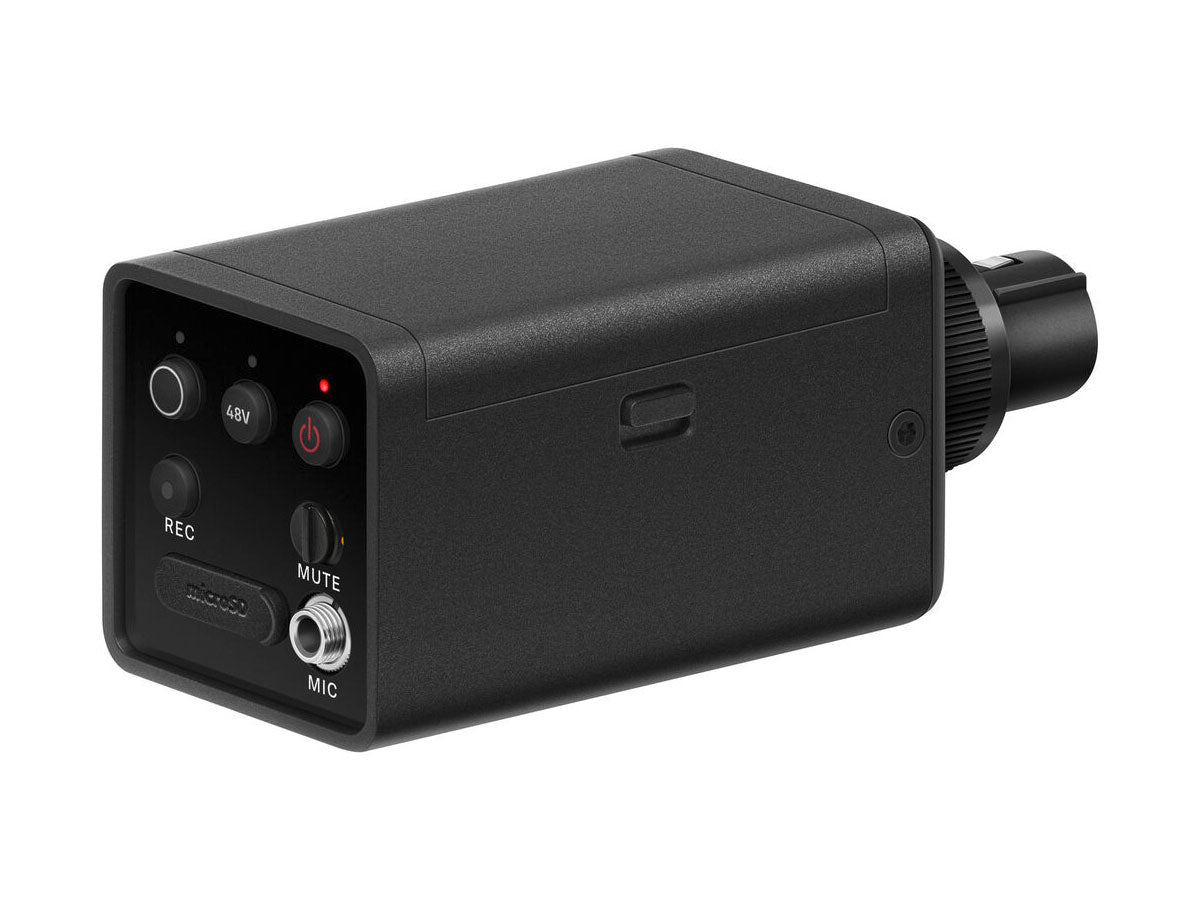

- 1x EW-DP SKP digital plug-on transmitter

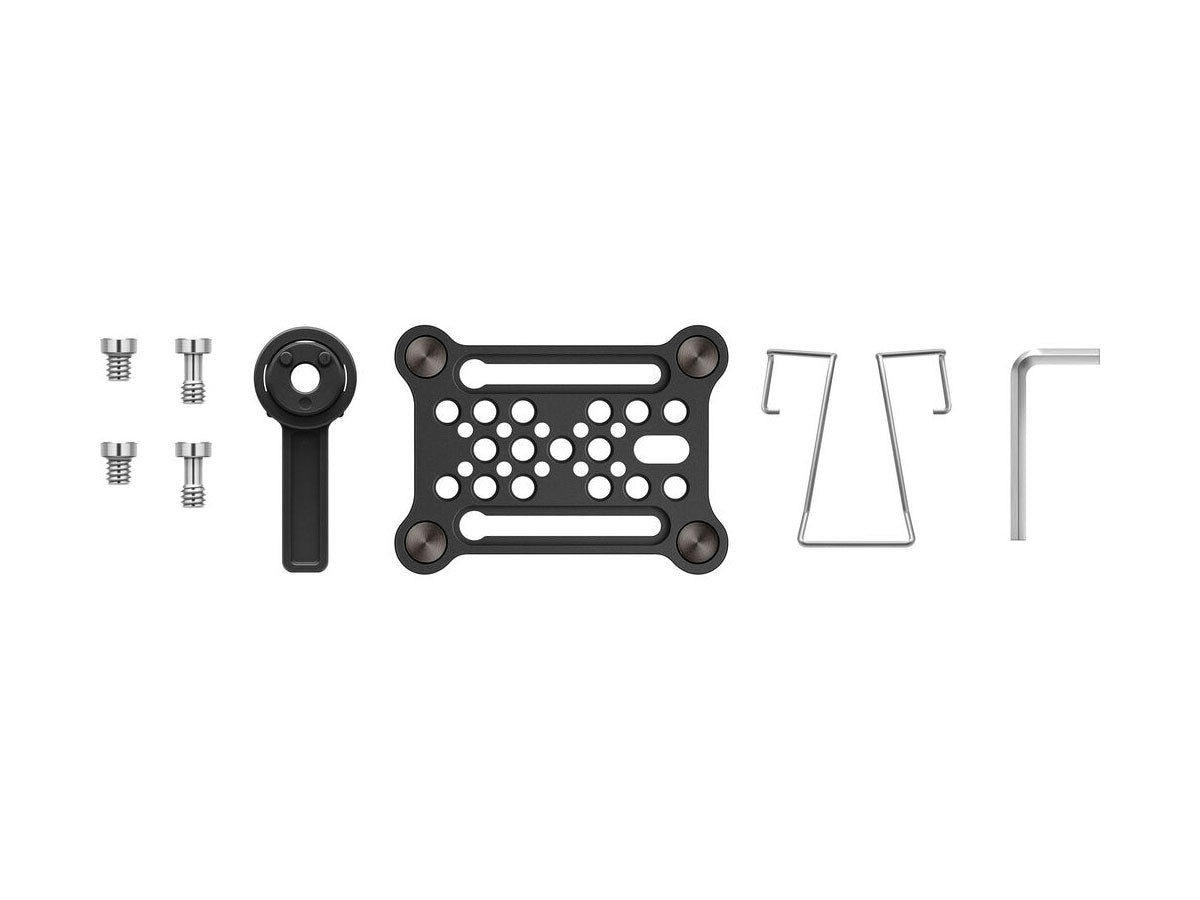

- 1x Mounting kit (cheese plate, cold shoe, belt clip & screws)

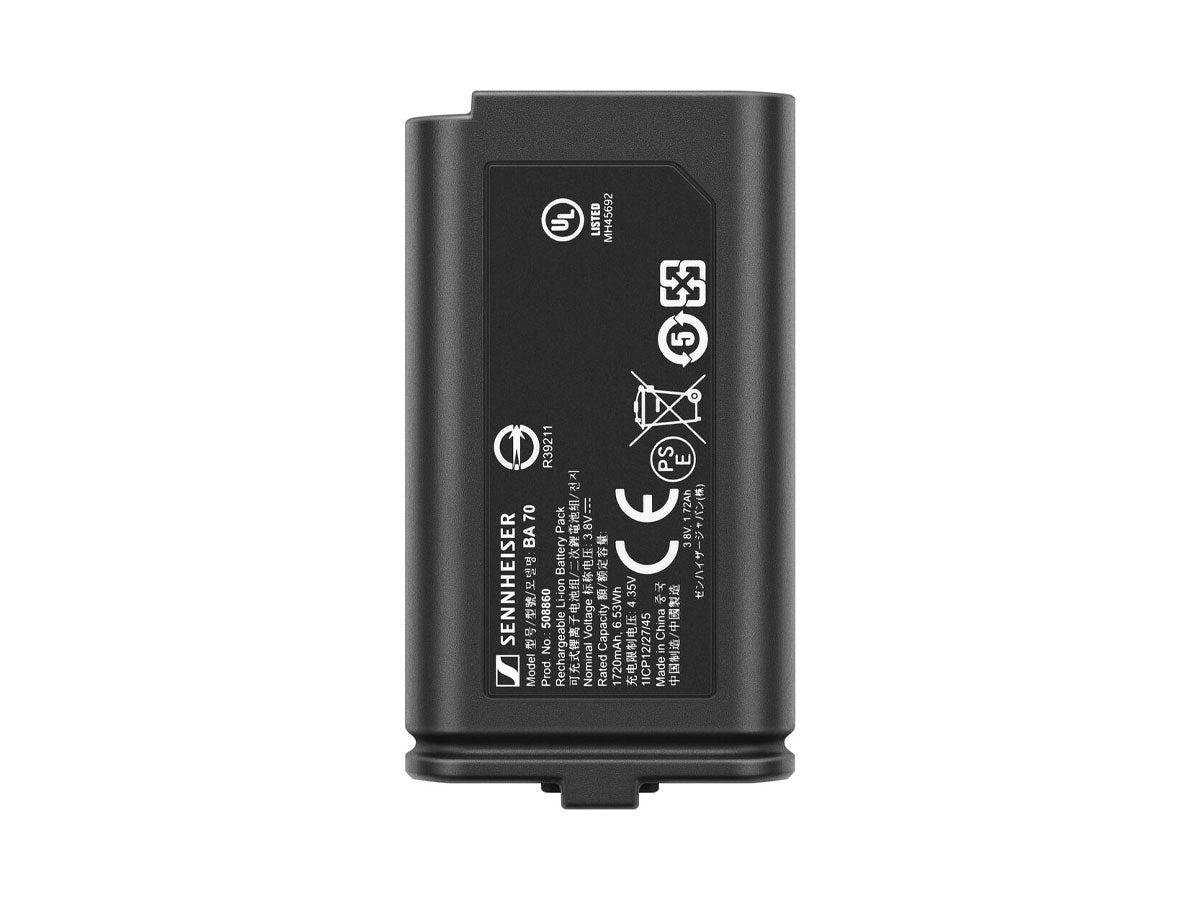

- 1x BA 70 li-ion battery & (2) AA battery

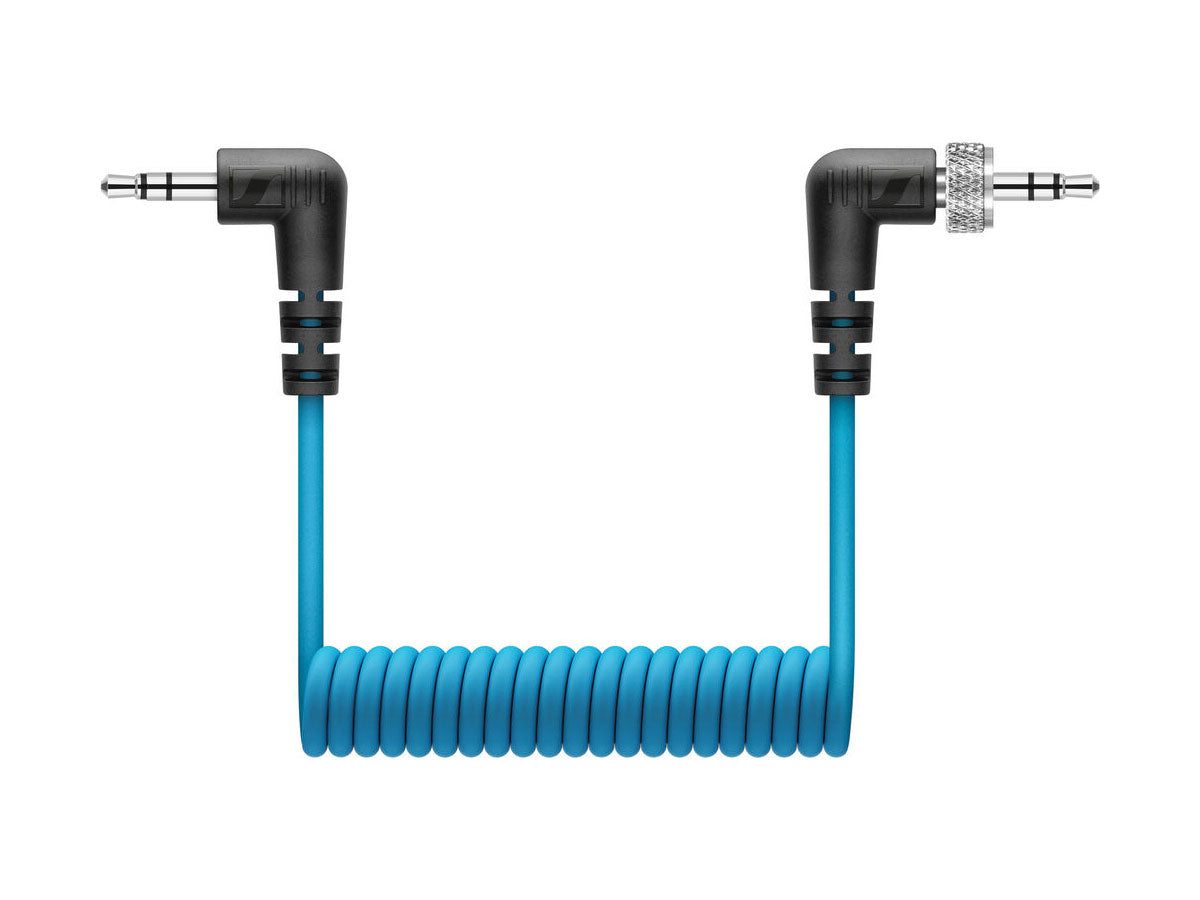

- 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable

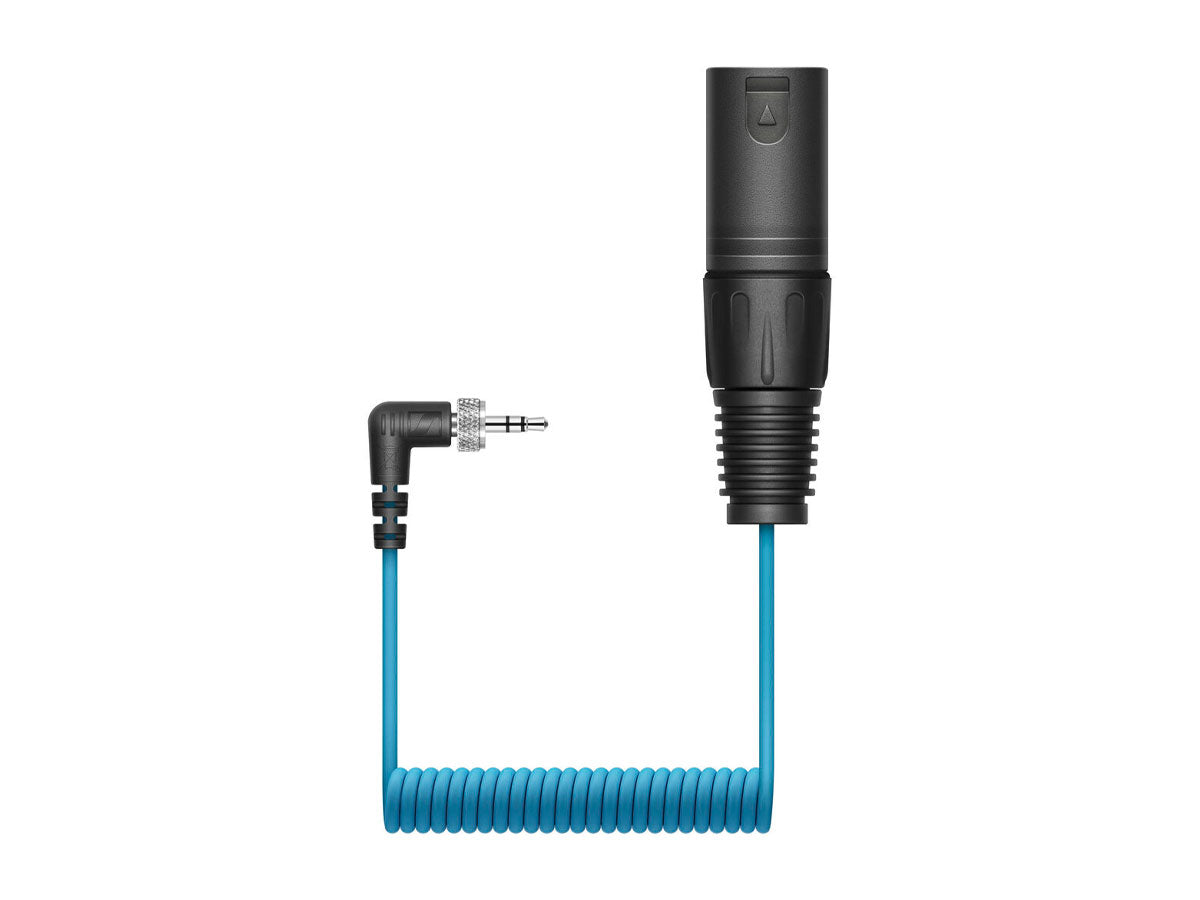

- 1x Locking 3.5 mm TRS plug to XLR plug cable

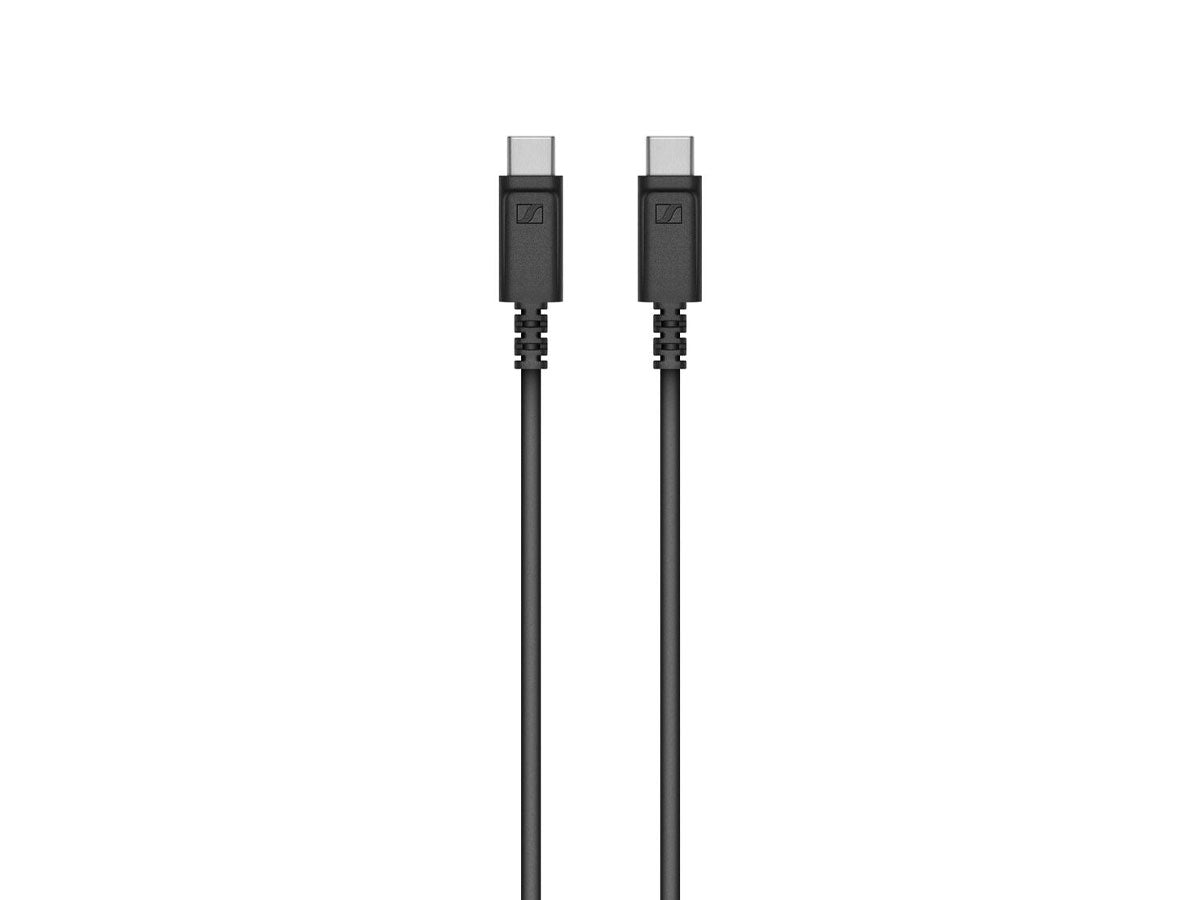

- 1x USB-C charging cable
