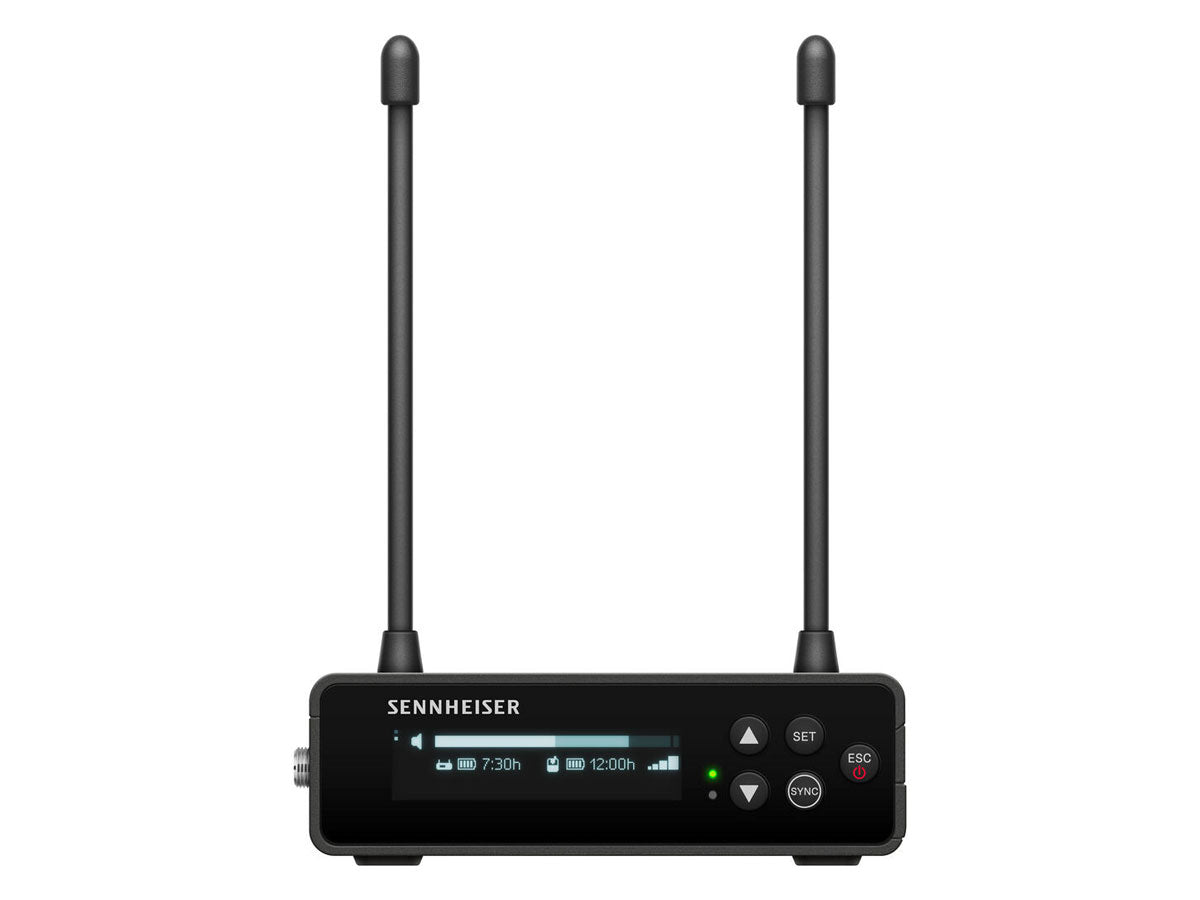

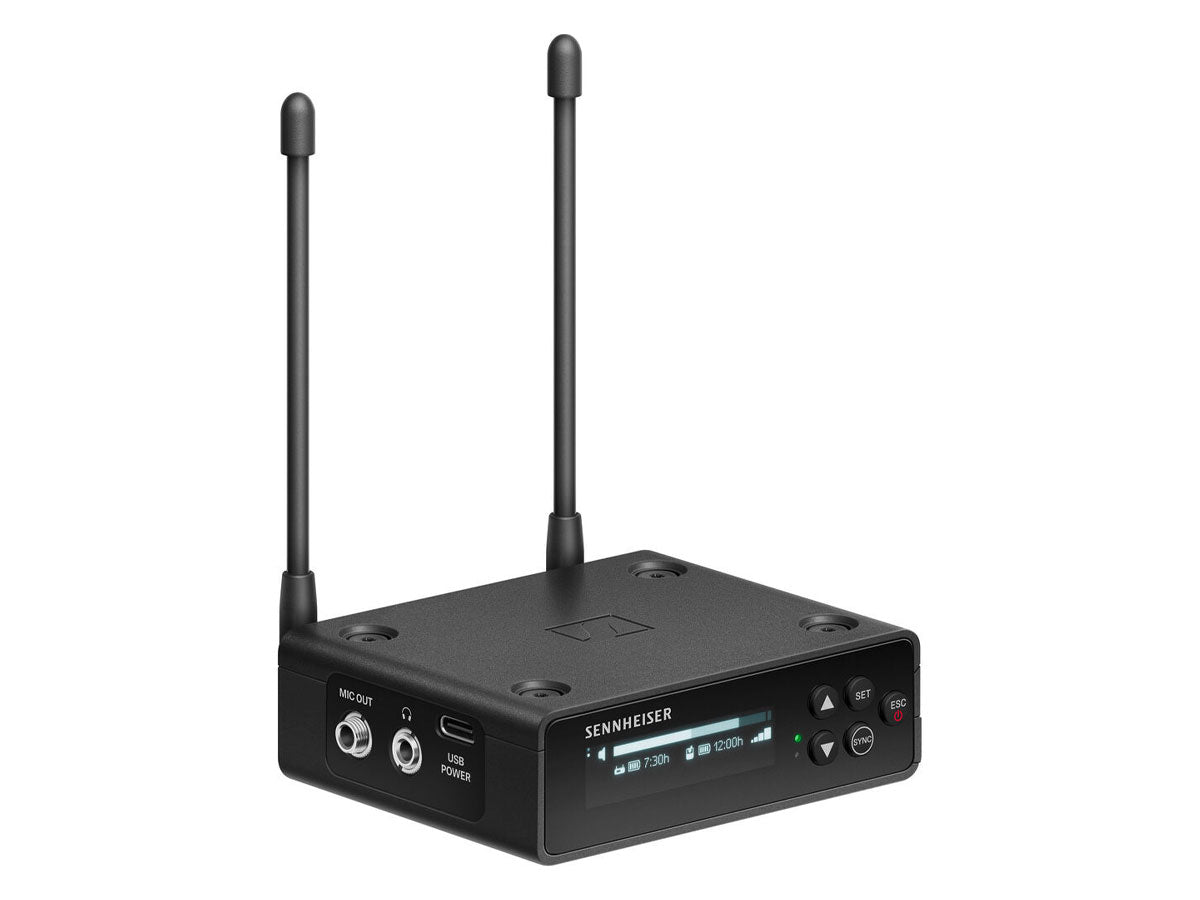

Sennheiser EW-DP EK Portable Receiver (S1-7)
Sennheiser EW-DP EK Portable Receiver (S1-7)
SKU:
SEN-700053
Regular price
£257.50 GBP ex VAT
£309.00 GBP inc VAT
£309.00 GBP inc VAT
Regular price
ex VAT
Sale price
£257.50 GBP ex VAT
£309.00 GBP inc VAT
Unit price
per
£309.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Portable digital UHF receiver for use with EW-D SK bodypack, EW-D SKM-S handheld, or EW-DP SKP plug-on transmitters.
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB input dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
| SYSTEM | ||
| Audio Link Frequency Ranges: | Q1-6: | 470.2 - 526 MHz |
| R1-6: | 520 - 576 MHz | |
| R4-9: | 552 - 607.8 MHz | |
| S1-7: | 606.2 - 662 MHz | |
| S4-7: | 630 - 662 MHz | |
| S7-10: | 662 - 693.8 MHz | |
| U1/5: | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz | |
| V3-4: | 925.2 - 937.3 MHz | |
| Y1-3: | 1785.2 - 1799.8 MHz | |
| Bluetooth Low Energy (BLE) Frequency Range: | 2402 - 2480 MHz | |
| Audio Frequency Response: | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | |
| Audio THD: | ≤ -60 dB for 1 kHz @ -3 dBfs input level | |
| Dynamic Range: | 134 dB | |
| System Latency: | 1.9 ms | |
| Operating Temperature: | -10°C - +55°C / 14°F - 131°F | |
| Relative Humidity: | 5 - 95 % (non-condensing) | |
| EW-DP EK | ||
| Input Voltage: | ~ 1.8 - 4.35 V | |
| Input Current: | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) | |
| Power Supply: | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA 9V / 900mA 12V / 700mA | |
| Transmit Power (Radiated): | BLE: max. 10 mW EIRP | |
| Audio Output Power: | < 2 dBV max. (high level) / < 4dBU max (high level) | |
| Headphone Output: | < 50 mW into 16 Ohms | |
| Dimensions: | 86 x 67 x 28 mm (3.39" x 2.64" x 1.1") | |
- 1x EW-DP EK digital portable single channel receiver
- 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)
- 1x BA 70 li-ion battery & (2) AA battery
- 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- 1x Locking 3.5 mm TRS plug to XLR plug cable
- 1x USB-C charging cable
