Sennheiser EW-DP 835 SET (S1-7)

Sennheiser EW-DP 835 SET (S1-7)

SKU: SEN-700033
Regular price £515.83 GBP ex VAT
£619.00 GBP inc VAT
Regular price ex VAT Sale price £515.83 GBP ex VAT
£619.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

Building on Sennheiser’s extensive knowledge amassed from decades of wireless excellence, EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. Rounding out the award-winning Evolution Wireless Digital series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.

At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.

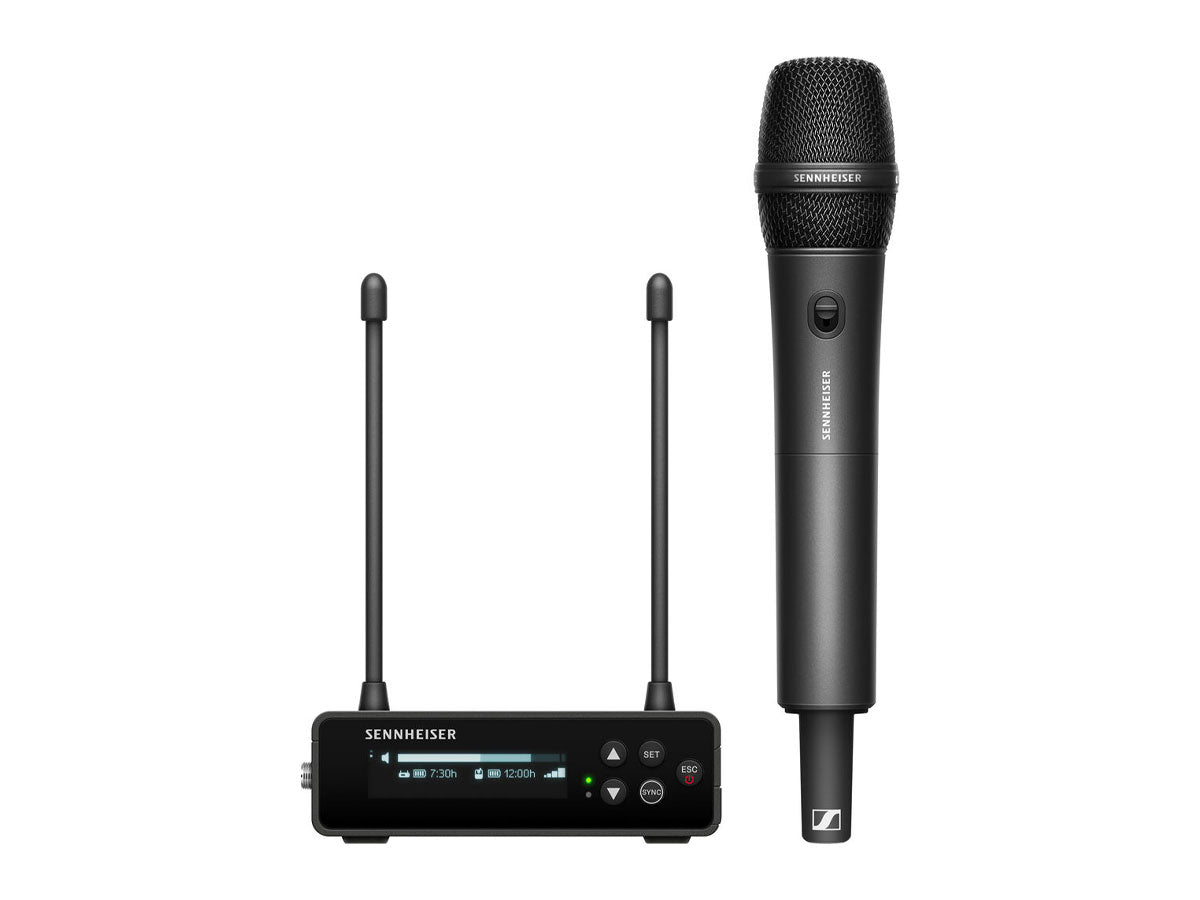

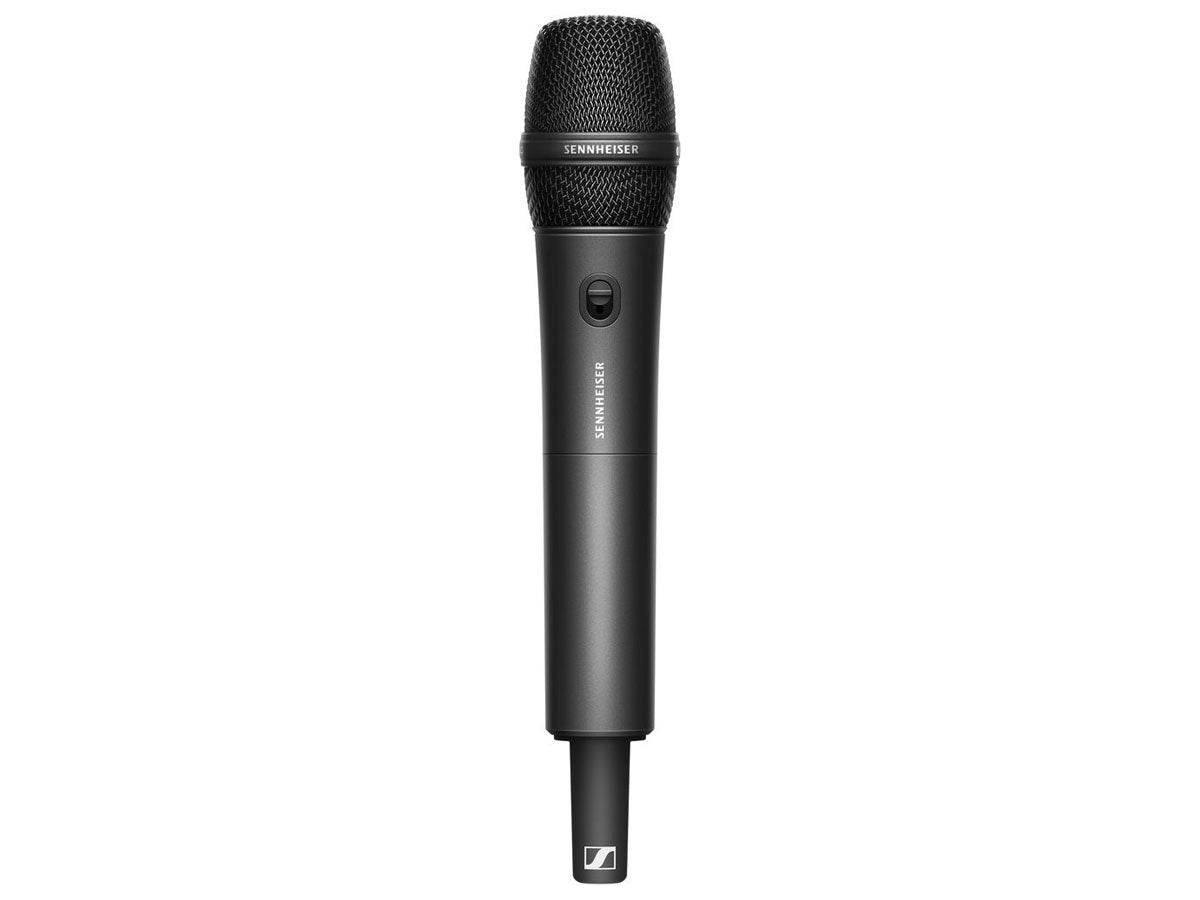

The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments. An integrated mute switch gives the talent control, but can also be overridden via the receiver or Smart Assist app. The SKM-S handheld transmitter is compatible with all Sennheiser microphone modules, enabling you the flexibility to change pick-up patterns based on your application.

Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges; sound doesn’t need to be one of them.

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
  • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
SYSTEM
Audio Link Frequency Ranges: Q1-6: 470.2 - 526 MHz
R1-6: 520 - 576 MHz
R4-9: 552 - 607.8 MHz
S1-7: 606.2 - 662 MHz
S4-7: 630 - 662 MHz
S7-10: 662 - 693.8 MHz
U1/5: 662 - 693.8 MHz & 823.2 - 831.8 MHz
V3-4: 925.2 - 937.3 MHz
Y1-3: 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) - @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic Range: 134 dB
System Latency: 1.9 ms
Operating Temperature: -10°C - +55°C (14°F - 131°F)
Relative Humidity: 5 - 95 % (non-condensing)
EW-DP EK
Input Voltage: ~ 1.8 - 4.35 V
Input Current: Typ. < 250 mA / Max. < 400 A (BA 70)
Typ. < 400 mA / Max. < 750mA (2x AA batteries)
< 300 mA@5 V (USB-C standalone)
Power Supply: 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
5V / 1500mA
9V / 900mA
12V / 700mA
Transmit Power (Radiated): BLE: max. 10 mW EIRP
Audio Output Power: < 2 dBV max. (high level) / < 4dBU max (high level)
Headphone Output: < 50 mW into 16 Ohms
Dimensions: 86 x 67 x 28 mm / 3.39" x 2.64" x 1.1"
Weight (Without Antennas and Power Supply): approx. 140g / 0.31 lbs
EW-D SKM-S (HANDHELD TRANSMITTER)
Input Voltage: 2.0 - 4.35 V
Input Current: < 300 mA
Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied Bandwidth: 200 kHz
Transmit Power (Radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (ø x l): 50 x 268 mm / 1.97" x 10.55"
Weight: approx. 304 g / 0.67 lbs
MMD 835 (MICROPHONE MODULE)
Transducer Principle: Dynamic
Sensitivity: 2.1 mV/Pa
Sound Pressure Level: 154 dB SPL
Pick-Up Pattern: Cardioid

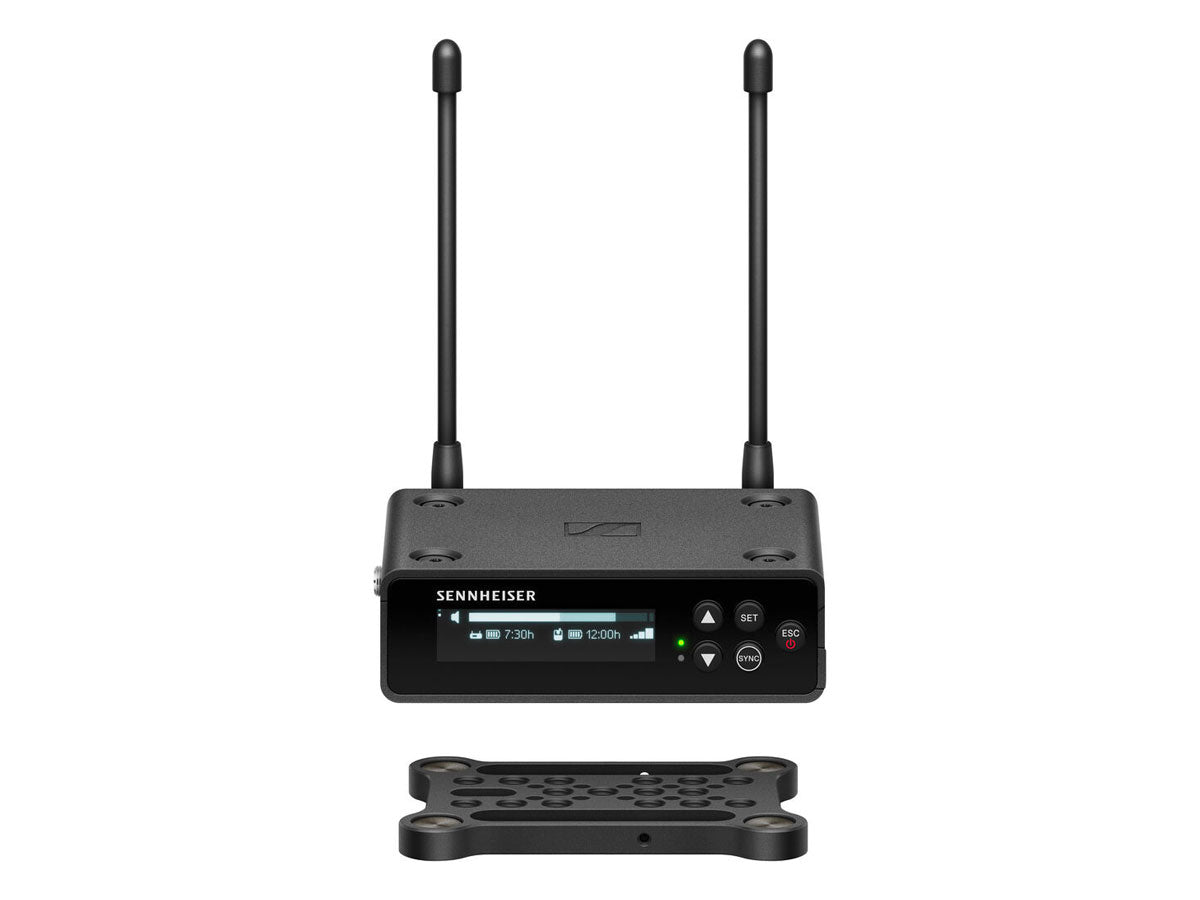

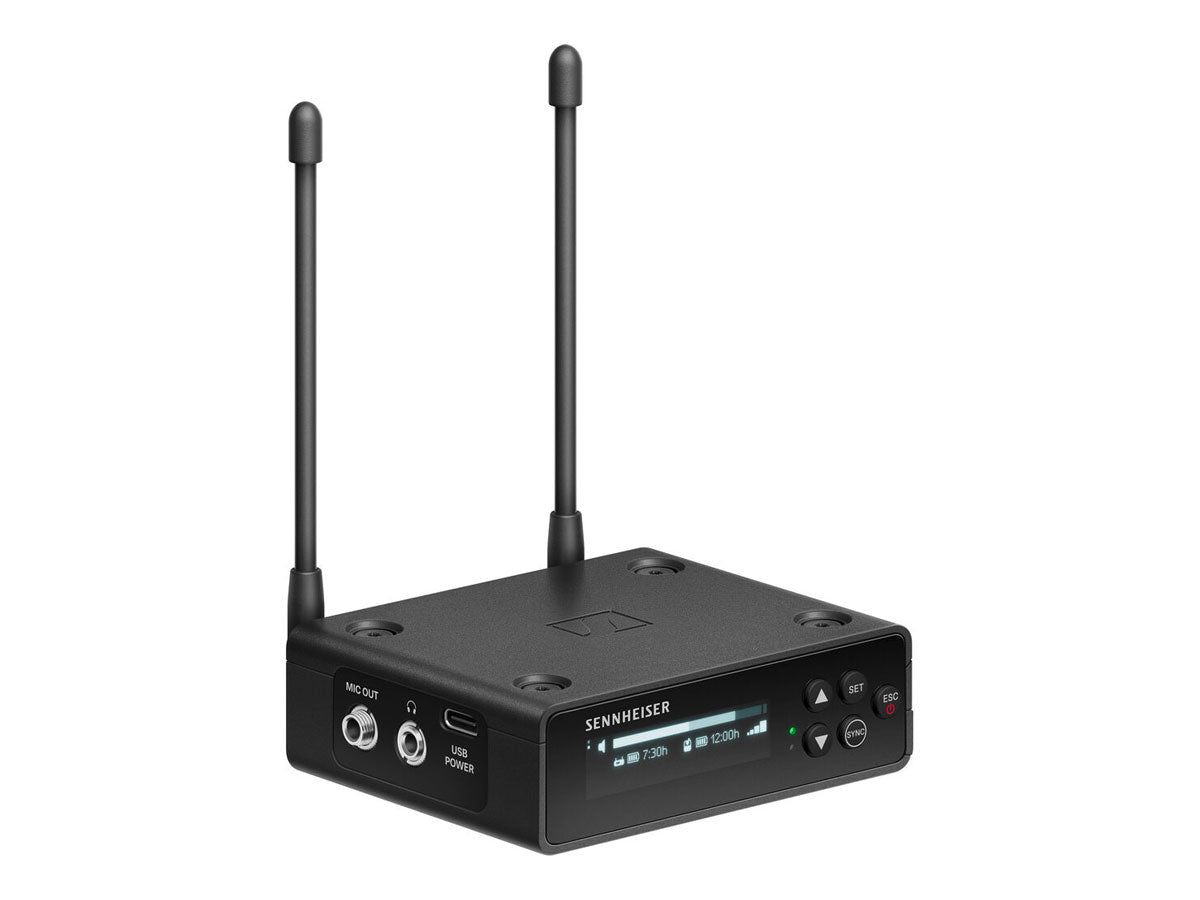

  • 1x EW-DP EK digital portable single channel receiver
  • 1x EW-D SKM-S digital handheld transmitter
  • 1x MMD 835 dynamic cardioid microphone module

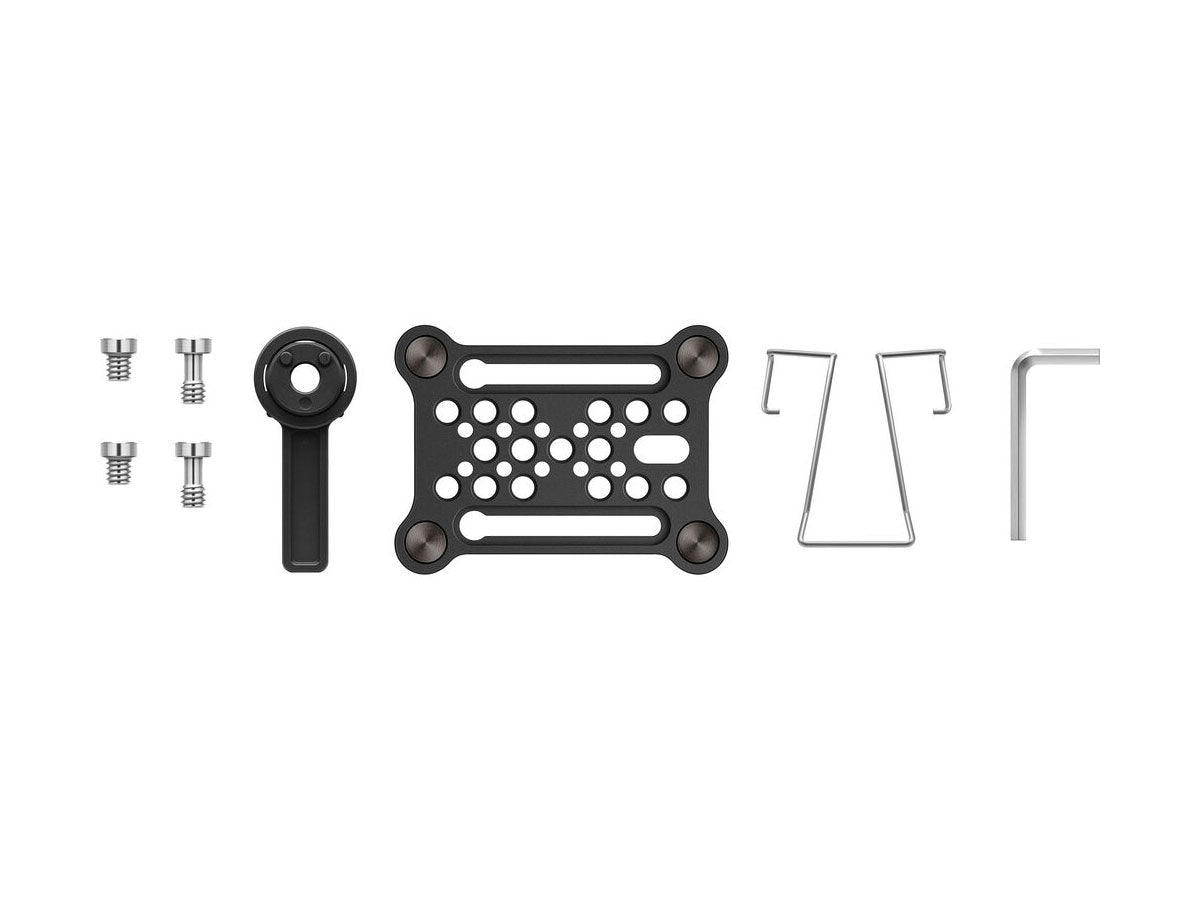

  • 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)

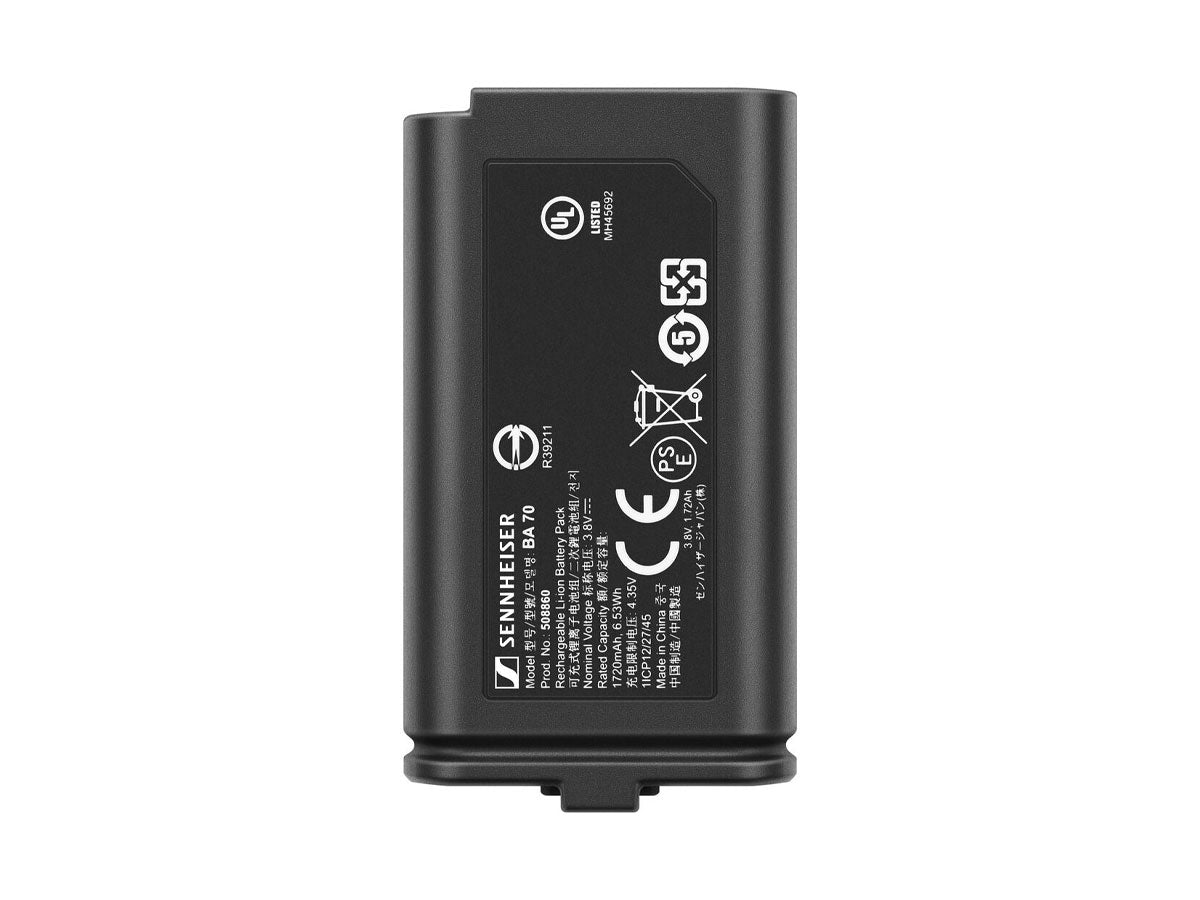

  • 1x BA 70 li-ion battery & (2) AA battery

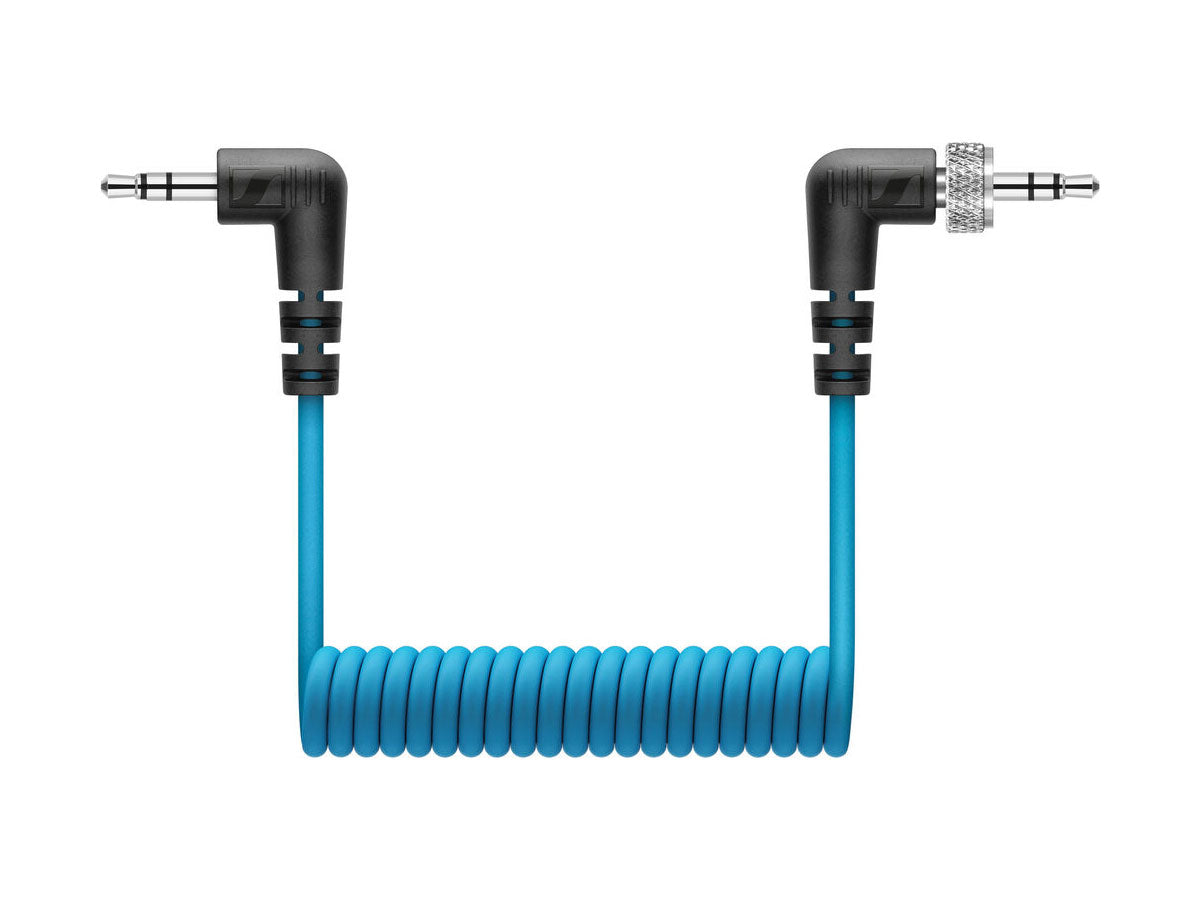

  • 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable

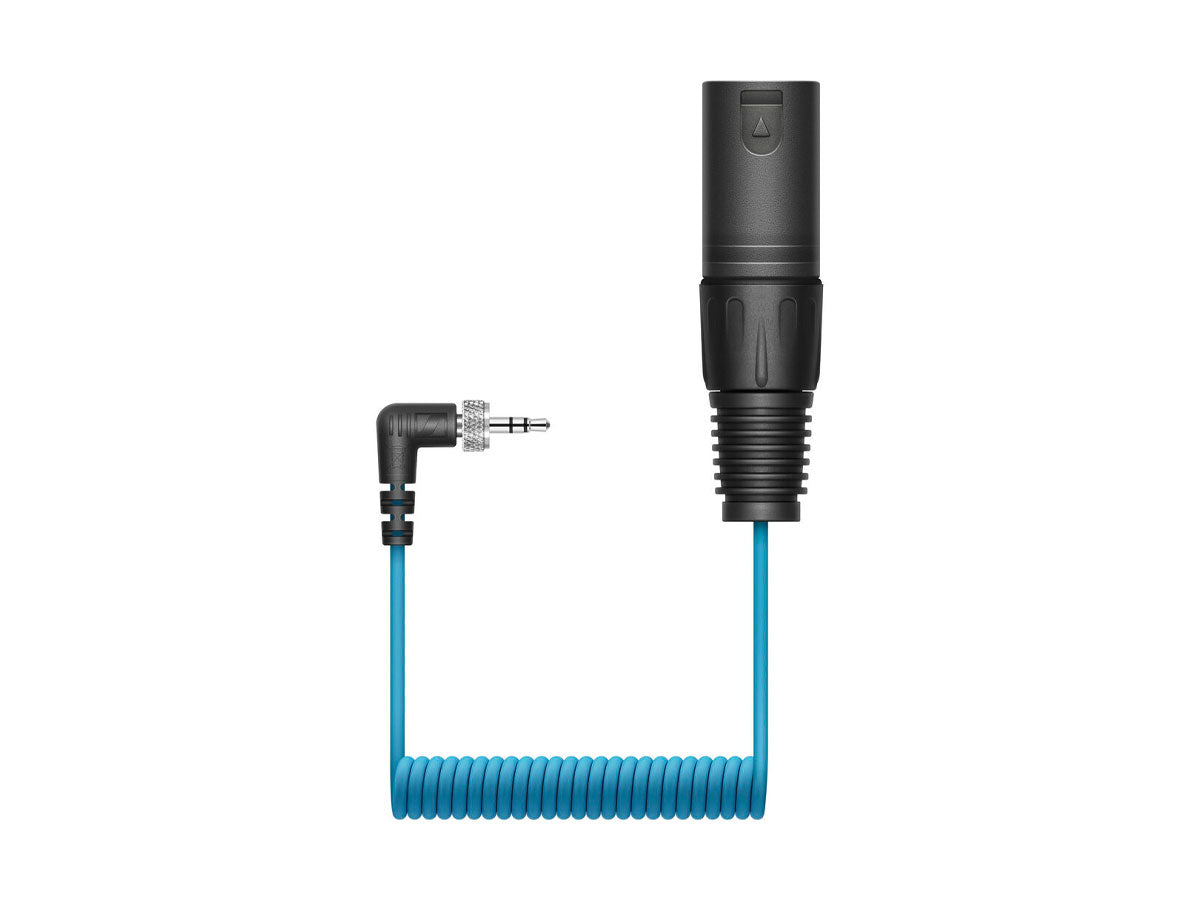

  • 1x Locking 3.5 mm TRS plug to XLR plug cable

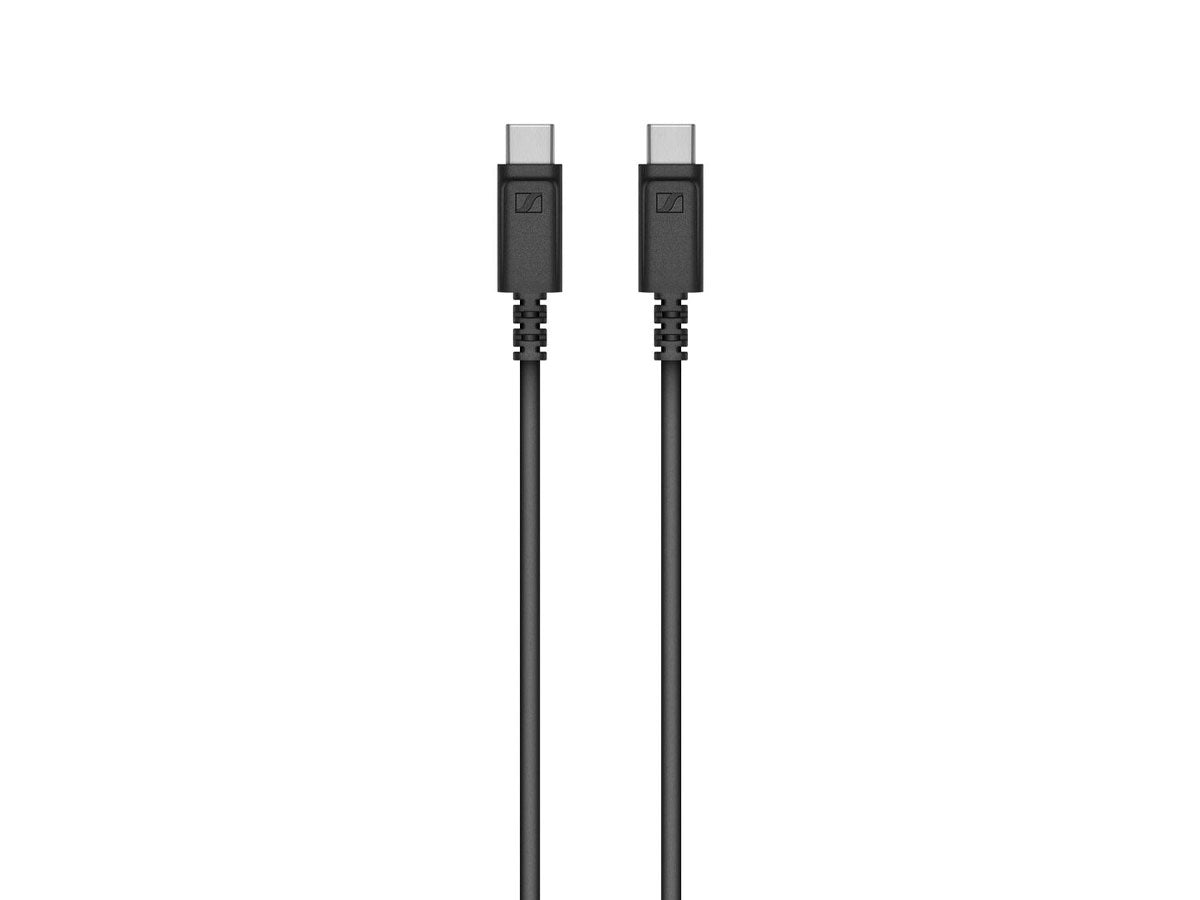

  • 1x USB-C charging cable
