Sennheiser EM 300-500 G4-GBW (EM300500G4GBW) Rackmount G4 True Diversity Receiver - 606-678MHz
Sennheiser EM 300-500 G4-GBW (EM300500G4GBW) Rackmount G4 True Diversity Receiver - 606-678MHz
£479.00 GBP inc VAT
£479.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

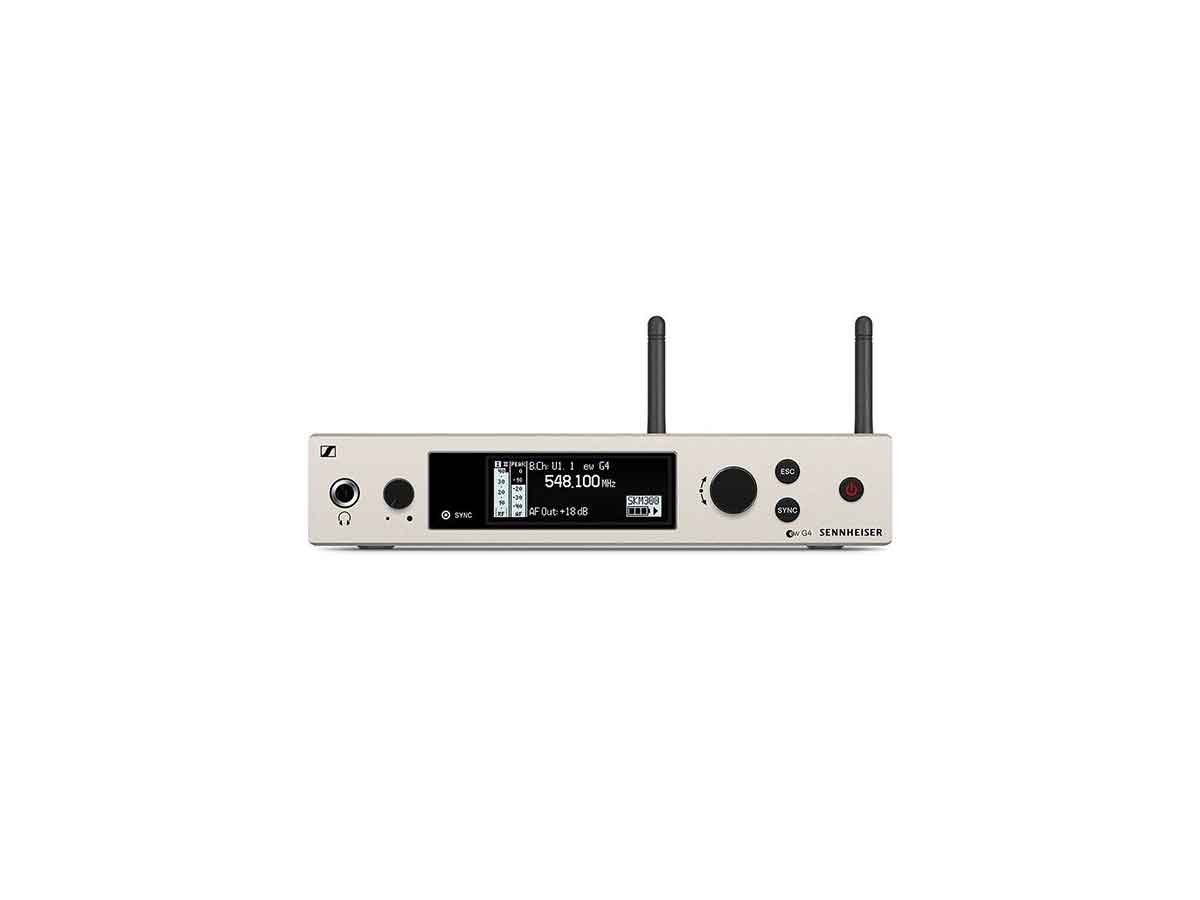

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.
With up to 88 MHz bandwidth, up to 32 channels, and an increased RF output power and transmission range of up to 100 metres, the G4 300 series is compatible with a broad range of products and existing accessories (such as microphones) which allows usage in any kind of environment. It is extremely compatible with the LSP 500 PRO. It is also comes equip with an integrated network port allowing control, monitoring and setup via Sennheiser Control Cockpit and WSM Software.
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
| Frequency Range | 606-678MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD (Total Harmonic Distortion) | ≤ 0.9 % |
| Weight | Approx. 980 g |
| Audio Output | 6.3 mm jack socket (unbalanced): +12 dBu |
| XLR socket (balanced): +18 dBu | |
| Signal-to-noise Ratio | ≥ 115 dBA |
| Switching Bandwidth | up to 88 MHz |
| Peak Deviation | ±48 kHz |
| Nominal Deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power Supply | 12 V DC |
| Antenna Connector | 2 BNC sockets |
| Current Consumption | 350 mA |
| Adjacent Channel Rejection | Typically ≥ 75 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Receiving Frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, |
| each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels | |
| RF Sensitivity | < 2.5 μV for 52 dBA eff S/N |
| Squelch | 5 to 25 dBμV in steps of 2 dB |
| Equaliser | Preset 1: Flat |
| Preset 2: Low Cut (-3 dB at 180 Hz) | |
| Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) | |
| Preset 4: High Boost (+6 dB at 10 kHz) | |
| Temperature Range | -10 °C to +55 °C |
| Receiver Principle | True diversity |
| Blocking | ≥ 75 dB |
- 1x EM 300-500 G4 true diversity receiver
- 2x rod antennas
- 1x power supply
- 1x GA 3 rackmount set
- 1x quick guide
- 1x safety guide
- 1x manufacturer declaration sheet
