Sennheiser EK 6042 Dual Channel Receiver
Sennheiser EK 6042 Dual Channel Receiver
£3,335.00 GBP inc VAT
£3,335.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

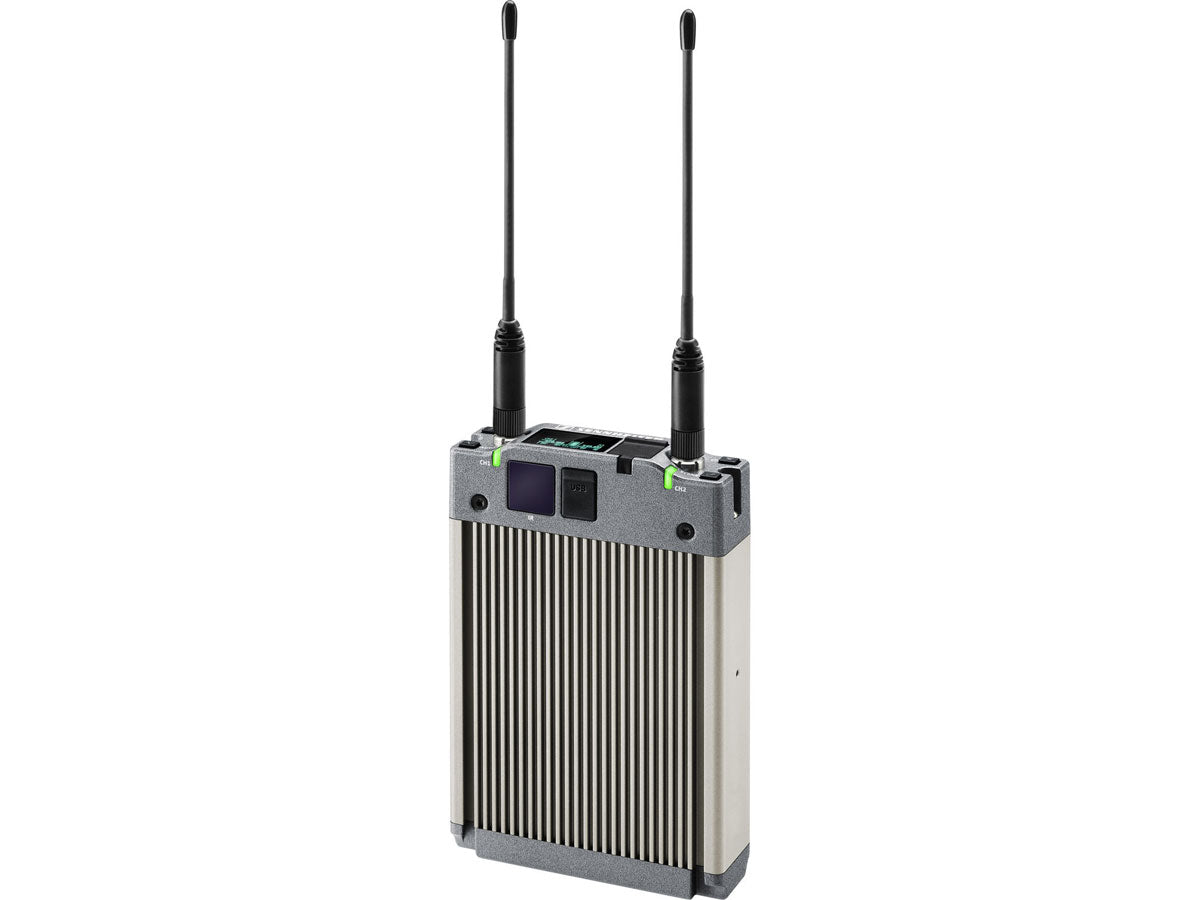

The EK 6042 is a true diversity two channel receiver. It is designed to fit into all standard receiver slots on cameras.
Its highly compatible to a wide range of Sennheiser wireless microphones, be it analog or digital and can connect to virtually every Sennheiser wireless system including G3, 2000 series, 3000/5000 series and digital 9000. With the built-in web server, setup is easily managed using any browser including imports and exports of the entire configuration.
The EK 6042 is SuperSlot compatible and works seamlessly with your existing equipment. Same for ARRI, Panasonic and Sony.
The optional accessories like backpanel adapter and battery pack makes it possible to use the EK 6042 stand alone as well.The automatic configuration makes it possible to set up any microphone in less than 5 seconds.
A broadcast masterpiece
Sennheiser’s best performing analogue and digital receiver systems in one compact pack. The EK6042 two-channel camera receiver handles analogue and digital transmitters simultaneously.
The all-new Sennheiser EK 6042.
The new software update version 1.5 for Sennheiser’s EK 6042 camera receiver will improve functionality based on end user feedback. With this new update, users will be able to:
- disable the screensaver
- benefit from an enhanced warning message behavior
- enable / disable the operating LEDs to limit distraction
- 2 channel true diversity receiver
- 184 MHz switching bandwidth
- HDX, HiDyn+ AND Digital 9000 compatible
- Camera adapters for Sony and Panasonic (Unislot)
- SuperSlot compatible
- Optional backpanel adapter & batterypack (Hot swappable)
- Auto configuration & scene setup
| Frequency response | 40 to 20,000 Hz (+/- 3.0 dB) |
| THD, total harmonic distortion | typ. 0.03% (digital modulation) / typ 0.2% (wideband FM) |
| Audio output | 5-pin mini-XLR-M, balanced / MAIN 1 and 2, digital: 0 dBFs, AES3, 48 kHz, 24 bit / MAIN1 and 2, analogue: |
| -22 dBu to +8 dB (adjustable) / AUX 1 and 2, analogue -22 dBu to +8 dBu (adjustable) | |
| Switching bandwidth | 184 MHz, in steps of 5 kHz |
| Adjacent channel rejection | typ. 70 dB |
| Diversity reception | true diversity (2 x 2 receivers) |
| Frequency range | 470 to 654 MHz |
| Sensitivity | < -90 dBm (digital modulation) / < -94 dBm (wideband FM) @ 52dB audio SNR |
| Latency | 3.0 ms (AES3, digital modulation) / 1.5 ms (AES3, wideband FM) |
- 1x EK6042
- 2x Antenna
- 1x USB Cable
- 1x Manual
